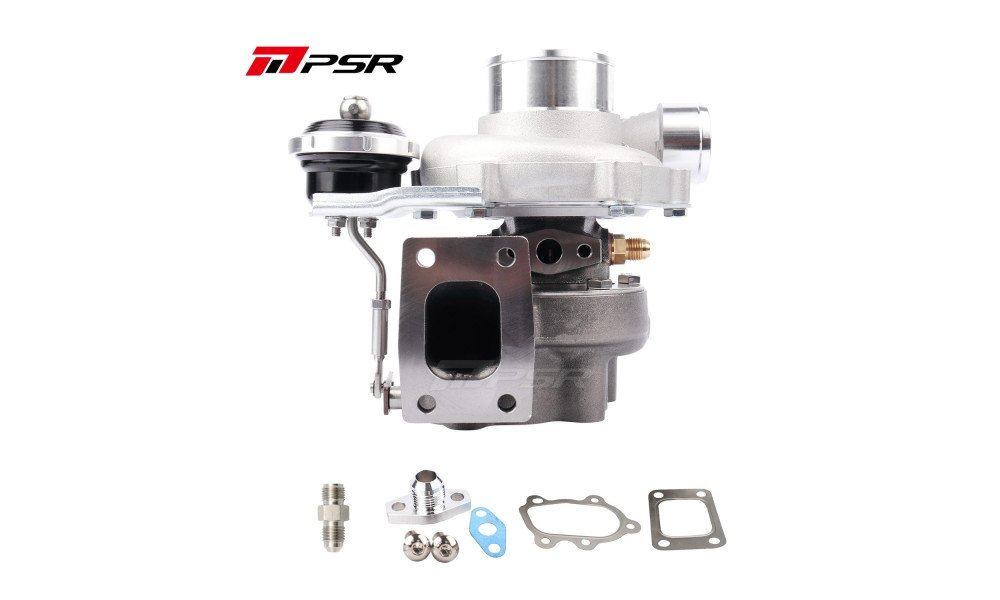

PSR2867 Gen2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for enhanced spool and durability
• 8-Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 9-Blade Turbine Wheel for high-temperature reliability
• Gen2 Compressor Cover integrated with Speed Sensor Port
• Includes V-Band Flange kit(s) for the exhaust housing
• Max Air Flow Rate: ~45 lb/min, rated at 550 Flywheel HP

Compressor Housing: Standard

Turbine Housing: T25 .86 A/R, 5-Bolt

Actuator: PSR Billet 7.4psi

• Compressor Wheel: 50mm inducer / 67mm exducer
• Turbine Wheel: 54mm / 47mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T25 or 2.5″ V-Band
• Turbine Outlet: 5-Bolt or 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN, connect to oil restrictor
• Oil Drain: Standard T3 Flange
• Water Inlet/Outlet: M14x1.5

For optimal durability, water cooling is highly recommended.
