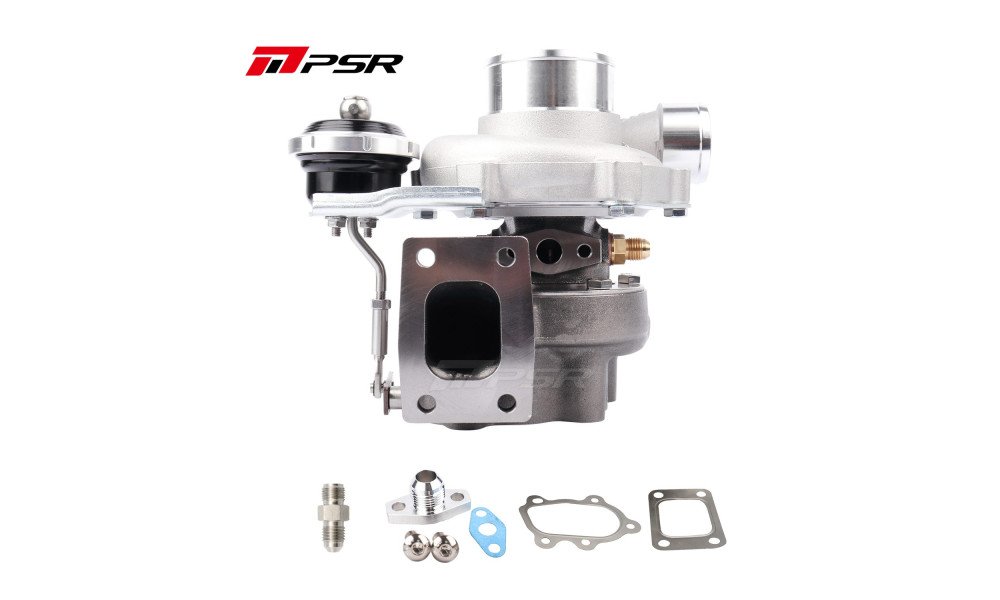

PSR2860 GEN2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for improved spool and durability
• 8-Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 9-Blade Turbine Wheel for high-temperature resilience
• Gen2 Compressor Cover with Integrated Speed Sensor Port
• V-Band Flange Kit(s) for exhaust housing included
• Maximum Air Flow Rate: ~40 lb/min, rated at 475 FWHP

Compressor Housing: Standard

Turbine Housing: T25 .86 A/R, 5 Bolt

Rotation: PSR Billet 7.4psi

• Compressor Wheel: 45.64mm / 60.07mm / 62mm
• Turbine Wheel: 54mm / 47mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T25 or 2.5″ V-Band
• Turbine Outlet: 5 Bolt or 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN (connects to oil restrictor)
• Oil Drain: Standard T3 Flange
• Water Inlet/Outlet: M14 x 1.5

For optimal durability, water cooling is highly recommended.
