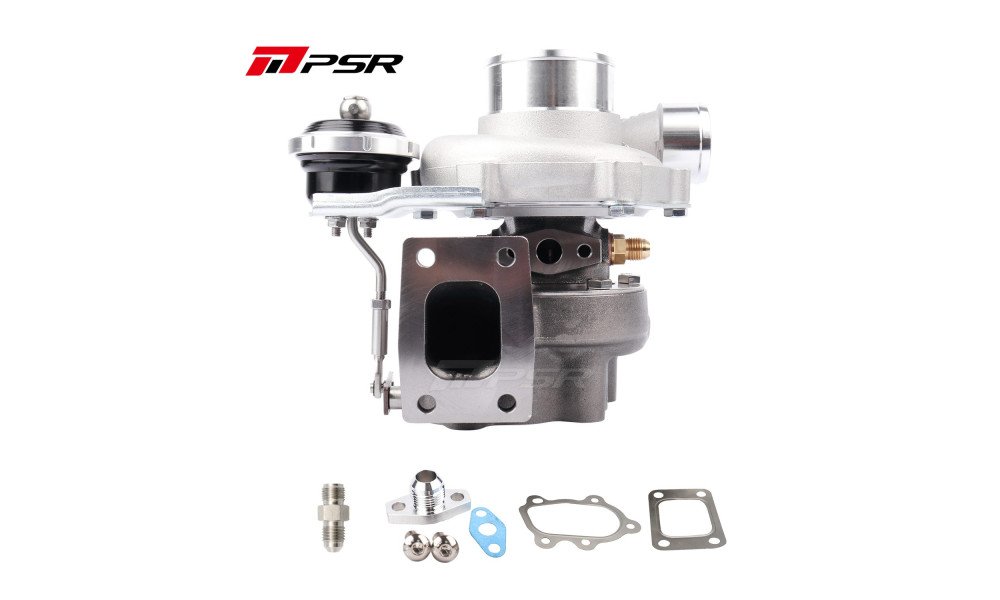

PSR2860 GEN2 Dual Ball Bearing Turbocharger

• Dual ceramic ball bearing system for enhanced durability and faster spool
• 8-blade Gen2 billet compressor wheel with extended tapered tip technology for improved airflow and efficiency
• Inconel 713c 9-blade turbine wheel for high temperature reliability
• Gen2 compressor cover with integrated speed sensor port
• Available turbine housing options: 0.64, 0.86 A/R T25 inlet with 5-bolt outlet; 0.64 A/R dual V-BAND stainless steel; 0.82 A/R dual V-BAND stainless steel
• V-Band flange kit(s) for exhaust housing included
• Maximum airflow rate: approximately 40 lb/min, rated at 475 flywheel horsepower

Compressor Housing: Standard

Turbine Housing: T25 .86 5 Bolt

Actuator: PSR Billet 15psi

• Compressor wheel: 45.64mm inducer / 60.07mm exducer / 62mm overall
• Turbine wheel: 54mm exducer / 47mm inducer
• Compressor inlet: 3″ hose
• Compressor outlet: 2″ hose
• Turbine inlet: T25 or 2.5″ V-Band
• Turbine outlet: 5-bolt or 3″ V-Band (3.55″ OD)
• Oil feed: -4 AN (connects to oil restrictor)
• Oil drain: Standard T3 flange
• Water in/out: M14 x 1.5

For optimal durability, water cooling is highly recommended.
