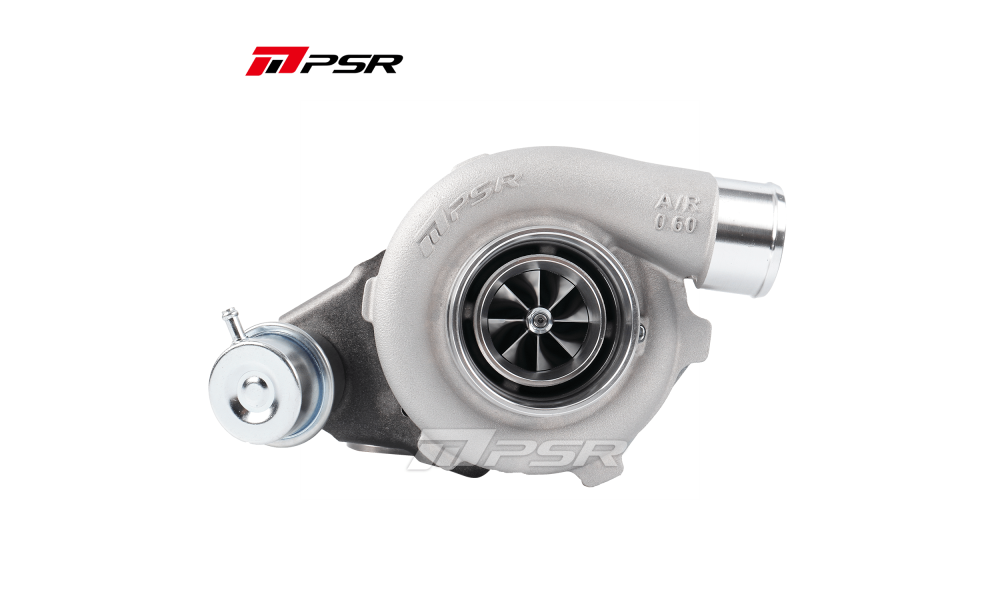

PSR2860 GEN2 Dual Ball Bearing Turbocharger

The PSR2860 GEN2 is engineered for enthusiasts seeking reliable performance and advanced turbo technology. Featuring a dual ceramic ball bearing system, this turbo delivers quick spool and enhanced durability. The Gen2 billet 8-blade compressor wheel with extended tapered tip technology ensures efficient airflow, while the Inconel 713c 9-blade turbine wheel provides excellent heat resistance for consistent performance.

• Compressor Wheel: 45.64/60.07/62mm
• Turbine Wheel: 54/47mm
• Compressor Housing: Standard
• Turbine Housing: Dual V-Band 0.72 A/R IWG
• Actuator: PSR Billet 15psi
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T25 or 2.5″ V-Band
• Turbine Outlet: 5 Bolt or 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN (connect to oil restrictor)
• Oil Drain: Standard T3 Flange
• Water In/Outlet: M14x1.5
• Gen2 cover integrated with speed sensor port
• V-Band flange kit(s) for exhaust housing included
• Max Air Flow Rate: ~40 lb/min, rated at 475 FWHP

For optimal durability, water cooling is highly recommended.
