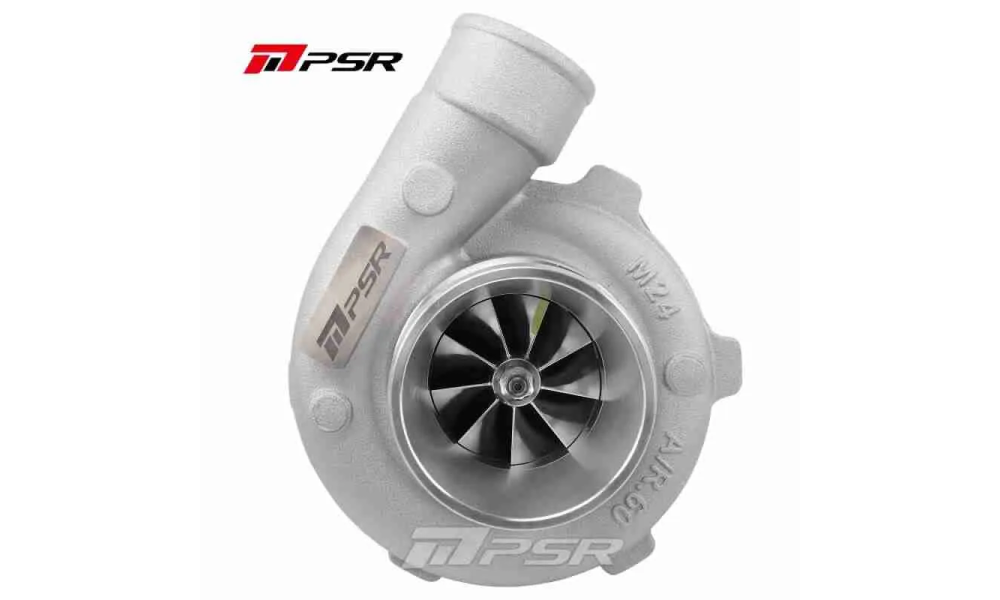

PSR3576 Gen2 Compact Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for improved spool and durability
• 9-Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 9-Blade Turbine Wheel for high-temperature reliability
• Multiple turbine housing options available (sold separately)
• V-Band Flange kit(s) for the exhaust housing included
• Maximum Air Flow Rate: 65 lb/min, rated at 750 Flywheel Horsepower (FWHP)

Turbine Housing: Without Turbine Housing (choose your preferred option separately)

• Compressor Wheel: 58mm inducer / 76mm exducer
• Turbine Wheel: 68mm exducer / 62mm inducer
• Compressor Inlet: 3.0” hose
• Compressor Outlet: 2.0” hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN (connects to oil restrictor)
• Oil Drain: Standard T3 Flange
• Water Inlet/Outlet: M14x1.5

For optimal durability, water cooling is highly recommended.
