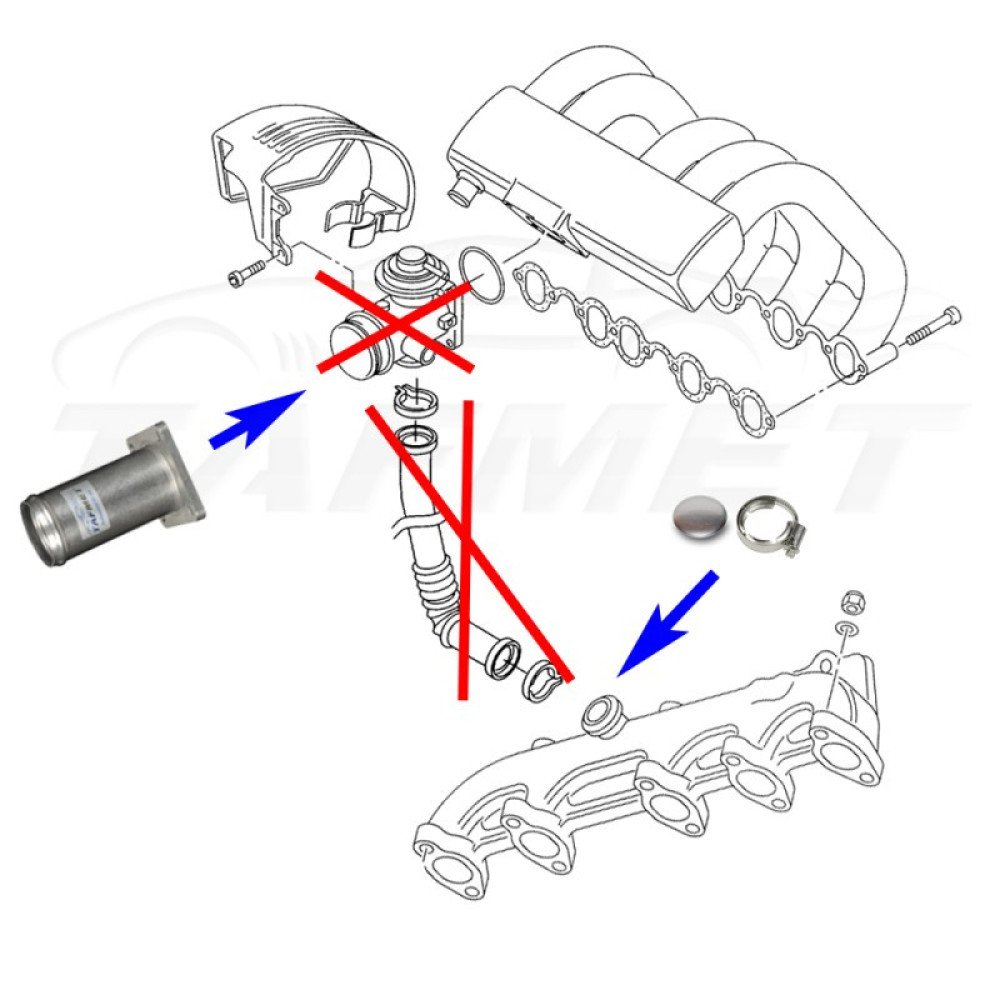

Kit Contents & Specifications

• 1 x EGR Replacement Pipe (54 mm outer diameter, 113 mm length, stainless steel, lifetime warranty)
• 1 x Blanking Plate (stainless steel, lifetime warranty)
• 1 x Flange Gasket
• 1 x Blanking Plate Clamp
• 1 x Hose Clip (FMIC)

Important Information

For vehicles manufactured up to 2002-2004, no ECU warning light is expected. On later models with pneumatic or electronic EGR valves, installation may trigger an ECU warning light. In such cases, an ECU remap to disable the EGR function is recommended and can be performed by a specialist tuner.

This product is intended for off-road and motorsport use only.

Application

• LT Mk II 2.5 TDI, 1996-1999, 75 kW, engine code: AHD
• LT Mk II 2.5 TDI, 1999-2006, 66 kW, engine code: APA
• LT Mk II 2.5 TDI, 2001-2006, 61 kW, engine code: BBE
• LT Mk II 2.5 TDI, 2001-2006, 70 kW, engine code: BBF
• LT Mk II 2.5 TDI, 2001-2006, 80 kW, engine codes: ANJ, AVR
• Transporter Mk IV 2.5 TDI, 2000-2003, 111 kW, engine codes: AHY, AXG

If unsure, check your engine code. For models not listed, please contact before ordering.
