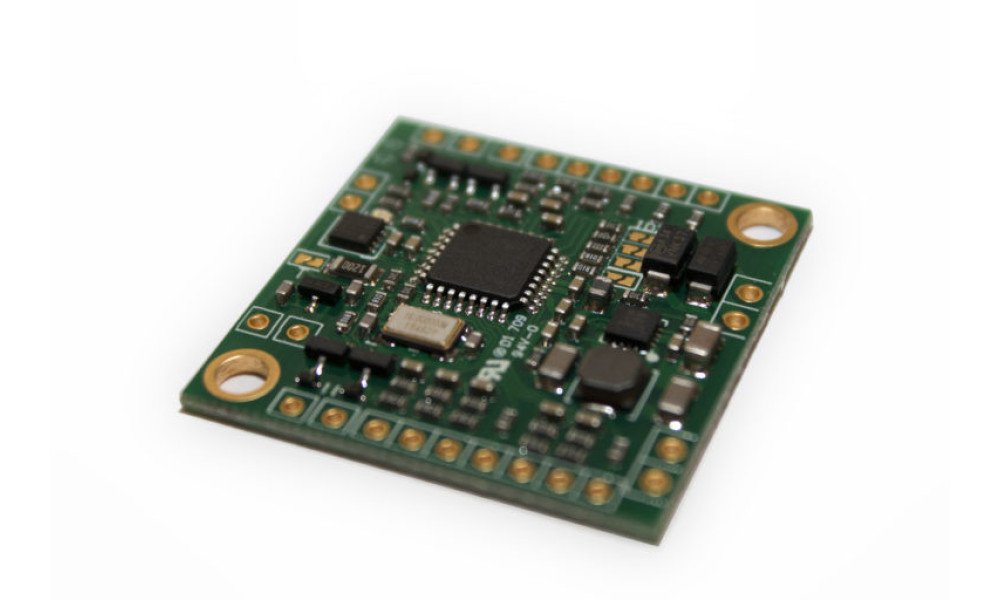

Ecumaster CAN Switch Board

The Ecumaster CAN Switch Board is a compact solution for transmitting up to 8 switch states and 8 analog signals over the CAN bus, making it ideal for building custom steering wheel panels with buttons, rotary switches, and indicators. Designed for seamless integration with EMU BLACK and PMU, it is also compatible with other devices featuring configurable CAN bus inputs.

• Supports CAN BUS 2.0B protocol
• User-selectable 500 or 1000kbps CAN speed
• Selectable CAN ID and frame structures
• Ultra-compact 25x25mm footprint
• 8 switch inputs (switched to ground)
• 8 analog/rotary switch inputs (0-5V, 10-bit resolution)
• 4 low side outputs (0.5A, supports resistive and inductive loads)
• 6-22V power supply range
• +5V output for powering rotary switches, sensors, and potentiometers
• Firmware upgradeable via CAN bus

Note: Ecumaster brand products are not shipped to the USA, Canada, or Mexico.
