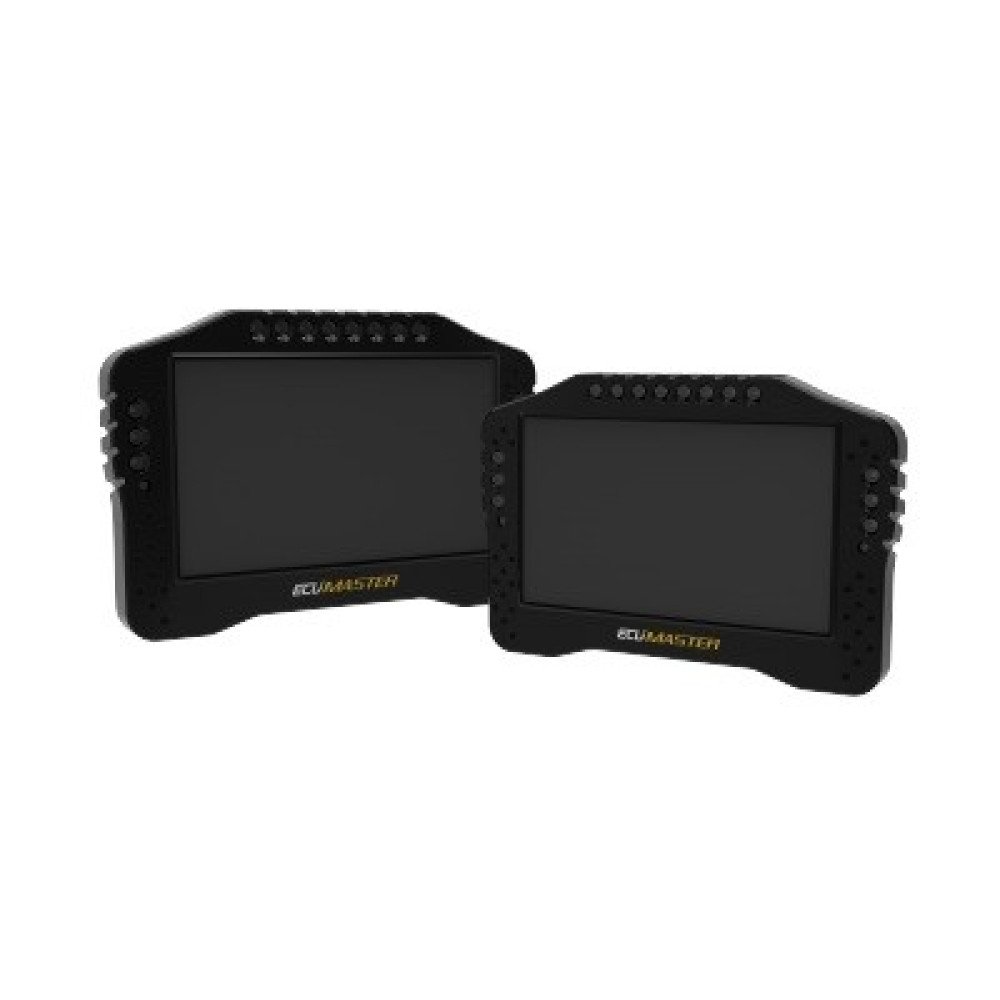

Introducing the new ECUMASTER Racing Dash (ADU) family—engineered for professional drivers and race teams seeking a fully customizable, feature-rich display and data logging solution. Available in both 5" and 7" high-resolution, anti-glare screens, the ADU guarantees exceptional visibility in all weather conditions.

The ADU offers multiple pre-configured display pages, each fully user-customizable via intuitive Windows-based software. Tailor each page to show essential data for every race stage—practice, qualification, race, or troubleshooting. Each displayed channel, gauge, icon, or text can be easily modified. The advanced overlay system allows critical information (such as low oil pressure or best lap) to be shown independently of the main display page.

Equipped with 15 ultra-bright RGB LEDs, the ADU supports advanced gear-dependent shift light functionality and user-defined logic for alarms and notifications (e.g., low fuel level). Integrated lap timing is available via IR beacons or GPS, featuring a predictive timing function with auto-updating best reference laps—ideal for qualification sessions.

For endurance racing, lifetime fuel consumption calculations provide accurate fuel level estimations (when supported by the ECU). User-configurable timers, such as pit stop timers, add further race-day flexibility.

The ADU supports thermal cameras for monitoring brake disc and tire temperatures, with up to 16 measurement points per tire. Dual independent CAN BUS ports ensure seamless communication with other devices and engine management systems, with user-configurable CAN streams and pre-configured templates for broad compatibility.

Powered by a 32-bit automotive controller and advanced graphics processor, the ADU delivers high-quality, anti-aliased graphics at 50 frames per second. Data logging is supported via USB flash drive at up to 500Hz for detailed post-race analysis.

All components are housed in a rugged, CNC-machined, black anodized enclosure for maximum durability in demanding motorsport environments.

Note: Ecumaster brand products are not shipped to the USA, Canada, or Mexico.
