Reference: 106177B

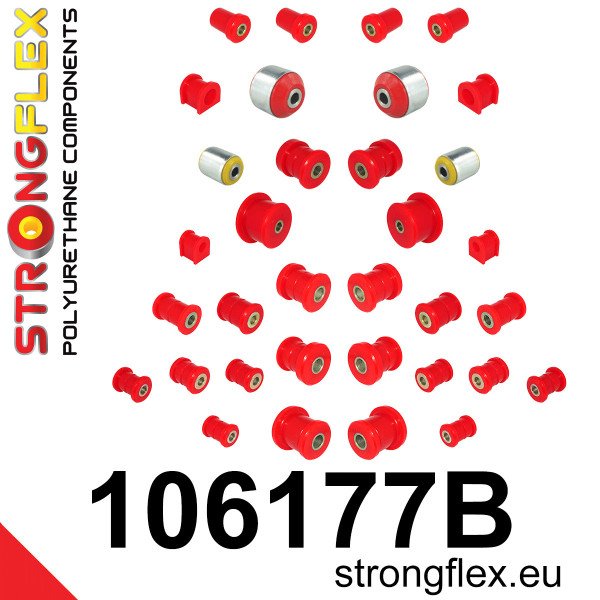

Product Name: Complete Suspension Bushing Kit

Compatibility:

• Mazda RX-8 (2003-2012) SE3P

Contents:

• 2x 101670B: Front anti-roll bar bush
• 2x 101671B: Front lower arm front bush
• 2x 101672B: Front lower arm rear bush
• 2x 101673A: Front shock mount bush - SPORT
• 4x 101674B: Front upper arm bush
• 2x 101675B: Rear trailing arm front bush
• 2x 101676B: Rear trailing arm rear bush
• 2x 101677B: Rear upper - front arm bush
• 2x 101678B: Rear lower - front arm bush
• 2x 101679B: Rear upper - rear arm bush
• 2x 101680B: Rear lower - rear arm bush
• 2x 101681B: Rear anti-roll bar bush 35mm
  or
• 2x 101706B: Rear anti-roll bar bush 27mm
• 2x 101682B: Rear beam - front bush
• 2x 101683B: Rear beam - central bush
• 2x 101684B: Rear beam - rear bush
• 2x 101687B: Rear differential mount bush

Diagrams:

• D1005

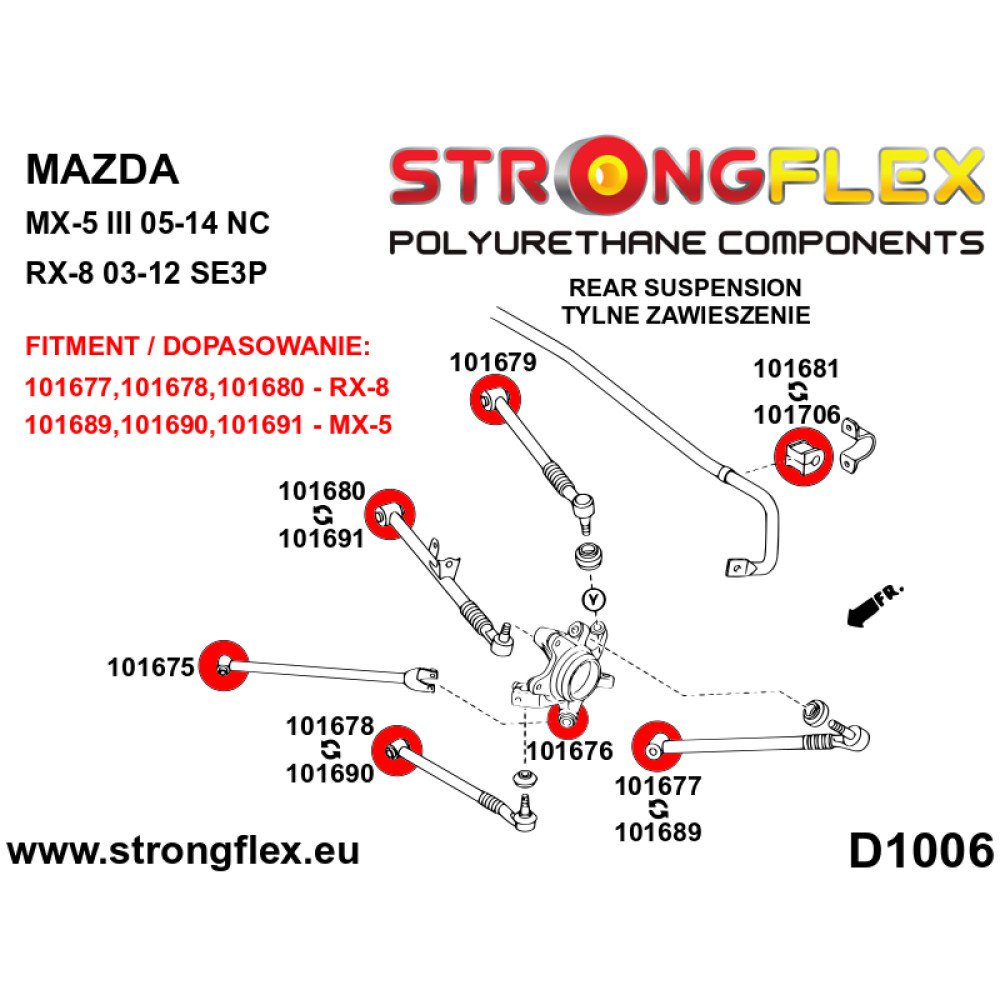

• D1006

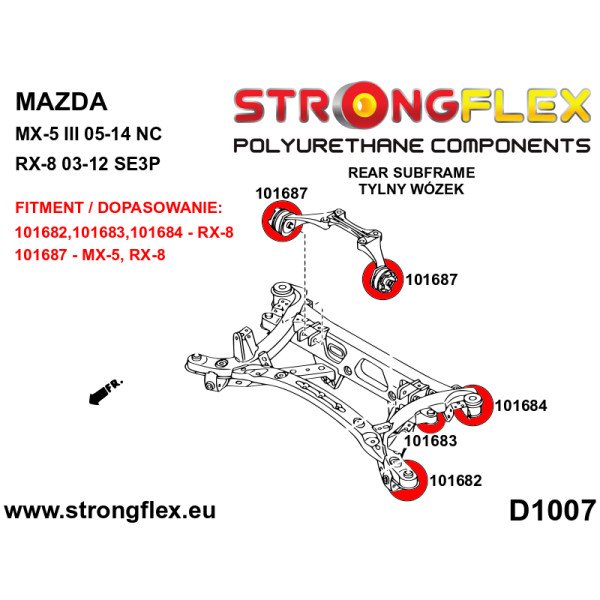

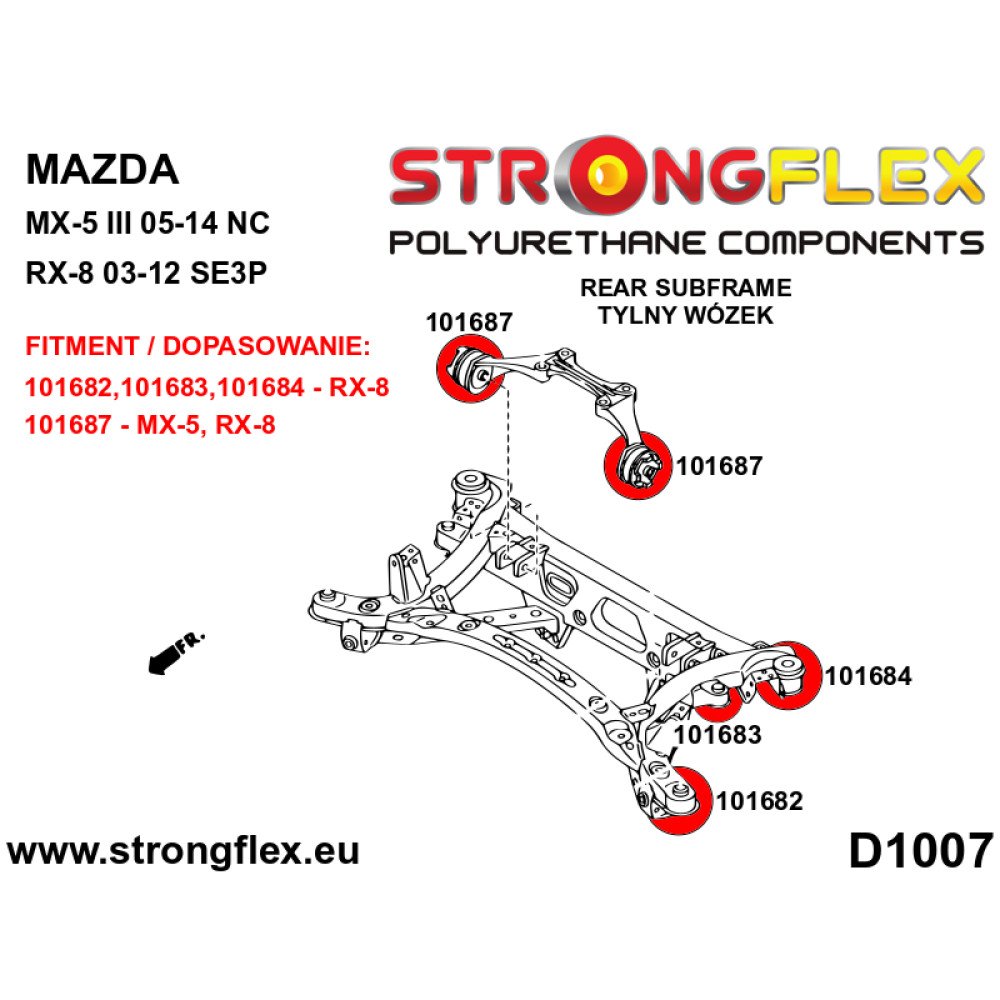

• D1007

Important Notes

• This kit includes two sizes for the rear anti-roll bar bushing: 101681 (35mm) and 101706 (27mm). Please verify the bushing height prior to ordering.

Required per Vehicle: 1

Pieces per Product: 1

Total Pieces per Kit: 34

Hardness Rating: 80 Shore A

Material Composition: Polyurethane (PUR/PU)

Each kit is supplied with grease for optimal performance!
