Lower Engine and Oil Cooler Guard for BMW F90 M5 S63 2018-2023

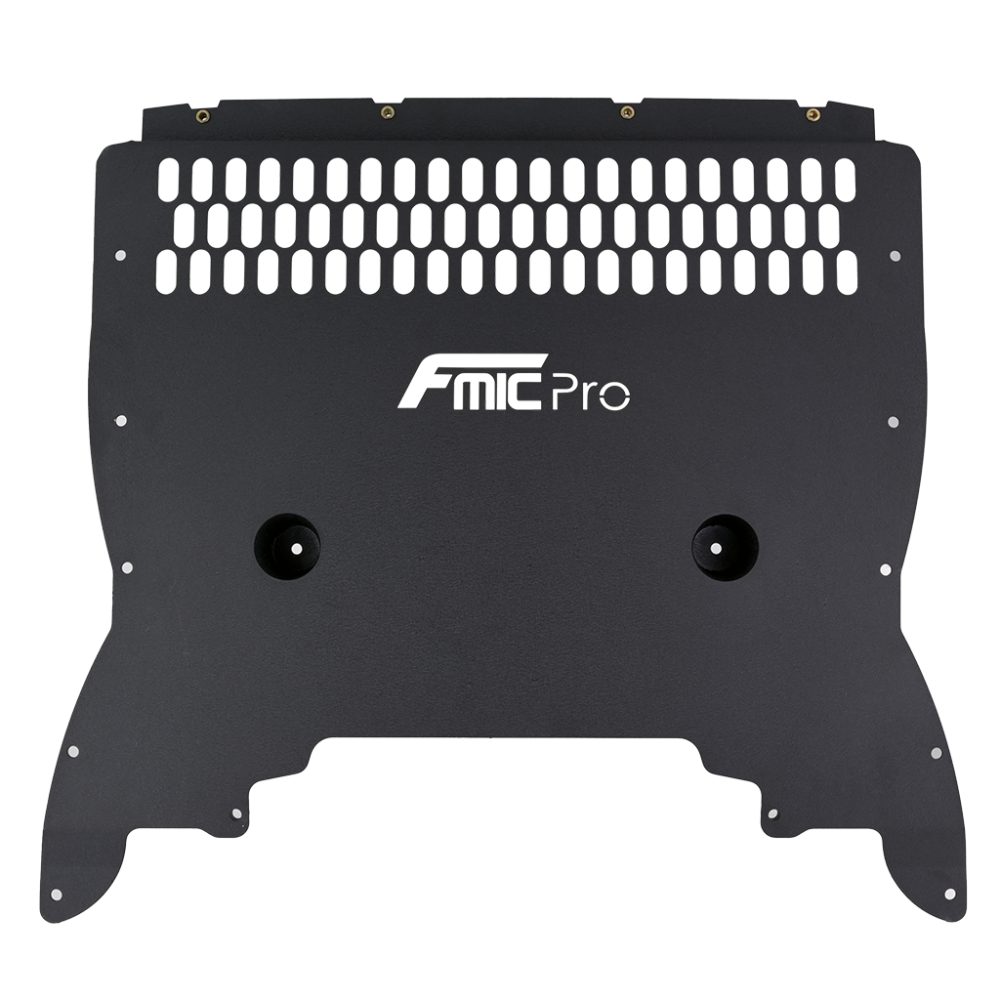

The aluminum guard for the oil cooler and lower engine section provides effective protection for critical components and the lubrication system in BMW F90 M5 S63 vehicles. The factory oil cooler is positioned low in the engine bay, making it highly exposed to mechanical damage from impacts and road debris. The original plastic shield offers low resistance to mechanical stress, often resulting in cracks and potential damage to the oil cooler. A loss of oil pressure can lead to serious engine failures, including complete seizure.

The guard is made of 3.5 mm thick aluminum, cut and shaped using CNC technology. Precision machining ensures a perfect fit to factory mounting points and high dimensional repeatability. The surface is coated with a powder-painted finish, which increases resistance to corrosion, mechanical damage, and harsh environmental conditions.

Product features:

• Increased space allows for the installation of a larger, tuning oil cooler
• Made of durable aluminum
• Precision CNC cutting and bending
• Mounts to factory mounting points
• Powder-coated finish resistant to mechanical damage and corrosion
• Dimensions: length 750 mm x width 560/785 mm
• 3.5 mm thick aluminum plate

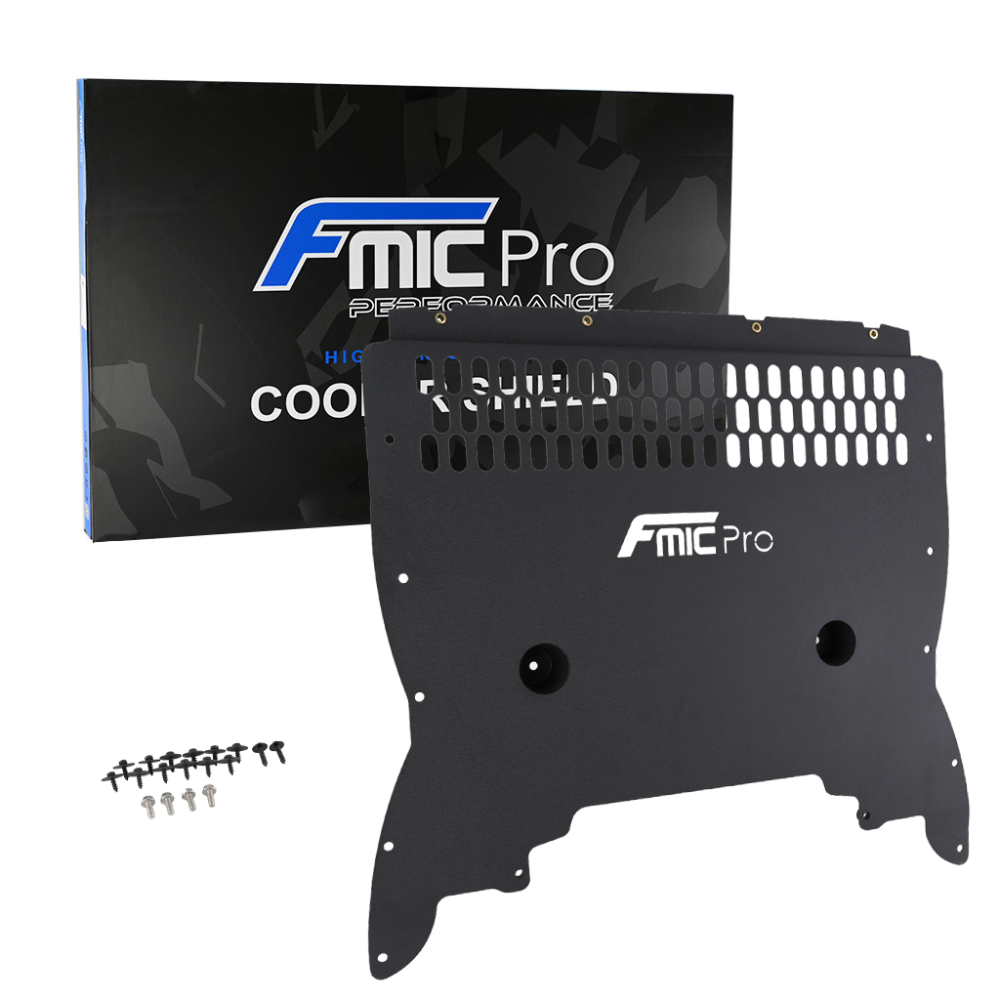

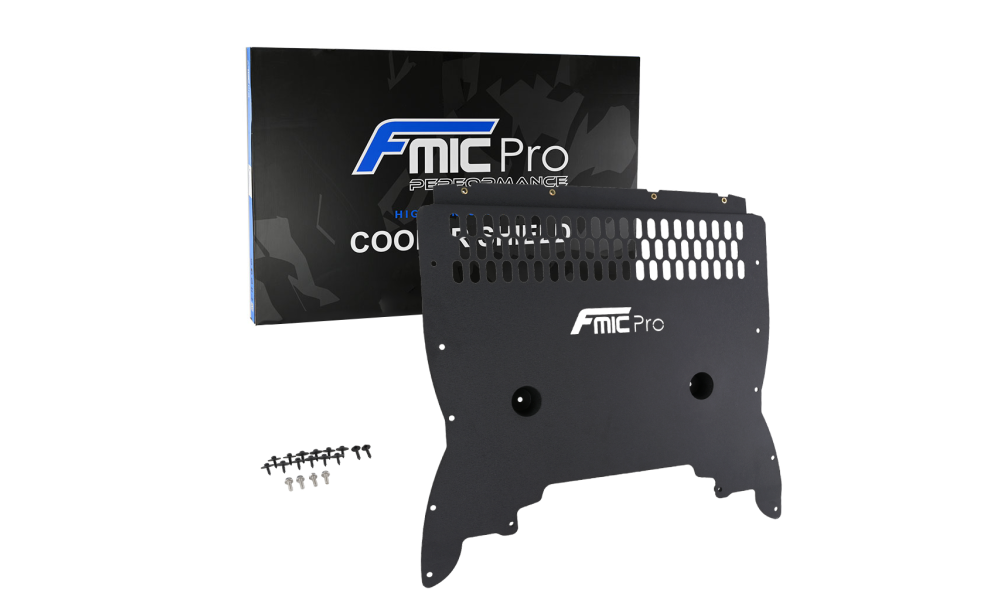

• Includes mounting bolts and spacers

Designed for vehicles:
BMW M5 F90 S63B44T4 4.4 Twin-Turbo V8 2018-2020
BMW M5 F90 LCI S63B44T4 4.4 Twin-Turbo V8 2020-2023
BMW M5 Competition F90 S63B44T4 4.4 Twin-Turbo V8 2018-2023
