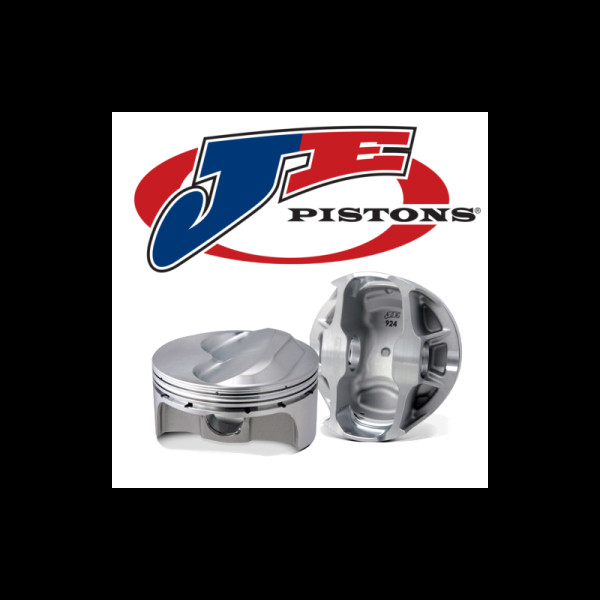

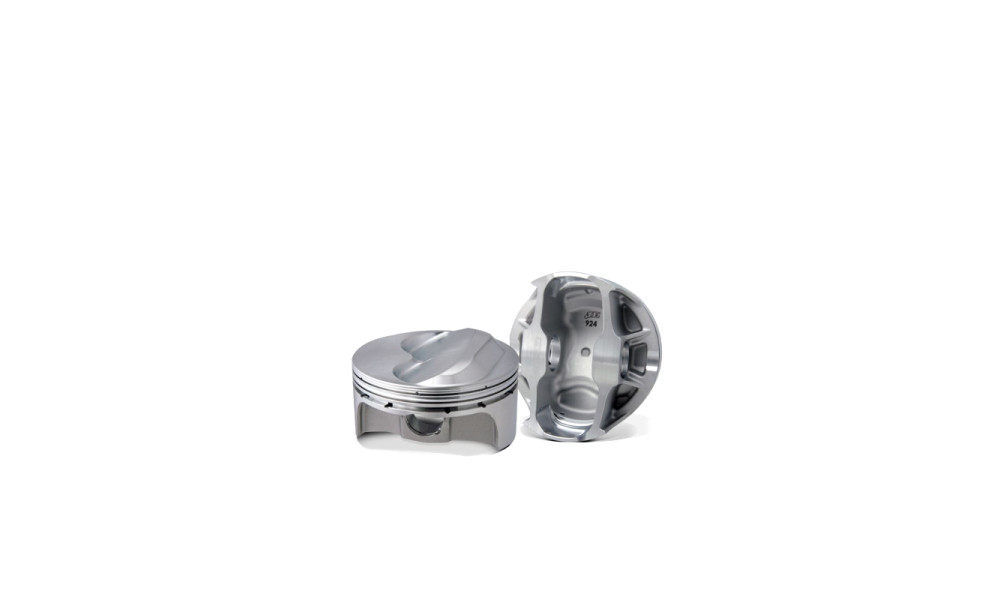

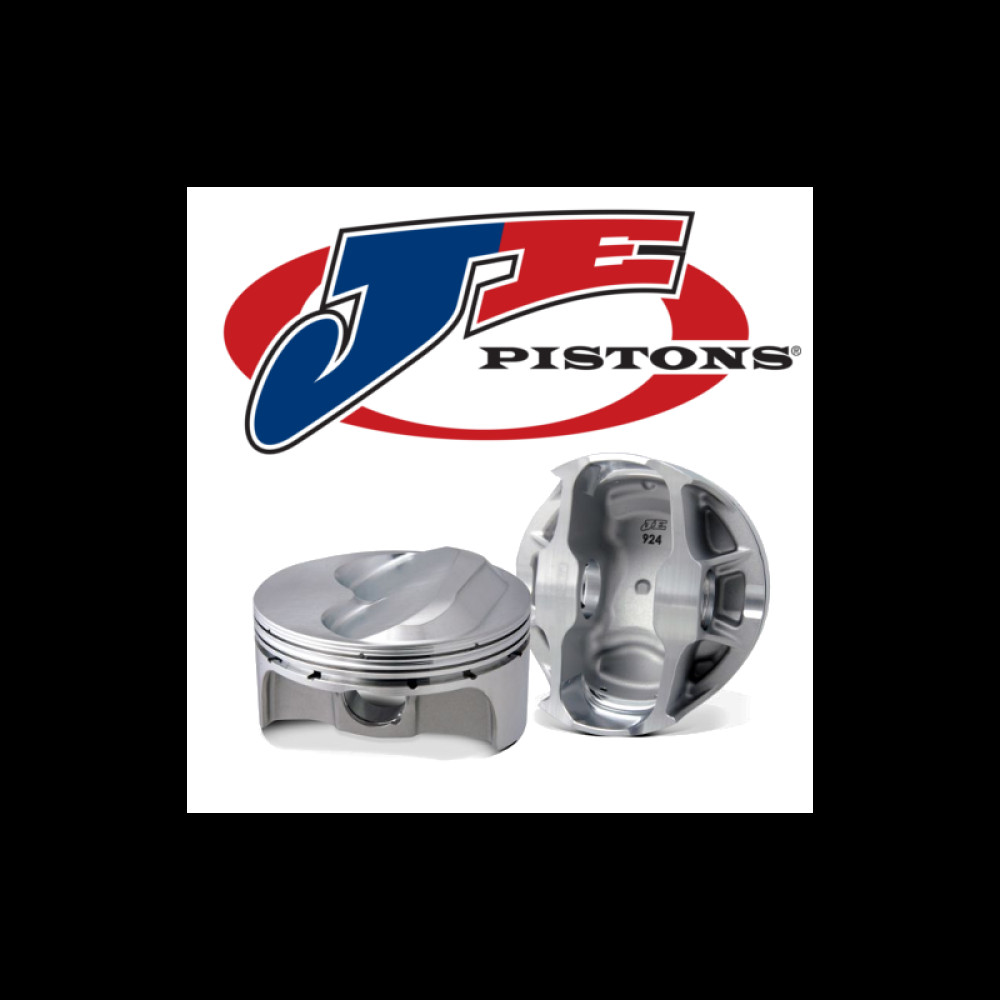

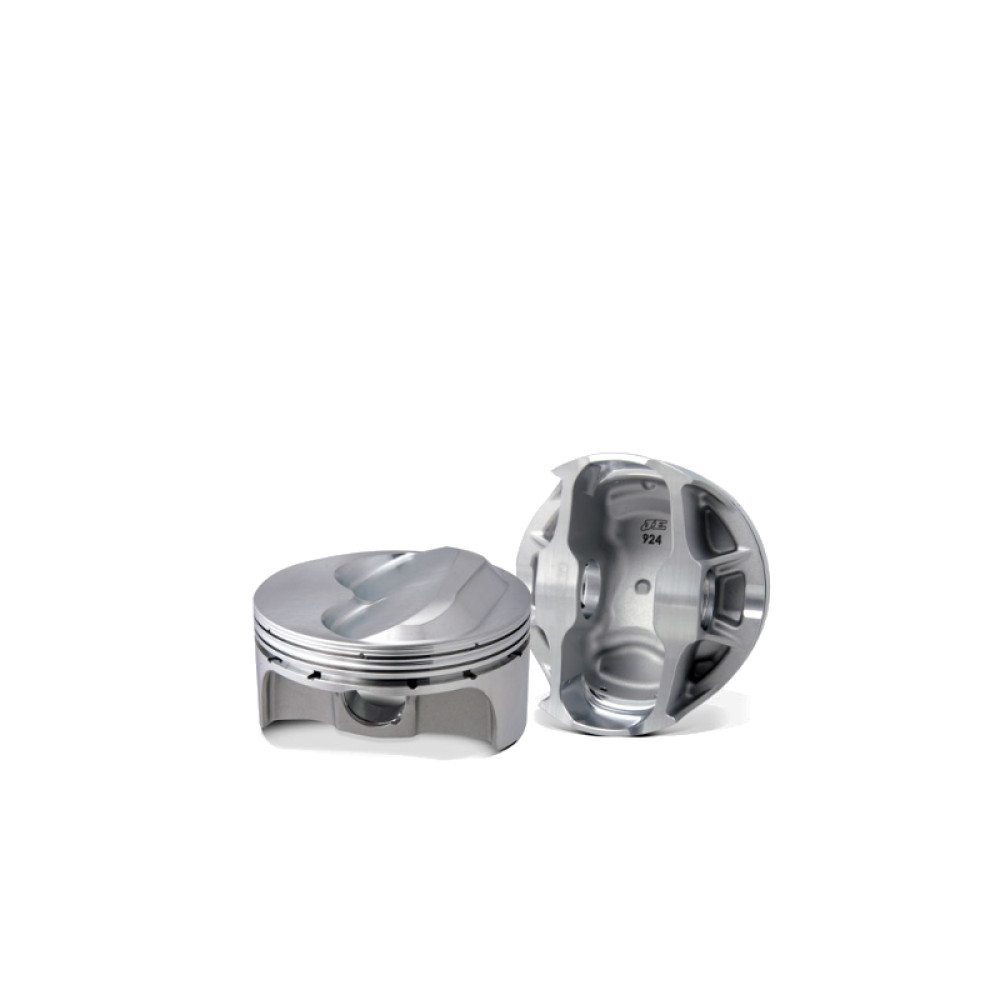

JE Pistons Engine Pistons for Toyota Supra MK3 3.0L 7MGTE (Dish, 84.00mm, 8.9:1)

Upgrade your Toyota Supra MK3 3.0L 7MGTE with this set of JE Pistons, engineered for strength, reliability, and performance. Manufactured in the USA from high-strength 2618 forged aluminum, these pistons feature thicker ring lands and a modern, proven design. Each set includes carbon steel wrist pins, premium carbon steel gas nitrided piston rings, and locks, making them ready for both street and track use.

Technical Specifications

• Piston Series: JE Pistons
• Engine Compatibility: Toyota Supra MK3 3.0L 7MGTE
• Cylinder Head: 7M-GTE
• Bore Diameter: 84.00 mm
• Piston Head Type: Dish
• Compression Ratio: 8.9:1
• Compression Height: 1.289 in
• Piston Volume: -16.90 cc
• Piston Material: 2618 forged aluminum
• Piston Quantity: 6
• Forging Type: FSR
• Piston Average Weight: 296 g
• Ring Set Included: Yes
• Top Compression Ring Thickness: 0.0400 in
• Second Compression Ring Thickness: 0.0480 in
• Oil Ring Thickness: 0.111 in
• Wrist Pin Outer Diameter: 0.866 in
• Wrist Pin Length: 2.250 in
• Wrist Pin Wall Thickness: 0.150 in
• Country of Manufacture: USA

With over 70 years of experience, JE Pistons are trusted by professional engine builders, race teams, and performance enthusiasts worldwide.
