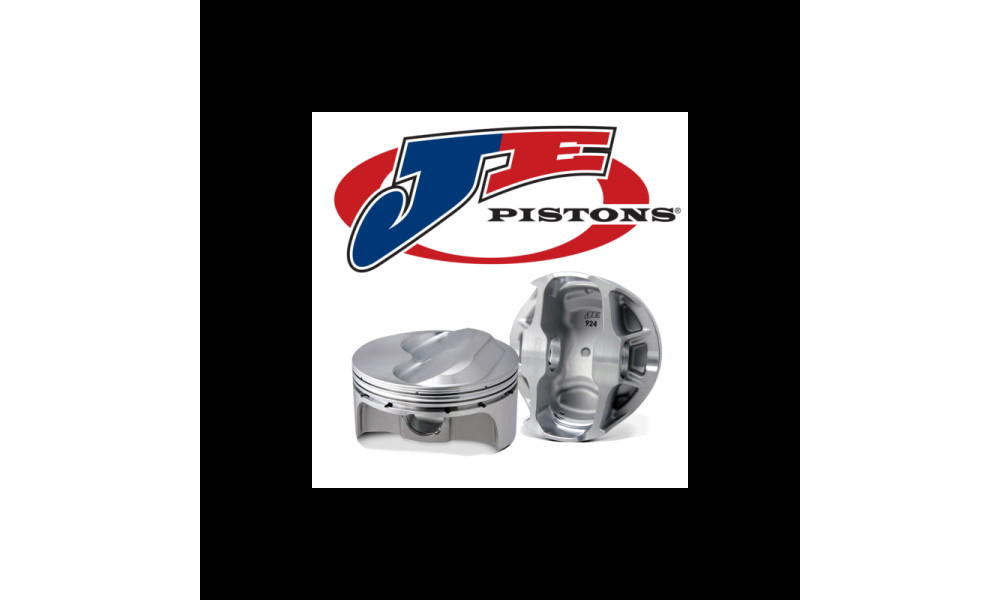

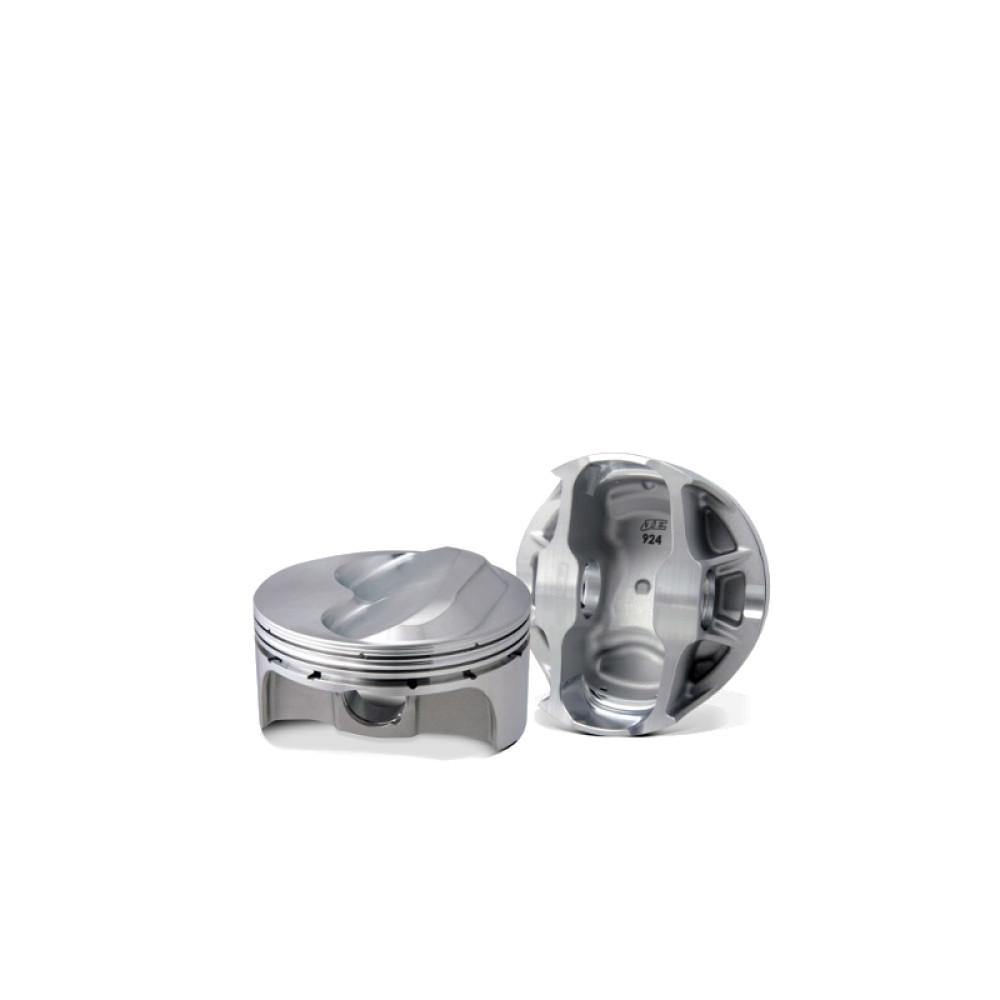

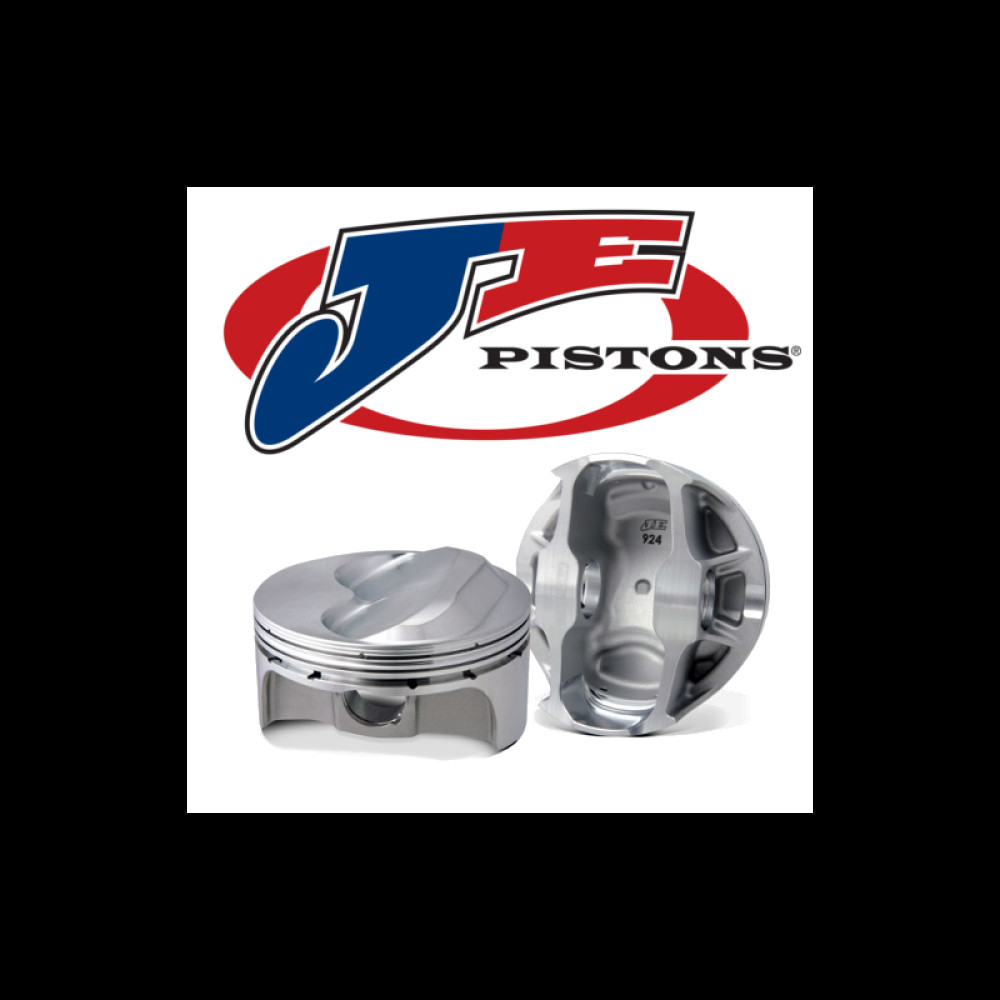

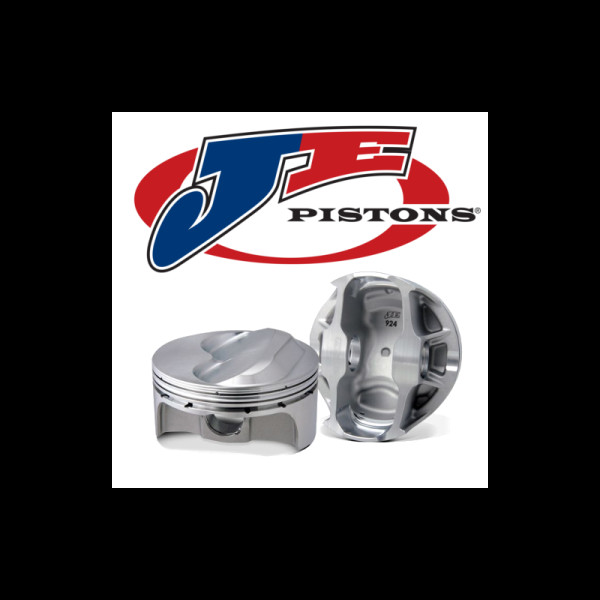

JE Pistons Engine Pistons for Subaru EJ205 Impreza WRX 2002-2005 (92.50mm, 9.5:1)

• Brand: JE Pistons
• Country of Manufacture: USA
• Application: Subaru EJ205 WRX
• Piston Series: JE Pistons
• Bore Diameter: 92.50 mm
• Piston Head Type: Dome
• Compression Height: 1.287 in
• Piston Volume: -3.80 cc
• Piston Material: 2618 forged aluminum
• Piston Quantity: 4
• Forging Type: FSR
• Piston Average Weight: 382 g
• Ring Set Included: Yes
• Top Compression Ring Thickness: 0.0400 in
• Second Compression Ring Thickness: 0.0480 in
• Oil Ring Thickness: 0.111 in
• Wrist Pin Outer Diameter: 0.905 in
• Wrist Pin Length: 2.250 in
• Wrist Pin Wall Thickness: 0.180 in

JE Pistons brings over 70 years of experience in high performance forged pistons. These pistons are manufactured from 2618 forged aluminum for maximum strength under high cylinder pressures. Each set includes carbon steel wrist pins and premium gas nitrided piston rings. Designed for the EJ205 WRX platform, these pistons are engineered for demanding street and track environments.
