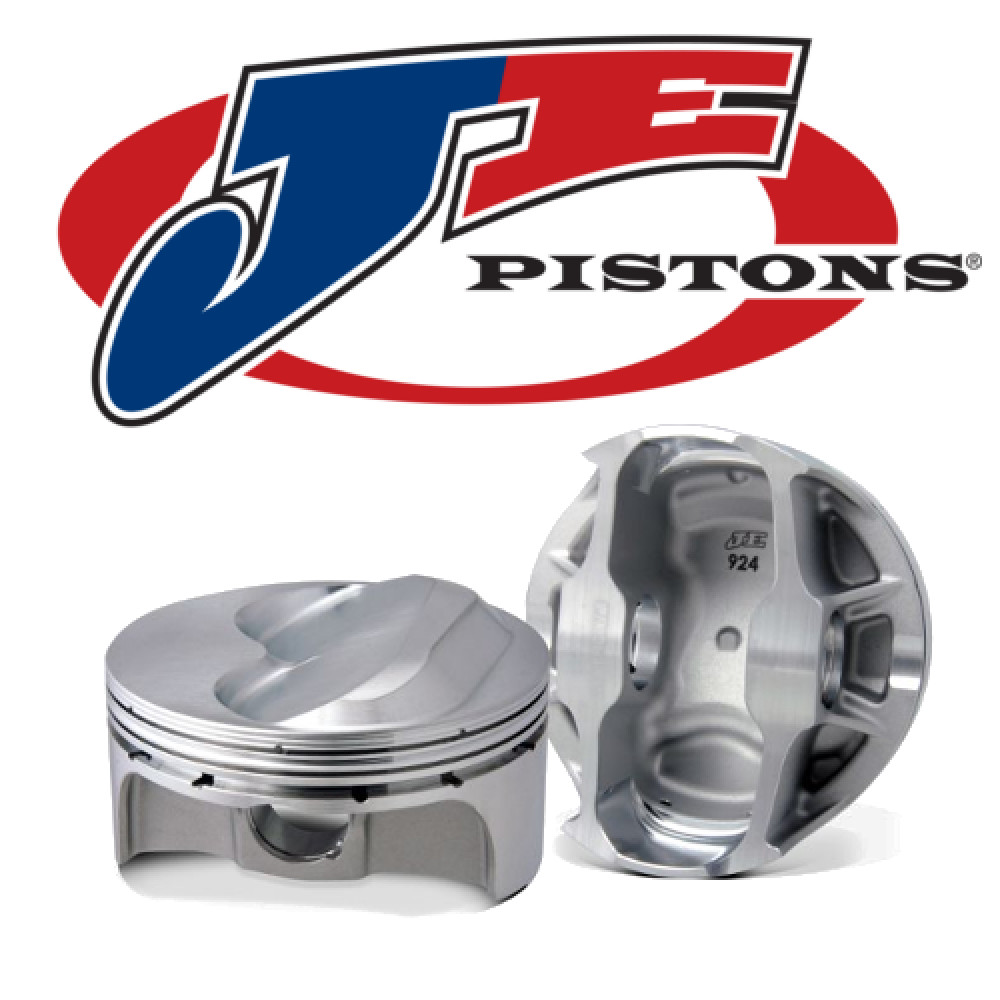

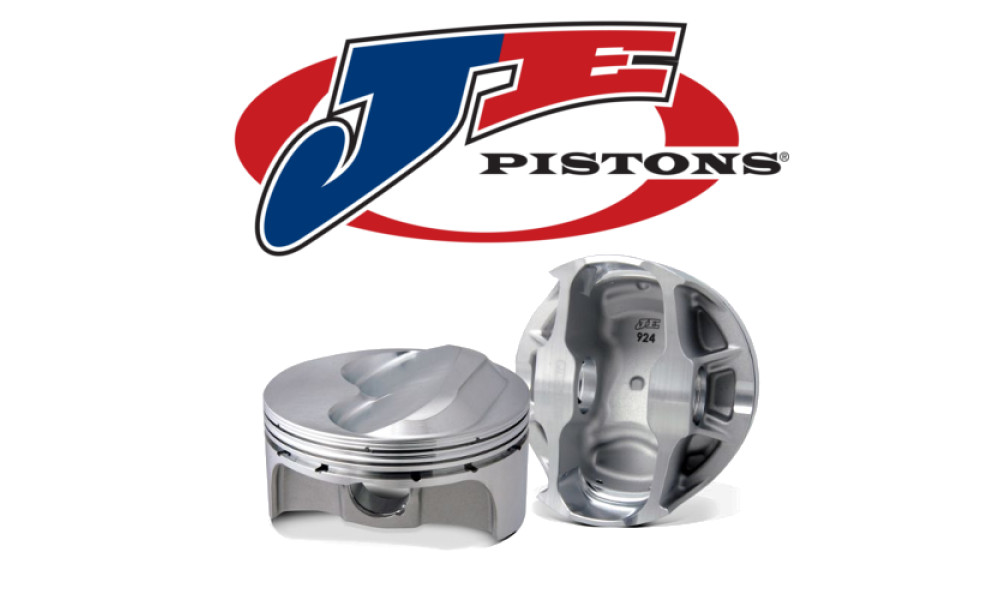

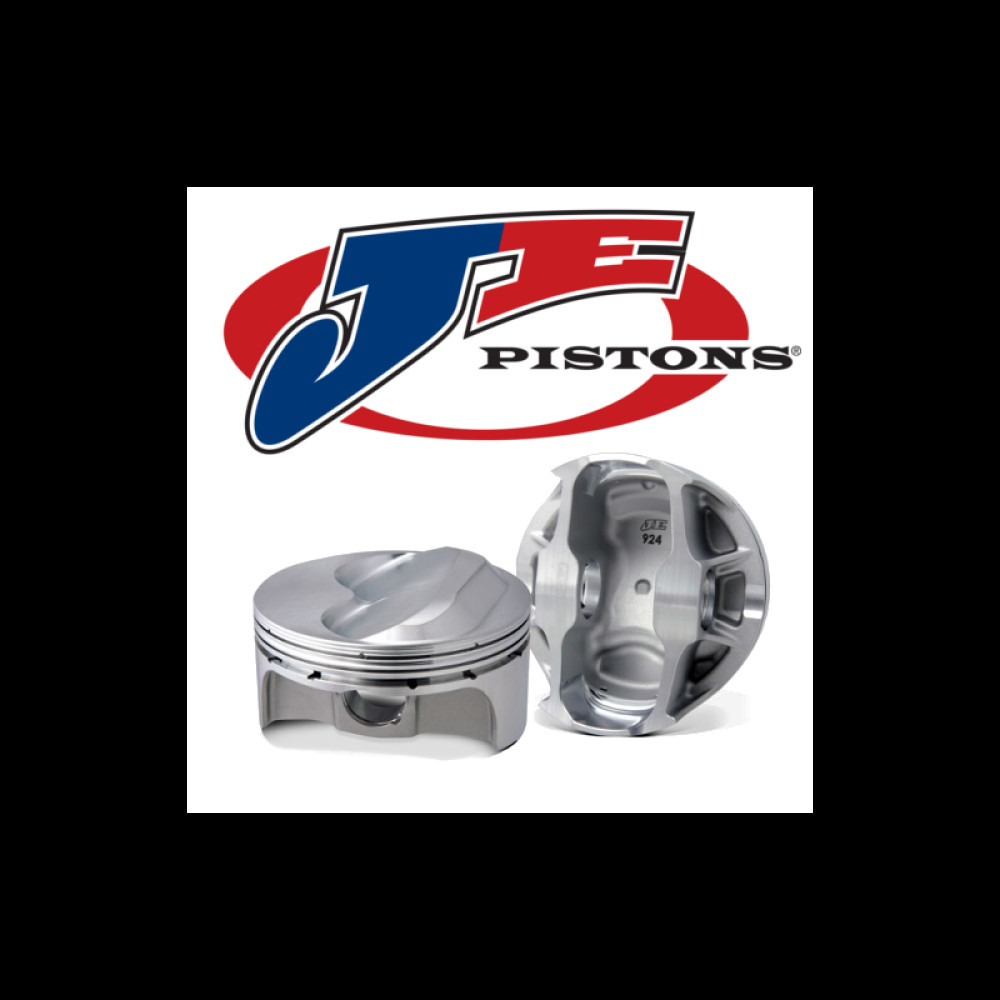

JE Pistons Acura K Series 87mm 13.5:1 Dome 4-Cylinder Piston Kit
JE Pistons brings over 75 years of expertise to high-performance forged pistons, engineered, forged, and machined 100% in the USA. This piston kit is designed specifically for the Acura K Series K20 cylinder head, delivering the durability and performance required for demanding motorsport applications.
- Forged from 2618 aluminum alloy for maximum tensile strength
- Proprietary Forged Side Relief (FSR) design reduces friction and weight
- Skirt coating (application dependent) minimizes wear and operating noise
- Accumulator groove (application dependent) improves ring seal and reduces flutter
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made entirely in the USA
Specifications
| Piston Series | JE Pistons |
|---|---|
| Cylinder Head | K20 |
| Bore Diameter | 87.00 mm |
| Piston Head Type | Dome |
| Compression Height | 1.176 in |
| Piston Volume | 8.50 cc |
| Piston Material | 2618 Aluminum |
| Piston Quantity | 4 |
| Forging Type | Round |
| Average Weight | 334 g |
| Ring Set Included | Yes |
| Top Compression Ring Thickness | 0.0400 in |
| Second Compression Ring Thickness | 0.0480 in |
| Oil Ring Thickness | 0.111 in |
| Wrist Pin Outer Diameter | 0.866 in |
| Wrist Pin Length | 2.250 in |
| Wrist Pin Wall Thickness | 0.150 in |
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Acura | - | - | K20 |
| Honda | - | - | K20 |
JE Pistons
Founded in 1947 in Huntington Beach, California, JE Pistons is a benchmark American manufacturer of forged pistons for turbo, supercharged, and naturally aspirated applications. JE pistons combine aerospace-grade aluminium with tight machined tolerances trusted by professional and amateur engine builders worldwide.
Official page: jepistons.com
Official page: jepistons.com

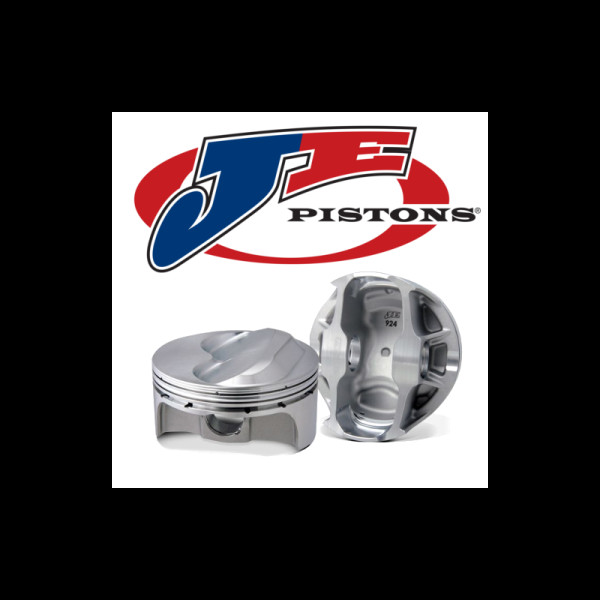

JE Pistons engine pistons for Honda K24A/K20A2 Head 87.00 mm 11.5:1
