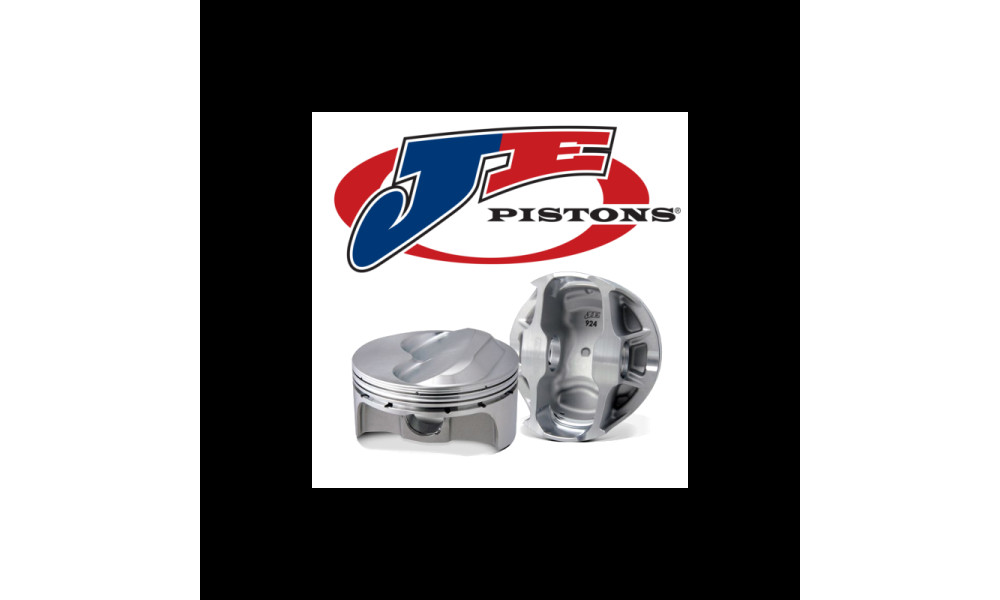

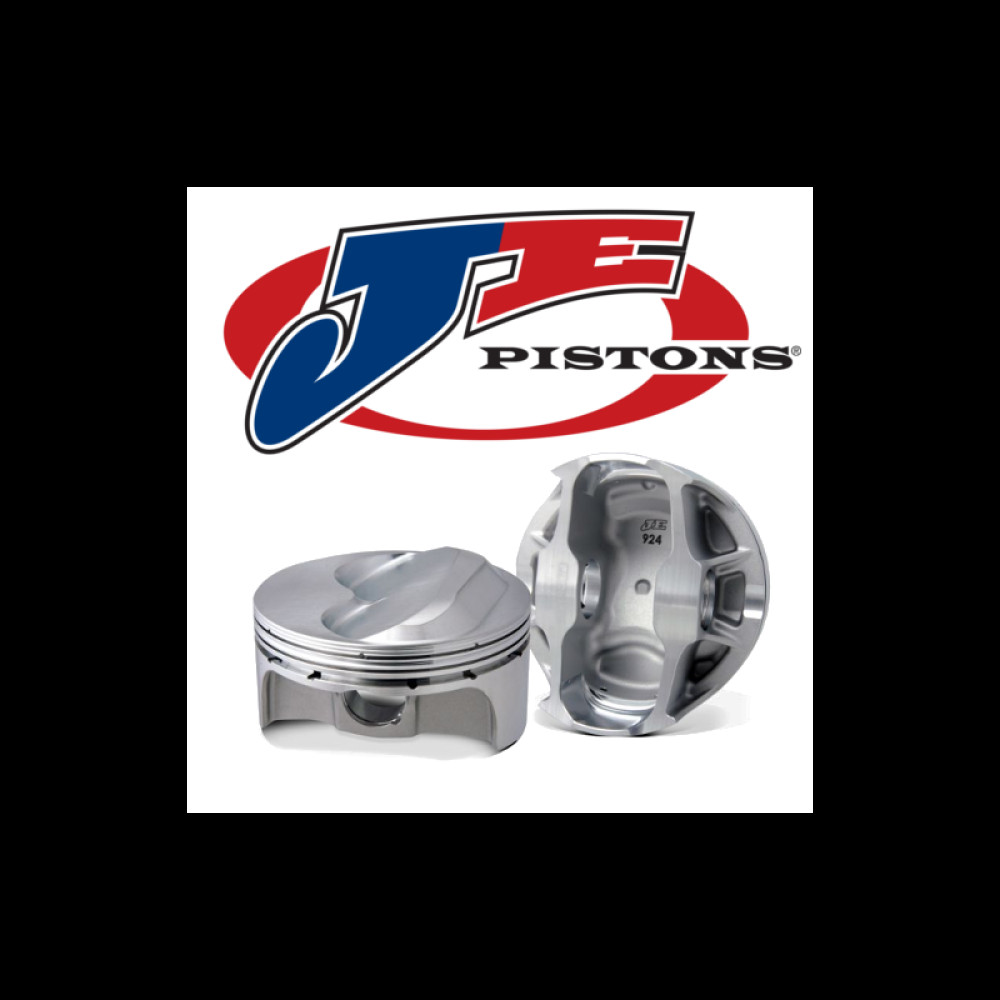

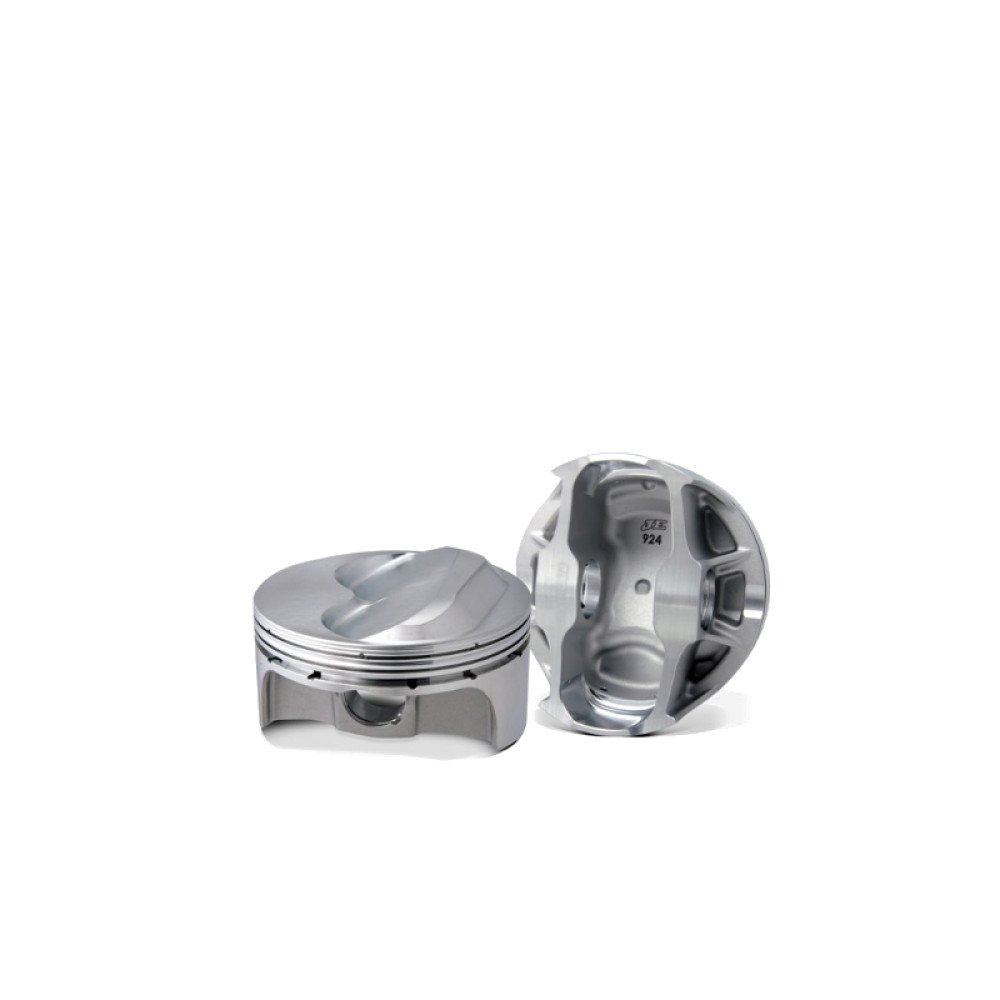

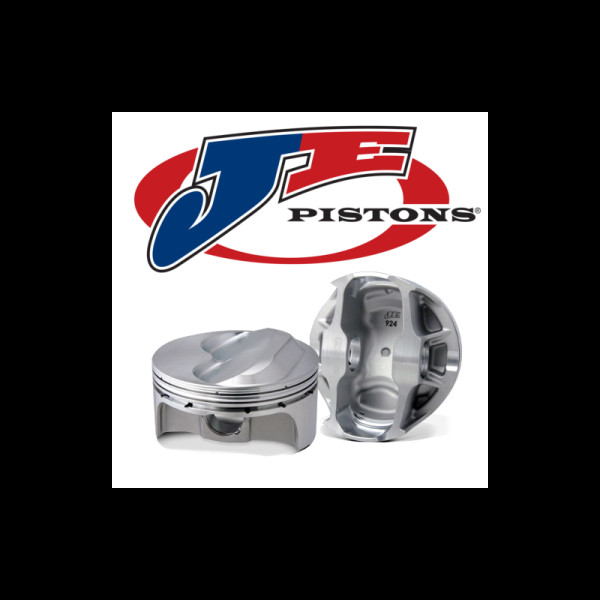

JE Pistons Engine Pistons – GM 2.0L LTG Ecotec VVT 86.50mm (9.5:1)

Brand: JE Pistons
Country of Manufacture: USA

JE Pistons delivers uncompromising performance for the GM 2.0L LTG Ecotec VVT platform. Each set is engineered from 2618 forged aluminum for maximum strength and durability under high-stress conditions. Precision-machined dome pistons offer reliable combustion characteristics for both street and track use.

• Piston Series: JE Pistons
• Cylinder Head: LTG
• Bore Diameter: 86.50 mm
• Piston Head Type: Dome
• Compression Height: 1.261 in
• Piston Volume: -1.50 cc
• Piston Material: 2618 forged aluminum
• Piston Quantity: 4
• Forging Type: FSR
• Ring Set Included: Yes
• Top Compression Ring Thickness: 0.0400 in
• Second Compression Ring Thickness: 0.0480 in
• Oil Ring Thickness: 0.111 in
• Wrist Pin Material: 5115 low carbon steel, case hardened
• Wrist Pin Length: 2.250 in
• Wrist Pin Wall Thickness: 0.150 in

Each piston set includes carbon steel wrist pins and premium gas nitrided piston rings. Built for serious engine builders and performance enthusiasts who demand reliability and precision.
