Intercooler for Ford Ranger Raptor MK4 3.0 V6 EcoBoost 2022

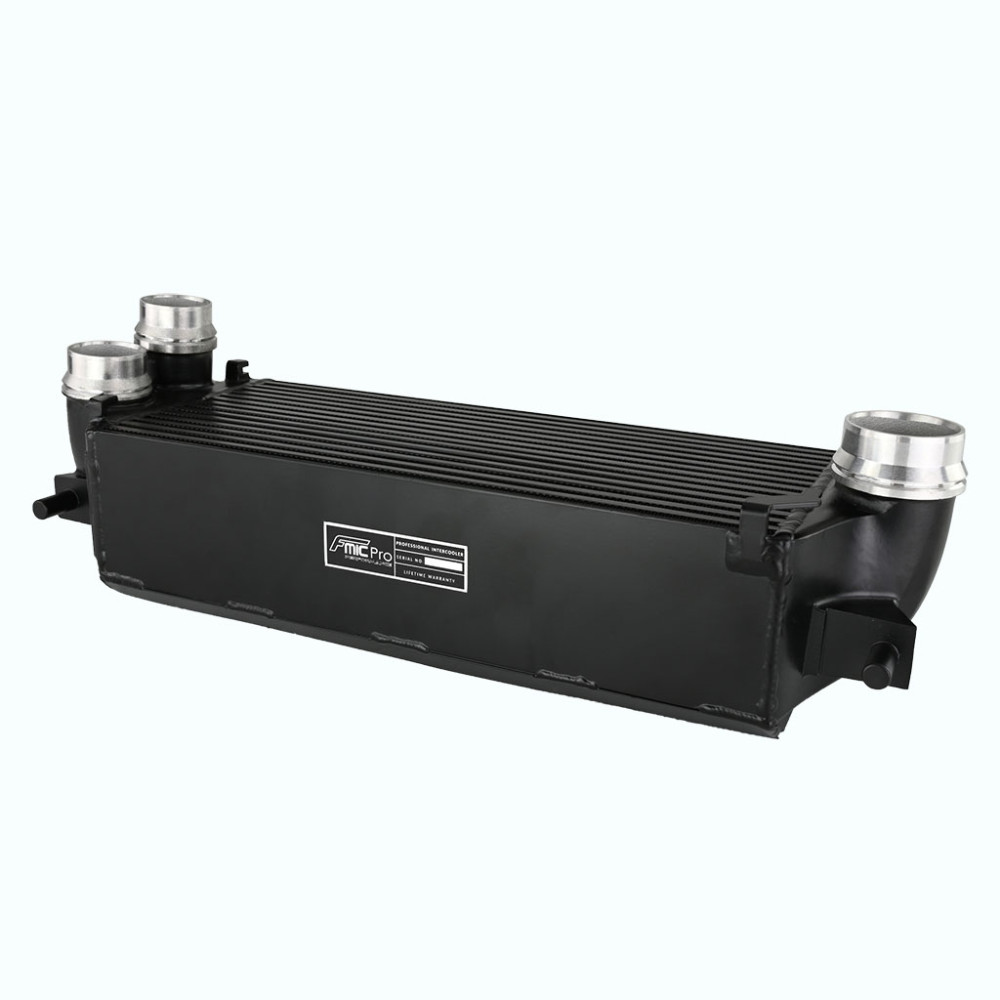

The intercooler is a dedicated design developed specifically for the Ford Ranger Raptor MK4 with the 3.0 EcoBoost engine. It offers significantly higher charge air cooling efficiency and optimized airflow compared to the factory setup, making it ideal for modified and high-performance vehicles. Constructed entirely of aluminum, the core measures 480 mm x 210 mm x 110 mm, greatly increasing the heat exchange surface. This effectively reduces intake air temperatures and ensures thermal stability even under heavy load. The intercooler features two 56 mm inlet/outlet connections and one 67 mm outlet.

Product features:

• Increased cooling efficiency and optimized airflow
• 47% higher performance compared to the OEM intercooler
• High-performance full-aluminum core
• Core dimensions: 480 mm x 210 mm x 110 mm
• Connections: 2 x 56 mm, 1 x 67 mm
• Lower intake air temperatures – better performance and more tuning potential
• Easy installation in place of the OEM intercooler

Dedicated to:

Ford Ranger Raptor MK4 3.0 V6 EcoBoost 2022+
