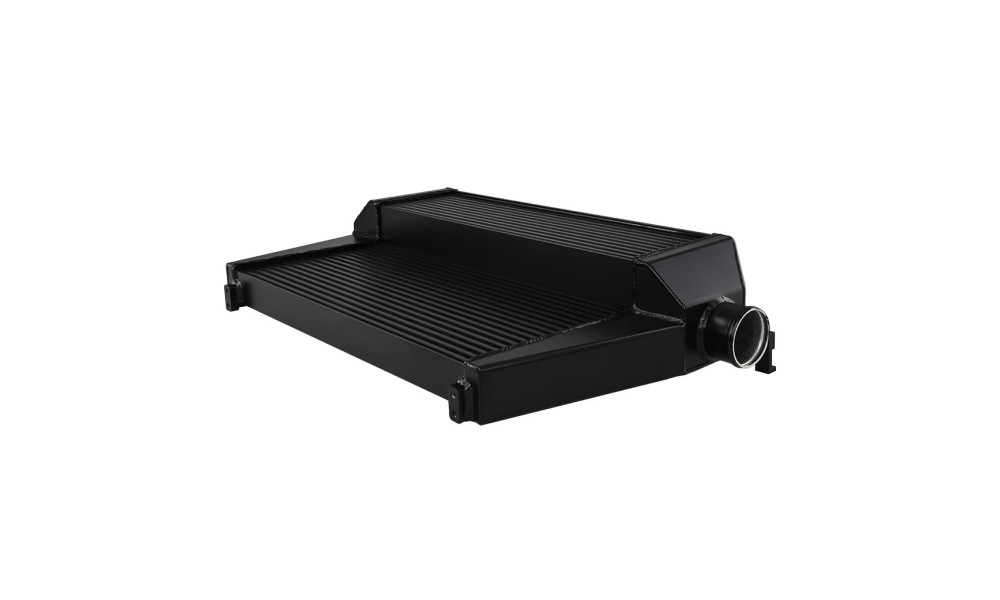

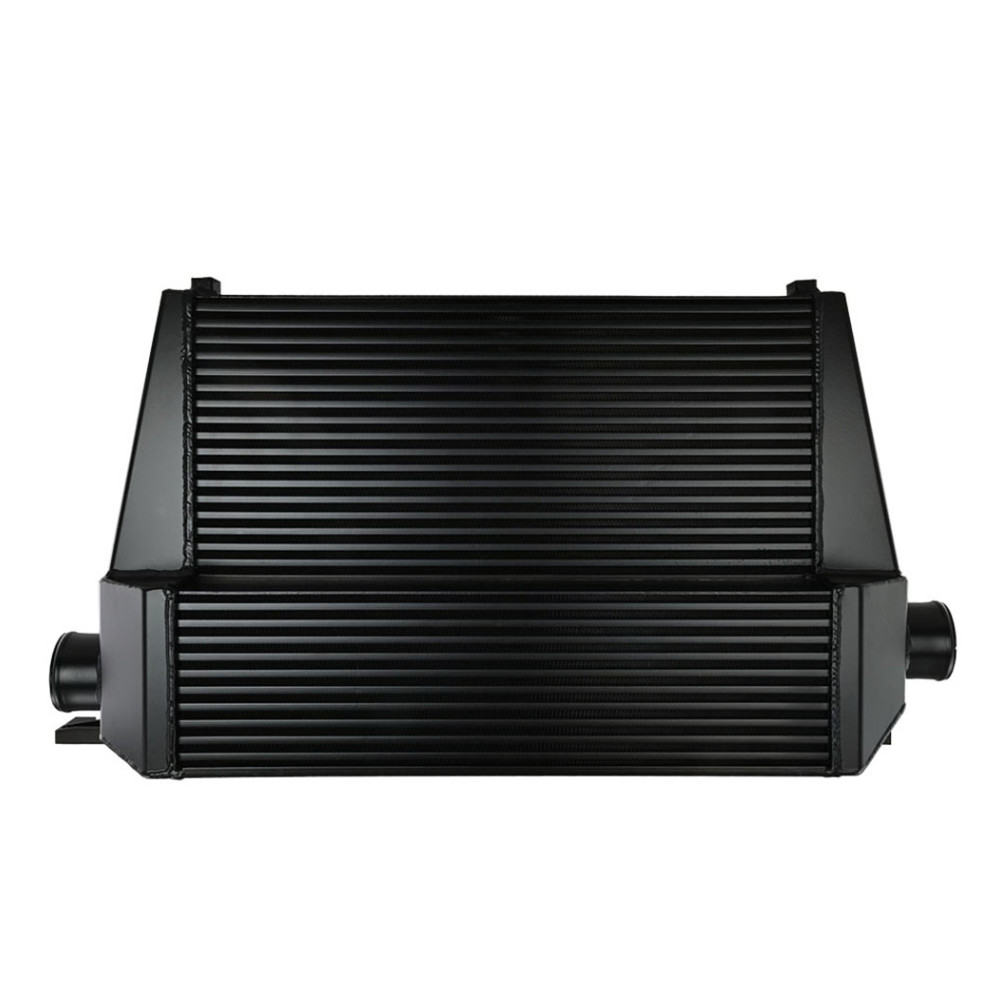

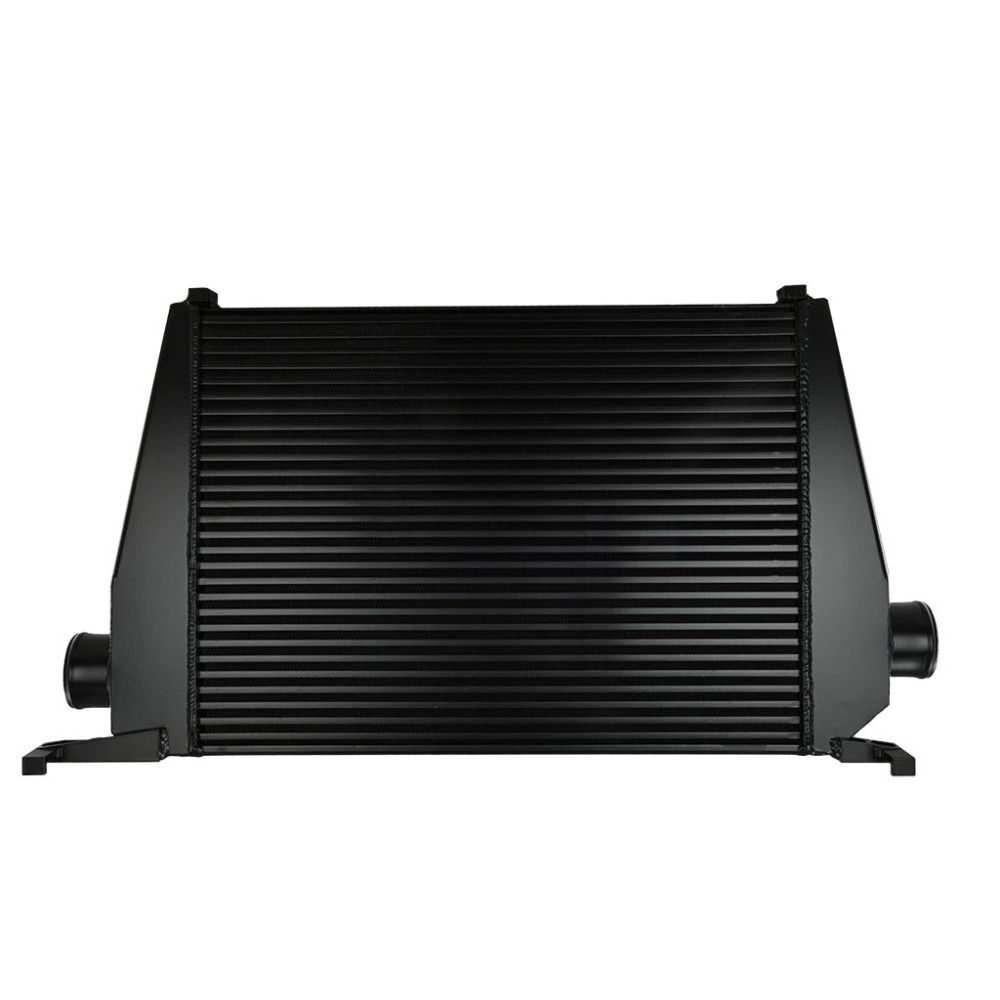

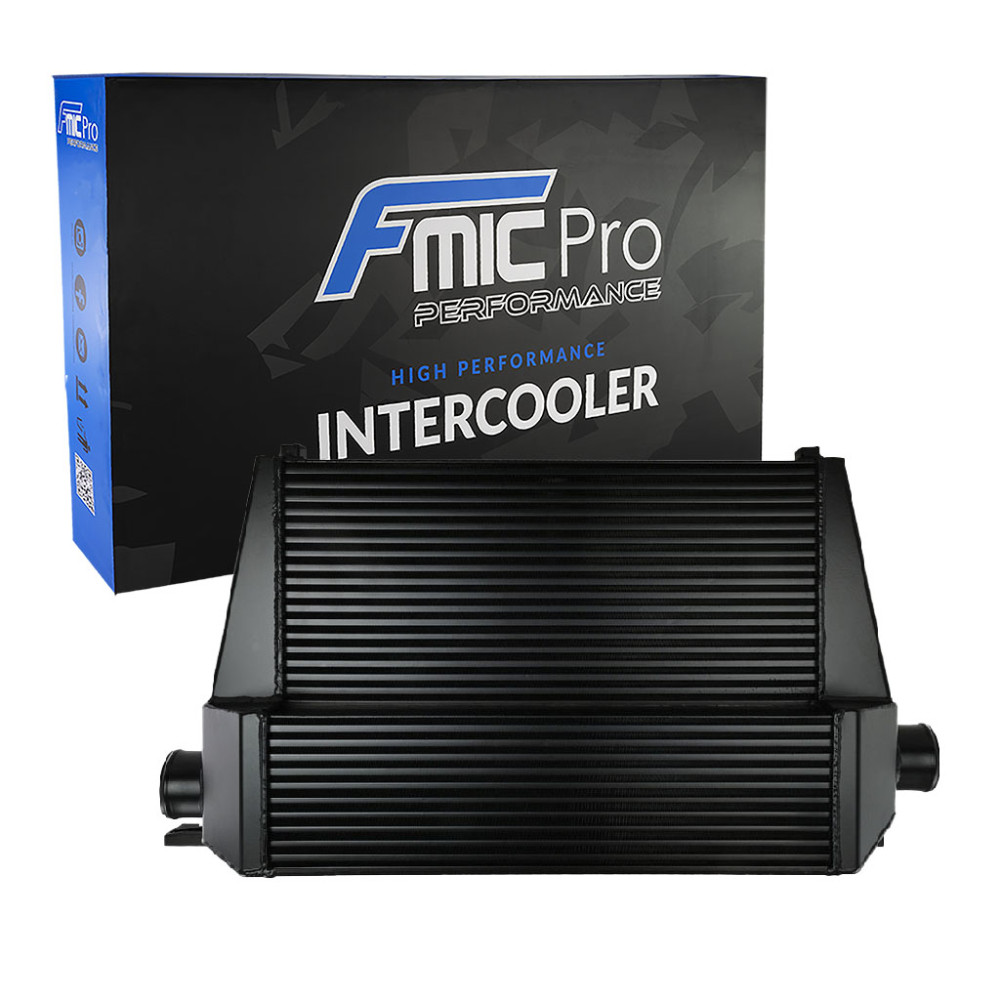

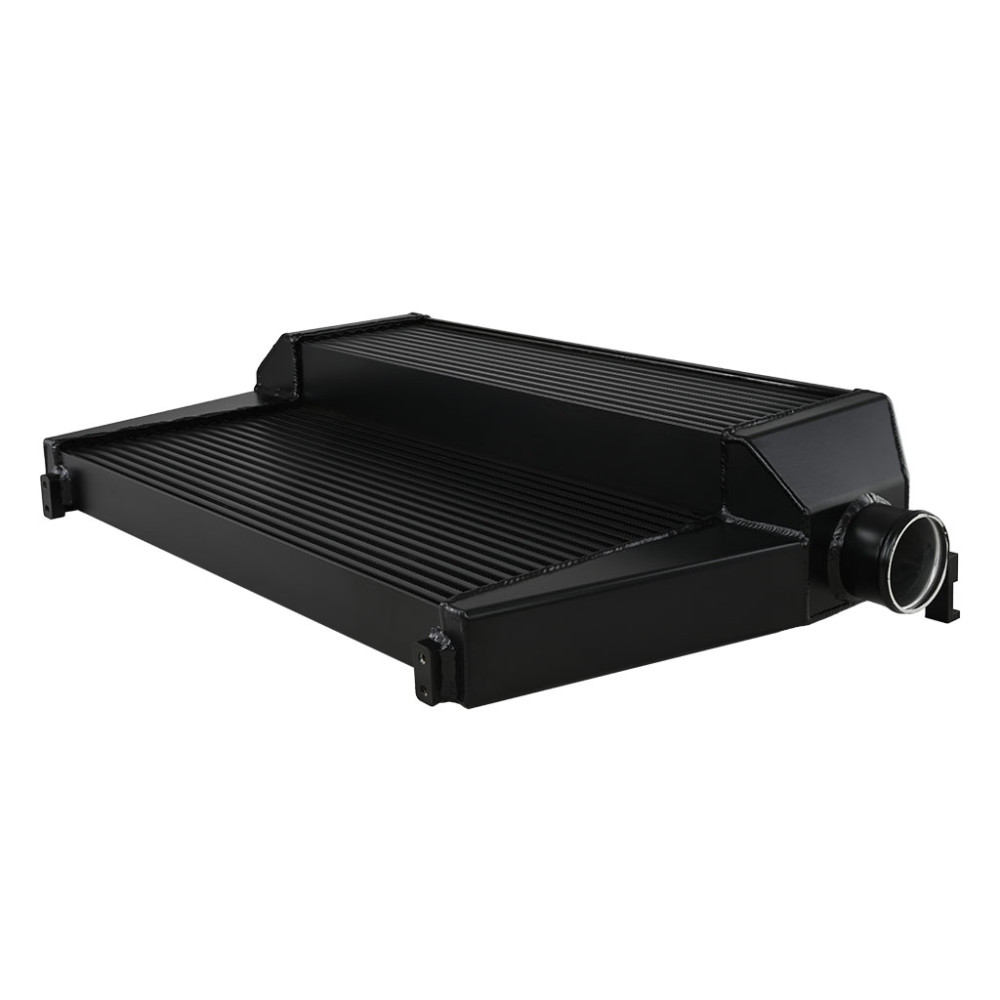

Intercooler for Audi A4 A5 S4 S5 2.0 3.0 B9 Stage 3

The dedicated intercooler is designed for high performance, featuring a unique core design that optimizes cooling efficiency and airflow. This results in lower intake air temperatures and reduced pressure drop, enhancing engine power after remapping. The system includes a double-ventilated external core for rapid heat dissipation. CNC-machined end tanks ensure precise mounting and connector alignment. Each intercooler is a direct replacement for the OEM unit and comes with a unique serial number. The kit includes an intercooler mounting kit.

Core dimensions:

• 560 mm x 260 mm x 51 mm + 560 mm x 160 mm x 116 mm
• Inlet diameter: 70 mm
• Outlet diameter: 70 mm

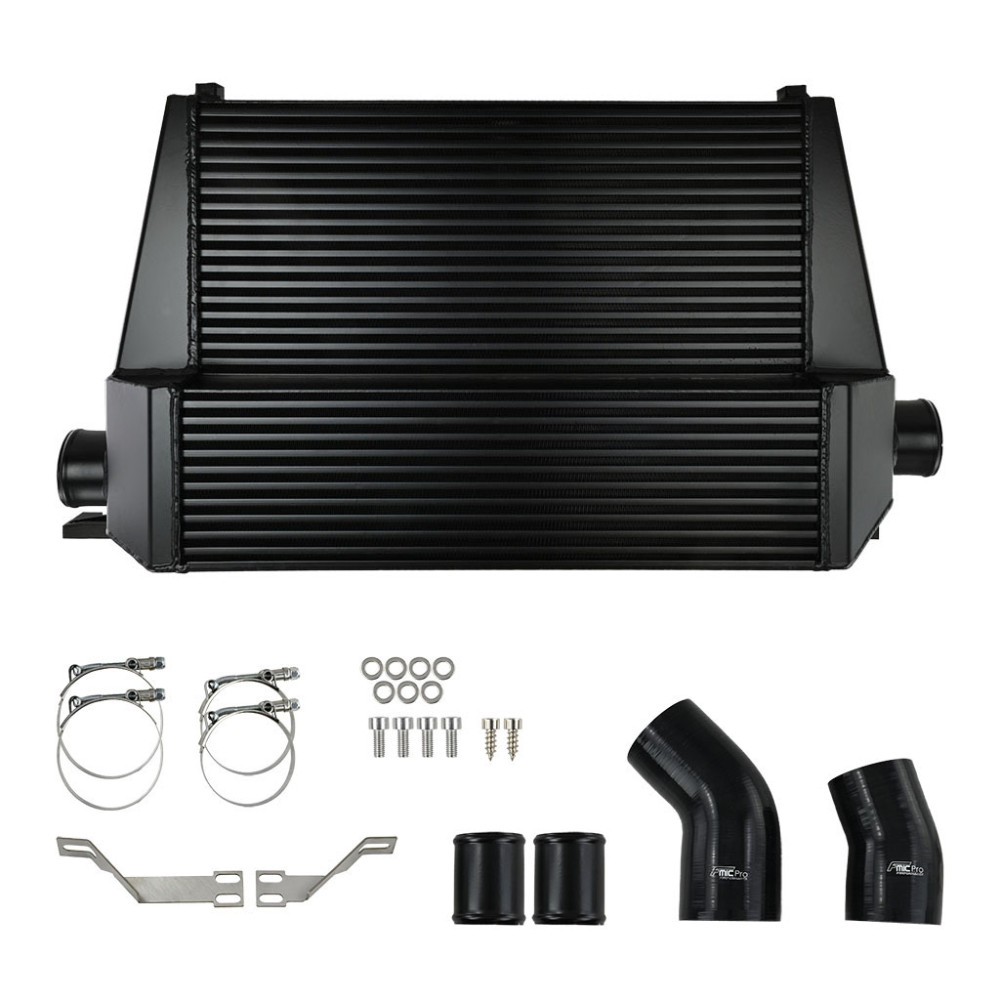

Kit includes:

• Intercooler
• 2 silicone couplers
• 2 aluminum couplers
• Clamps
• Intercooler mounting kit

Fits:

• Audi A4 B9 2.0 TFSI 140KW/190PS 2015-2018
• Audi A4 B9 2.0 TFSI 185KW/252PS 2015-2018
• Audi A4 B9 35 TFSI 110KW/150PS 2018-
• Audi A4 B9 40 TFSI 140KW/190PS 2018-
• Audi A4 B9 45 TFSI 180KW/245PS 2019-
• Audi A5 F5 40 TFSI 140KW/190PS 2018-
• Audi A5 F5 45 TFSI 180KW/245PS 2019-
• Audi A5 F5 2.0 TFSI 140KW/190PS 2016-2018
• Audi A5 F5 2.0 TFSI 185KW/252PS 2016-2018
• Audi A5 F5 35 TFSI 110KW/150PS 2018-
