Intake Pipe Kit Charge Pipe for BMW B58 F20 F21 F22 F23 F87 M140i M240i 2015-2021

This charge pipe intake kit features an enlarged inner diameter compared to the original intake pipe, minimizing airflow restriction. The factory part often causes air turbulence and reduces flow efficiency. Made from durable aluminum, these pipes replace the original plastic components that are prone to damage at the mounting flange or cracking. The kit ensures tightness and reliability.

The components are connected with a silicone reducer featuring quadruple reinforcement and a 5 mm wall thickness. It includes a 1/8" NPT port/plug for methanol injection or connecting an intake air temperature sensor.

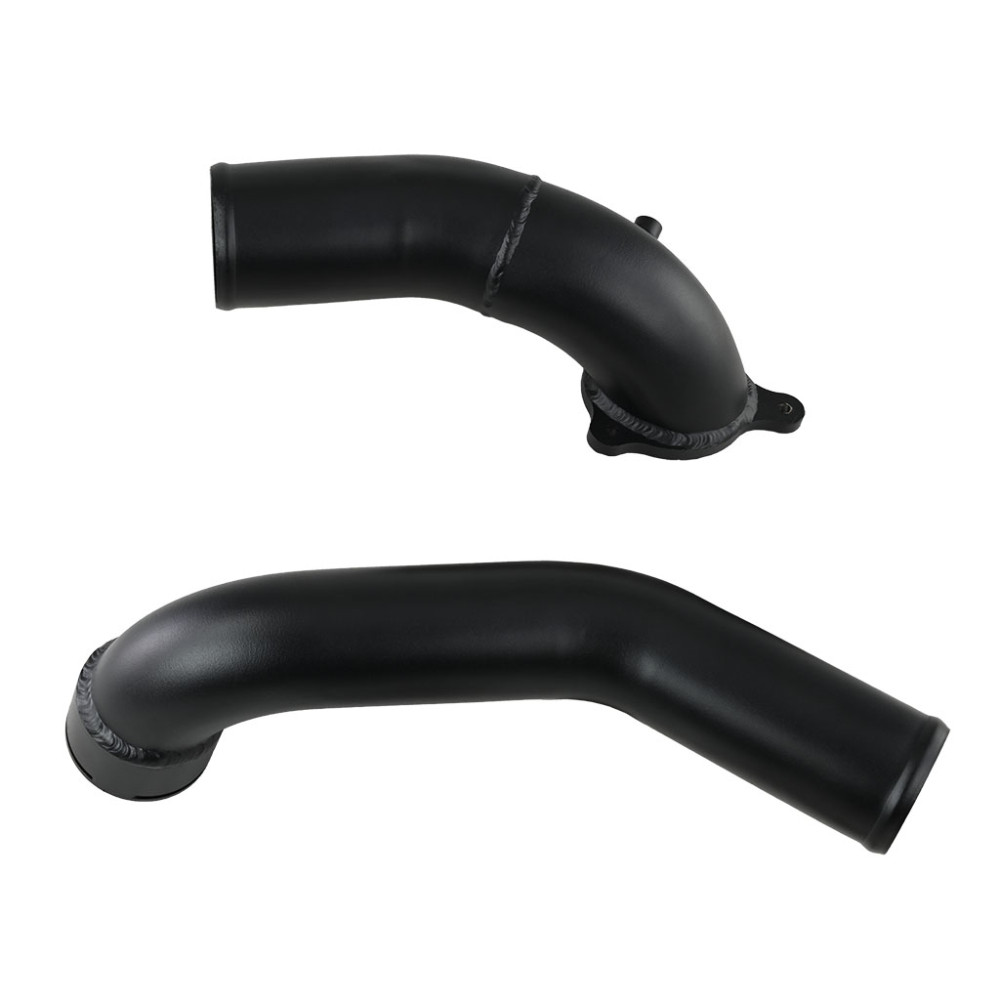

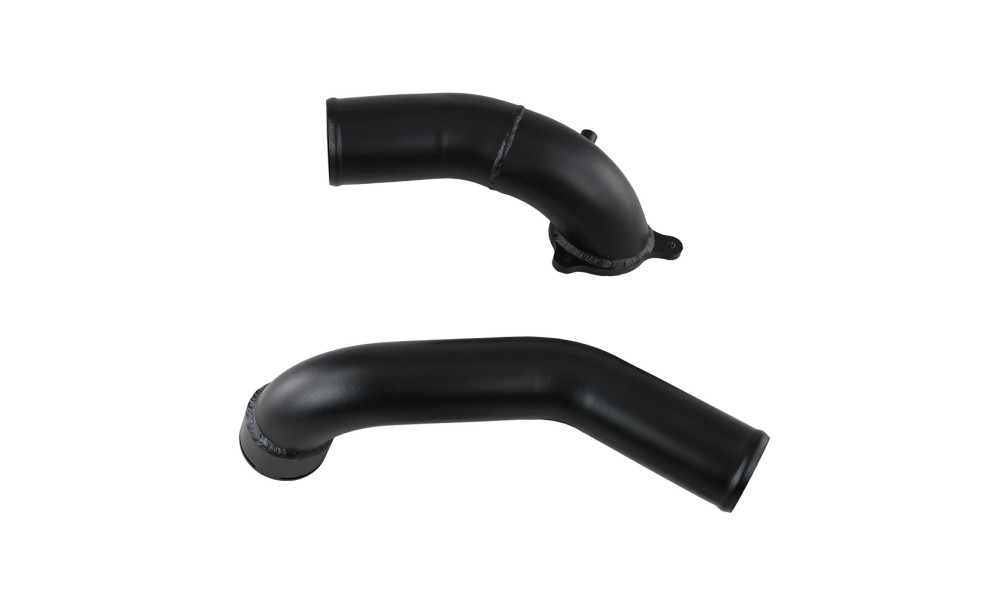

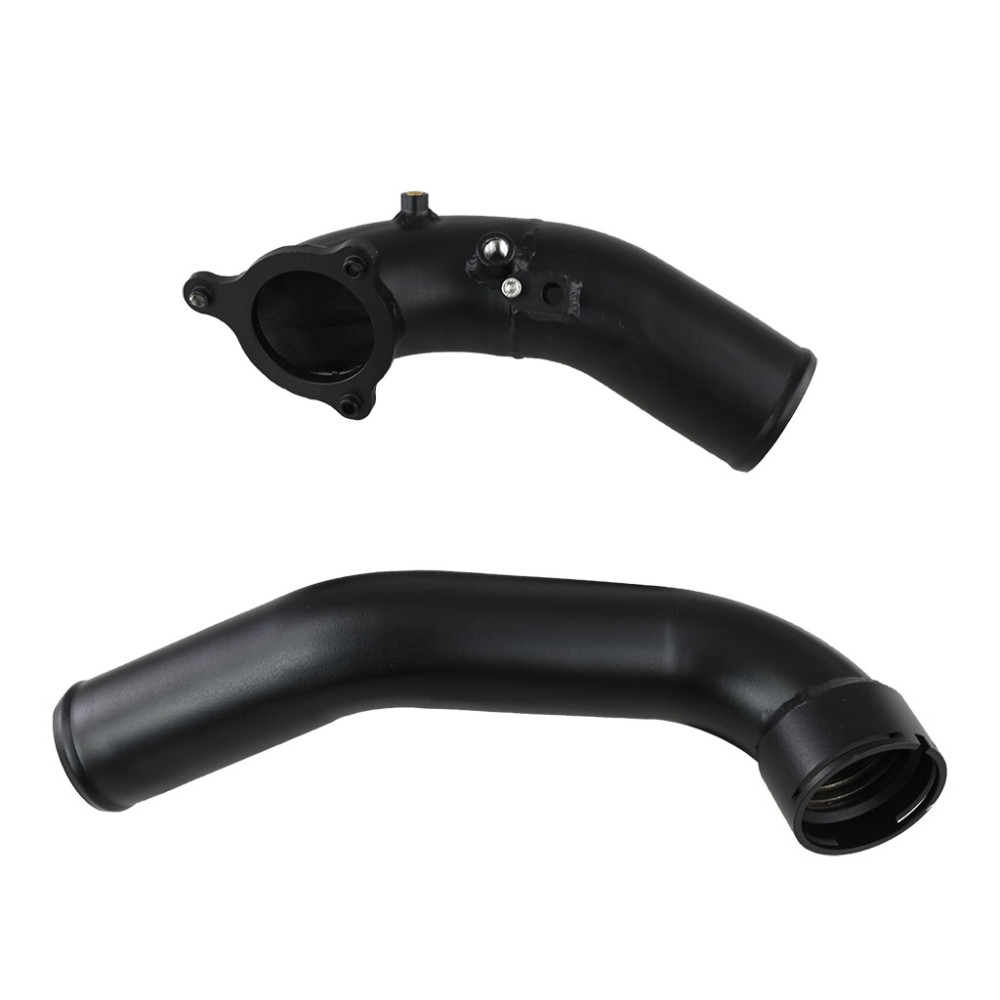

• Aluminum 6061 pipe, a direct replacement for the OEM pipe
• Aluminum connectors replace faulty plastic pipes that may fail under increased boost pressure
• Enlarged diameter and smooth flow design reduce turbulence and maximize airflow
• All connection nozzles are CNC machined

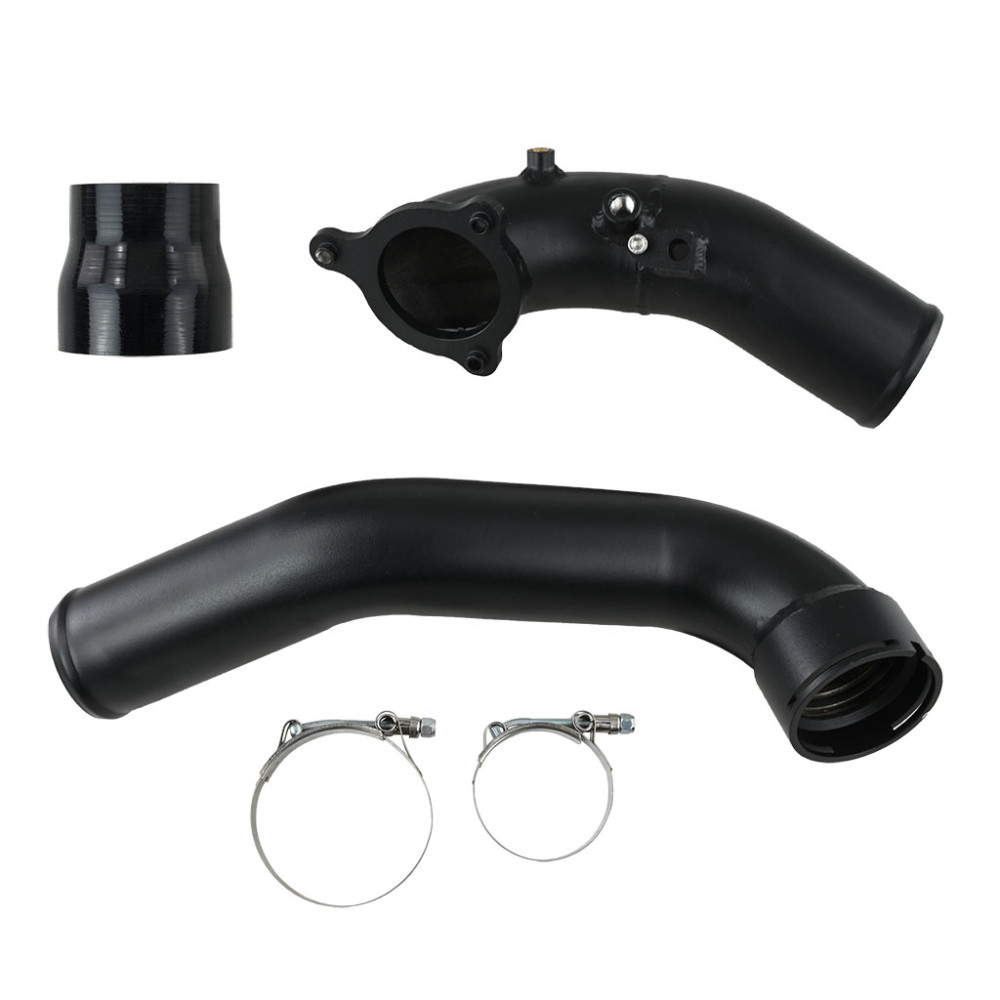

Kit includes:

• Aluminum connector powder coated black: 1 pc 63 mm, 1 pc 76 mm
• Silicone reducer 63/76 mm
• Stainless steel clamps 2 pcs

Fits:

Series 1:
BMW F20 M140i B58 B30 A 2016-2019
BMW F21 M140i B58 B30 A 2015-2019
BMW F20 Van M140i B58 B30 A 2016-2019

Series 2:
BMW F22 F87 M240i B58 B30 A 2015-2021
BMW F23 M240i B58 B30 A 2015-2021

Series 3:
BMW F30 F80 340i B58 B30 A 2015-2018
BMW F31 340i B58 B30 A 2015-2019
BMW F31 Van 340i B58 B30 A 2015-2019

Series 4:
BMW F32 F82 440i B58 B30 A 2016-2020
BMW F36 440i B58 B30 A 2016-2021
BMW F33 F83 440i B58 B30 A 2016-2020
