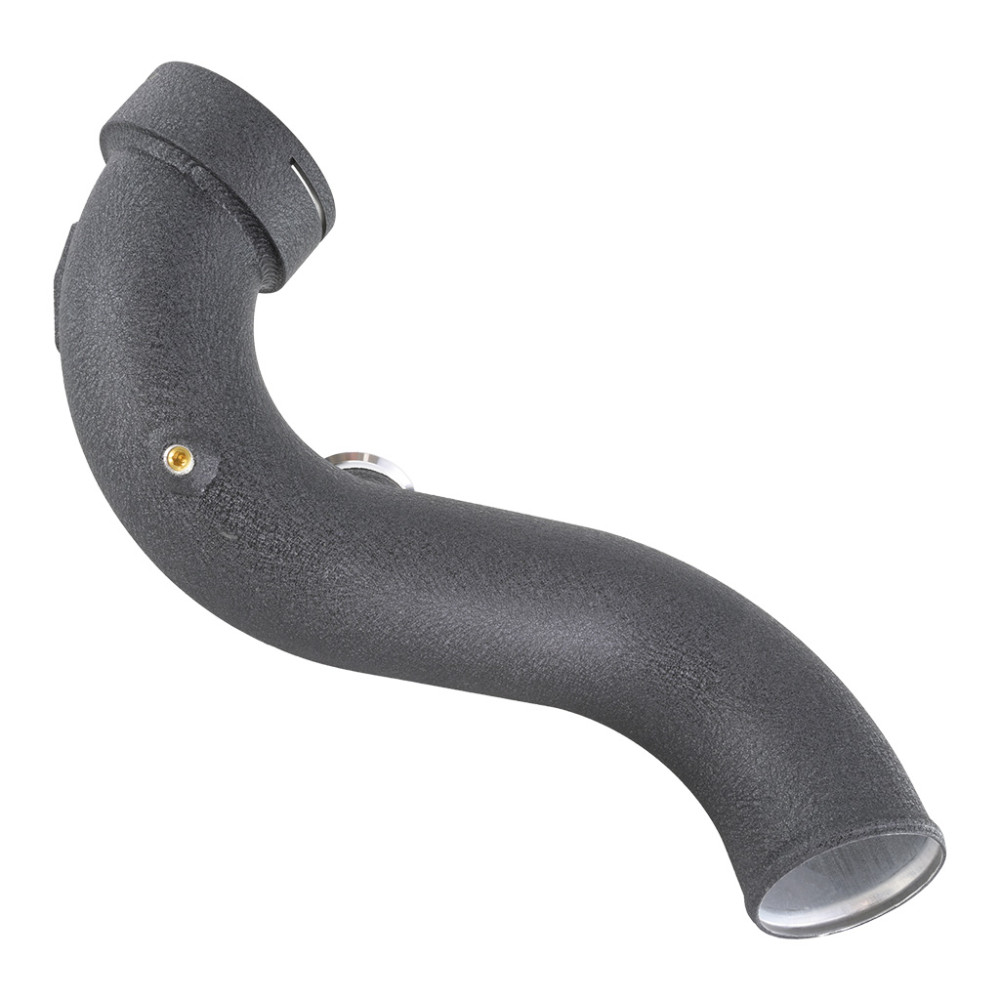

Charge Pipe FMIC.EU for BMW M57N2 335D E90 E91 E93 2006–2013

The internal diameter of the pipes is enlarged compared to the original intake pipe, minimizing airflow restriction.
The defective factory element creates air turbulence and reduces flow and performance.
Made of plastic, it often breaks at the mounting flange or cracks, and has been replaced with aluminum pipes to ensure tightness.
The components are connected with a silicone reducer with quadruple reinforcement and a wall thickness of 5 mm.

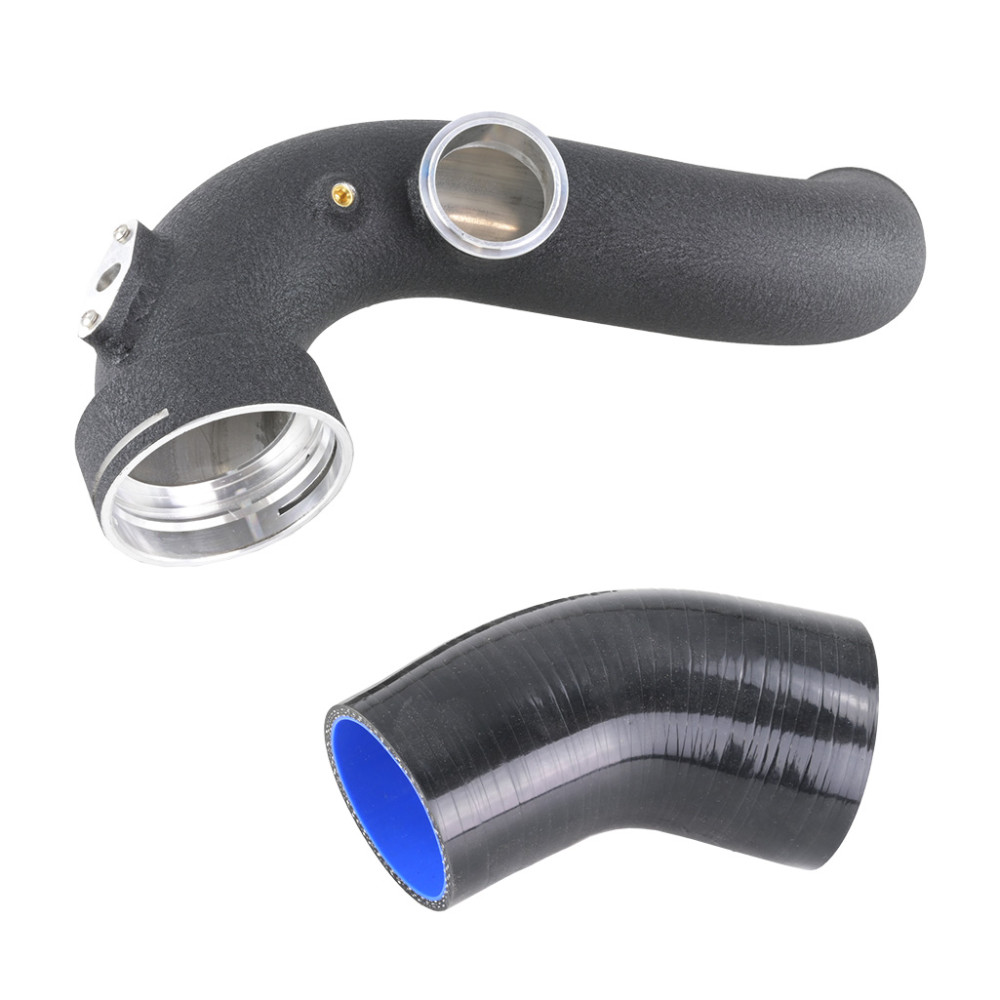

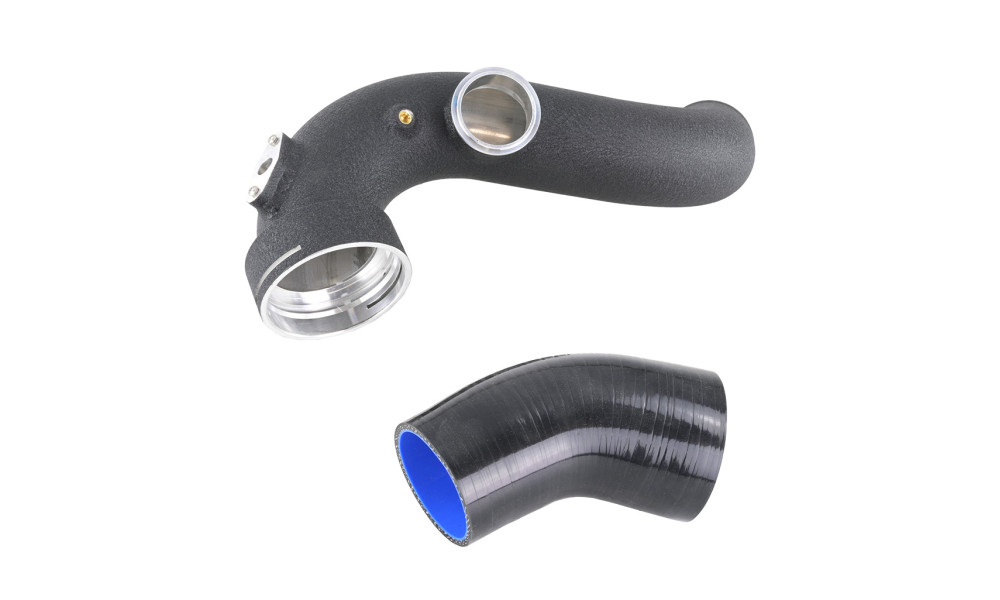

The kit includes a reinforced silicone elbow hose providing a safe and tight connection between the turbocharger and the intercooler.

Includes 1/8" NPT ports/plugs for methanol injection or for connecting an intake air temperature sensor.

-Pipe made of 6061 aluminum, a replacement for the OEM pipe.

-Aluminum connectors replace the faulty plastic pipe, which may get damaged under increased boost pressure.

-Enlarged diameter and smooth, restriction-free flow help reduce turbulence and maximize airflow.

-All connection fittings are CNC machined.

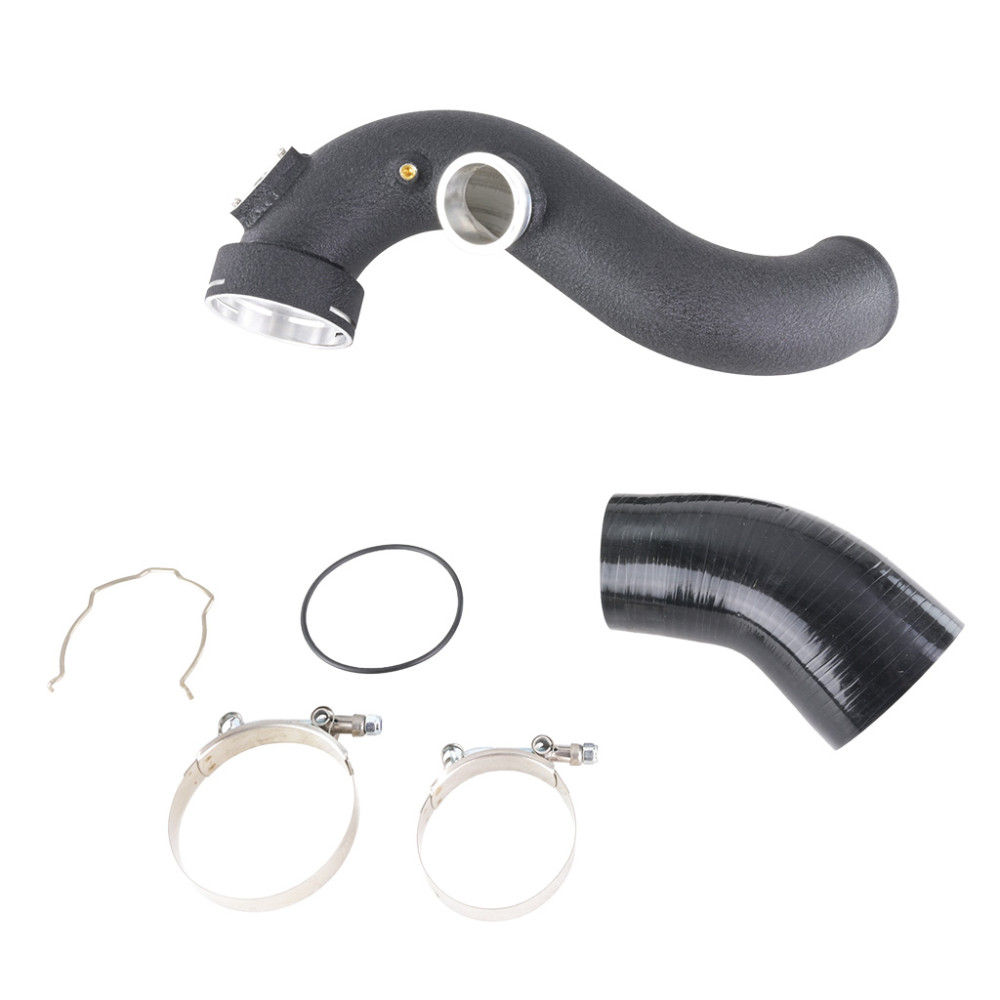

Kit contents:

-Powder-coated black aluminum connector:
76 mm: 2x 1/8 NPT ports/plugs, MAF sensor port, BOV 50 mm

-Silicone reducer 63/76 mm

-2x stainless steel clamps

-Gasket, C-clip

Application for M57N2 engines.

Vehicle fitment:

BMW 335D (E90 / E91 / E92 / E93) 3.0L Twin-Turbo Diesel
