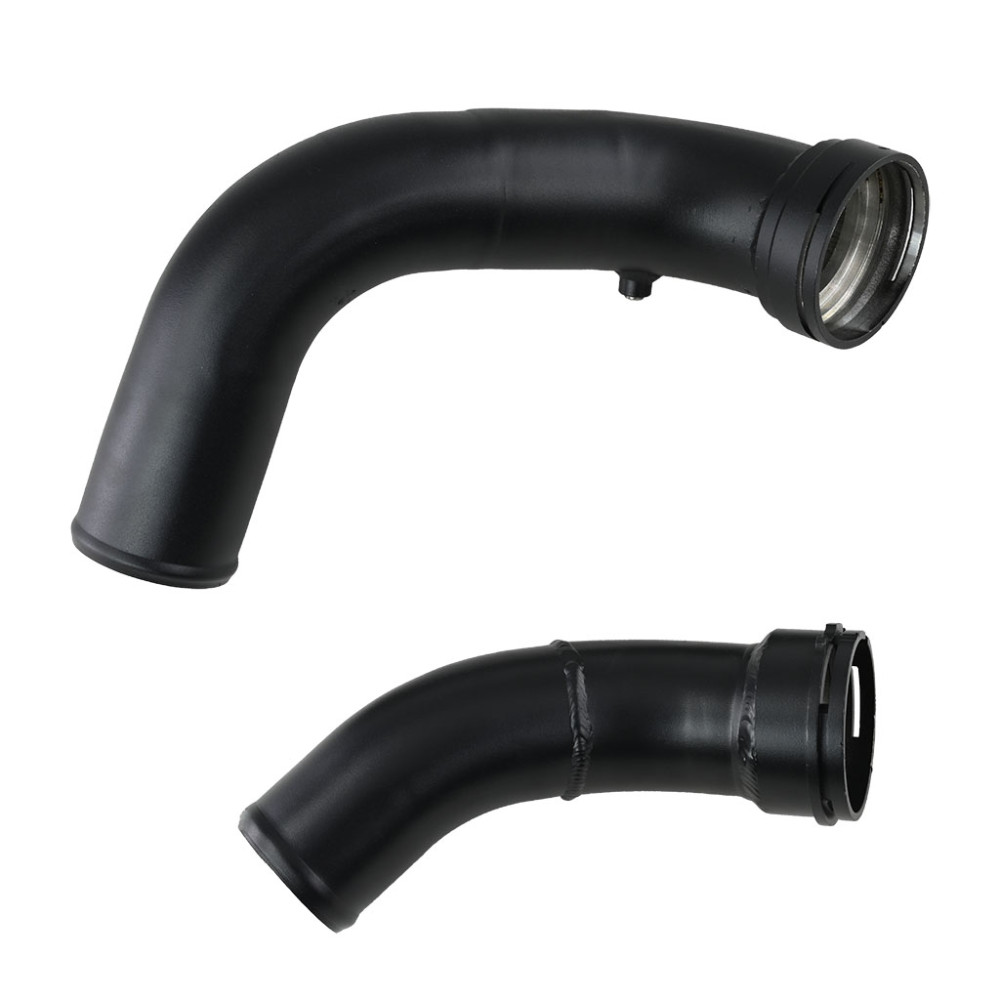

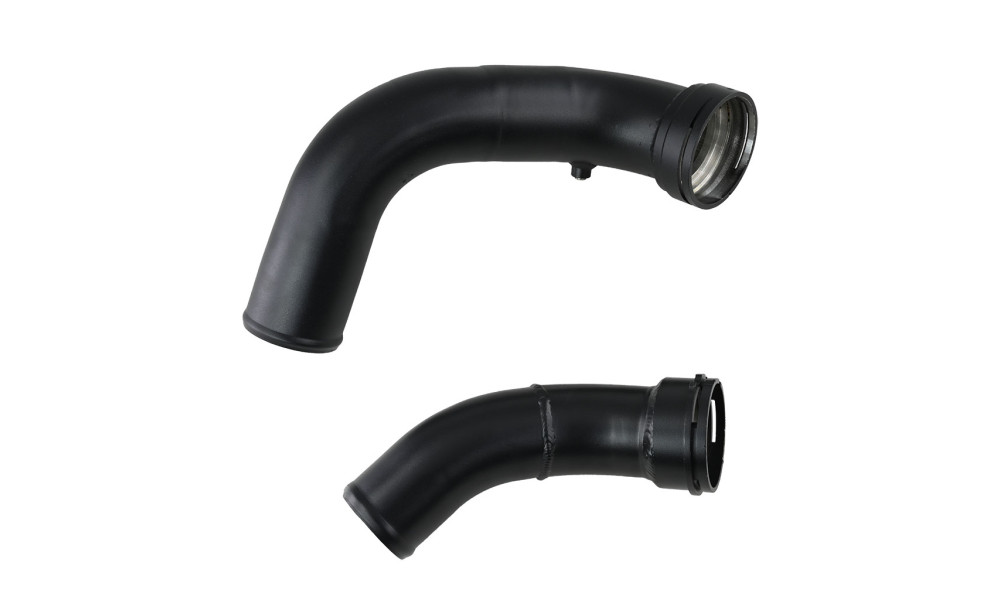

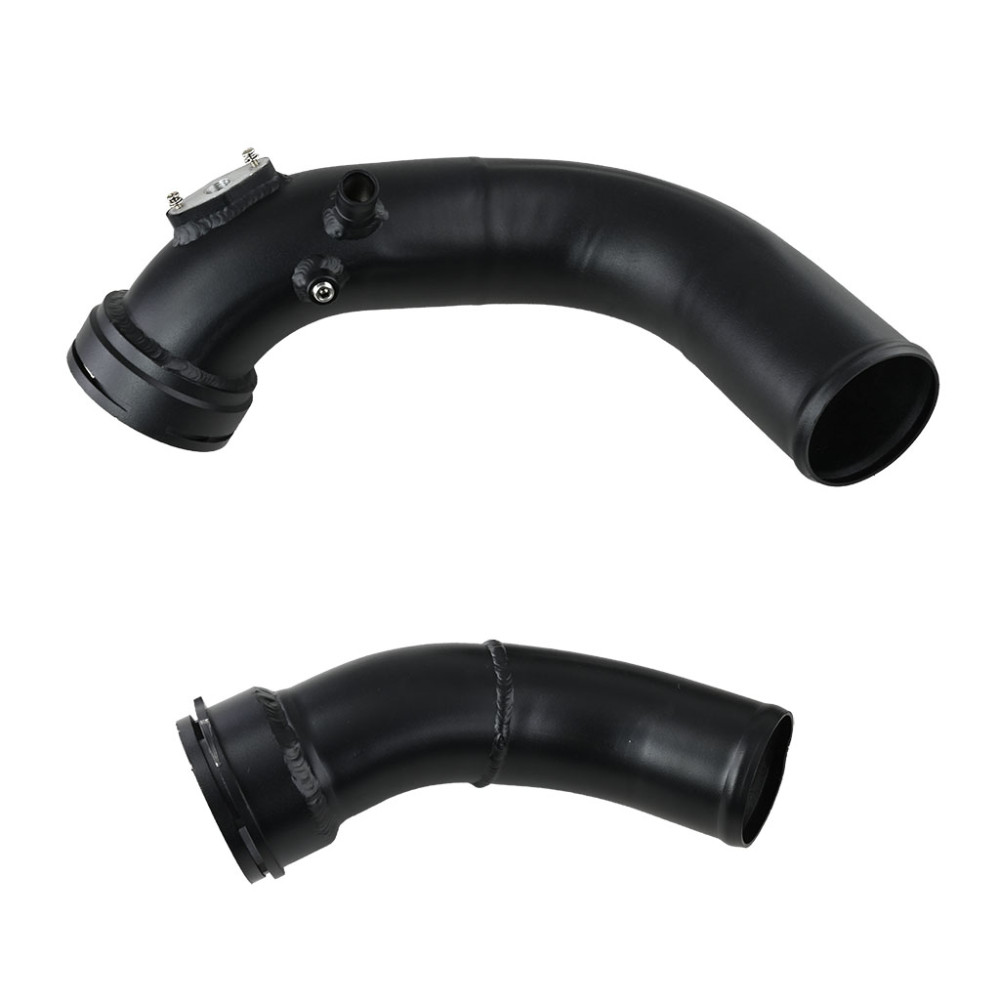

Charge Pipe Kit for BMW N55 F30 F32 N55 135i 335i 435i

The inner diameter of the pipes is enlarged compared to the original intake pipe. This minimizes airflow restriction, as the faulty factory part creates air turbulence and reduces flow and efficiency. Made of plastic, it is prone to damage at the mounting flange or cracks, and is replaced with aluminum pipes which guarantee tightness.

The parts are connected with a silicone reducer with quadruple reinforcement and 5 mm wall thickness. The kit has also been designed with tuning enthusiasts in mind – the pipes feature 1/8" sockets that allow for the connection of a methanol injection system now or in the future.

• Aluminum 6061 pipes replacement for OEM pipe
• Aluminum connectors replace the faulty plastic pipe which may be damaged under increased boost pressure
• Enlarged diameter and smooth flow without narrowing helps reduce turbulence and maximize airflow
• All connection nozzles CNC machined

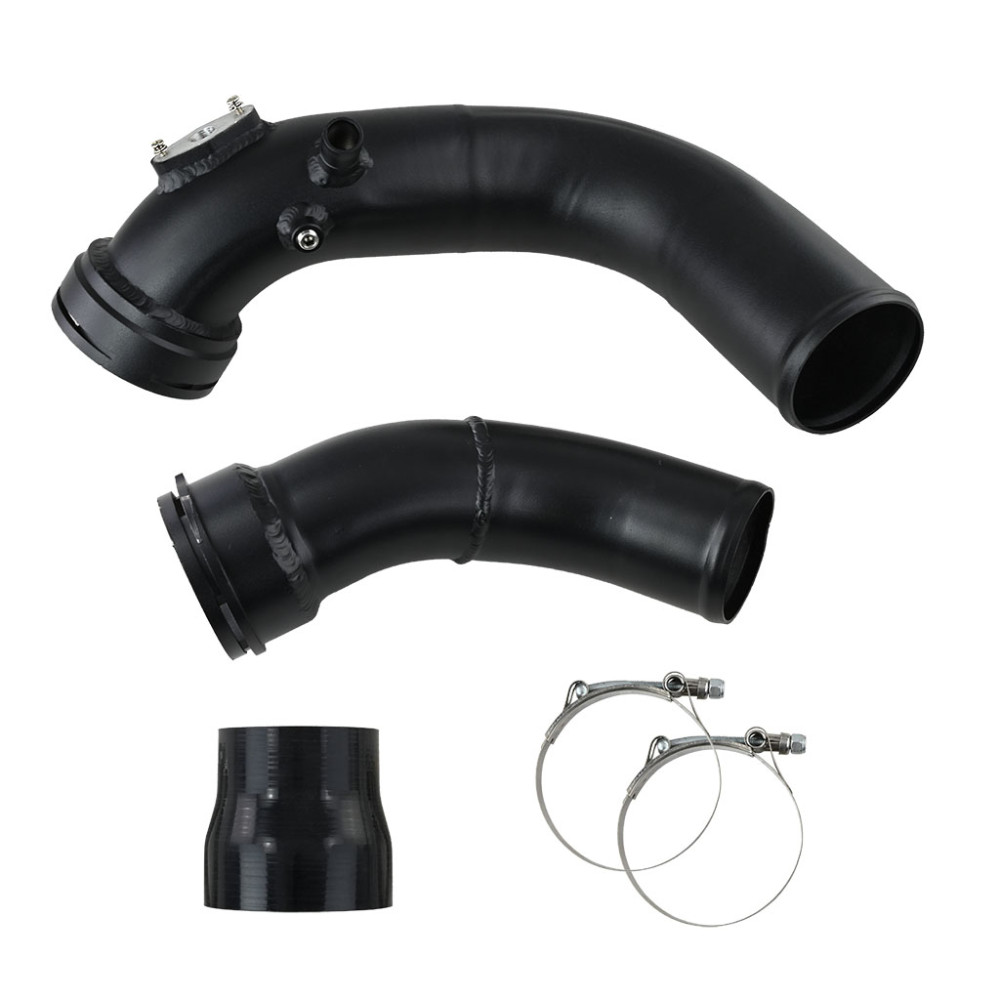

Kit includes:

• Aluminum pipes powder coated black
• 1 piece pipe outer diameter 76 mm with temperature sensor port/plugs 1/8 npt nozzle
• 1 piece pipe outer diameter 63 mm
• Silicone reducer 62 mm to 75 mm
• Stainless steel clamps 2 pieces

Dedicated for engine N55 B30 A:

• BMW 1 F20 F21 M135 135i 2011-2019
• BMW 3 F30 F31 F34 F80 335i 2011-2019
• BMW 4 F32 F33 F36 F82 F83 435i 2013-2020
