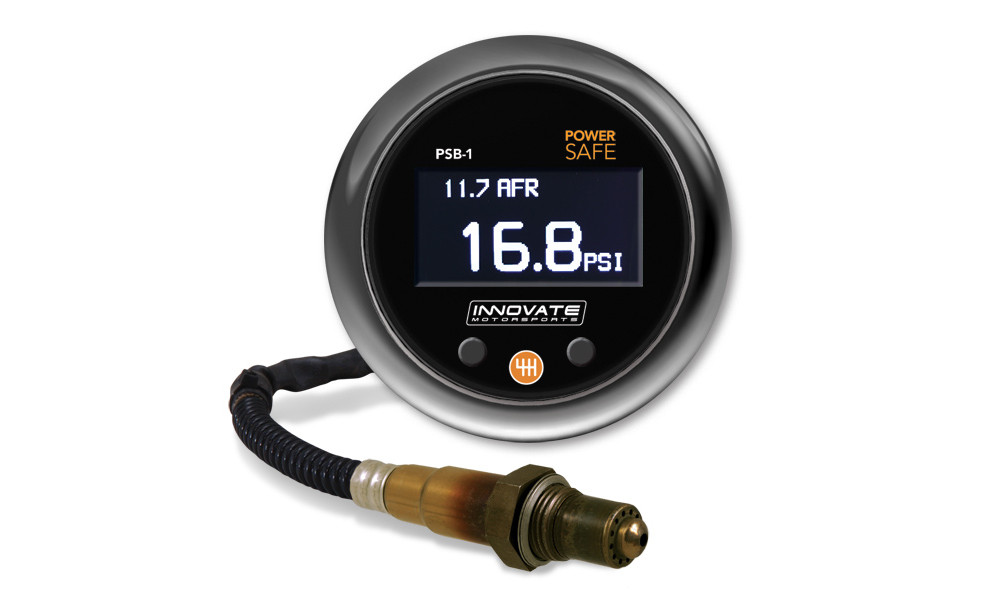

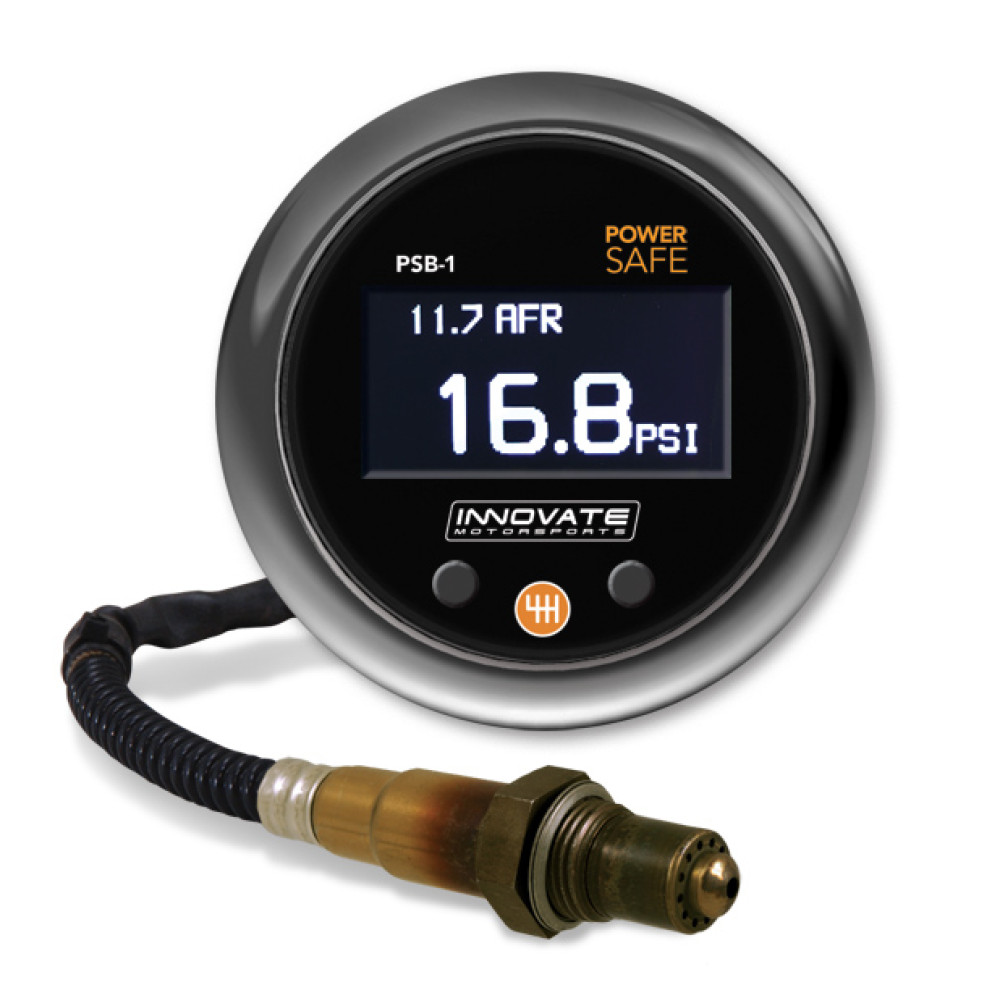

Innovate PSB-1 PowerSafe Boost & Air/Fuel Ratio Gauge

The Innovate PSB-1 PowerSafe gauge integrates patented DirectDigital™ O2 sensor control technology with application-specific sensors, an OLED display, and a smart safety override circuit for high-performance vehicles. PowerSafe technology can automatically disable factory or aftermarket boost control solenoids to force the system to spring pressure, and in nitrous applications, it will disable the nitrous solenoid to protect your engine.

• All-in-one boost safety override and wideband air/fuel ratio gauge
• 52mm (2 1/16”) diameter gauge body
• Interchangeable faceplates and bezels: includes black and silver bezels, black and white faceplates
• No PC required for configuration
• User-configurable OLED display
• Displays boost, shift light, and air/fuel ratio
• Supports AFR or Lambda, inHG, PSI, kPa, or BAR units
• 4 BAR MAP sensor, pressure range: -29 inHG to 43.5 PSI (-1 to 3 BAR)
• User-programmable boost cut safety using air/fuel and pressure references
• Boost cut by pressure or lean air/fuel condition
• Valet mode to temporarily hold the system at spring pressure
• Peak hold function
• Patented DirectDigital™ wideband sensor control, 100% digital wideband air/fuel ratio technology
• Wideband O2 compatible with leaded, unleaded, diesel, E85, and more
• O2 sensor calibration for maximum accuracy
• Configurable linear 0-5V analog output for wideband O2, compatible with piggyback or standalone ECUs and external data loggers
• 30A relay included
• Innovate MTS serial in/out for integration with Innovate and third-party MTS-enabled devices
• Three channels of loggable data (MAP, RPM, A/F) with LogWorks PC software

Kit Contents (P/N: 3892)

• PSB-1 gauge
• LSU 4.9 wideband oxygen O2 sensor
• 8 ft sensor cable
• 4-Bar MAP sensor
• 30A relay
• O2 sensor weld-on bung
• Black/silver bezel
• Black/white faceplate
• Serial program cable
• Installation manual
