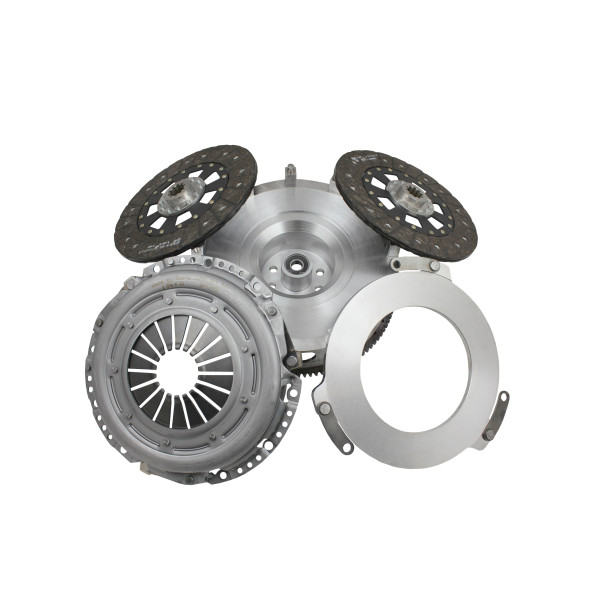

High-Performance Twin Disc Clutch Set for Toyota 1JZ / 2JZ with BMW ZF / Getrag Gearboxes - Stage 1 FTWL

Single-mass twin disc clutch kit for Toyota 1JZ and 2JZ engines paired with selected BMW ZF / Getrag transmissions. Designed for high-power turbocharged applications with smooth, OEM-like engagement.

What's included

• Single-mass twin disc clutch set
• Throwout bearing
• 19 mm aluminium adapter plate
• All required bolts

Technical details

• 100% CNC-machined parts
• Made in UE
• Monoblock single-mass flywheel with integrated starter gear
• Flywheel weight: approx. 8.2 kg
• Rotating assembly weight: approx. 14.9 kg (flywheel, middle plate, pressure plate)
• 240 mm lightweight custom clutch discs with steel base and LUK 8090s friction pads
• Sachs 3082 311 341 pressure plate without SAC system
• Heat-resistant CNC-machined clutch disc spacer / middle plate
• End-to-end balanced assembly to G6.3 class up to 8500 rpm
• Each set is supplied with a unique balance protocol

Features

• Precision machining and alignment for accurate fitment
• Middle plate design prevents clutch pedal noise
• Middle plate does not contact the flywheel, helping prevent sticking when hot
• Smooth engagement similar to an OEM clutch set
• Uses common service parts for straightforward and cost-effective renewal
• Stress tested

Compatibility

Fits Toyota 1JZ and 2JZ engines with the following transmissions:

• ZF / Getrag M50, M52, M54 5-speed gearboxes
• E36 M3 6-speed gearbox
• Input shaft spline: 23x29-10N

Does not fit

• Lift M54B30 6-speed gearbox
• ZF 5-speed N47M and M57 gearboxes
• E46 M3 gearboxes with 28x35-10N spline shaft

Requirements

• Requires a DENSO 228000 series starter motor without aluminium cover over the starter gear
• Professional installation is necessary
• Break-in procedure required: at least 1000 km or 5000 gear shifts

Torque capacity

• Regular road cars: approx. 800-1000 Nm
• Entry-level drifting: up to approx. 800 Nm, with torque reserve recommended
• For frequent clutch kicks, Stage 2 or Stage 4 sintered disc versions are recommended
