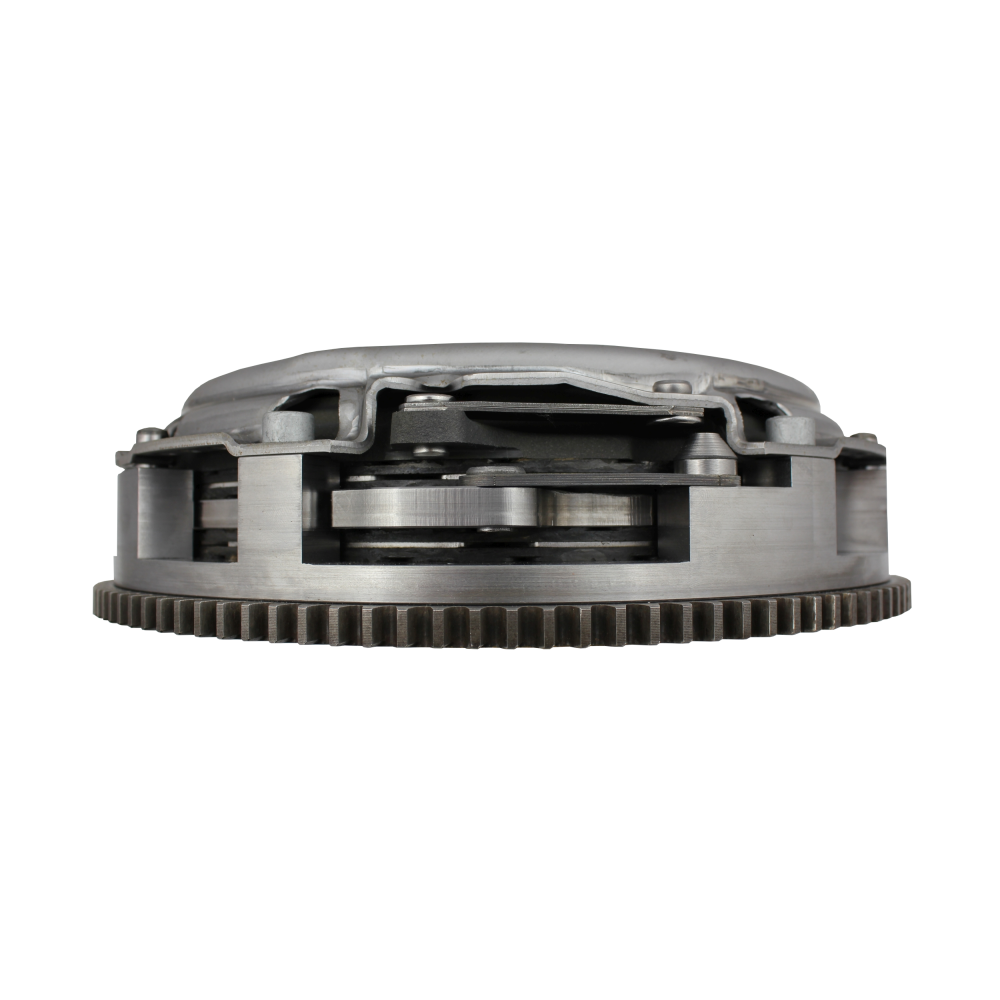

High-Performance Twin Disc Clutch Set for BMW M50/M52/M54/S50/S52/S54 & M57/M47N/M3 E46 Gearbox (Stage 3 FTWL)

Stage 3 single-mass twin disc clutch kit built around CNC-machined components, designed for high-power turbocharged builds while keeping engagement smooth and OEM-like.

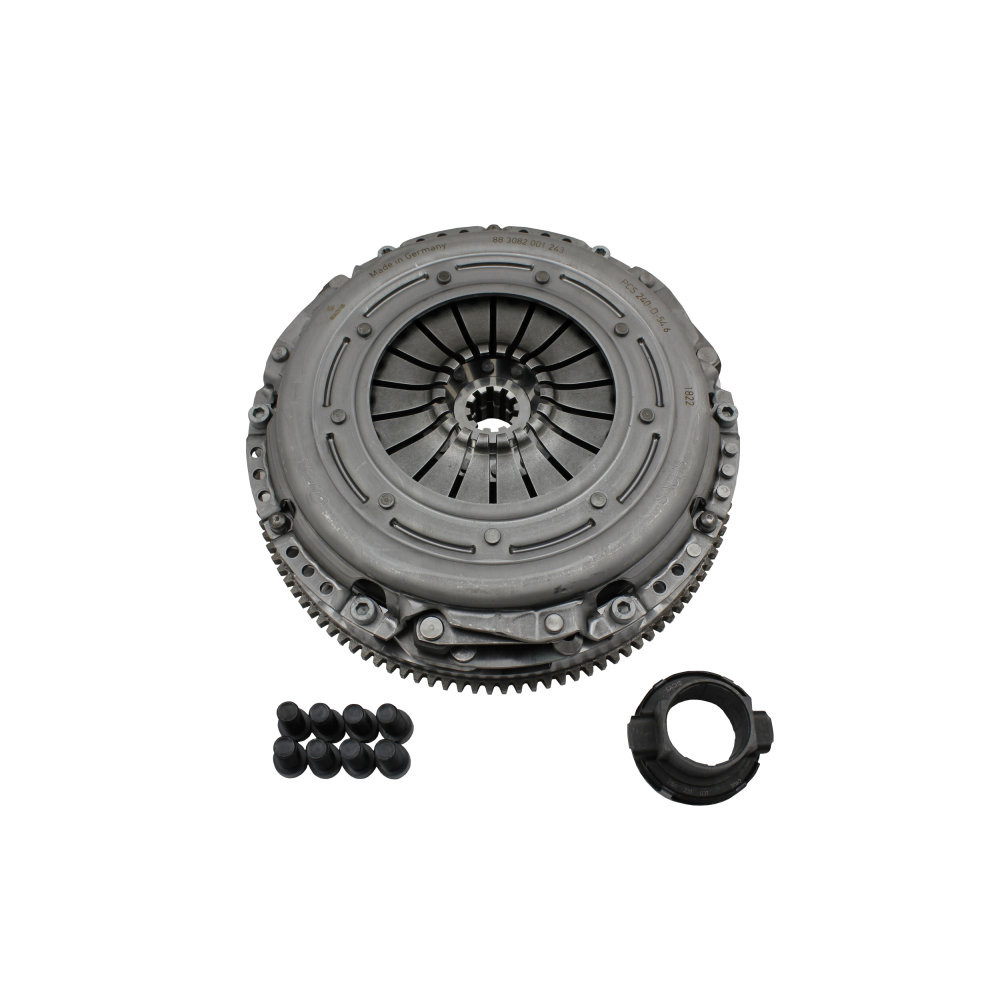

What’s included

• Single-mass twin disc clutch set
• Throwout bearing
• Required bolts (12.9 class)

Key components & specs

• 100% CNC-machined parts (Made in EU)
• Monoblock single-mass flywheel with starter gear mounted (flywheel weight ~6.4 kg)
• Rotating assembly weight ~13.2 kg (flywheel + middle plate + pressure plate)

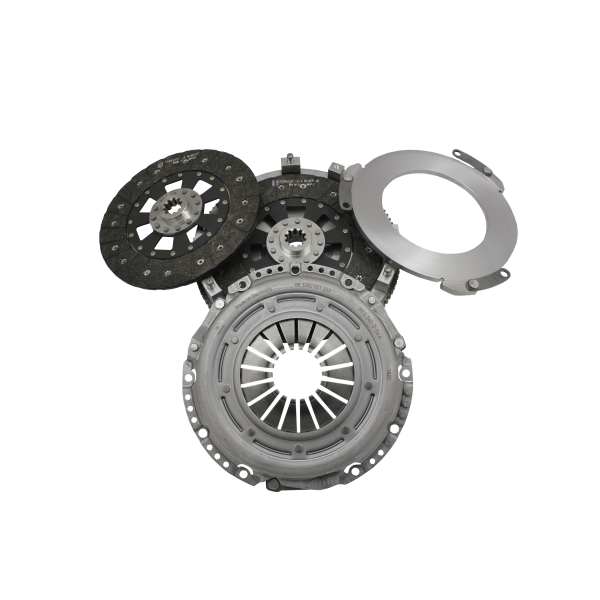

• 240 mm lightweight clutch discs: steel base with LUK 8090s friction pads
• Sachs Performance pressure plate 883082001243 (without SAC system)
• Heat-resistant CNC-machined middle plate/spacer
• End-to-end balancing (flywheel + middle plate + pressure plate) to G6.3 class up to 8000 rpm; supplied with a unique balance protocol
• Middle plate design helps prevent noise when pressing the clutch pedal and reduces risk of sticking when hot by avoiding contact with the flywheel

Fitment

BMW engines: M50, M52, M54, S50, S52, S54

Compatible transmissions (28x35-10N spline shaft):

• 5-speed N47M ZF gearbox
• 6-speed S54B32 Getrag
• 5-speed M57

Does not fit

• Lift version of M54B30 with 6-speed gearbox
• Getrag/ZF 5-speed gearboxes

Torque capability & use notes

• Rated for ~1000–1200 Nm (regular cars)
• For entry-level drifting up to ~1000 Nm, keeping torque reserve is recommended; for frequent clutch kicks, Stage 2 or Stage 4 with sintered discs is recommended

Installation & service

• Professional installation required
• Break-in required: at least 1000 km or 5000 gear shifts
• Uses typical serviceable parts for faster, lower-cost renewal
• Each product is stress tested
