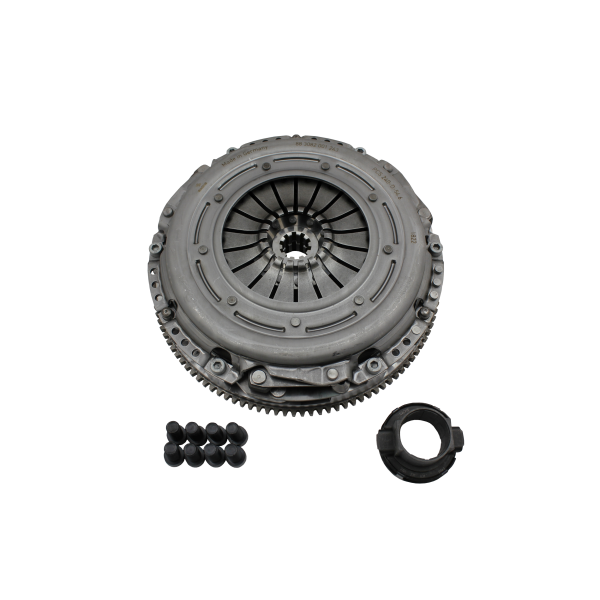

Stage 2 FTWL High-Performance Twin Disc Clutch Set for BMW (M50/M52/M54/S50/S52/S54) & 28x35-10N Transmissions

Single-mass twin disc clutch kit engineered for high-torque BMW builds. CNC-machined components with precise alignment for consistent fitment and smooth, OEM-like engagement.

Included in the set

• Single-mass twin disc clutch set
• Throwout bearing
• Required bolts (12.9 class)

Key specifications

• 100% CNC machined parts (Made in UE)
• Monoblock single-mass flywheel with starter gear mounted
• Flywheel weight: ~6.4 kg
• Rotating assembly weight: ~13.2 kg (flywheel + middle plate + pressure plate)
• 240 mm lightweight 4-puck sintered clutch discs (MIBA sintered pads)
• Sachs pressure plate (without SAC system)
• Heat-resistant CNC-machined clutch disc spacer/middle plate
• End-to-end balanced (flywheel + middle plate + pressure plate) to G6.3 up to 8000 rpm; supplied with a unique balance protocol
• Middle plate design helps prevent noise on clutch pedal press and avoids sticking when hot (no contact with flywheel)

Power handling

• Rated for ~800–1000 Nm torque for regular cars
• For entry-level drifting up to ~800 Nm, keeping torque reserve is recommended

Fitment

Engines: BMW M50, M52, M54, S50, S52, S54

Transmissions / input shaft: 28x35-10N spline shaft

• 5-speed N47M ZF gearbox
• 6-speed S54B32 Getrag gearbox
• 5-speed M57 gearbox

Does not fit

• Lift version of M54B30 with 6-speed gearbox
• Getrag/ZF 5-speed gearboxes

Notes

• Professional installation required
• Break-in required: at least 1000 km or 5000 gear shifts
• Uses typical wear parts for faster, lower-cost renewal
• Stress tested
