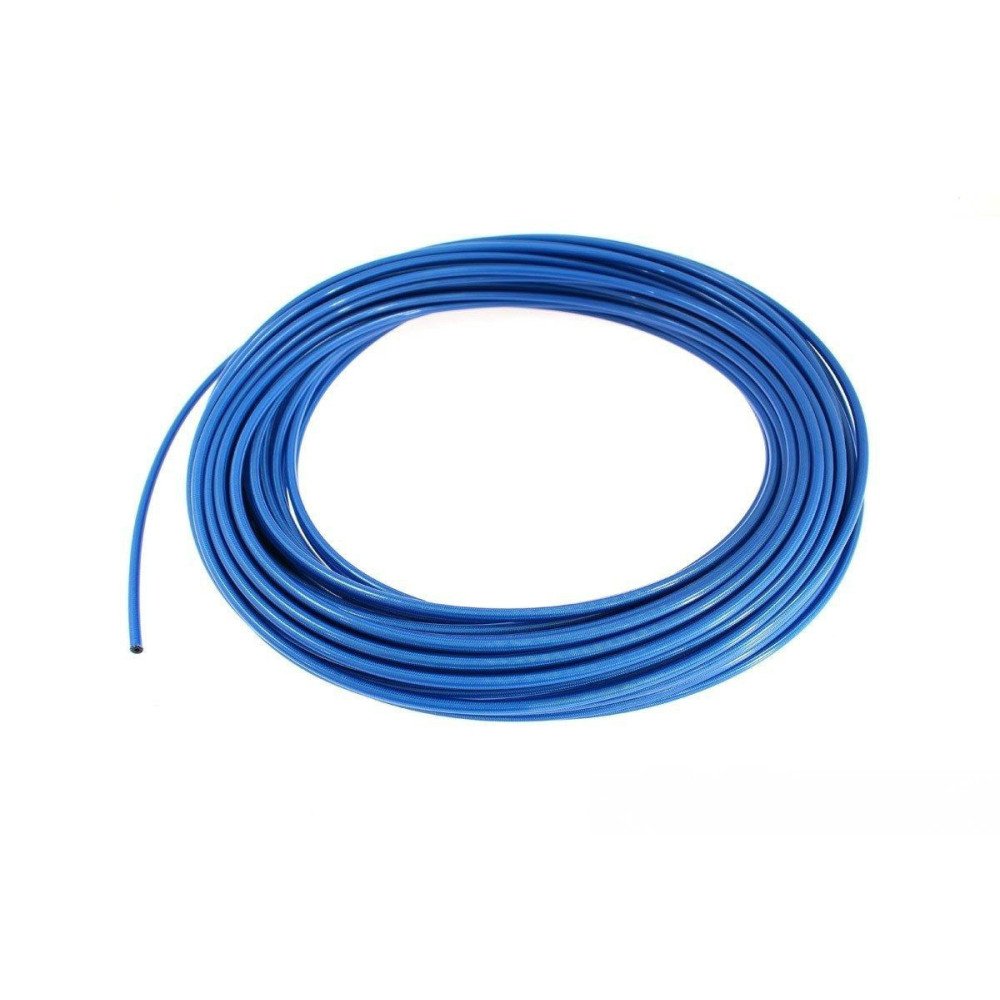

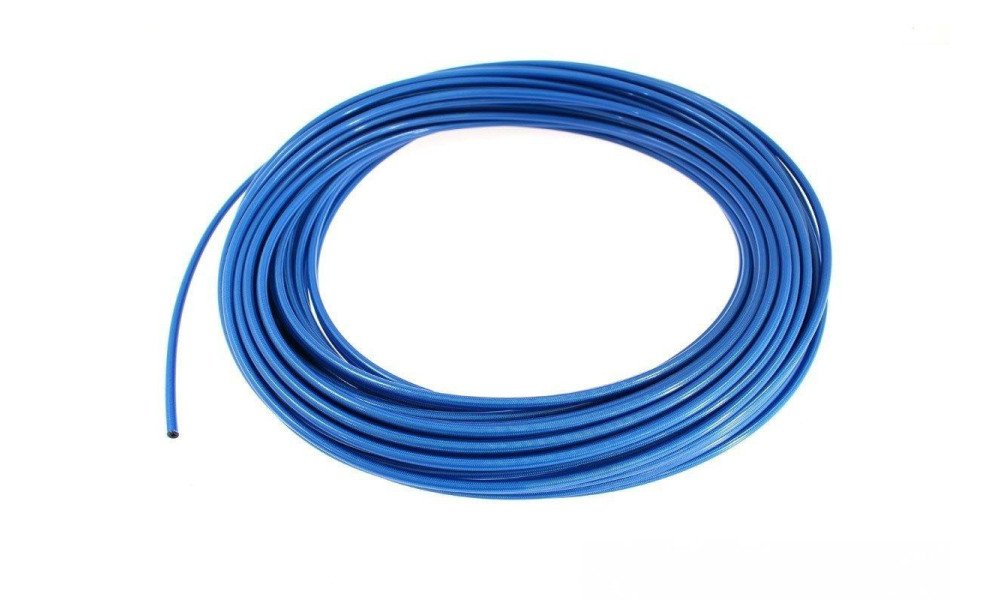

Sport Nylon Brake Hose with Stainless Steel and PVC Braid (AN3)

For enthusiasts building a competitive braking system, this flexible nylon brake hose offers reliable performance and corrosion resistance. Designed for custom setups where precision and durability matter, it’s a solid choice for motorsport and street projects alike.

Fitment

• Suitable for custom brake line applications where AN3 (3.2mm inner diameter) hose is required. Ideal for enthusiasts upgrading or fabricating hydraulic brake systems.

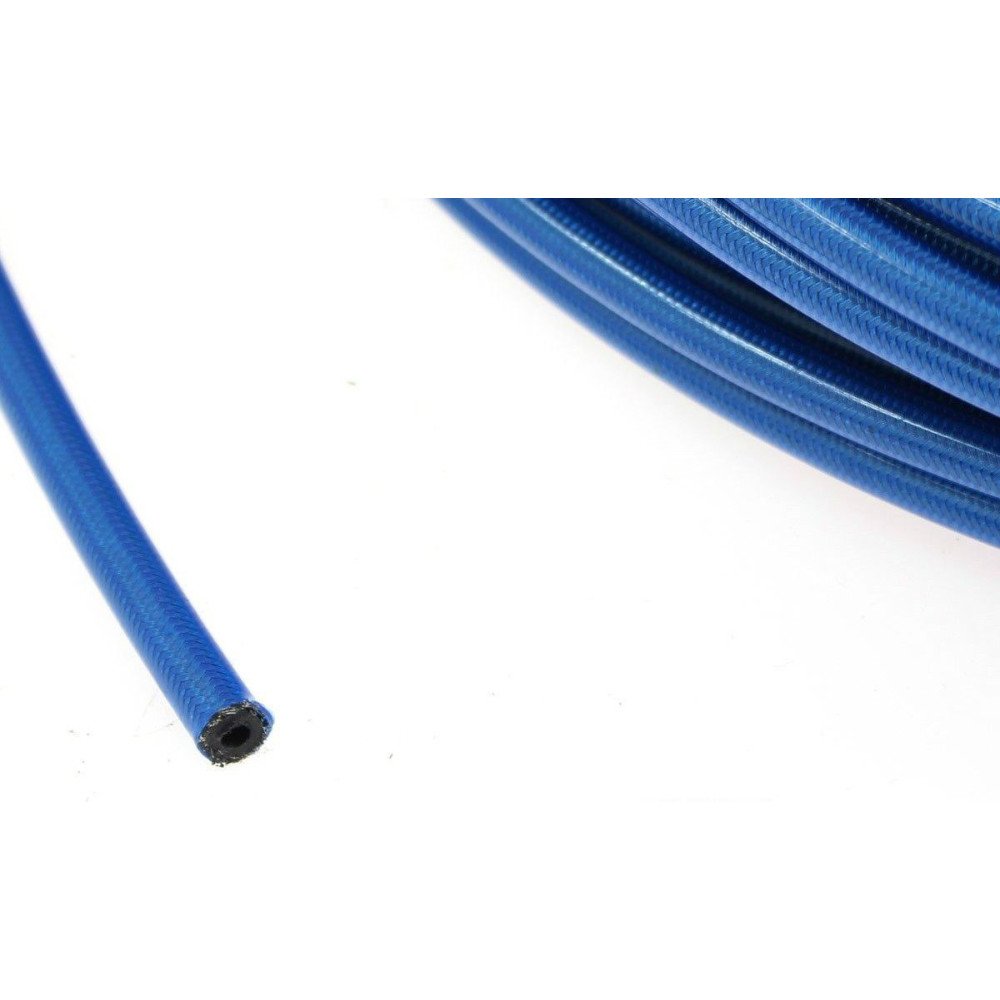

Material & Construction

• Inner layer: Nylon
• Middle layer: Stainless steel reinforcement
• Outer layer: PVC

Technical Specifications

• Inner diameter: 3.2mm (AN3)
• Outer diameter: 7.5mm (AN3)
• Working pressure: 27MPa
• Maximum pressure: 49MPa
• Minimal bending radius: 85mm

What’s Included

• Brake hose sold per meter; multiple meters purchased are supplied as one continuous length

Installation Notes

• Requires crimping with a hydraulic press for secure installation. Ensure all fittings and connections are compatible with AN3 hose dimensions and rated pressures.

FAQ

• Can I order more than one meter in a single piece?
  Yes, ordering multiple meters will be supplied as one continuous section, not cut into separate pieces.
• Is this hose suitable for custom brake line fabrication?
  Yes, it’s designed for building custom hydraulic brake systems where AN3 hose is specified.
• Do I need special tools to install this hose?
  A hydraulic press is required to properly crimp and secure the hose ends during installation.
