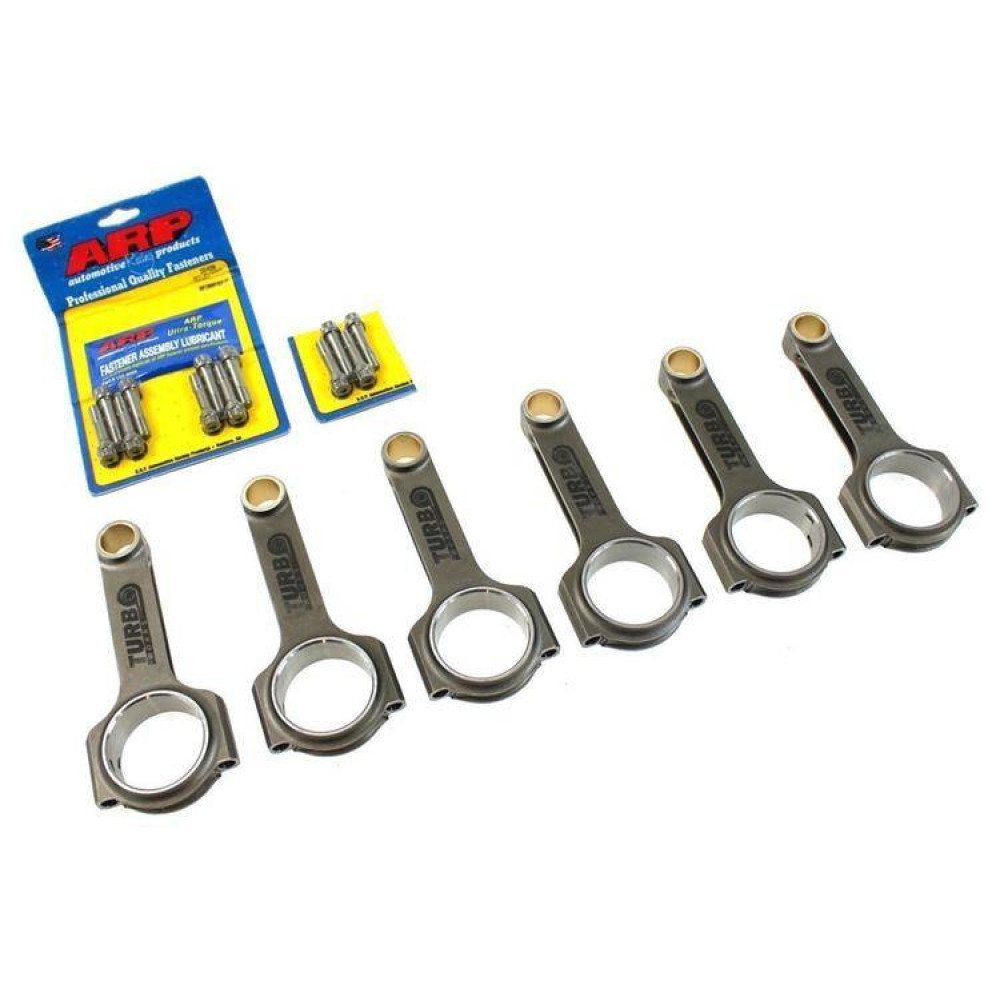

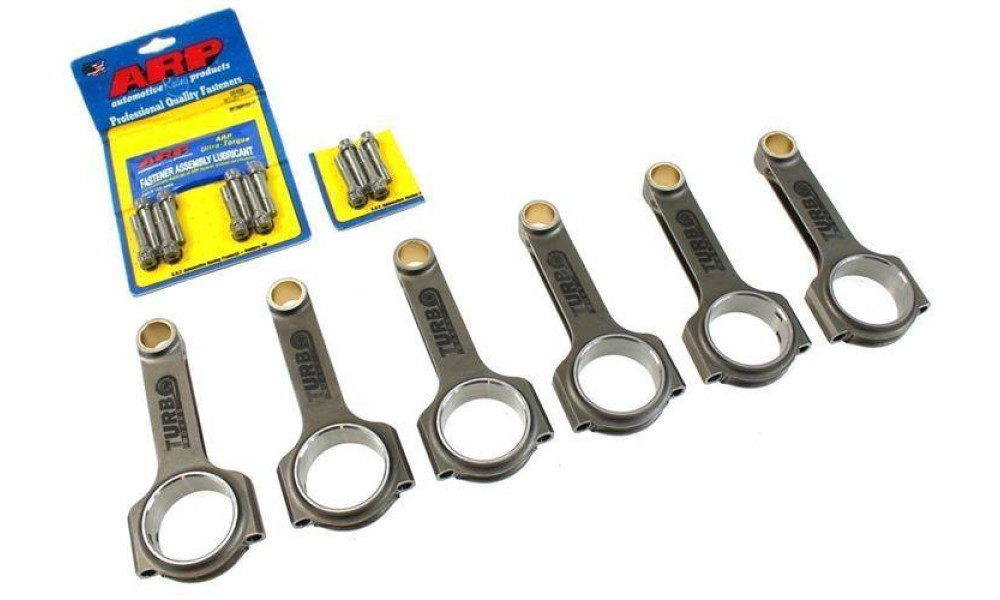

TurboWorks Forged H-Beam Connecting Rods for Toyota 1JZ Engines

For Toyota 1JZ engine builders who demand reliability at high power, these TurboWorks forged H-beam connecting rods deliver the strength required for serious performance. Designed for enthusiasts pushing the limits, they’re engineered to handle well over 200 HP per cylinder without compromise.

Fitment

• Toyota 1JZ-GE and 1JZ-GTE engines
• Specifically for Toyota Chaser, Soarer, and Supra MK3 with 1JZ engines

Material & Construction

• Forged AISI 4340 steel (En24)
• H-Beam design for maximum strength
• Hardness: HRC 35-38
• All forgings are degassed and X-rayed for material integrity
• Heat treated, slid, and honed for precision and durability

Technical Specifications

• Center to Center Length: 125.25 mm
• Big End Bore: 55 mm
• Big End Width: 25.90 mm
• Small End Bore: 22 mm
• Small End Width: 25.90 mm

What’s Included

• Set of TurboWorks forged H-beam connecting rods for 1JZ engine
• Bolts and assembly grease are not included (available separately)

Installation Notes

• Professional installation is recommended for optimal performance and reliability
• Assembly bolts and grease must be purchased separately

FAQ

• Do these rods fit all versions of the 1JZ engine?
  Yes, they are designed for 1JZ-GE and 1JZ-GTE engines as found in the Toyota Chaser, Soarer, and Supra MK3.
• Are assembly bolts and grease included?
  No, bolts and grease are not included but can be purchased separately.
• What power levels are these rods rated for?
  These rods are engineered to handle power exceeding 200 HP per cylinder.
