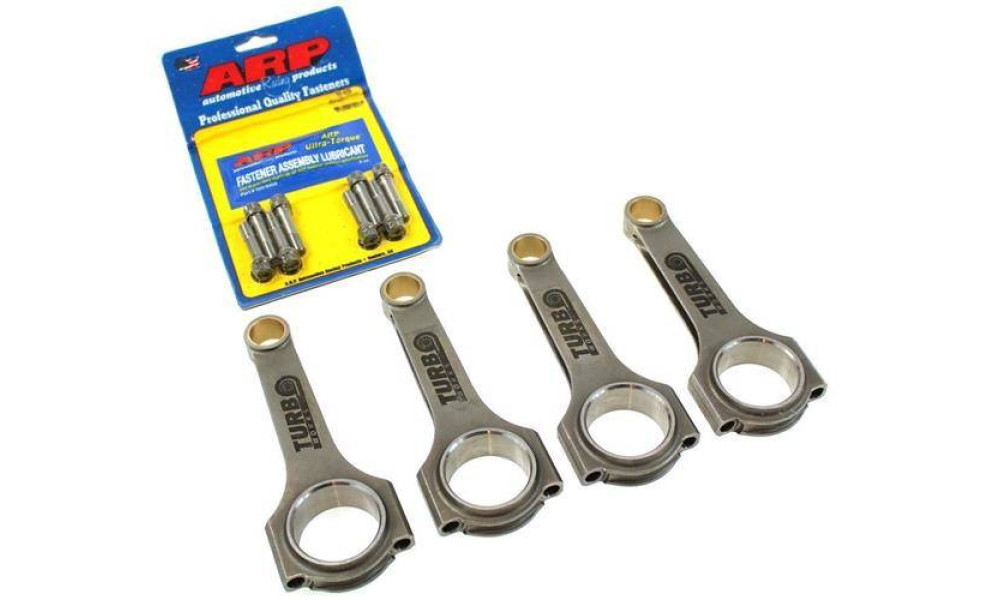

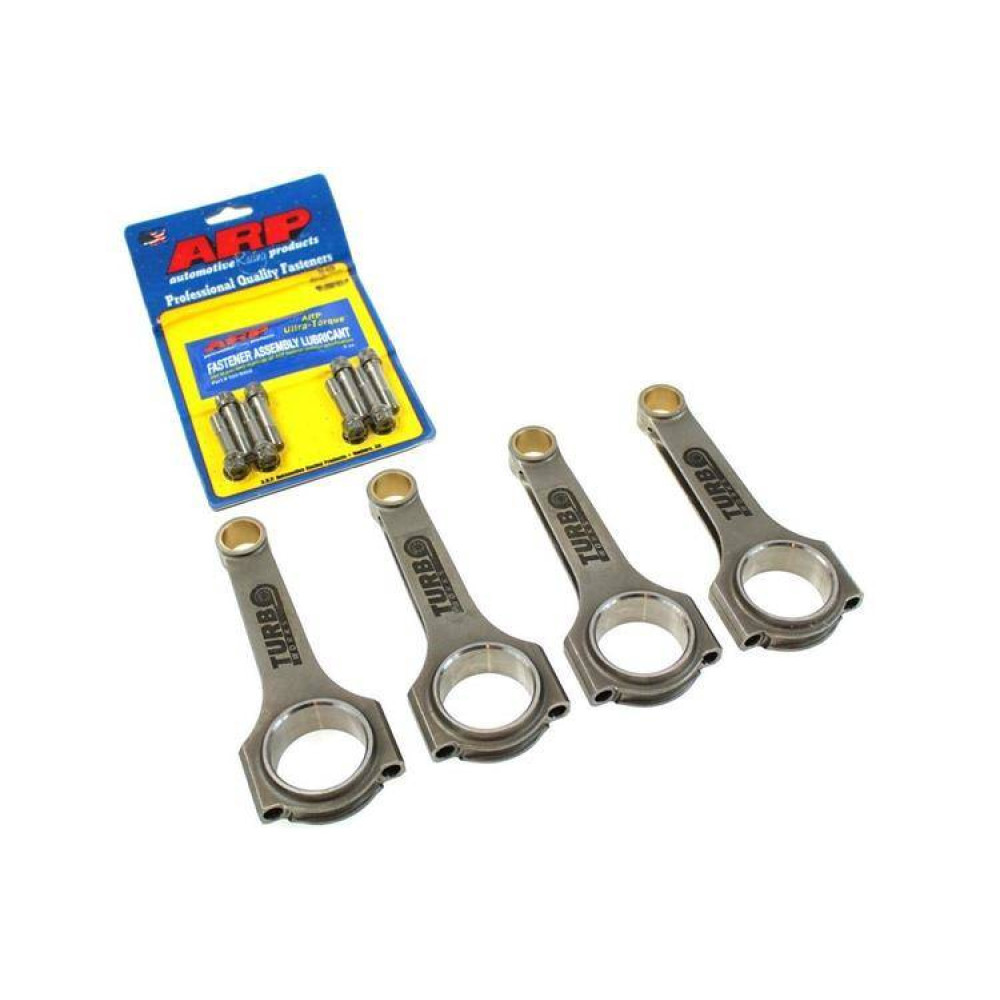

TurboWorks Forged H-Beam Connecting Rods for Renault F7P, F7R, F4R

For serious Renault enthusiasts building high-power F7P, F7R, or F4R engines, these TurboWorks forged H-beam connecting rods deliver the strength and precision your project demands. Designed for reliability well beyond factory limits, they’re engineered for those pushing over 200 HP per cylinder—whether on the street or track.

Fitment

• Renault F7P, F7R, F4R engines as found in Renault 19, Clio, Megane

Material & Construction

• Forged AISI 4340 steel (En24)
• H-Beam design for maximum strength
• Hardness: HRC 35-38
• Forgings are degassed and X-rayed to detect material defects
• Heat treated, slid, and honed for high strength and accuracy

Technical Specifications

• Center to center length: 144mm
• Big end bore: 51.7mm
• Big end width: 24.99mm
• Small end bore: 21mm
• Small end width: 22mm

What’s Included

• Set of TurboWorks forged H-beam connecting rods

Installation Notes

• Bolts and assembly grease are not included; these must be purchased separately
• Professional installation and precise torque procedures are recommended for optimal reliability

FAQ

• Do these connecting rods come with bolts?
  No, bolts and assembly grease are not included. They are available separately.
• Can these rods handle high-power turbo builds?
  Yes, they are designed for use in engines producing over 200 HP per cylinder.
• Are these suitable for street and track use?
  Yes, they are engineered for high strength and accuracy, suitable for both demanding street and motorsport applications.
