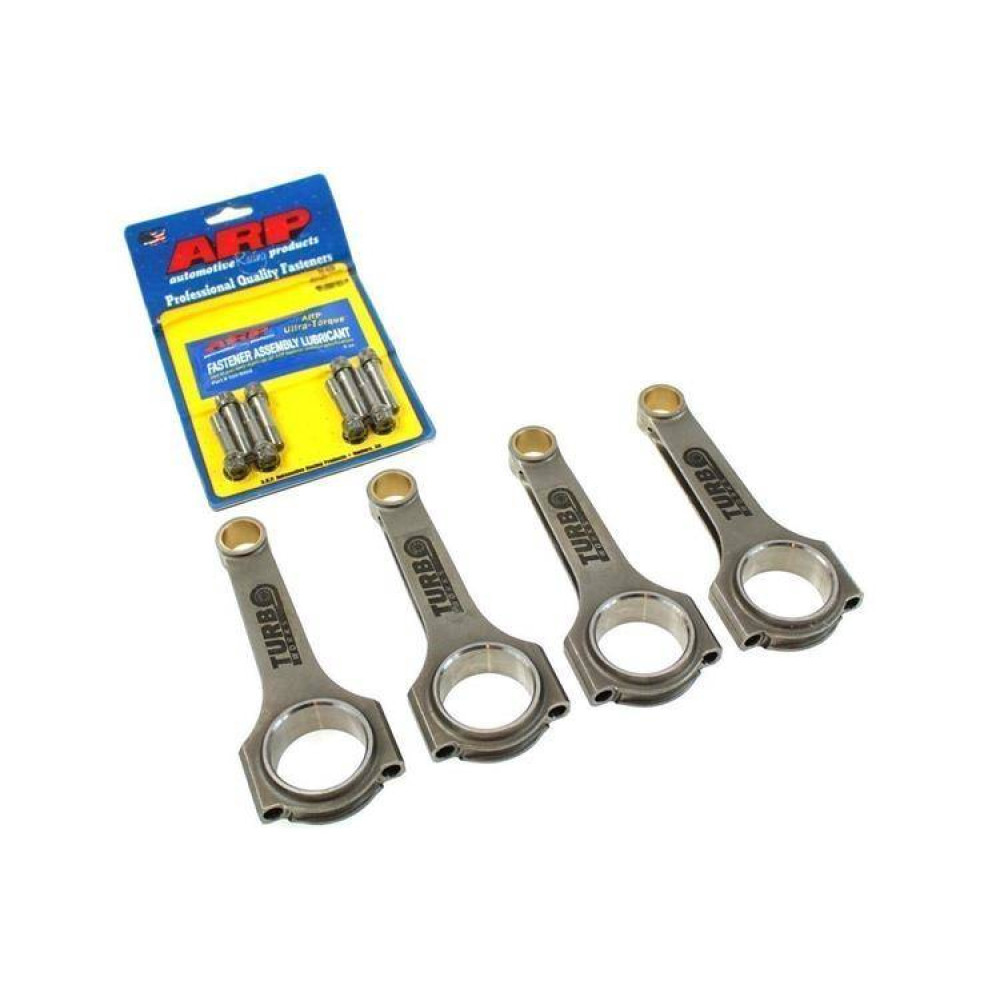

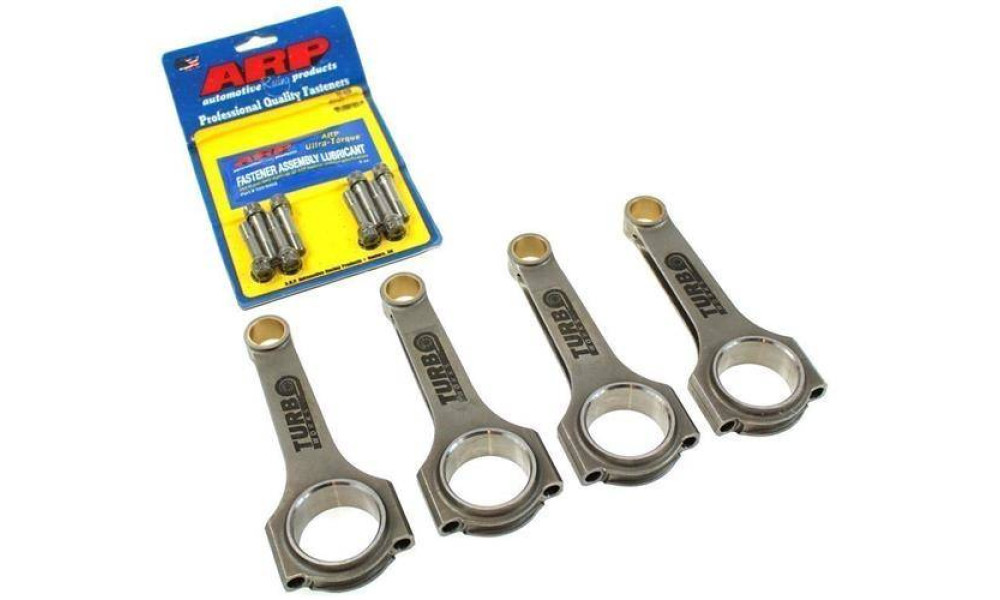

TurboWorks Forged H-Beam Connecting Rods for 1.6 16V TU5J4

Built for enthusiasts pushing the limits of their TU5J4 engine, these TurboWorks forged H-beam connecting rods deliver the strength and reliability needed for high-power builds. Designed for those demanding more than stock rods can handle, they’re a proven choice for serious Peugeot 106 GTI and Citroen Saxo projects.

Fitment

• Peugeot 106 GTI with 1.6 16V TU5J4 engine
• Citroen Saxo with 1.6 16V TU5J4 engine

Material & Construction

• Forged AISI 4340 steel (En24)
• H-Beam design for high strength
• Hardness: HRC 35-38
• Forgings are degassed and X-rayed for defect detection
• Heat treated, slid, and honed for maximum accuracy and durability

Technical Specifications

• Center to center length: 137.75mm
• Big end bore: 48.66mm
• Big end width: 24mm
• Small end bore: 19.46mm
• Small end width: 24mm
• Rated for power exceeding 200 HP per cylinder

What’s Included

• Set of TurboWorks forged connecting rods
• Bolts and assembly grease not included (available separately)

Installation Notes

• Professional installation recommended for precise fitment and reliability
• Ensure all components are thoroughly cleaned before assembly
• Use appropriate torque specs and assembly procedures for high-performance builds

FAQ

• Are bolts and assembly grease included?
  No, bolts and grease are not included. They can be purchased separately by selecting the appropriate option above the product price.
• Are these rods suitable for high-power turbo or track builds?
  Yes, the H-beam design and forged AISI 4340 steel construction are rated for power exceeding 200 HP per cylinder, making them suitable for demanding performance applications.
• Do these rods require any special machining or modifications for installation?
  These rods are designed for direct fitment in the TU5J4 engine, but professional installation is recommended to ensure proper clearances and assembly.
