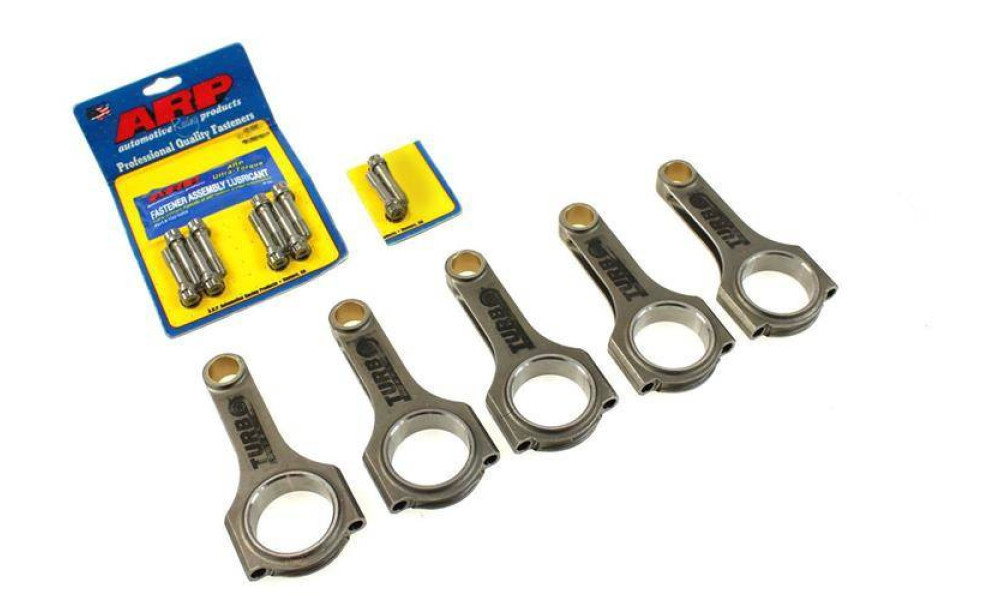

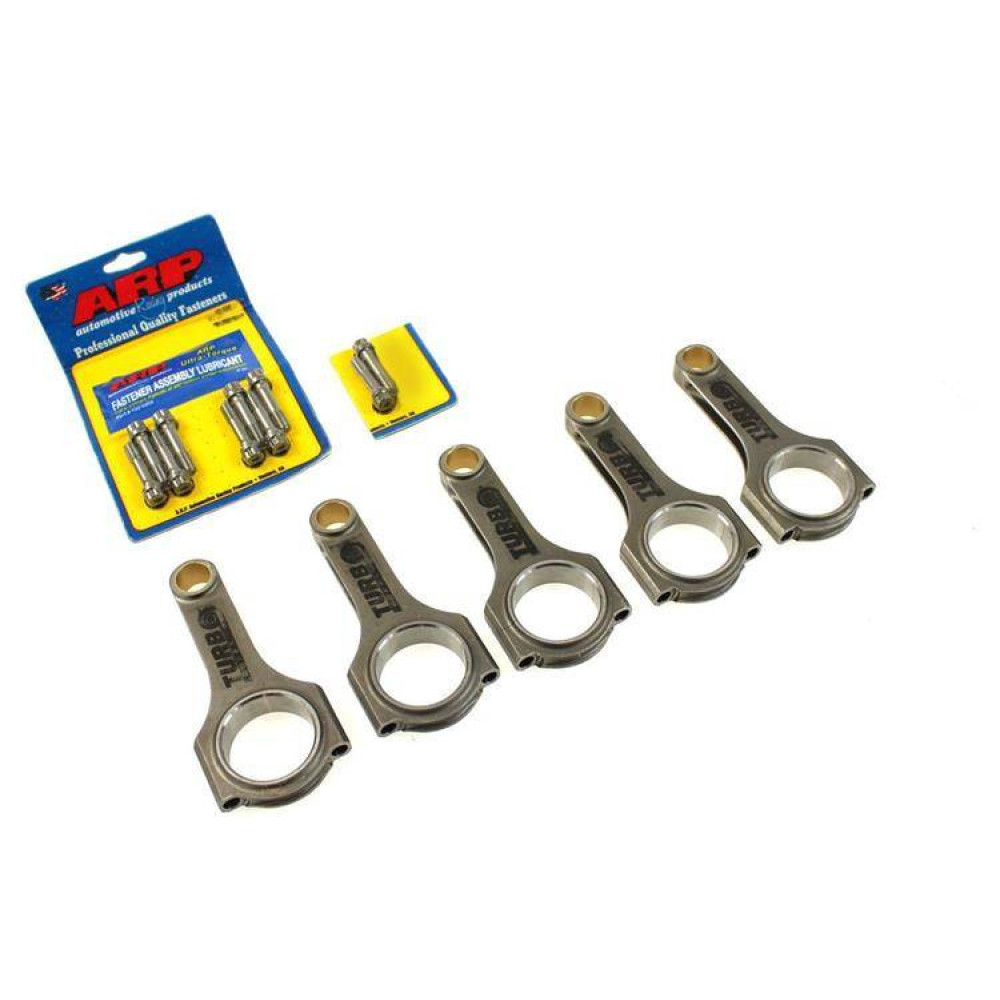

TurboWorks Forged H-Beam Connecting Rods for Fiat Coupe 2.0T 20V R5

Upgrade your Fiat Coupe 2.0T 20V R5’s bottom end with TurboWorks forged H-Beam connecting rods. Built for serious power and reliability, these rods are engineered for enthusiasts pushing their five-cylinder turbo motors beyond factory limits.

Fitment

• Fiat Coupe 2.0T 20V R5

Material & Construction

• Forged AISI 4340 steel (En24), H-Beam design
• Hardness: HRC 35-38
• Forgings are degassed and X-rayed to detect potential material defects
• Heat treated, slid, and honed for strength and precision

Technical Specifications

• Center to Center Length: 145mm
• Big End Bore: 53.91mm
• Big End Width: 25.7mm
• Small End Bore: 22.01mm
• Small End Width: 25.7mm
• Supports power exceeding 200 HP per cylinder

What’s Included

• Set of TurboWorks forged H-Beam connecting rods

Installation Notes

• Connecting rods do not include bolts or assembly grease
• Assembly screws and grease can be purchased separately
• Professional installation and precise torque procedures are recommended

FAQ

• Are bolts and assembly grease included with the connecting rods?
  No, bolts and assembly grease are not included. They can be purchased separately by selecting the appropriate option before checkout.
• What power level are these rods designed to handle?
  These rods are engineered to transfer power exceeding 200 HP per cylinder, making them suitable for high-performance builds.
• Do I need any special machining or preparation before installing these rods?
  Due to the precision manufacturing process, these rods are ready for installation, but professional fitting and measurement checks are always recommended for optimal engine reliability.
