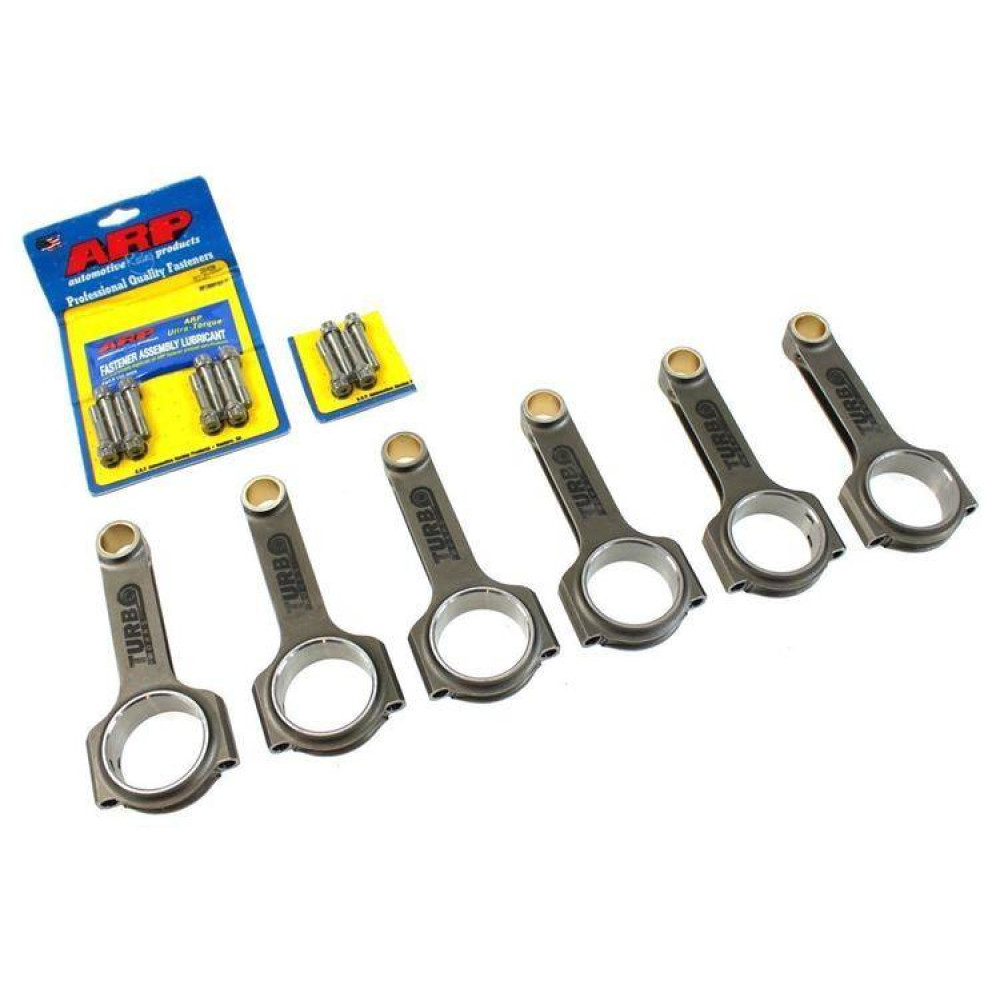

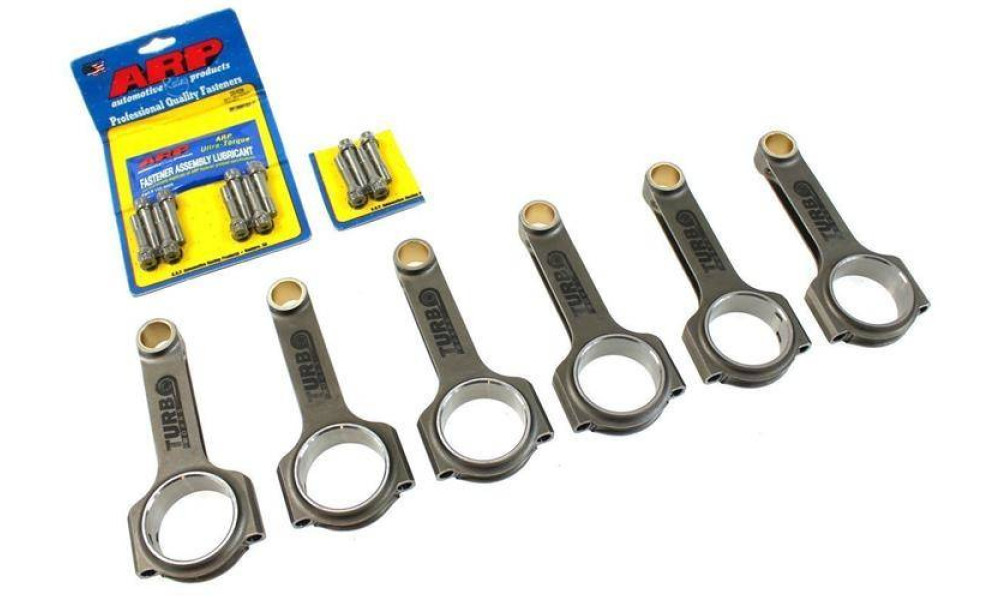

TurboWorks Forged H-Beam Connecting Rods for BMW S50B30 (E36 M3)

Take your BMW M3 E36 S50B30 engine build to the next level with TurboWorks forged H-beam connecting rods. Engineered for enthusiasts demanding reliable high power, these rods deliver the strength and precision needed for serious performance upgrades, including forced induction and track applications.

Fitment

• BMW M3 E36 with S50B30 engine

Material & Construction

• Forged AISI 4340 steel (En24)
• H-Beam design
• Hardness: HRC 35-38
• Forgings are degassed and X-rayed to detect material defects
• Heat treated, slid, and honed for strength and accuracy

Technical Specifications

• Center to Center Length: 142mm
• Big End Bore: 53mm
• Big End Width: 22mm
• Small End Bore: 21mm
• Small End Width: 22mm
• Supports power exceeding 200 HP per cylinder

What’s Included

• Set of TurboWorks forged H-beam connecting rods

Installation Notes

• Assembly screws and grease are not included; these must be purchased separately if required.
• Professional installation and precise torque procedures are recommended for optimal performance and reliability.

FAQ

• Do these rods come with bolts or assembly hardware?
  No, bolts and assembly screws are not included. They can be purchased separately by selecting the appropriate option before checkout.
• Are these rods suitable for high horsepower forced induction builds?
  Yes, these rods are designed for power levels exceeding 200 HP per cylinder, making them suitable for turbocharged or supercharged applications.
• Is any special preparation required before installation?
  As with all performance engine components, ensure proper cleaning and inspection of all parts before assembly. Use correct clearances and lubrication as specified by your engine builder.
