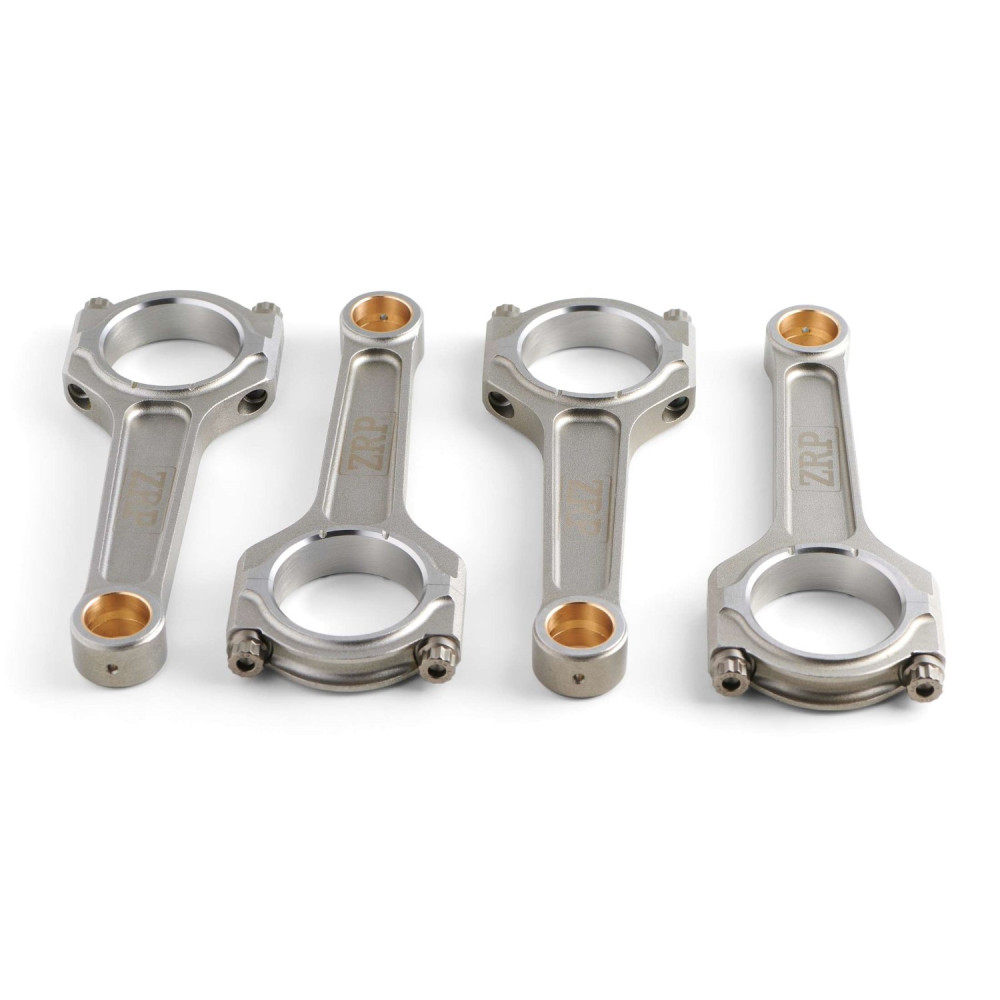

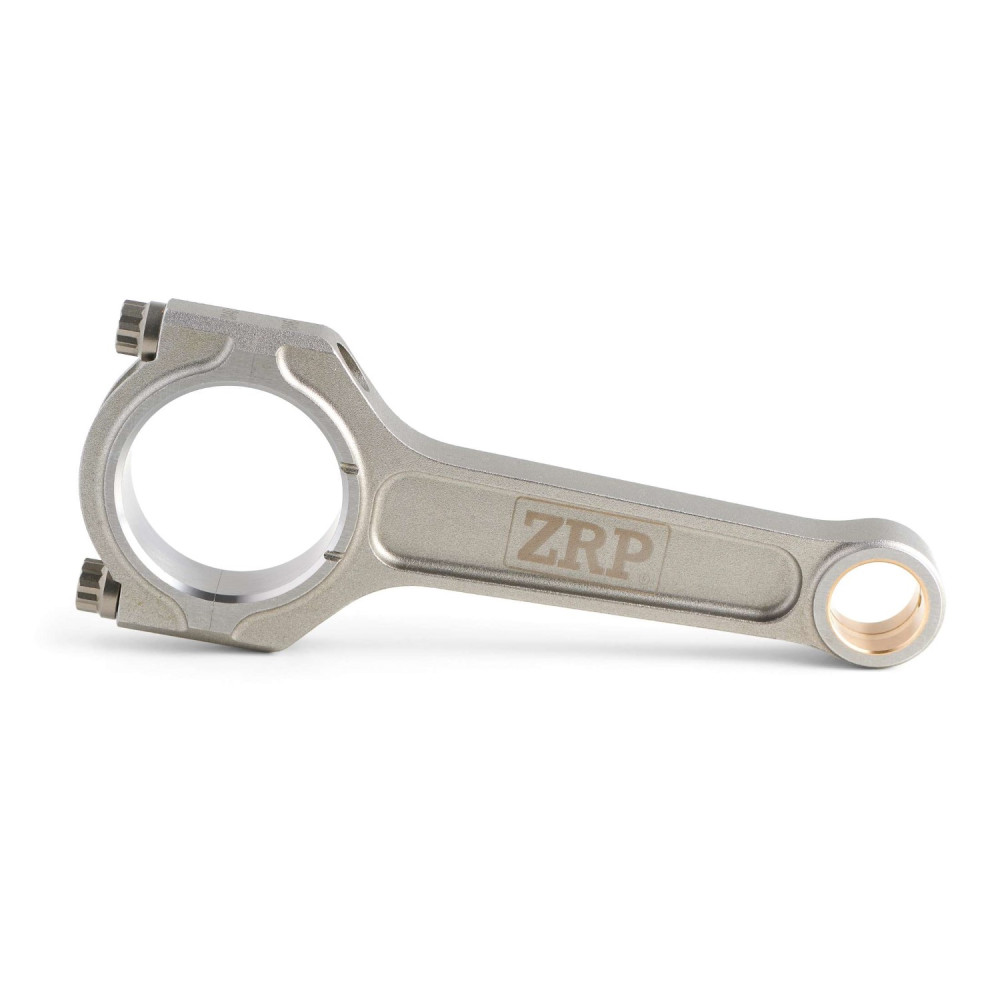

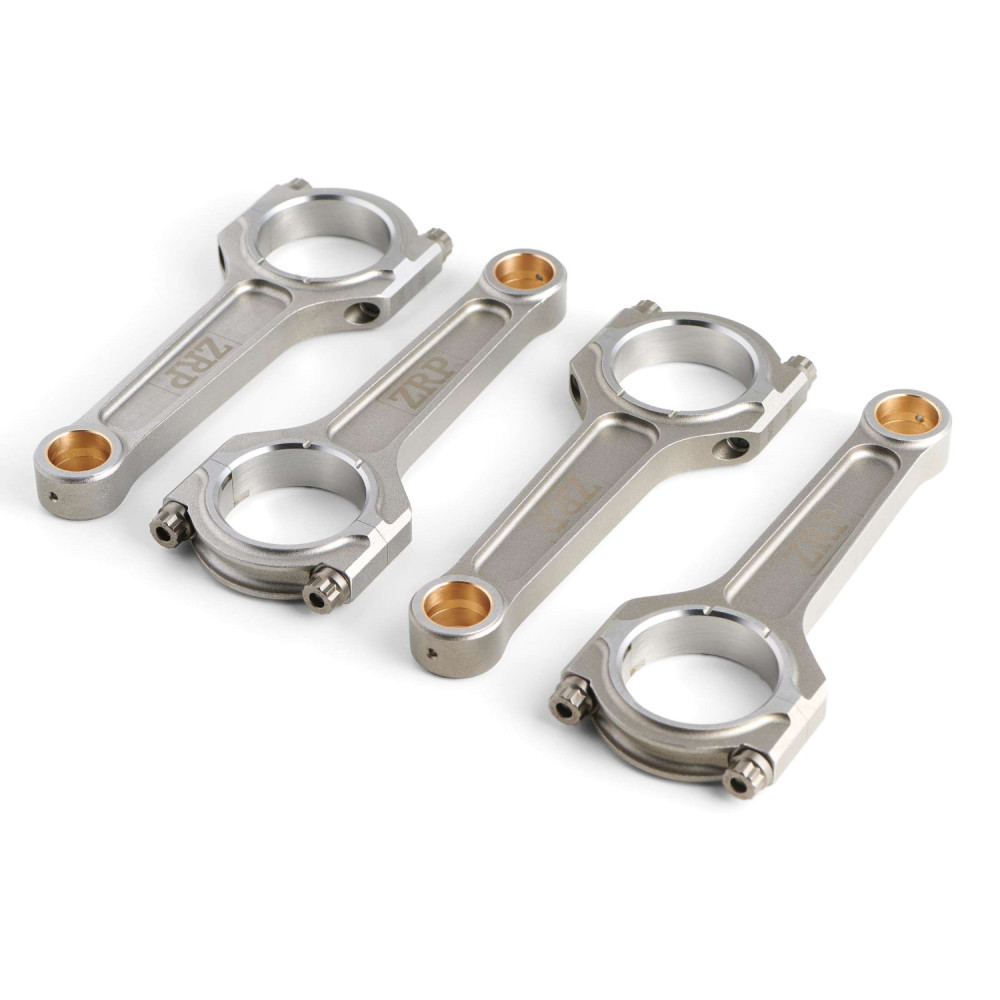

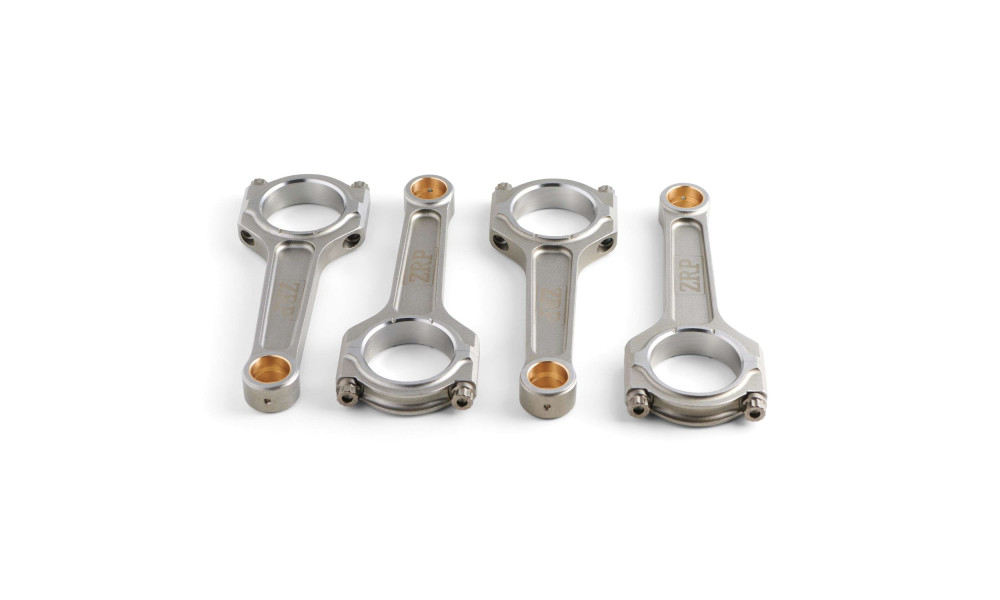

The I-Beam “Heavy Duty” series connecting rods for the Honda K24 are designed for high horsepower applications. Constructed from premium 4340-EN24T high tensile steel, these rods feature a specially optimized shape for enhanced performance and durability. The “straight cut” pin end improves durability, necessitating the use of aftermarket pistons. The bushings are made from AMPCO 18 material, providing excellent wear and fatigue resistance, with radial grooves acting as an oil reservoir. Each rod undergoes shot peening to relieve stress and is multi-stage heat treated to enhance rigidity. Tight tolerances in the production process ensure a perfect fit while optimizing oil clearances, with controlled bend and twist. Each rod includes 3/8 ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material rated at 260,000 psi. The complete kit is supplied with ARP moly and full fitting instructions.
Additional machining processes
- Dowel sleeves for perfect fit and accurate re-assembling
- Lipped Cap Relief for improved big-end integrity at extreme applications
- Grooves in Thrust Face for weight reduction
Technical Features of ZRP Connecting Rods
- Two-piece forging for exceptional strength
- I-Beam shape for increased rigidity
- Shot peening for enhanced fatigue life
- Magnaflux inspection ensures the consistency of the forged material meets high-quality standards
- Double ribbed caps for added support
- Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue life
- CNC machining for superior tolerances, precise to 0.0002″
- Center to center maintained under .001″ tolerance
- Finite Element Analysis (FEA) for computer-generated stress analysis of connecting rods
- Optimal balancing for weight-matched sets of ± 1 gram
Additional Information
| Engine Nr |
K24 Series |
|---|---|
| Application |
2.4L K24 |
| Notes |
Recommended usage: High RPM Engines |
| Bolt Size |
3/8" |
| Shape |
I-Beam |
| Length (CC) |
152.00 |
| Pin Size |
22.00 |
| Big Bore |
51.00 |
| B.E Width |
19.81 |
| Weight Gr. |
534 |
| Set of |
4 |
| Fastener Grade |
ARP2000 |
