Introducing the aftermarket intercooler kit specifically designed for the VW Passat 1.9 TDI B5/B5FL. This comprehensive kit includes a high-performance intercooler with a new type of alternately arranged core, a set of silicone connectors and elbows, and a set of aluminum connectors and clamps. Depending on the installation method, some elbows may require shortening.

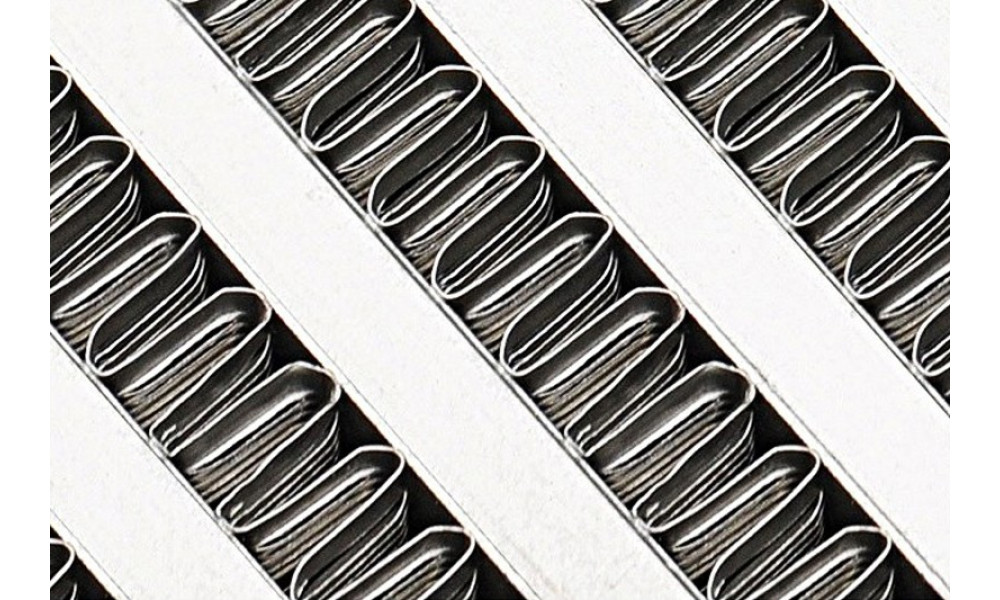

The intercooler is crafted from high-quality aluminum alloy, providing exceptional heat exchange capabilities and significantly enhancing the car's performance compared to the OEM intercooler. Developed in collaboration with Europe's top drifters and drag racers, the new core design features a unique fin arrangement that improves heat exchange and airflow. Alternately placed heat exchanger fins with additional incisions enhance cooling efficiency.

The intercooler tanks, made from thick aluminum cast, are designed to withstand harsh conditions encountered during competitions or street driving. These intercoolers are tested up to 10 Bar of pressure.

The silicone connectors are made from the highest grade of silicone with multi-layer reinforcement. Years of research and collaboration with top drifters and drag racers across Europe have resulted in connectors capable of withstanding high pressures in intake systems. They offer additional resistance to coolant, fuel fumes, grease, and engine oil, making them suitable for cooling systems, crankcase vents, and more. Reinforced with 5 or 6 layers, depending on the diameter, the unique braid pattern provides strength and flexibility.

Intercooler core size: 550x140x65
Intercooler total dimensions: 700x140x65
Inlet/outlet diameter: 57mm

Color: Green
Intercooler: JRspec
Passat: B5FL
Map sensor: With
