Pedalbox Reverse RPB0007 Grey – Racingpedalboxes

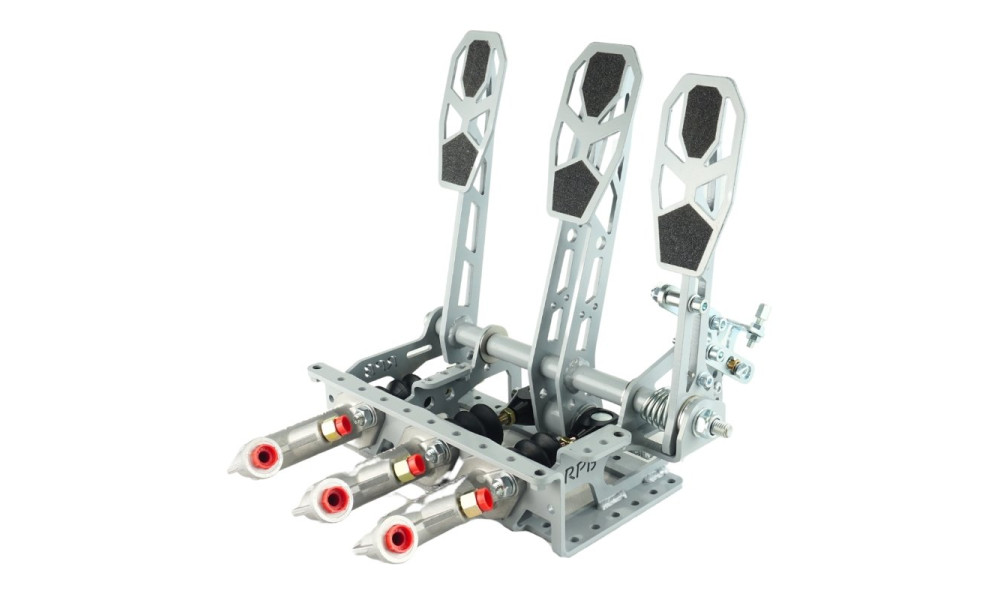

The Pedalbox Reverse RPB0007 in grey is a high-performance floor-mounted pedalbox designed for maximum compactness and driving comfort. By reversing the master cylinder position, the system achieves a shorter and more efficient layout while maintaining strength, adjustability, and ergonomics required for motorsport.

Key features:

• Reversed master cylinder position for a more compact design
• Wide, anti-slip pedal surfaces
• Footrest support for ergonomic driving position

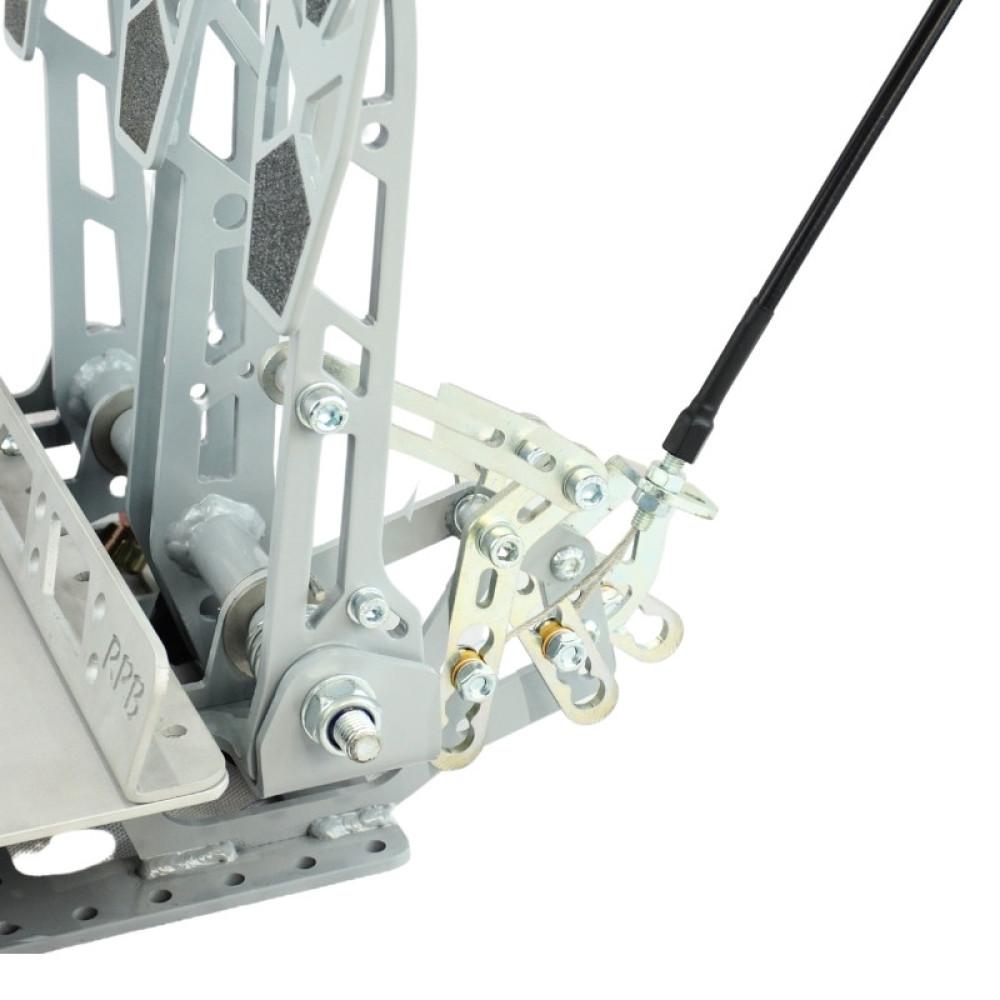

• Throttle pedal with adjustable cable mechanism (included)
• Adjustable pedal rotation angle and wire stroke
• Compatible with optional electronic throttle sensor (RPBAC08)
• Brake pedal with balance bar for dual master cylinders
• Brake pedal ratio: 5:1
• Balance bar thread: 7/16”-20 UNF, master cylinder connections: 5/16”-24 UNF (Wilwood/Girling)
• Optional brake remote adjuster (RPBAB03) for cockpit bias control
• Hydraulic clutch pedal, compatible with master cylinders
• Optional cable clutch accessory (RPBAC10)
• Optional base plate cover for master cylinders (RPBAC04)
• Weight: 3.9 kg (without master cylinders) / 4.6 kg (with master cylinders)
• Colour: Grey (ref. RPB0007)
• Also available in Black (ref. RPB0007B)
• Master cylinders sold separately

Available optional accessories:

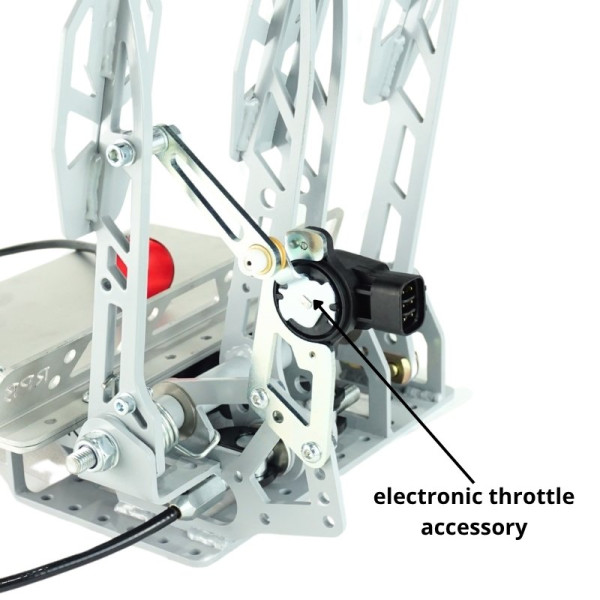

• Electronic throttle sensor RPBAC08
• Cable clutch accessory RPBAC10

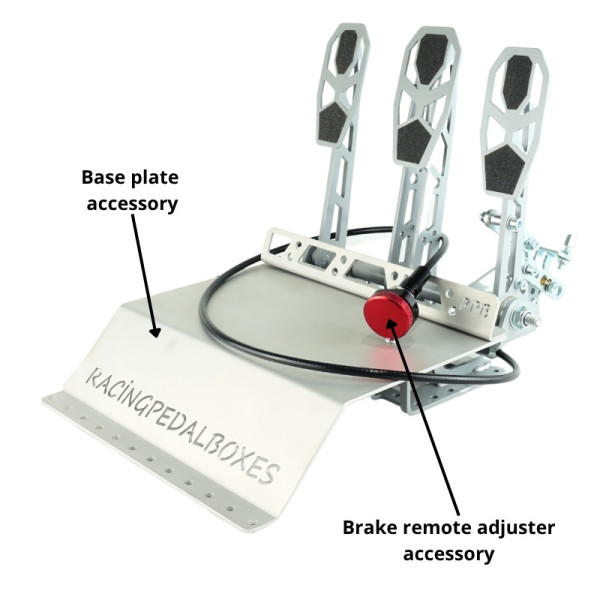

• Brake remote adjuster RPBAB03
• Base plate cover RPBAC04
