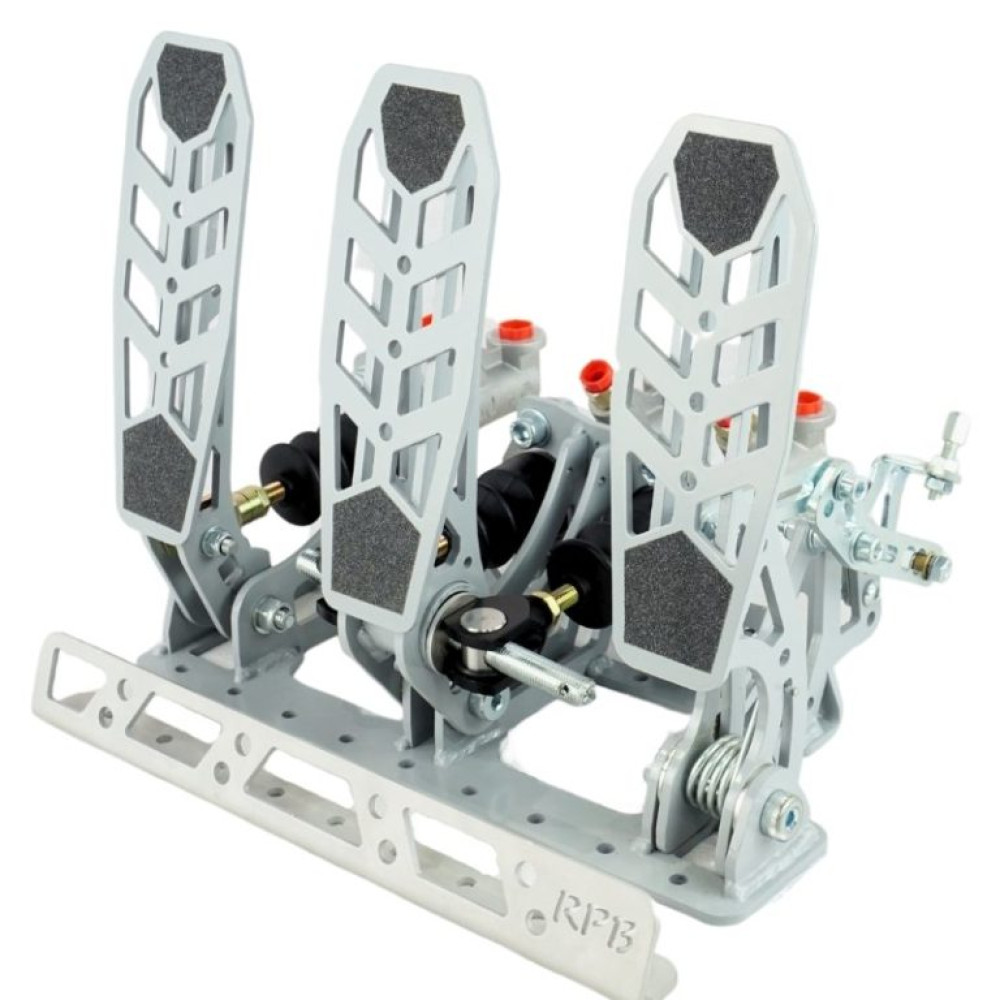

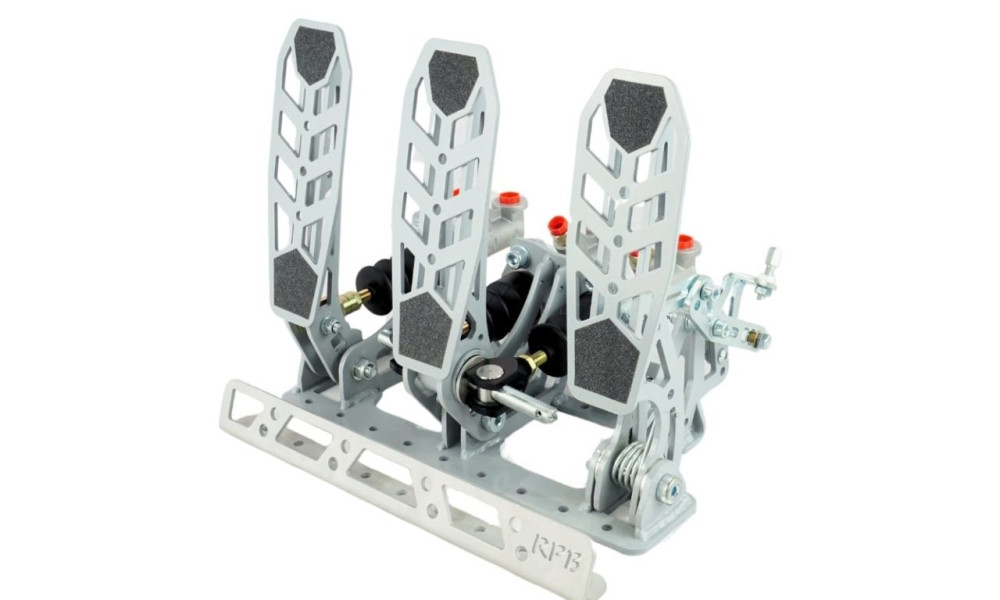

PEDALBOX DRIFTING & RALLY – Grey (RPB0003)

The Pedalbox Drifting & Rally from Racingpedalboxes is designed specifically for drift and rally cars. It can be mounted directly to the floor or on adjustable guides, allowing the pedal position to be adapted for different drivers. The pedals have a wide surface for improved ergonomics, comfortable driving, and easier pedal combinations.

The pedalbox is built with welded steel parts, combining a lightweight design with excellent stiffness-to-weight ratio.

Technical Features:

• Grey colour (RPB0003), Black colour (RPB0003B – available separately).
• Floor-mounted pedalbox.
• Adjustable cable throttle pedal (included).
• Throttle pedal with adjustable rotation angle and wire stroke.
• Brake pedal with balance bar 5/16 UNF.
• Brake pedal ratio: 5:1.

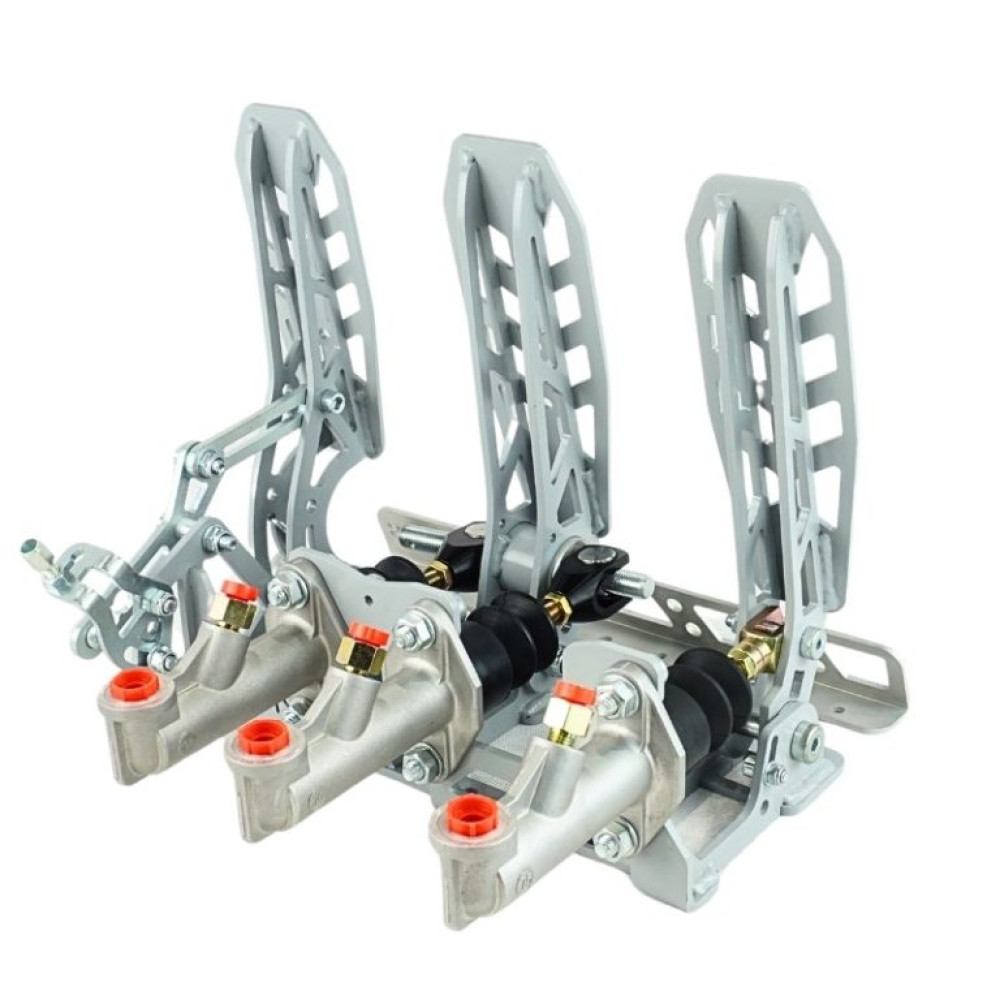

• Hydraulic clutch pedal.
• Balance bar included: 7/16”-20 UNF thread for maximum stiffness.
• Master cylinder connections: 5/16”-24 UNF.
• Compatible with Wilwood and OEM master cylinders.
• Footrest support included.
• All pedals with anti-slip surface.
• Pedal axes manufactured from high-quality steel with nut torque adjustment for lateral movement regulation.
• Components with anti-corrosion coating for maximum durability.
• Weight: 3.4 kg without master cylinders / 4.5 kg with master cylinders.
• Master cylinders sold separately.

Available optional accessories:

• Cable clutch accessory Pedalbox RPB0003 (ref. RPBAC06).

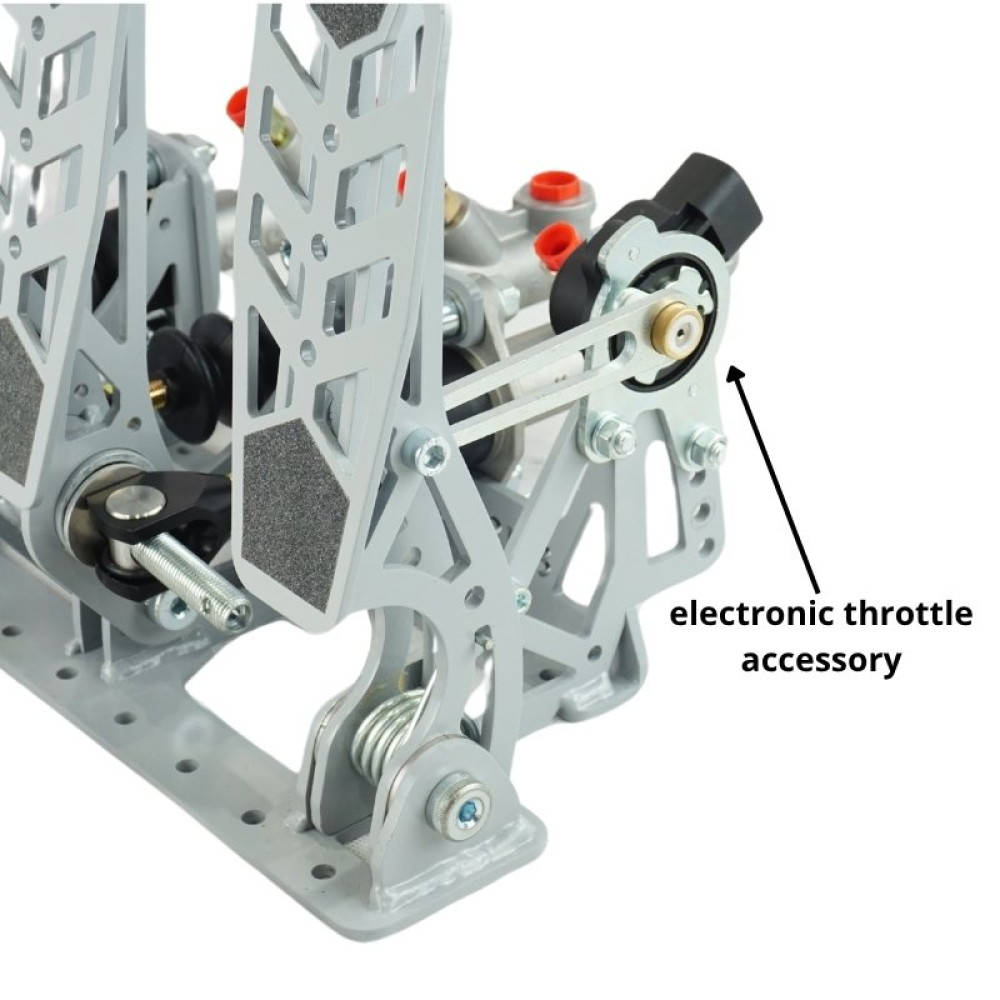

• Electronic sensor Pedalbox RPB0003 (ref. RPBAC07).

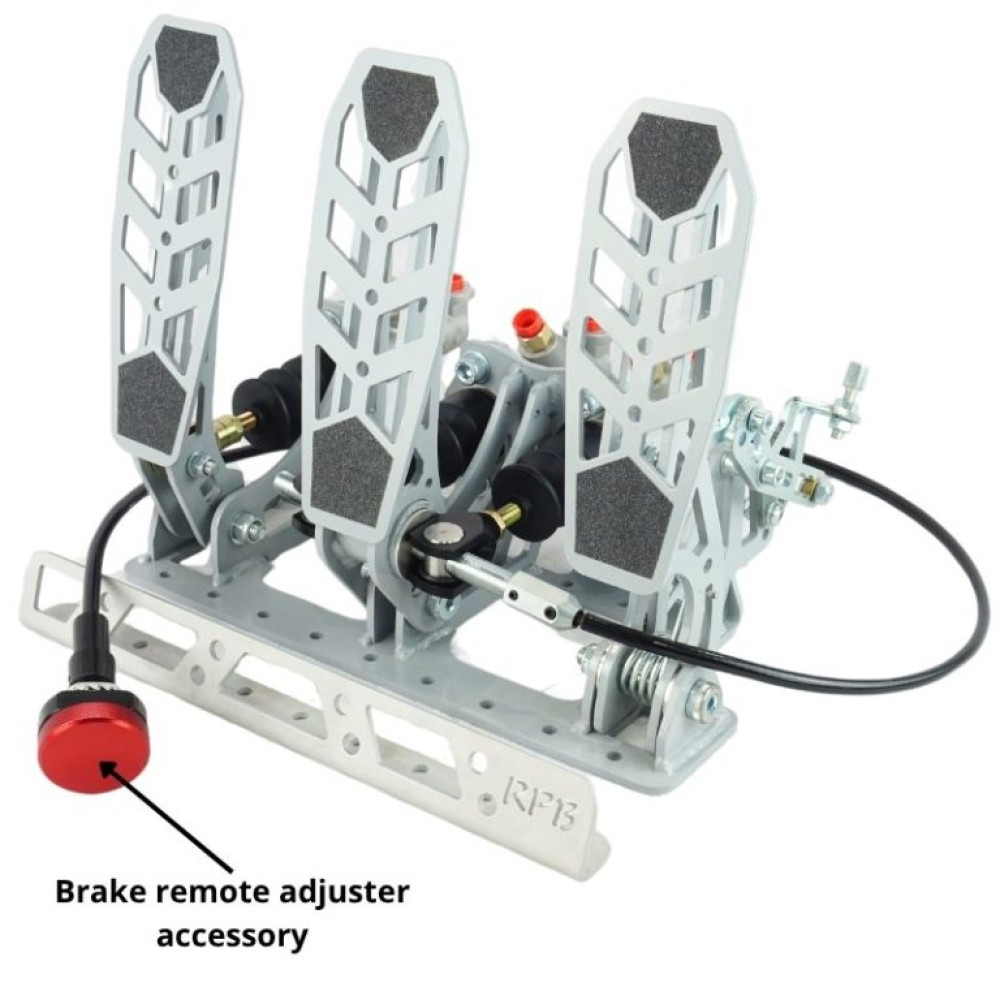

• Brake remote adjuster (7/16 UNF) (ref. RPBAB03).
