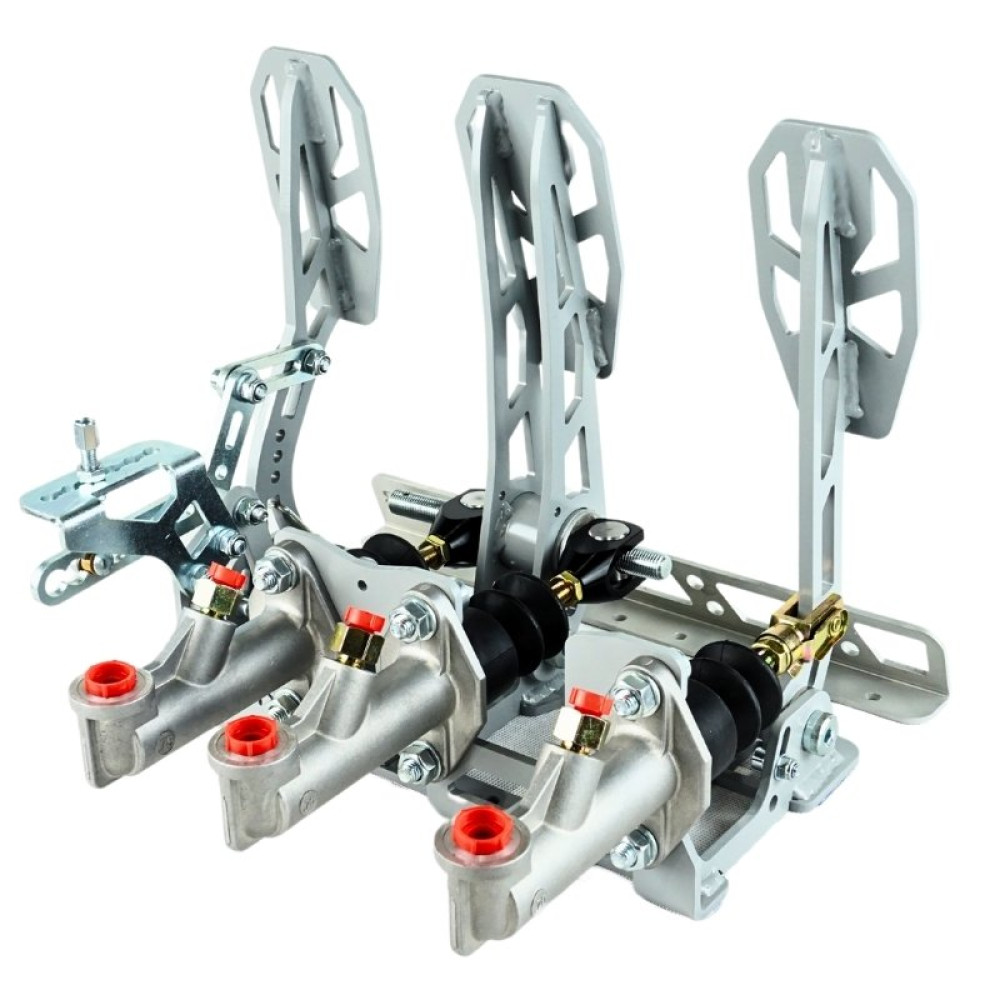

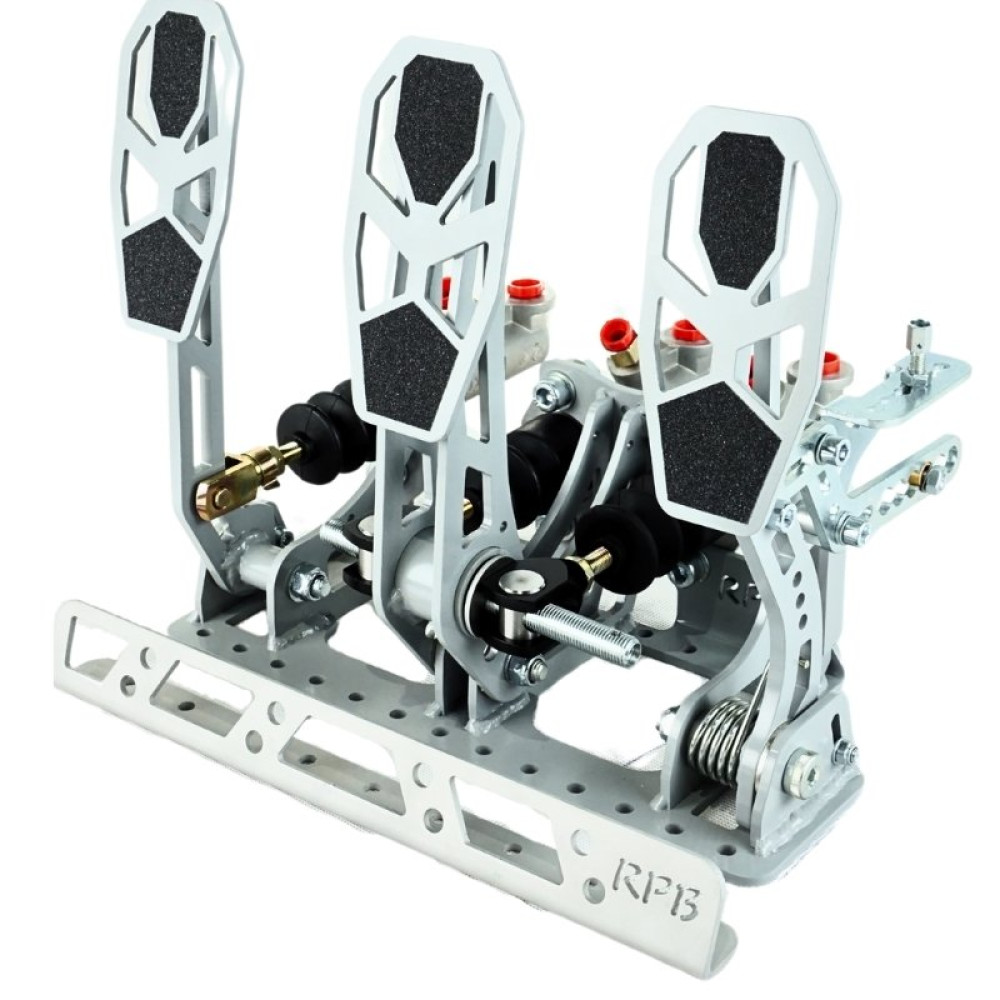

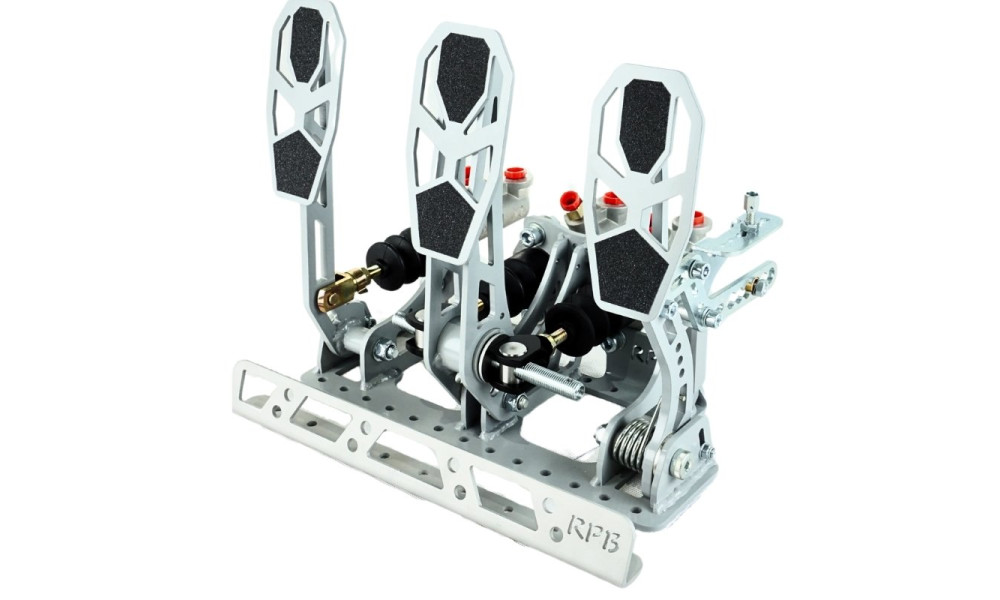

Pedalbox Kit Car RPB0001 Grey – Racingpedalboxes

The Pedalbox Kit Car RPB0001 in grey offers an optimal design for applications such as prototypes, buggies, formulas, and similar vehicles. It is designed for direct floor mounting or on adjustable guides, allowing perfect positioning for different drivers.

Key Features:

• Floor-mounted pedalbox for secure installation
• Wide, anti-slip pedal surfaces for comfort and safe combinations
• Footrest support included for ergonomic driving position

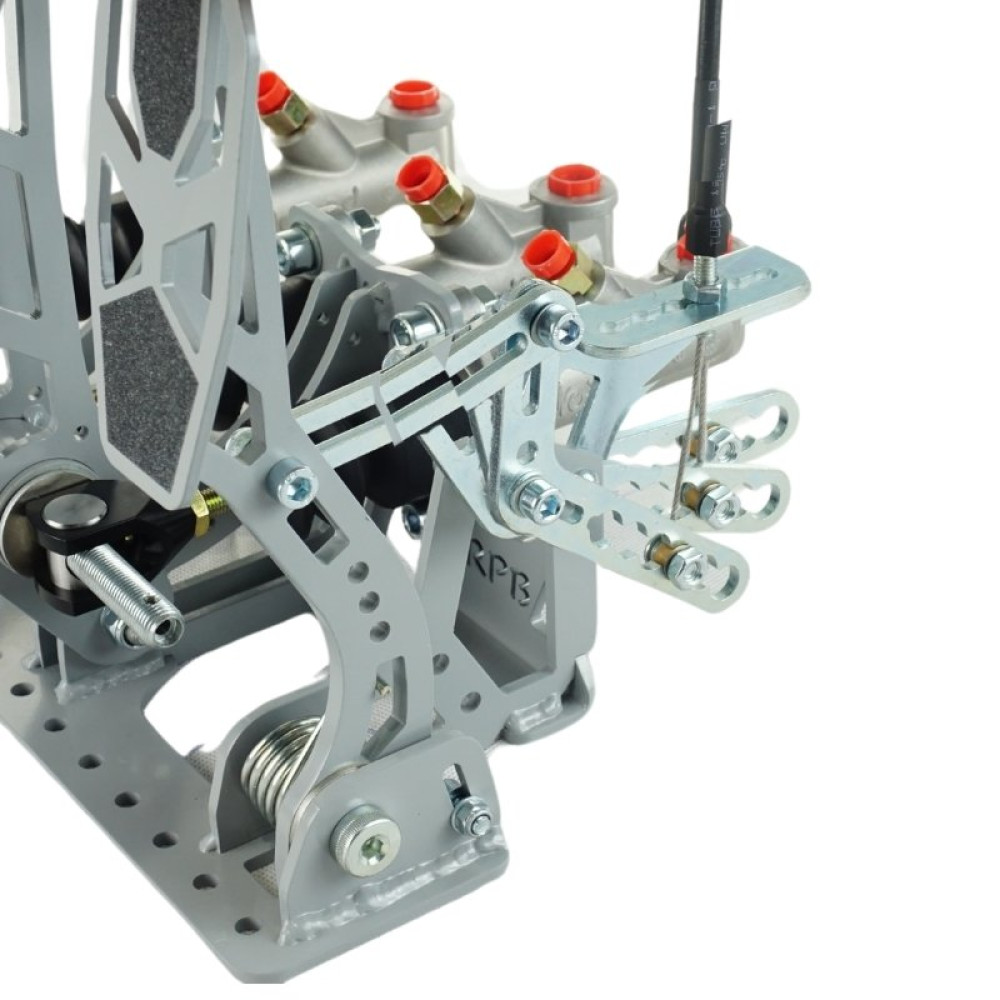

• Throttle pedal with adjustable cable mechanism (included)
• Adjustable pedal rotation angle and wire stroke
• Compatible with optional electronic throttle sensor RPBAC09
• Brake pedal with balance bar for dual master cylinders
• Pedal ratio: 5:1
• Balance bar thread: 7/16”-20 UNF
• Master cylinder connections: 5/16”-24 UNF (Wilwood/Girling)

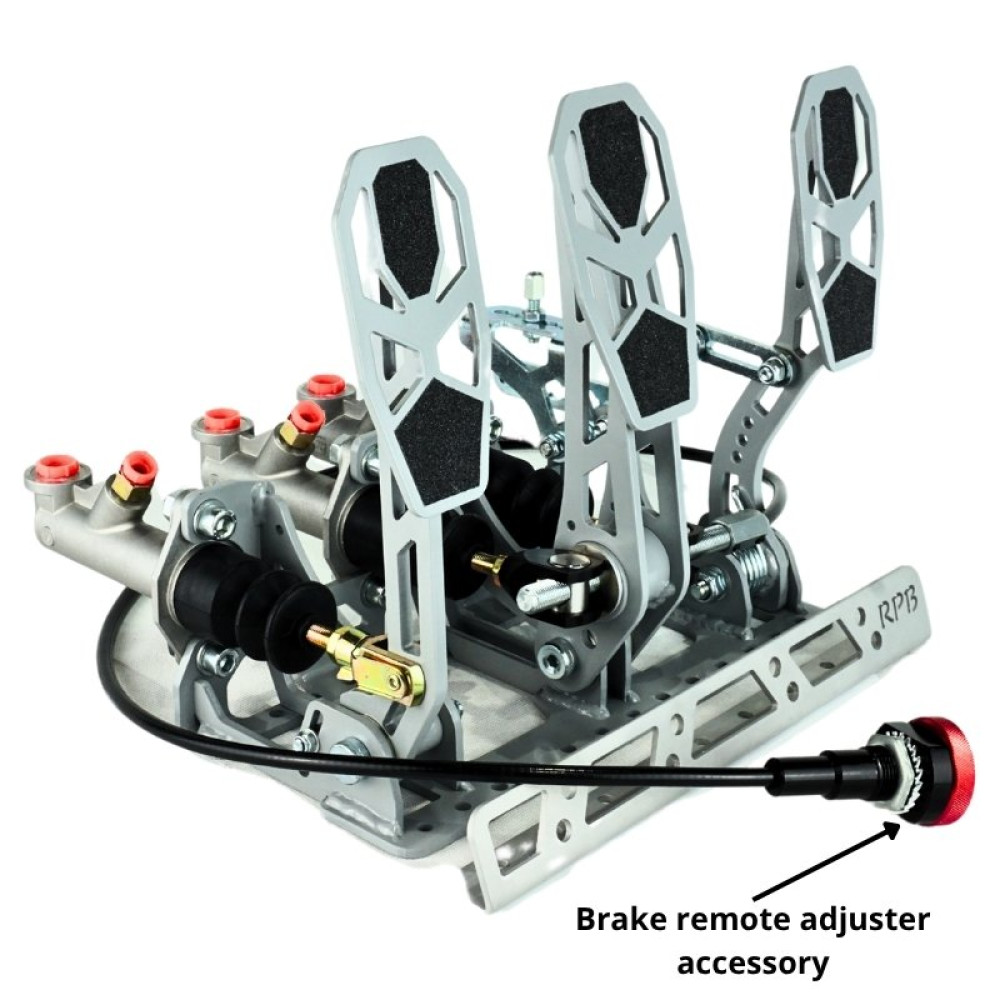

• Optional brake remote adjuster (RPBAB03) for cockpit bias control
• Hydraulic clutch pedal, compatible with master cylinders
• Optional cable clutch accessory RPBAC05
• Lightweight steel welded construction, optimized stiffness-to-weight ratio
• High-quality steel pedal axes with nut torque adjustment for lateral movement regulation
• Anticorrosion coating for long durability
• Weight: 3.25 kg (without master cylinders) / 4.45 kg (with master cylinders)
• Colour: Grey (ref. RPB0001)
• Also available in Black (ref. RPB0001B)
• Master cylinders sold separately

Available Optional Accessories:

• Electronic throttle sensor RPBAC09
• Cable clutch accessory RPBAC05
• Brake remote adjuster RPBAB03
