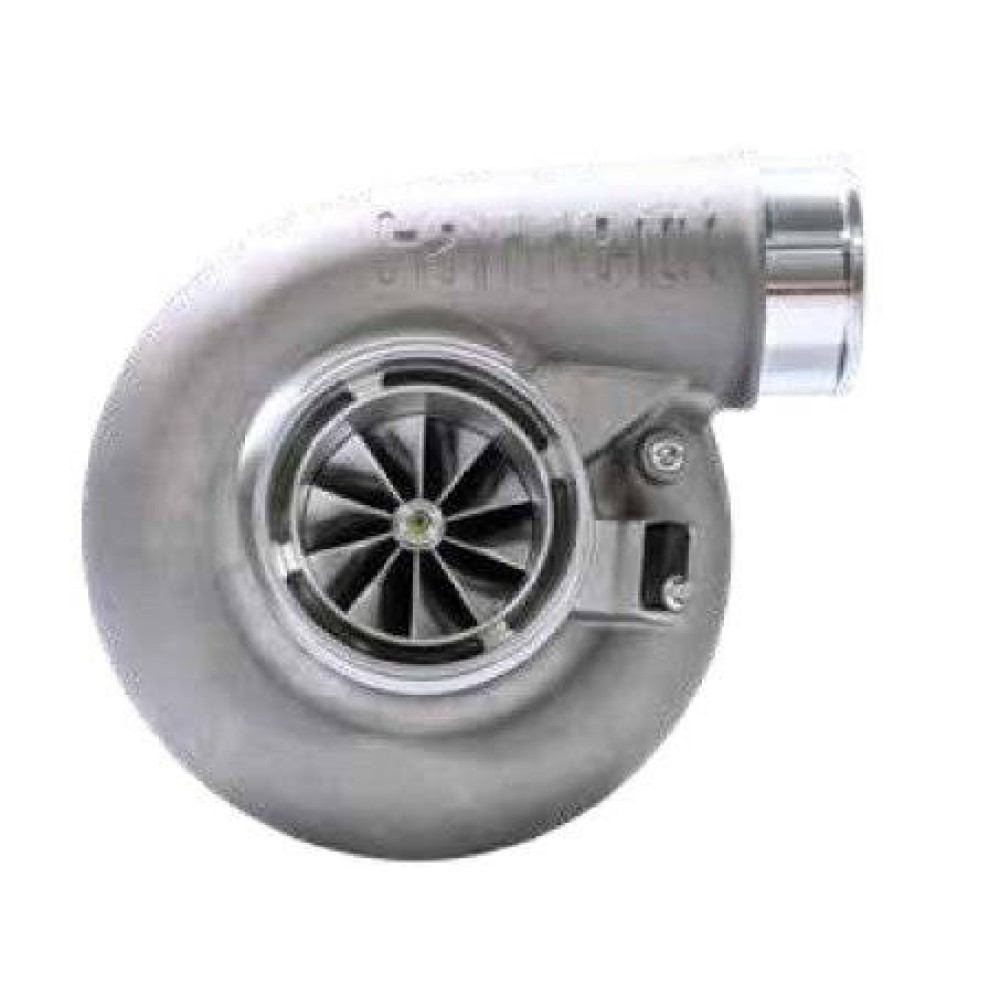

Performance turbocharger from Garrett, G42-1200.
Garrett turbochargers are characterized by the highest performance and reliability, supported by many years of experience.

Apply:

• Power: 475 - 1200HP
• Capacity: 2.0L - 7.5L

Features:

PORTED SHROUD DESIGN FOR SURGE RESISTANCE
AVAILABLE IN BOTH JOURNAL BEARING AND BALL BEARING OPTIONS
FORGED FULLY-MACHINED BILLET COMPRESSOR WHEEL
INCONEL SUPER-ALLOY TURBINE WHEEL
LIGHTWEIGHT ALUMINUM BACKPLATE

Compressor Specifications

• Compressor Wheel Exducer: 73mm
• Compressor Wheel Inducer: 91mm
• Compressor Wheel Trim: 65
• Compressor Wheel Material: Forged Billet Aluminum Alloy
• Compressor Housing A/R: 0.90 A/R
• Max Flow Rate: 115 lb/min
• Max Recommended Turbo Shaft Speed: 118,000 RPM

Compressor Housing Connections:

• Inlet: 5.0″ Hose Coupler
• Outlet: 3.0″ Vband

Turbine Specifications

• Turbine Wheel Exducer: 75mm
• Turbine Wheel Inducer: 82mm
• Turbine Wheel Trim: 84
• Turbine Wheel Material: Mar-M
• Turbine Wheel Max Temp: 1050C / 1922F

Housing Size and A/R ratio: G-Series G42-1450 is available in six (6) different turbine housing configurations:

• 1.01 A/R T4 Twin Scroll Inlet, V-Band Outlet
• 1.15 A/R T4 Twin Scroll Inlet, V-Band Outlet
• 1.28 A/R T4 Twin Scroll Inlet, V-Band Outlet
• 1.01 A/R V-Band Inlet / Outlet
• 1.15 A/R V-Band Inlet / Outlet
• 1.28 A/R V-Band Inlet / Outlet
