Reference: 036249B

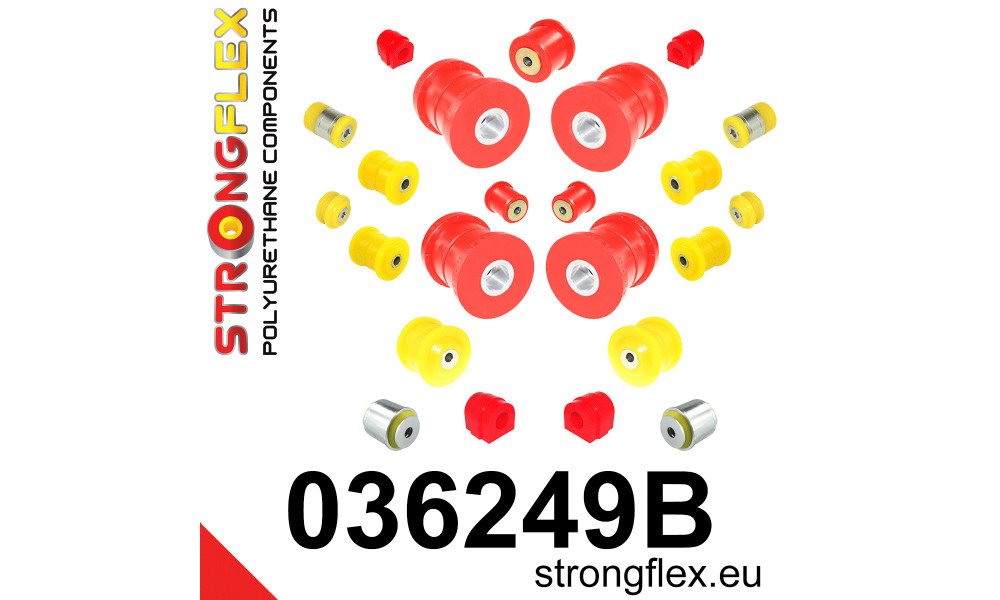

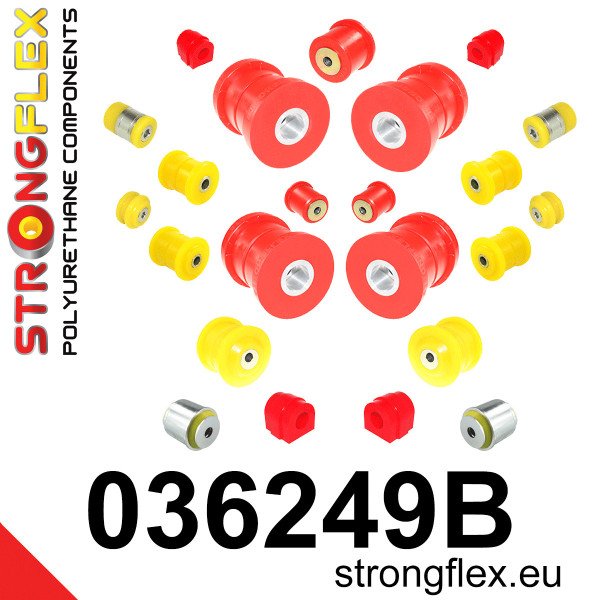

Product Name: Complete Polyurethane Suspension Bush Kit

Compatibility:

• BMW 5 Series V (2003-2010) E60 / E61 Sedan xi xd
• BMW 5 Series V (2003-2010) E60 / E61 Touring xi xd

Kit Components:

• 2x 031248B: Front Anti-Roll Bar Bush
• 2x 031421A: Front Inner Track Control Arm Bush (SPORT)
• 2x 031943A: Front Radius Arm to Chassis Bush (SPORT)
• 0/2x 031744A: Rear Toe Adjust Inner Bush (SPORT) (M10 screw)
• 2x 031745A: Rear Upper Arm Inner Bush (SPORT)
• 2x 031197A: Rear Lower Trailing Arm - Front Bush (SPORT) (M12 screw)
• 2x 031198A: Rear Lower Trailing Arm - Rear Bush (SPORT) (M14 screw)
• 2x 031586B: Rear Anti-Roll Bar Bush
• 2x 031941B: Rear Subframe - Front Bush
• 2x 031942B: Rear Subframe - Rear Bush
• 2x 031939B: Rear Differential Mount - Front Bush
• 1x 031940B: Rear Differential Mount - Rear Bush

Diagrams Included:

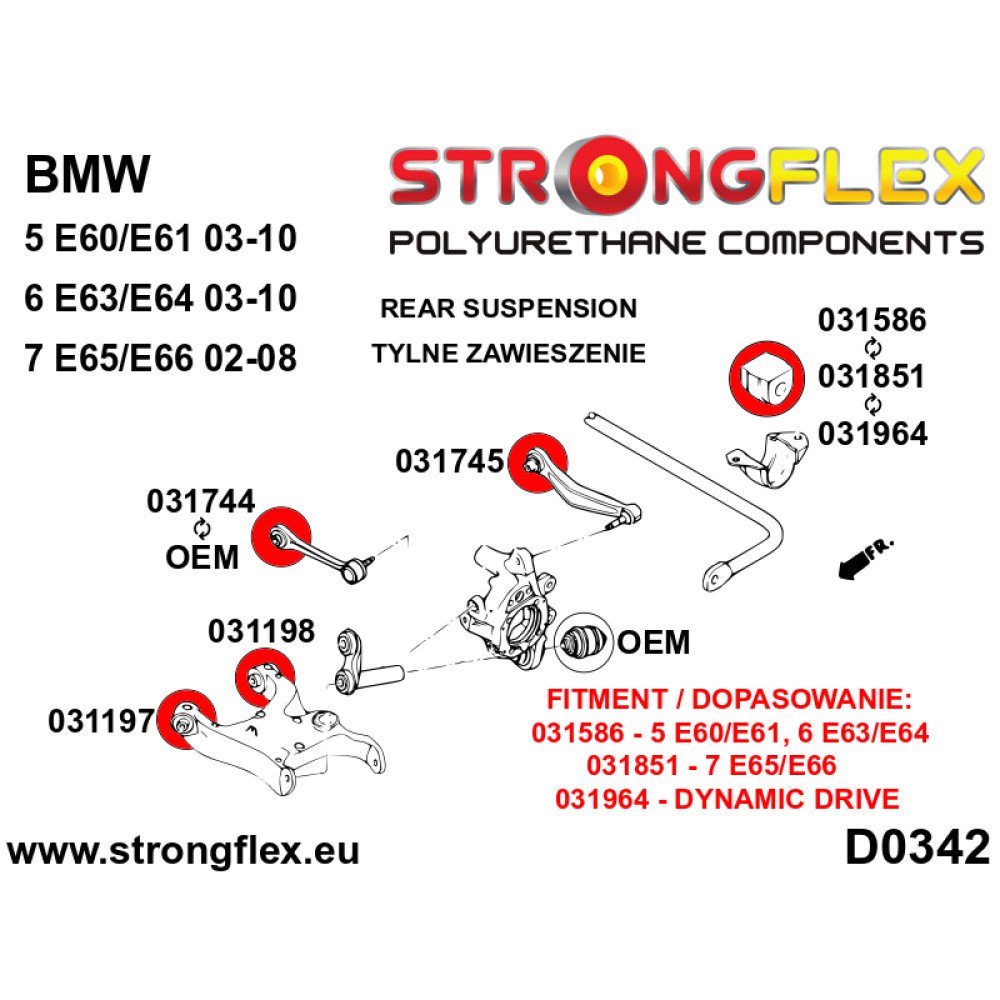

• D0342

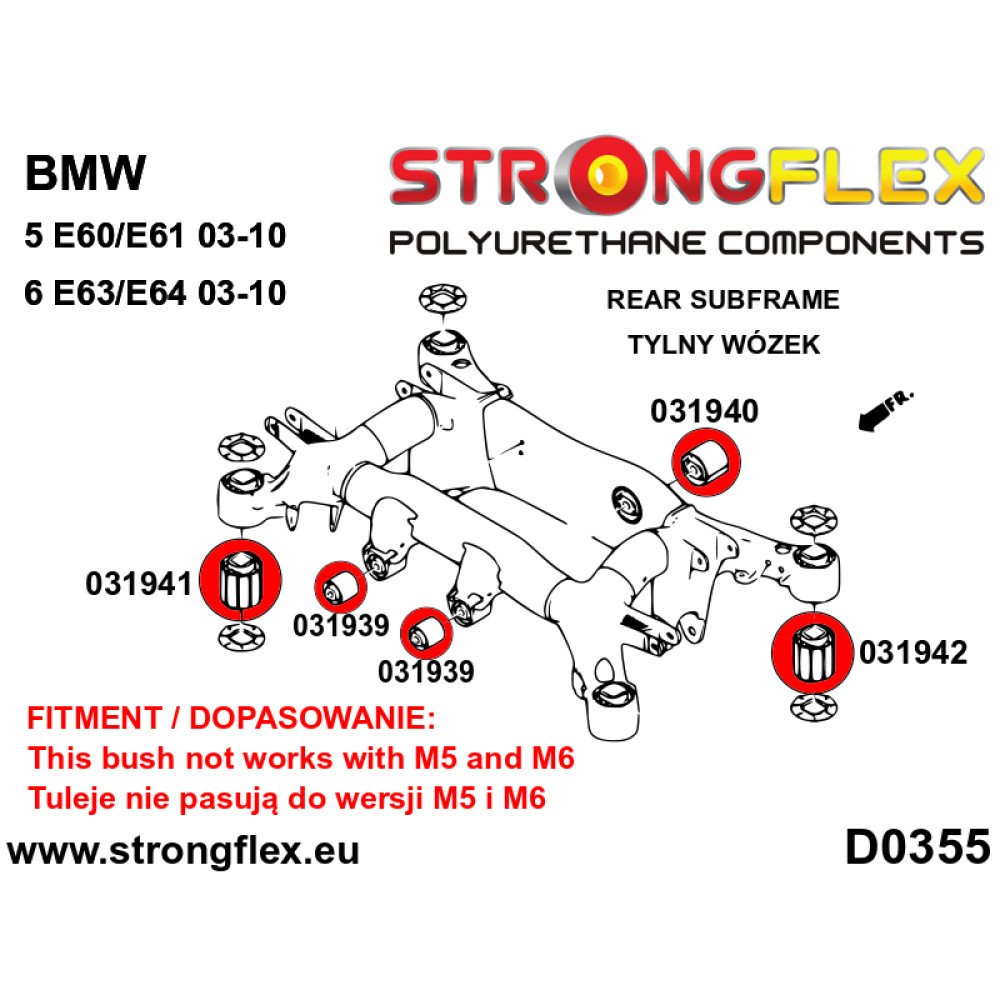

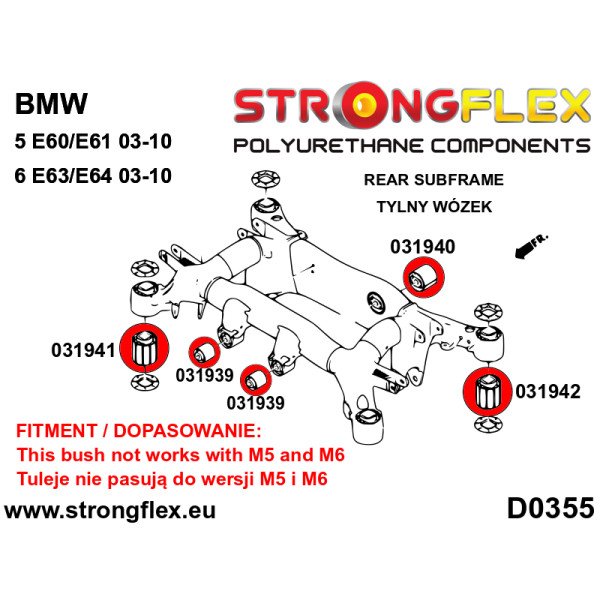

• D0355

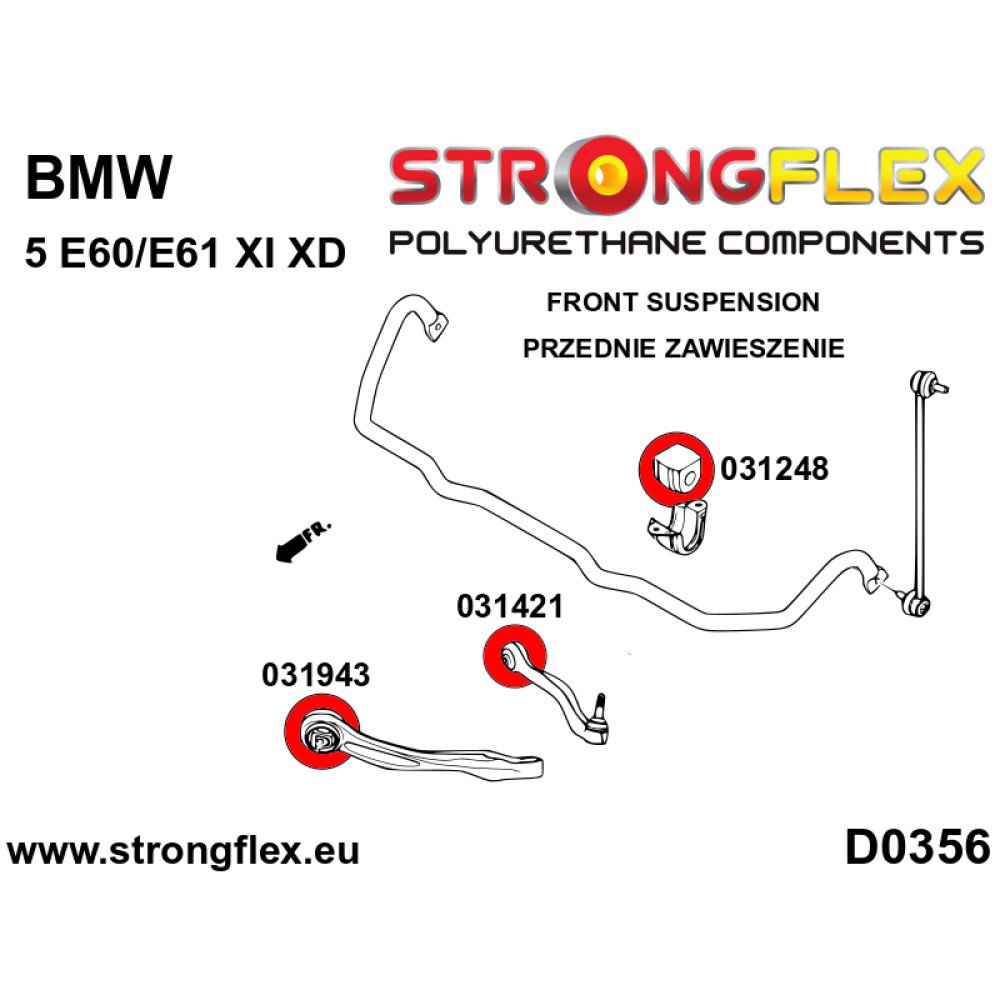

• D0356
• S0338

Important Notes

• This kit is specifically designed for XDRIVE models (xi xd).

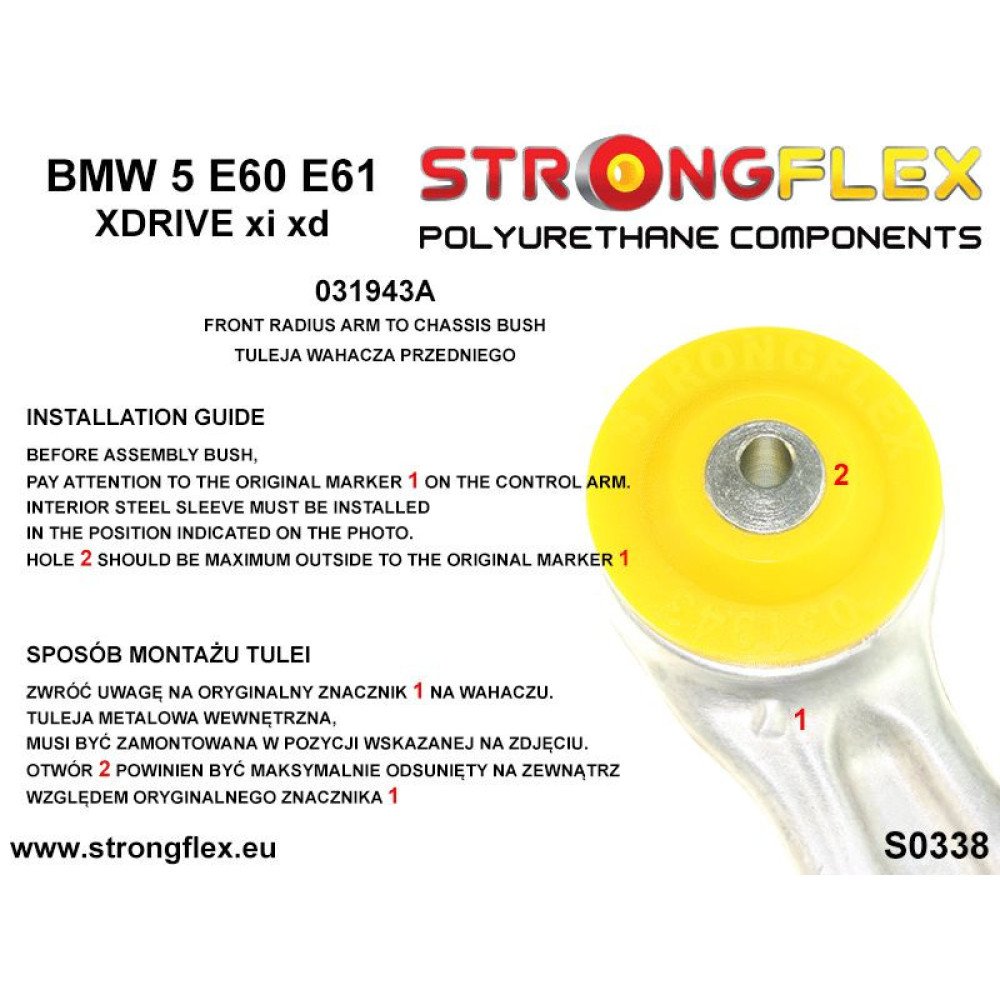

• *Refer to installation guide for 031943A bush, see attached image S0338.

Specifications:

• Required Vehicles: 1
• Pieces per Product: 1
• Total Pieces in Kit: 21/23
• Hardness Rating: 80 Shore A
• Material Composition: Polyurethane (PUR/PU)

Each kit comes with a complimentary grease pack to ensure optimal performance and longevity.

Upgrade your BMW's handling and responsiveness with our Full Suspension Polyurethane Bush Kit, engineered for precision and performance. Experience enhanced stability and control on the road, making every drive a thrilling experience.
