Reference: 086195A

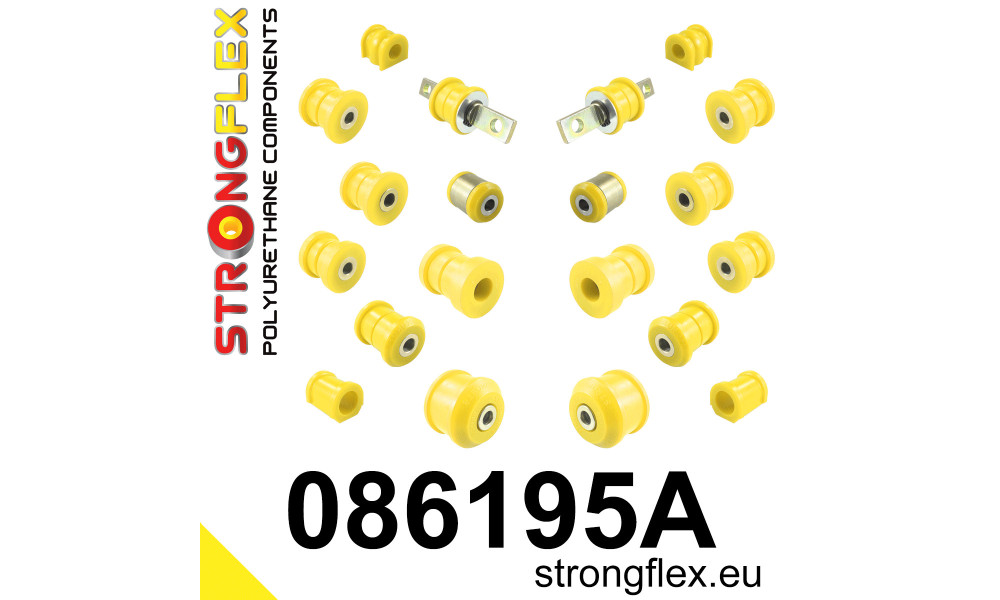

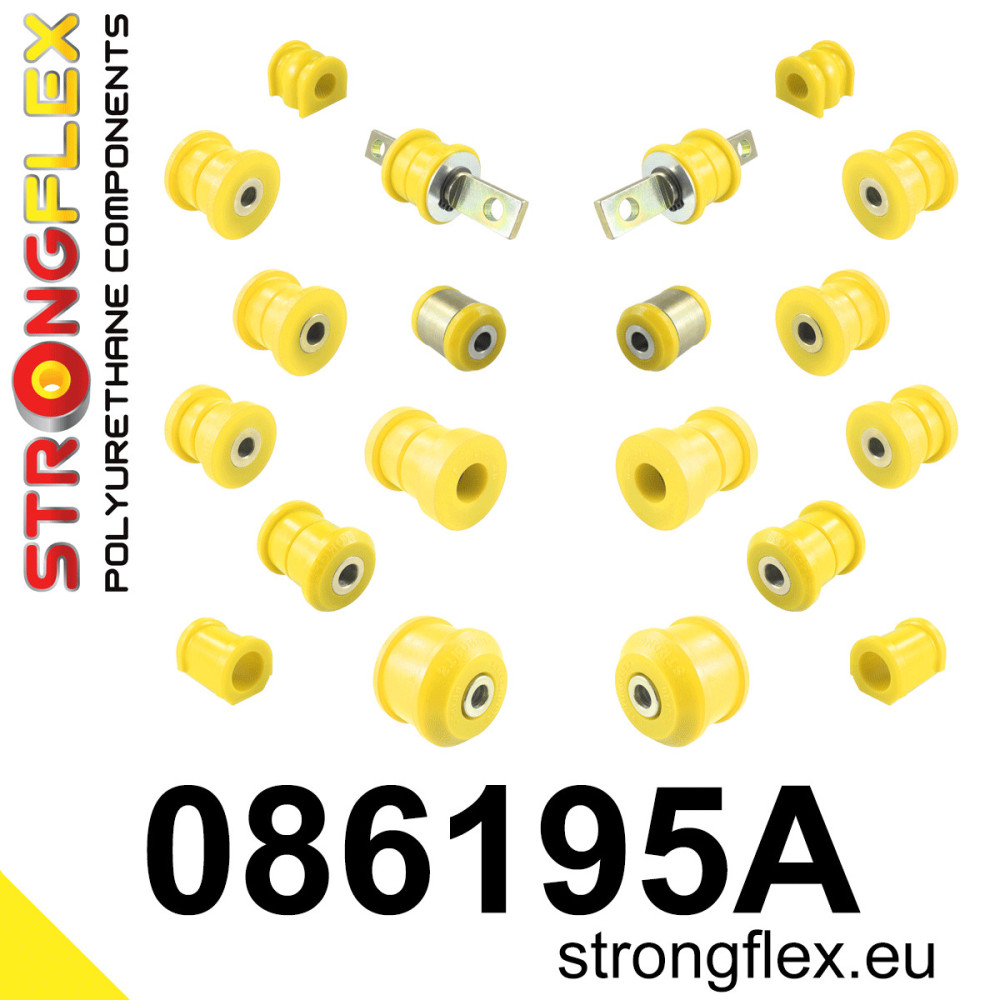

Product Name: Full Suspension Bush Kit SPORT

Compatibility:

• Acura RSX (2001-2006) DC5
• Honda CR-V II (2002-2006) RD4 / RD5 / RD6 / RD7 / RD8 / RD9
• Honda Civic VII (2001-2006) EP / EU / EV / EM / ES
• Honda Civic VII (2001-2006) EP3 Type R
• Honda Element (2003-2011) YH1 / YH2
• Honda Integra IV (2001-2006) DC5

Included Components:

• 2x 081572A: Front Wishbone Front Bush SPORT
• 2x 081573A: Front Wishbone Rear Bush SPORT
• 2x 081580A: Front Anti-Roll Bar Bush SPORT
• 2x 081574A: Rear Trailing Arm Front Bush SPORT
• 2x 081575A: Rear Suspension Inner Lower Bush SPORT
• 2x 081576A: Rear Lower Arm Outer Front Bush SPORT
• 2x 081577A: Rear Lower Arm Outer Rear Bush SPORT
• 2/4x 081578A: Rear Suspension Bush SPORT
• 2/0x 081579A: Rear Upper Arm Inner Bush SPORT
• 2x 081581A: Rear Anti-Roll Bar Bush SPORT

Diagrams:

• D0815
• D0816

Important Notes

• For 081575 / 081576 bushes:
  Select 12mm bolt bushes for Acura RSX, Honda Civic, CR-V, and Integra. For Honda Element, opt for 14mm bolt bushes.
• For 081578 / 081579 bushes:
  Depending on your vehicle, you will need either 2x081578 and 2x081579 or 4x081578. Choose 2x081578 and 2x081579 for Acura RSX, Honda Civic, and Integra. For Honda CR-V and Element, select 4x081578.
• For the 081574 bush:
  Assembly requires components from the existing rubber-metal sleeve. Refer to the attached animation for assembly guidance.

strongflex.eu/img/cms/081574-manual-strongflex.gif" alt="Assembly Instructions" width="800" height="600" />

Quantity Required per Vehicle: 1

Pieces per Product: 1

Total Pieces per Kit: 20

Hardness Rating: 90Sha

Material Composition: POLYURETHANE (PUR/PU)

Each kit comes with complimentary grease for optimal performance!
