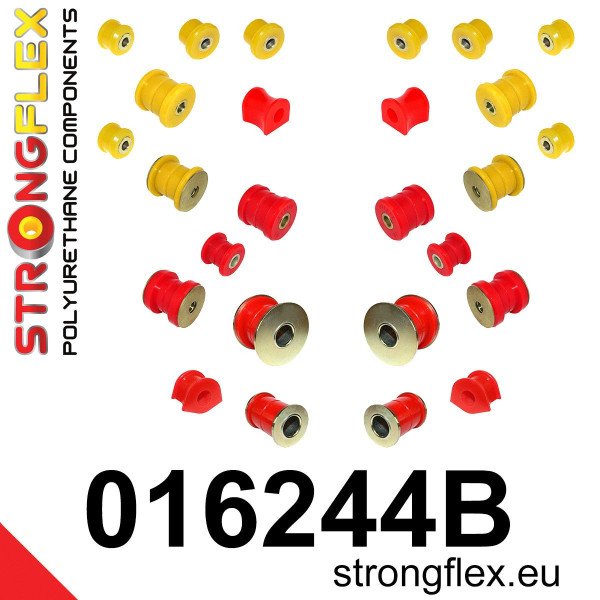

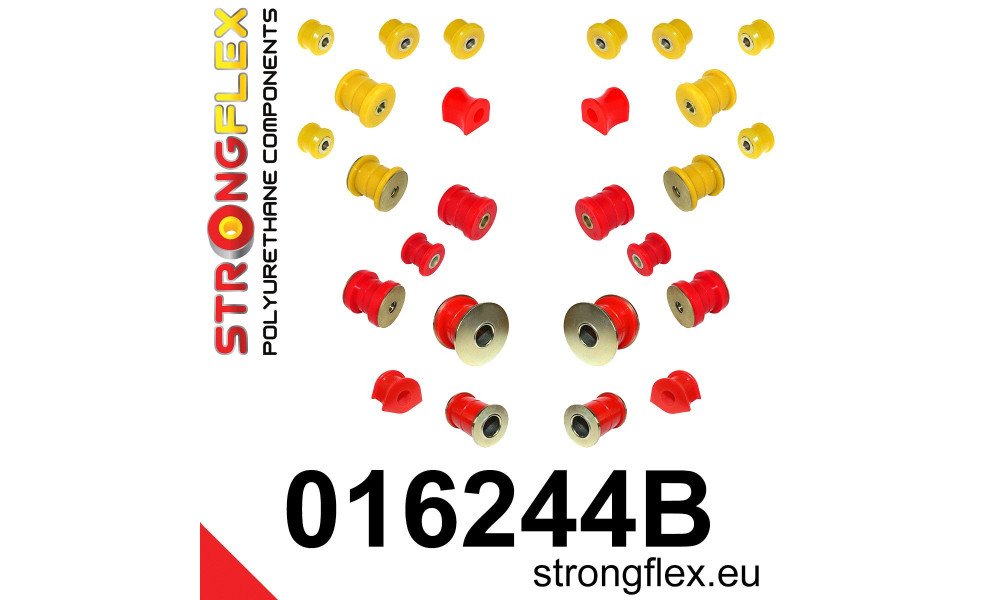

Reference: 016244B

Product Name: Full Suspension Bush Kit

Compatibility:

• Alfa Romeo GTV (1995-2005) Type 916
• Alfa Romeo Spider (1995-2006) Type 916

Included Components:

• 2x 011811B Front Anti-Roll Bar Bush
  or
• 2x 011813B Front Anti-Roll Bar Bush
• 2x 011808B Front Lower Wishbone Front Bush

• 2x 011809B Front Lower Wishbone Rear Bush 47mm
  or
• 2x 011810B Front Lower Wishbone Rear Bush 48mm

• 4x 011655A Rear Upper Arm Bush (SPORT)
• 2x 011656A Rear Lower Spring Front Bush (SPORT)
• 2x 011657A Rear Lower Spring Rear Bush (SPORT)
• 2x 011658B Rear Lower Inner Swing Arm Bush
• 2x 011659B Swing Arm Shock Mount Bush
• 2x 011660B Rear Lower Swing Arm Outer Bush
• 4x 011961A Rear Toe Adjuster Bush (SPORT)
• 2x 011712B Rear Anti-Roll Bar Bush

Important Notes:

This kit features two variants of front anti-roll bar bushings. Ensure you select the correct size: 011811 (20mm) for GTV & Spider models from 1995 to 2002, and 011813 (15mm) for models from 2003 to 2005. Verify the diameter to ensure compatibility with your vehicle.

The 011808B bush is designed exclusively for original wishbones with center pins measuring 21mm. Retain the metal components from your original wishbones for installation.

For the 011809B bush, confirm the bracket's inner diameter; if it measures 48mm, opt for the 011810B bush. This component also requires the reuse of original wishbone metal parts (steel or aluminum) for proper installation.

Certain bushes in this kit are exclusively available in 90ShA hardness (yellow) due to the original rubber bush's hard compound. Utilizing the 80ShA hardness bush (red) will revert the driving experience to that of the original rubber bush.

Diagrams:

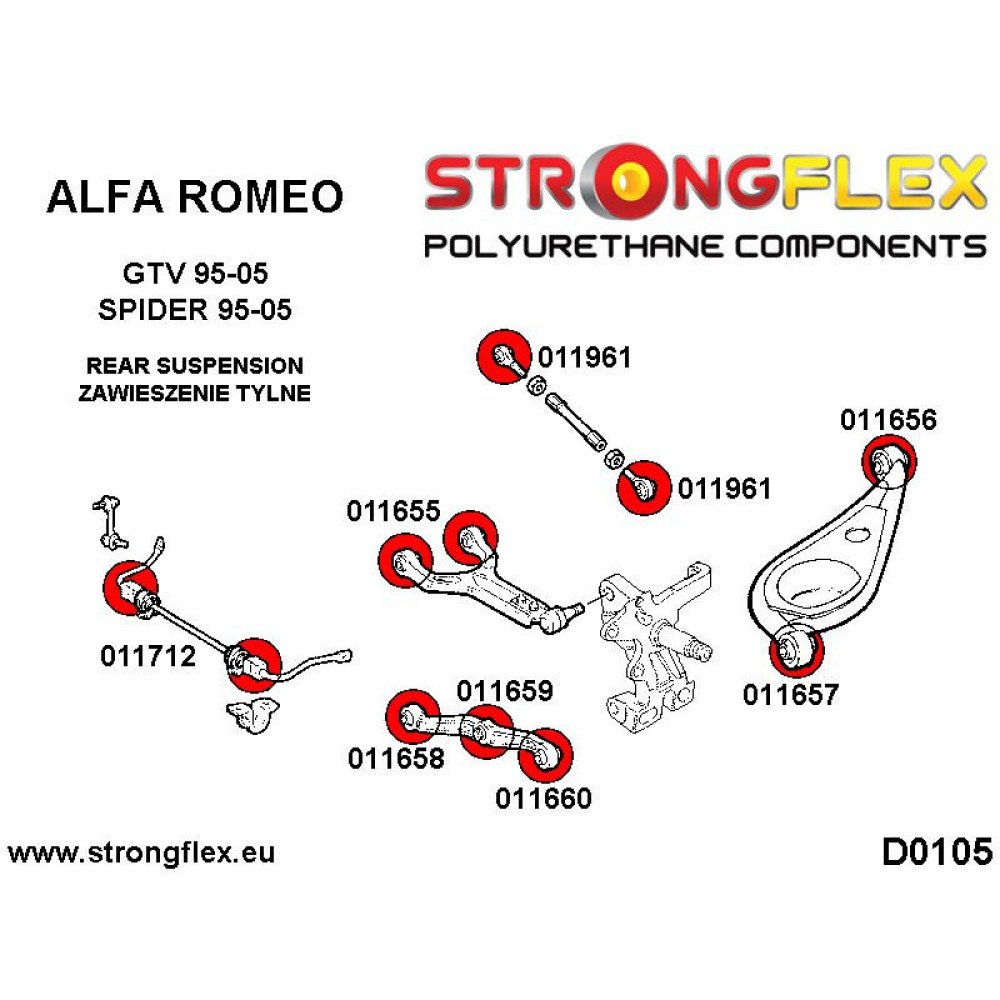

• D0105

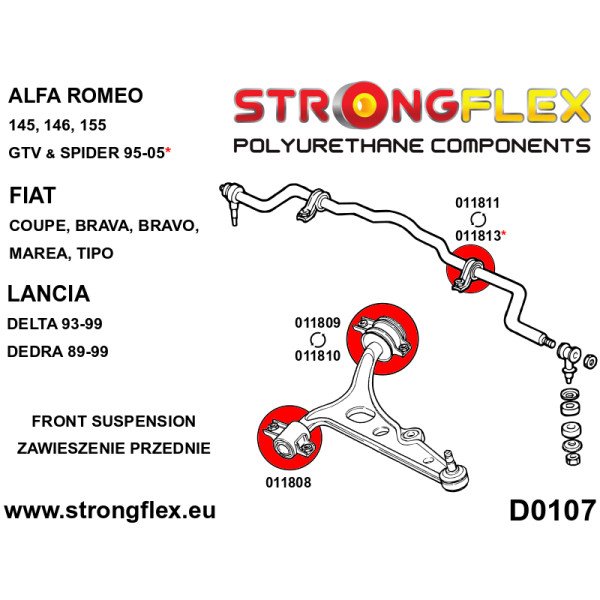

• D0107

Quantity Required per Vehicle: 1

Pieces per Product: 1

Total Pieces in Kit: 26

Hardness Rating: 80ShA

Material Composition: Polyurethane (PUR/PU)

Each kit is supplied with grease for optimal performance!
