Radium Engineering 1.8T 20V Fuel Rail

Upgrade your fuel delivery system with the Radium Engineering fuel rail, designed specifically for turbo and non-turbo 1.8L 20V engines. This fuel rail is engineered for enthusiasts seeking reliability, compatibility, and performance for their Audi, Volkswagen, Skoda, and Seat applications.

Features:

• Lightweight aluminum construction for strength without added weight
• Large 0.7" internal bore supports high fuel flow and power requirements
• Durable anodized surface finish for superior wear and corrosion resistance
• Compatible with both return and returnless fuel systems—can be used to convert a returnless setup
• No special tools required for installation

Injector Compatibility:

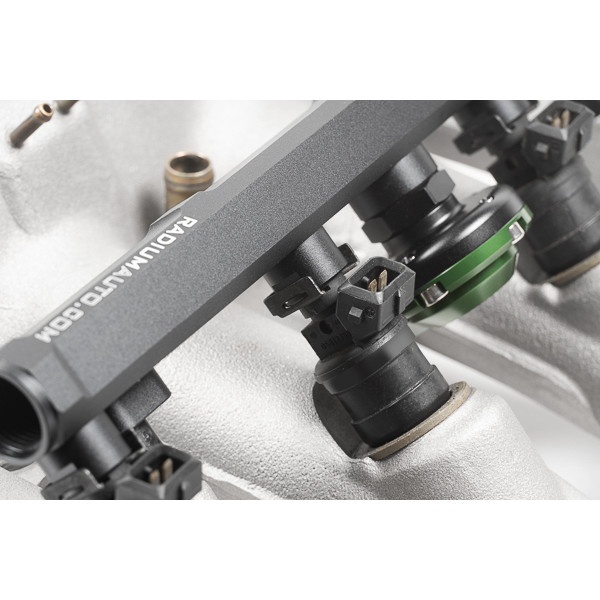

Injector bores are 14mm ID, allowing direct fitment of OEM injectors or any equivalent aftermarket injector.

Ports and Fittings:

• All fuel rail ports are tapped for 8AN ORB fittings
• Compatible with 8AN ORB adapter fittings, direct mount regulators, fuel pulse dampers, and fuel pressure gauge adapters
• Ensure adequate clearance for larger accessories by referencing product dimensional drawings
• Select appropriate fittings based on your specific application

Compatibility:

Includes proper-sized thermal insulating spacers and stainless steel hardware for compatibility with a wide range of intake manifolds.

• 98-06 Audi TT
• 96-03 Audi A3
• 96-06 Audi A4
• 98-04 Audi A6
• 99-03 Audi S3
• 96-06 Skoda Octavia
• 99-08 Seat Ibiza Cupra
• 99-05 Seat Leon
• 99-02 Seat Cordoba Cupra
• 08-10 Seat Exeo
• 99-05 Volkswagen Golf
• 00-05 Volkswagen Jetta
• 98-05 Volkswagen Passat
• 98-05 Volkswagen Bora
• 06-08 Volkswagen Polo GTI
• 99-05 Volkswagen Beetle

*Fits turbo and non-turbo 1.8L 20V engines

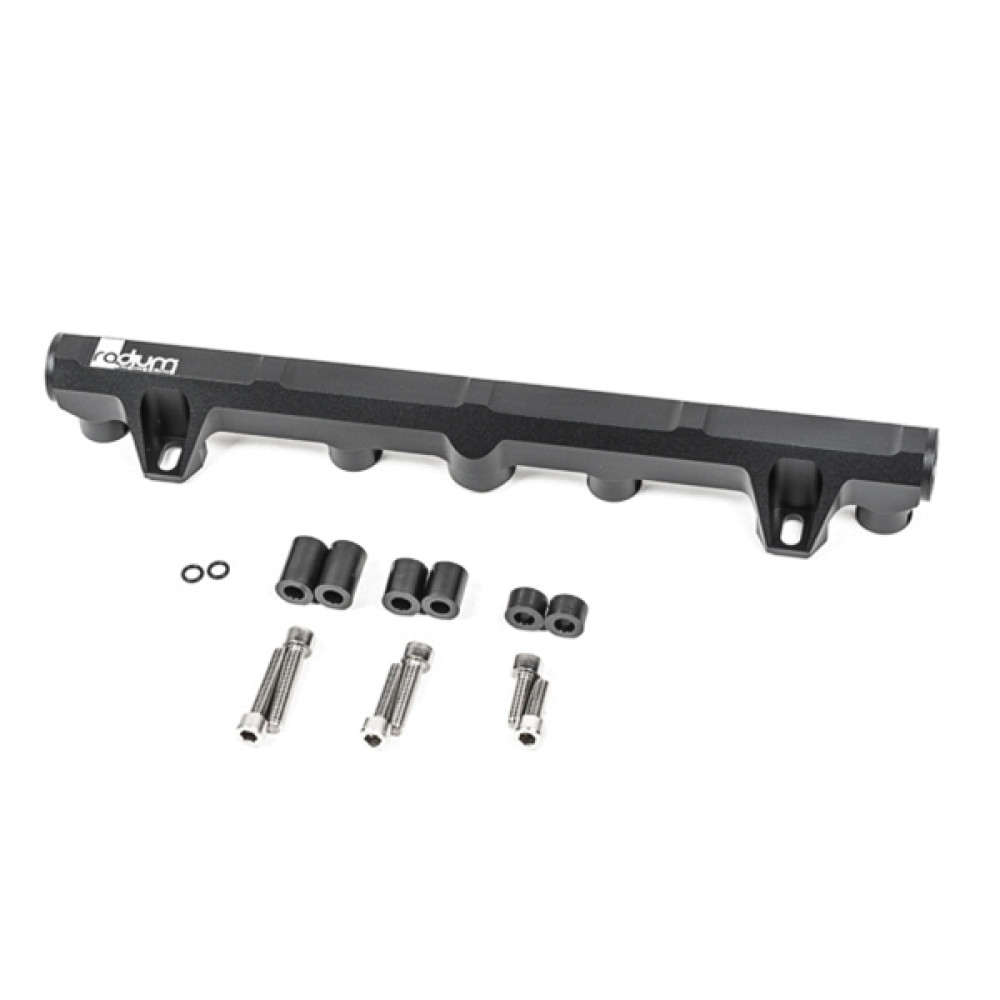

Included in the Kit:

• 1x 1.8T 20V Fuel Rail
• 2x Insulating Spacers, Low
• 2x Insulating Spacers, Mid
• 2x Insulating Spacers, High
• 2x Rubber Spacer Retainers
• 2x Stainless Screws, M6x1x18mm
• 2x Stainless Screws, M6x1x25mm
• 2x Stainless Screws, M6x1x30mm
