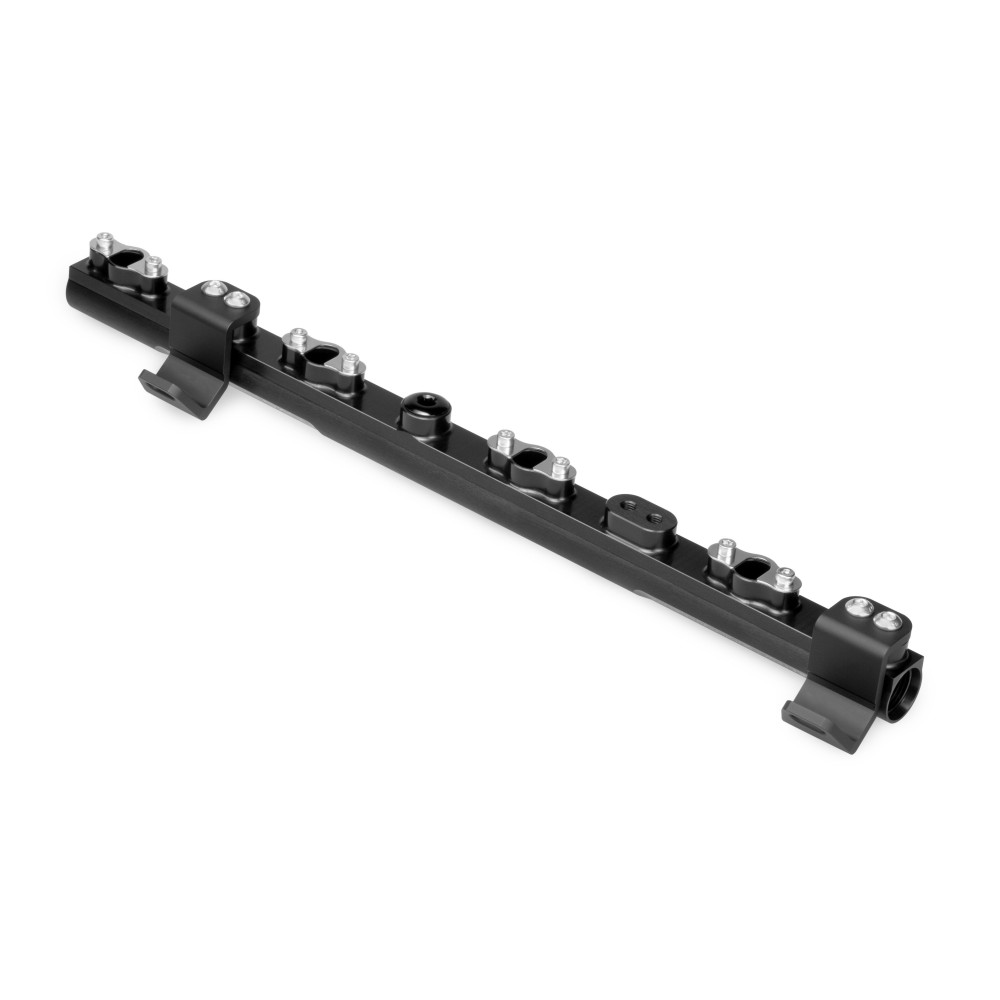

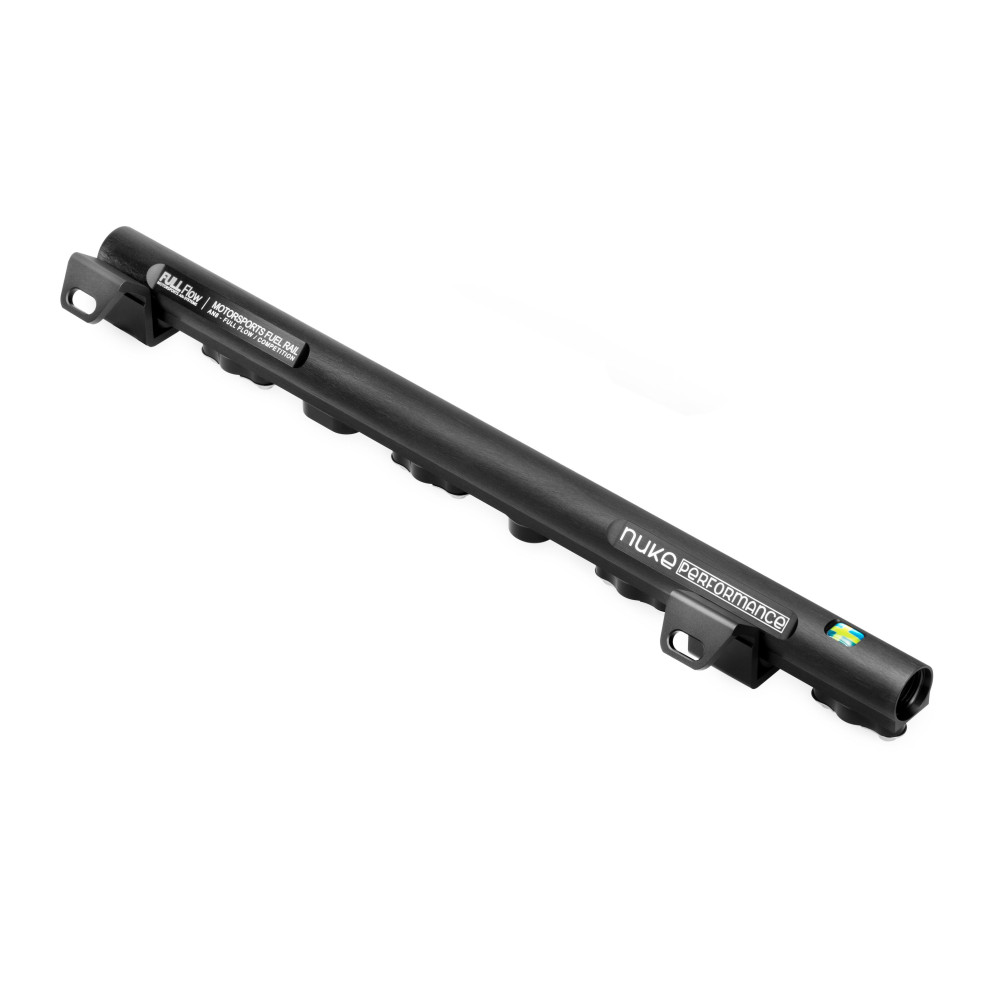

Nuke Performance fuel rail for the Ford Cosworth YB 4x4

This fuel rail features oversized internals and a lightweight design, equipped with unique injector safety clips for enhanced reliability.

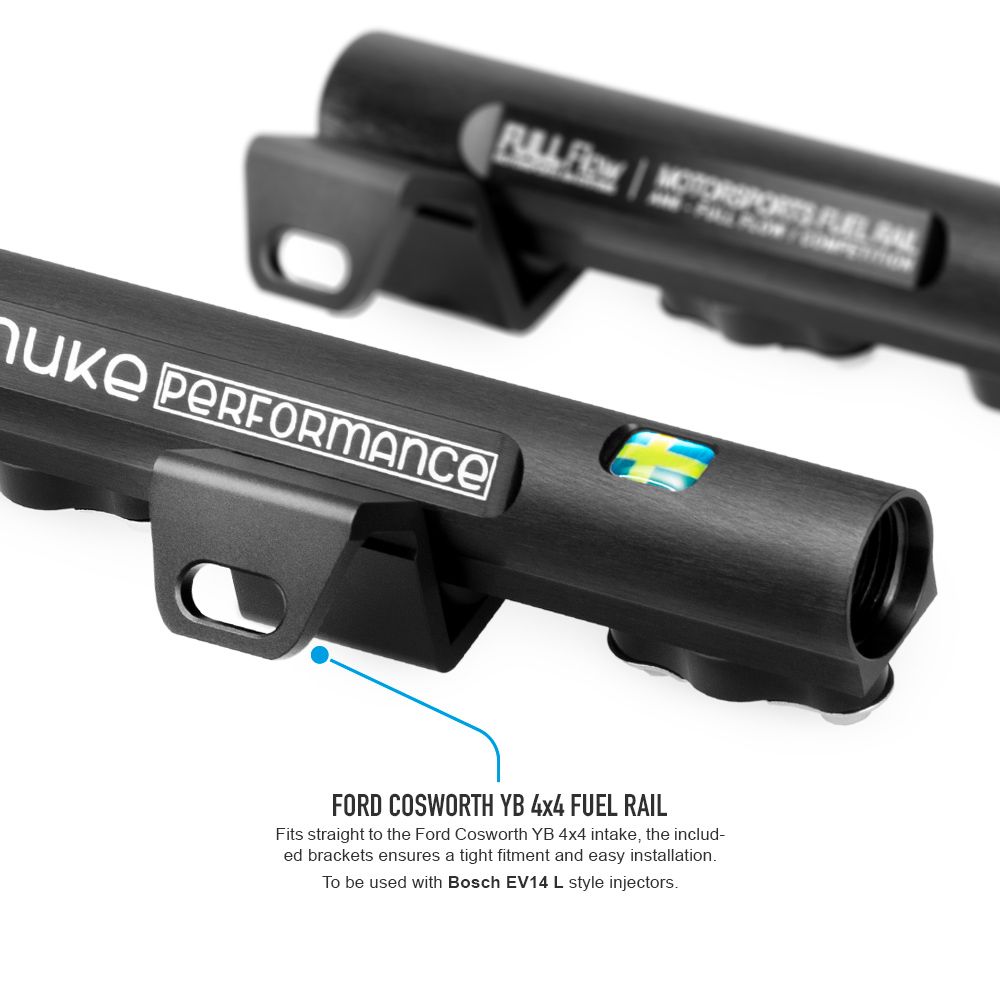

Designed specifically for the Ford Cosworth 4cyl YB 4x4 engine, this fuel rail comes with brackets for easy installation on the YB intake. It supports AN fuel lines and aftermarket injectors, making it an ideal upgrade for your classic Ford engine.

Specifications:

• Compatible with Bosch EV14L type injectors
• AN-8 ORB threads at both ends for high fuel flow
• Includes brackets for mounting to the YB 4x4 intake
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all fuel types, including E85

The Nuke Performance fuel rail is engineered for a perfect fit with the Ford Cosworth 4cyl YB 4x4 intake, and includes all necessary hardware for installation. It also features two M6 threaded mounting points for custom bracket applications, such as the YB RWD version.

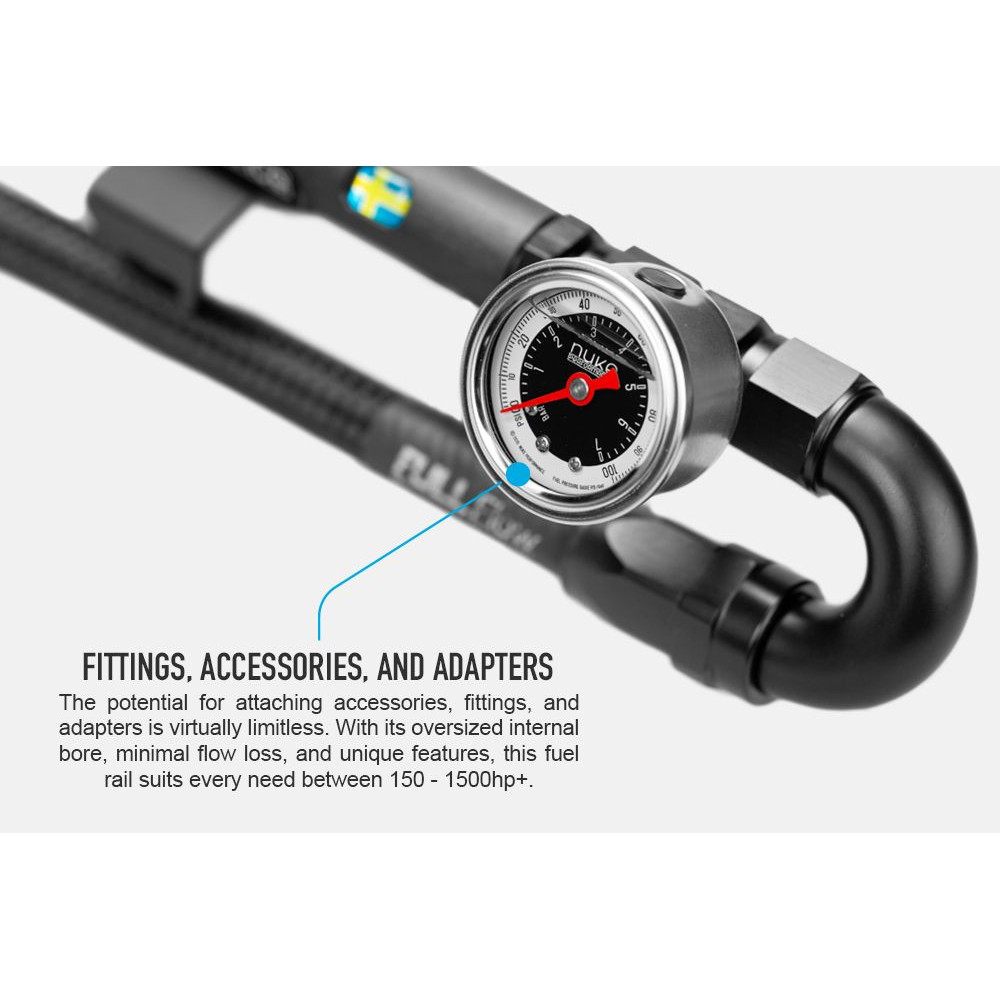

Fitting Options:

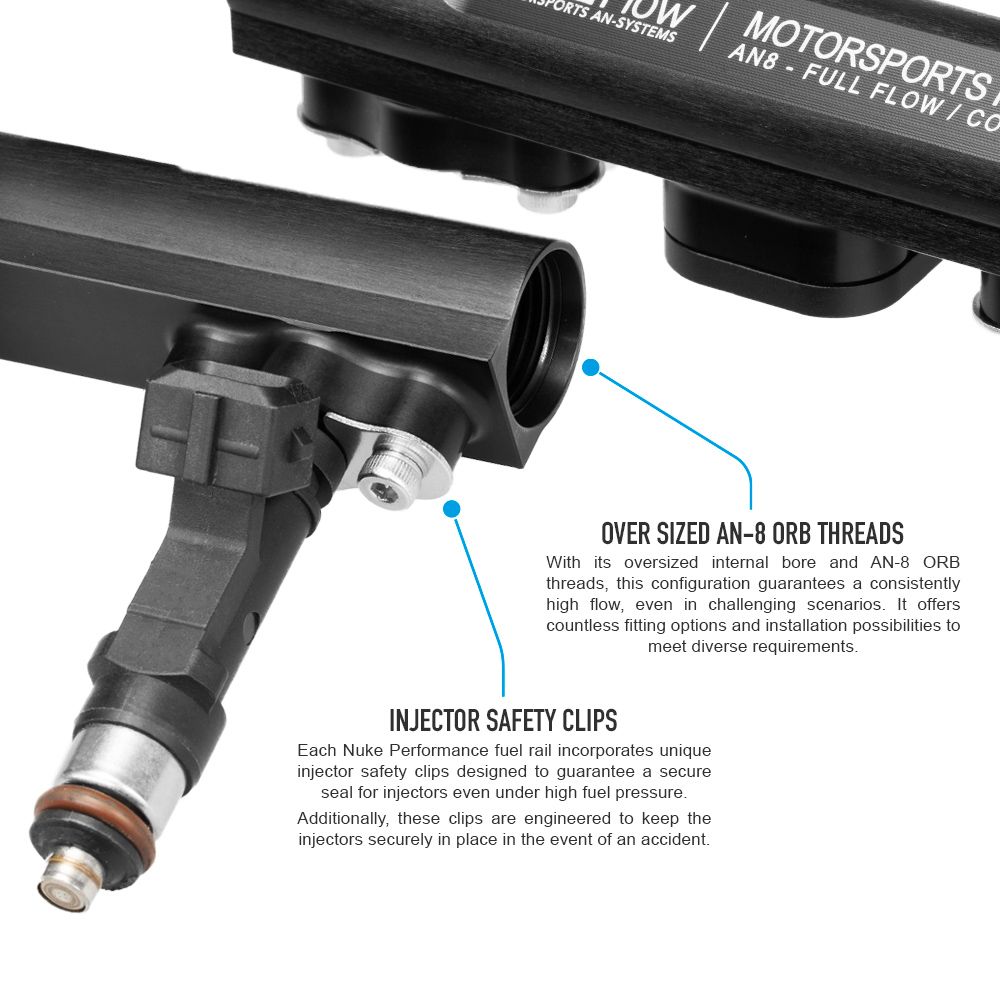

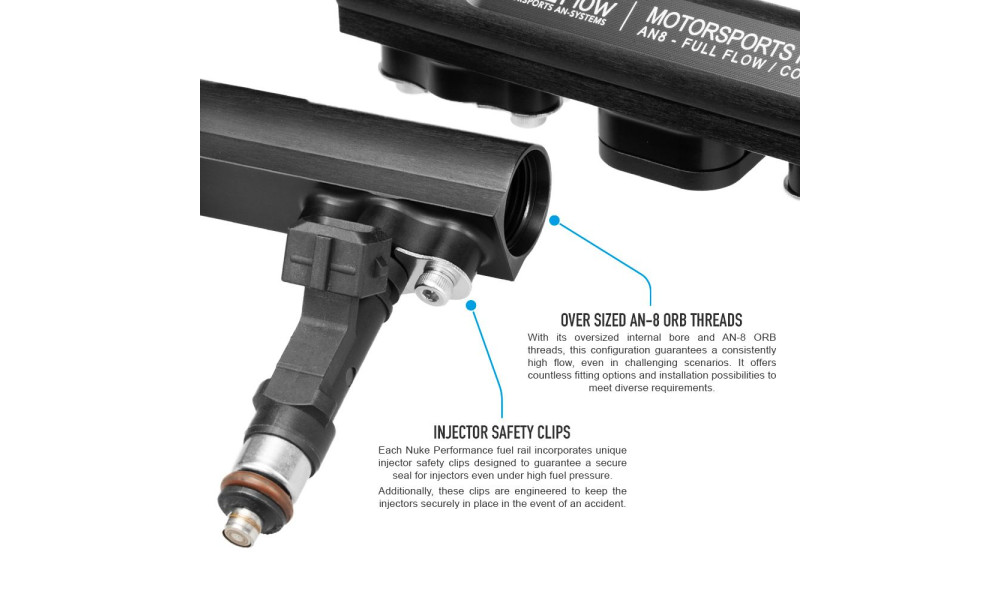

The fuel rail is equipped with AN-8 ORB threaded fittings on each end and an additional side port with AN-6 ORB thread. Various fittings and adapters are available for a tailored installation.

Included Accessories:

• 1 x AN-8 ORB Full Flow fuel rail profile for Ford Cosworth YB engine
• 2 x Aluminum brackets for YB 4x4 intake
• 1 x AN-6 ORB Plug

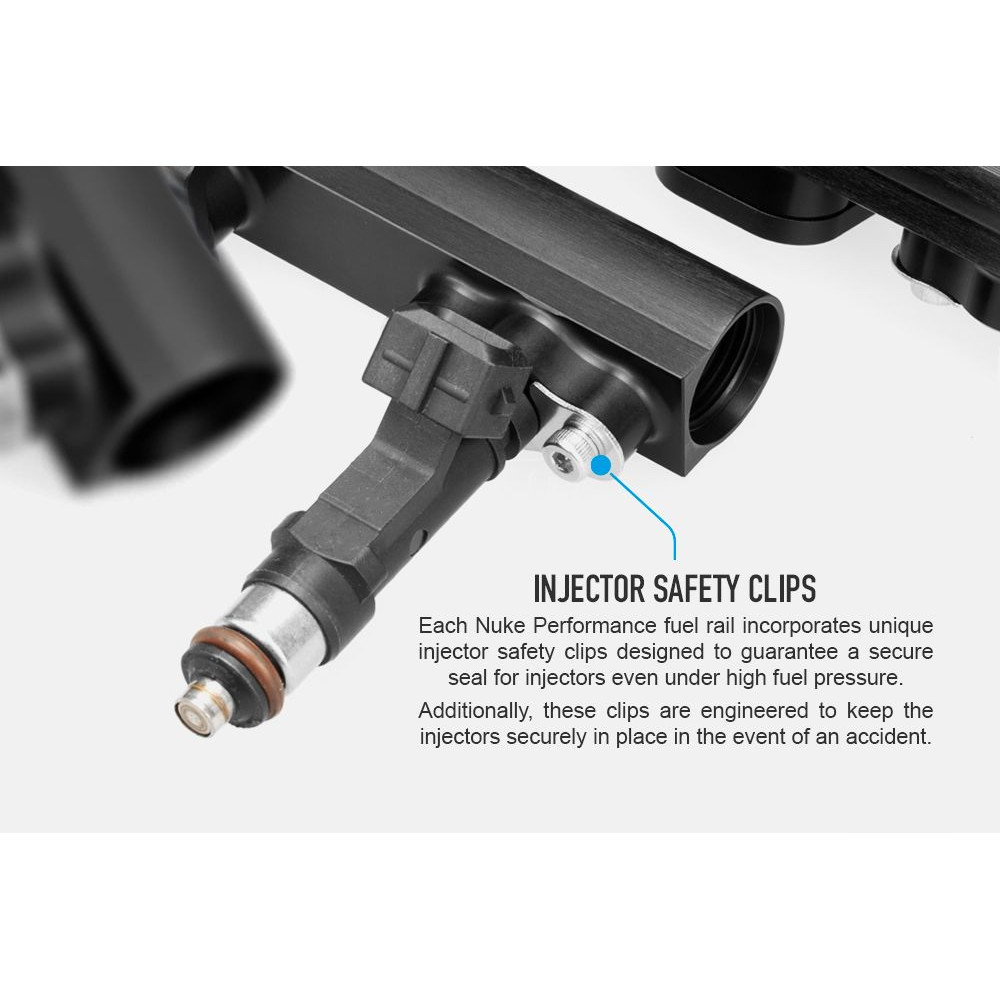

• 4 x Injector safety clips
• 8 x M4x6mm stainless steel bolts
• 4 x M6x10mm stainless steel bolts
• 2 x M6x12mm stainless steel bolts
• 2 x M6 stainless steel washers

Dimensions:

• Length: 397.50mm (15.65")
• Height: 32.00mm (1.25")
• Weight: 348.00g (12.27oz)

Fuel Compatibility: Petrol, Gasoline, Ethanol, E85, E100, Methanol

Part Number: 120-03-101

EAN: 7340209506792
