OVERVIEW

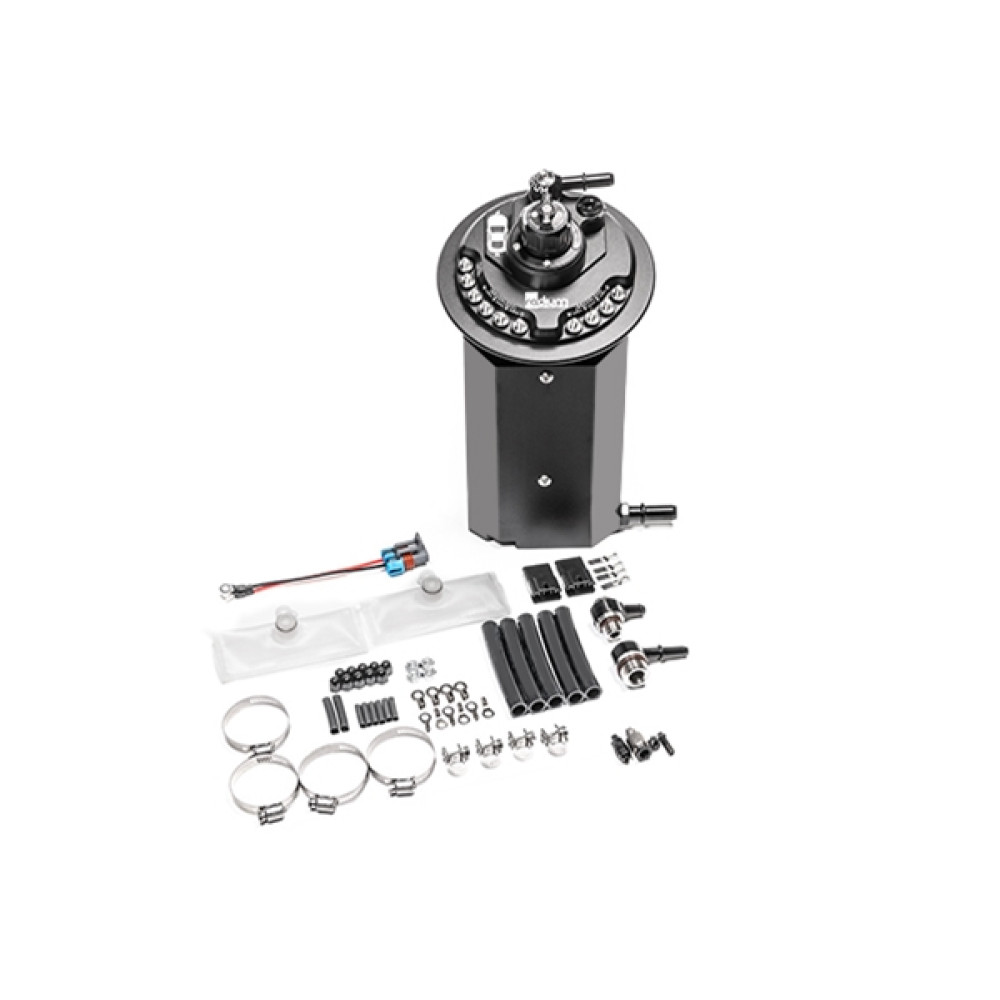

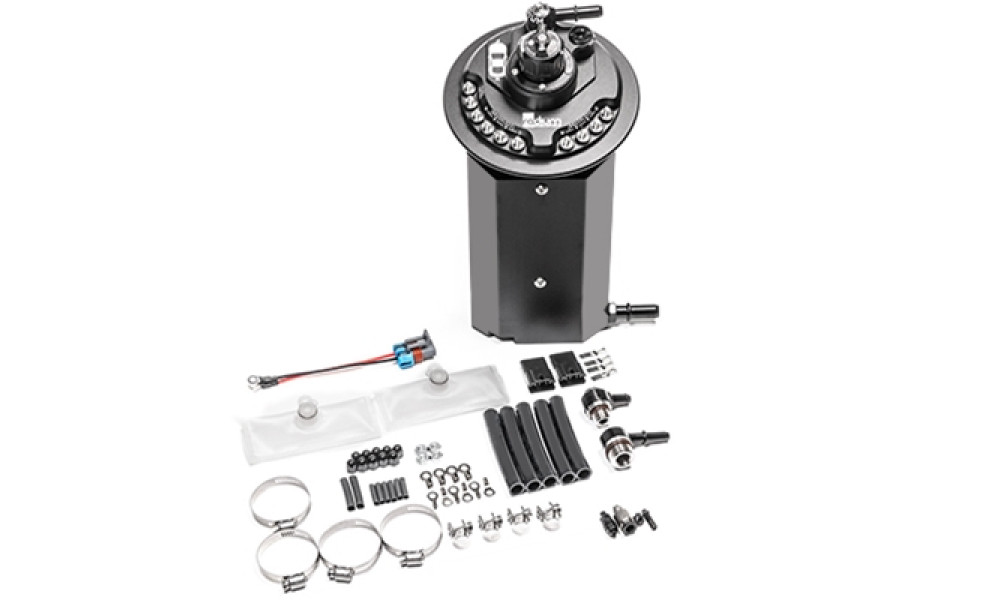

The Radium Engineering pump hanger is designed to enhance fuel flow in modified 2011+ Ford Mustang vehicles. This drop-in unit replaces the OEM in-tank fuel pump module and supports the installation of one or two aftermarket pumps, compatible with various pump options. It is safe for use with alternative fuels such as E85. The hanger features a collector box that maintains fuel around the pump(s) for optimal performance.

Fuel is delivered through a single threaded port and low-profile adapter fitting on the top plate. The fuel pressure is regulated within the Radium hanger and is adjustable. The OEM fuel level sender is retained, ensuring full functionality. The OEM fuel tank access cover and rear seat bench fit without modifications.

FEATURES

• Drop-In Installation
• Permits 1 or 2 Pumps
• Integrated 1:1 Adjustable Fuel Pressure Regulator
• Fuel Starvation Protection
• High Current Electrical Hardware
• Compatibility with Popular Fuel Pumps
• Anodized Aluminum Construction
• Gasoline, Methanol, Ethanol Compliant
• Fuel Resistant Tubing and Wiring
• Stainless Steel Hardware
• New Anti-rotation Electrical Terminals

IMPORTANT NOTE: This fuel pump hanger is sold without pre-installed pumps. Pumps must be installed by the end user or installer. Refer to the installation instructions for guidance. Pumps may be purchased separately but will not be pre-installed.

PUMP COMPATIBILITY

To select the appropriate fuel hanger version, determine the fuel pump(s) to be used. Once the pumps are chosen, select the corresponding fuel pump hanger part number.

20-1802

• Walbro F90000267
• Walbro F90000274
• Walbro F90000285
• *Walbro F90000295
• *Bosch BR540
• DW400
• DW440 (brushless)
• *DW810 (brushless)
• Protec 11928 (brushless)
• Fuelab 49614 (brushless)

*These pumps do not feature an integrated check valve. If installing 2 pumps, they cannot be staged.
