Bosch 980cc Injector, High Impedance - 65mm (EV14L)

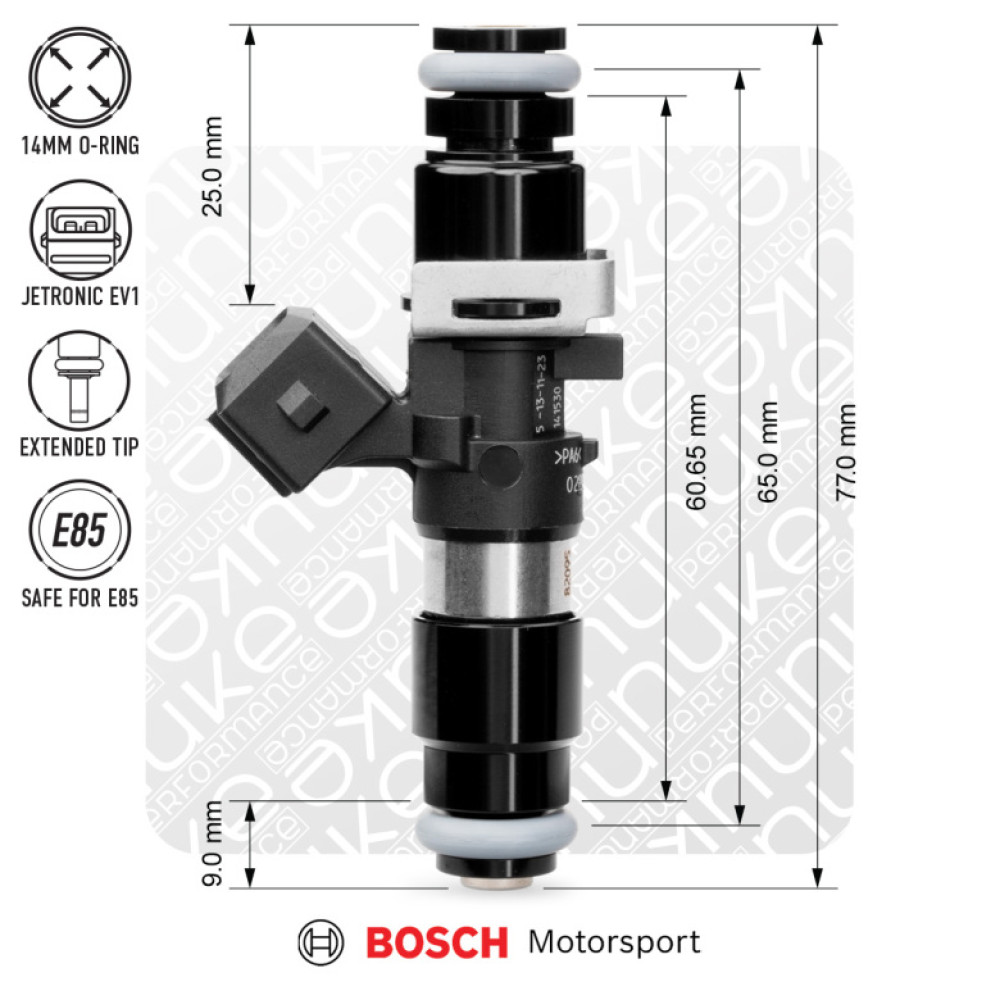

This injector is equipped with the necessary accessories for a Bosch EV14L injector (60, 65mm between O-rings / 65mm center to center of the O-rings).
- High impedance 980cc injector from Bosch Motorsport
- Corresponding to a Bosch EV14 L injector length
- Filtered top adapter for additional protection
When ordering injectors, always check the specifications of your fuel rail to ensure compatibility. Most fuel rails use EV14L-sized injectors, available from 630cc to 2200cc.
Bosch Motorsport 980cc Injector Specifications:
| Bosch Part Number | 0280158040 / Bosch -040 |
| OEM Part Number | 0 280 158 040 |
| Type - Without Included Adapters | 39mm EV14K (Compact) |
| Type - With Included Adapters | 65mm EV14L (Long) |
| Connector | Bosch JPT EV1 Minitimer Jetronic |
| O-ring Top / Bottom | 14mm Viton / 14mm Viton |
| Resistance | 12 ohm |
| Volume at 3 BAR | 980cc/min = 670g/min = 89lb/hr @ 3bar |
| Fuel Compatibility | Petrol / Gasoline / E85 / M100 * |
| Nozzle / Spray Pattern | Extended tip / Single cone spray |
| For Motorsports Use | YES |
| Part # / EAN | 130-01-098 / 7340209508277 |
* Note: If using the injector with methanol, flush it with regular fuel after use. Do not leave methanol in the injector for extended periods.
Bosch 980cc Injector Capacity:
Test conditions can differ from real-world use due to equipment and technical factors. However, this information helps understand injector performance and when choosing other fuel system components.
| Measured Peak Static Flow in a Test Environment | |
| 2 BAR (29 PSI) | 720cc/min = 69 lb/h |
| 3 BAR (43.5 PSI) | 900cc/min = 86 lb/h |
| 4 BAR (58 PSI) | 1038cc/min = 99 lb/h |
| 5 BAR (78.5 PSI) | 1170cc/min = 111 lb/h |
| 6 BAR (88 PSI) | 1284cc/min = 122 lb/h |
| 7 BAR (101.5 PSI) | 1344cc/min = 128 lb/h |
| Petrol (10% Margin) | Turbo Charged | Naturally Aspirated |
| 1 Cyl | 1x129 = 129hp | 1x168 = 168hp |
| 4 Cyl | 4x129 = 516hp | 4x168 = 672hp |
| 5 Cyl | 5x129 = 645hp | 5x168 = 840hp |
| 6 Cyl | 6x129 = 774hp | 6x168 = 1008hp |
| 8 Cyl | 8x129 = 1032hp | 8x168 = 1344hp |
| E85 (10% Margin) | Turbo Charged | Naturally Aspirated | |||||||
| 1 Cyl |
Universal Part: This product fits multiple vehicles (universal application).
Vehicle Compatibility
Nuke PerformanceFounded in 2004 in Gothenburg, Sweden by motorsport engineers, Nuke Performance designs and manufactures fuel delivery systems and components for high-performance applications. Their iconic fuel rails, surge tanks, regulators, and precision fittings are trusted by motorsport teams and performance builders globally.
Official page: nukeperformance.com Bosch 980cc 65mm EV14L Injector
100.13€
99.13€
Excl. VAT: 81.92€
This product has universal fitment.
Official page: nukeperformance.com |
