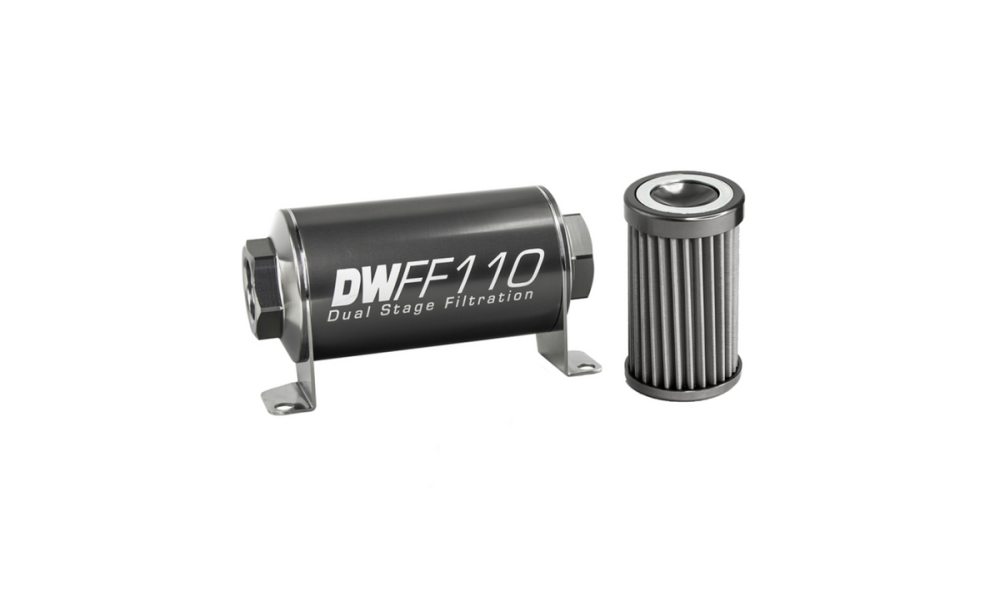

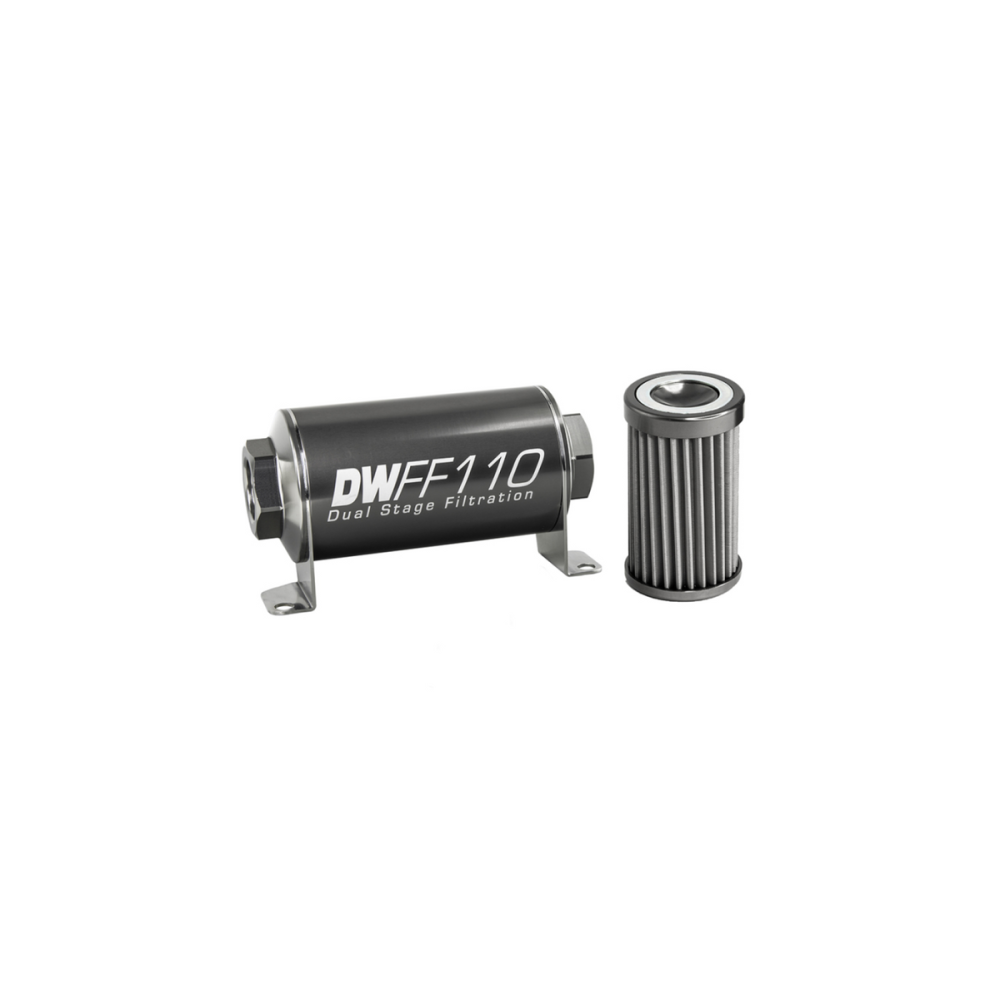

DeatschWerks 8-03-110-040K – Universal Inline Fuel Filter -8AN, 40 Micron, 110 mm

The DeatschWerks 8-03-110-040K fuel filter is a high-quality component designed for demanding fuel systems in motorsport, tuning, and high-performance vehicles. It provides effective protection for fuel pumps and injectors even under extreme conditions and when using aggressive fuels such as E85 or methanol.

Key Features

• 40-micron filtration: Stainless steel mesh traps very fine contaminants, protecting critical fuel system components.

• T6061 aluminum housing: Precisely machined, lightweight, and corrosion-resistant, ensuring long service life.

• Magnetic filtration ring: A 35 mm neodymium magnet effectively captures metallic particles, enhancing fuel cleanliness.

• Easy disassembly: Split housing design allows rapid cleaning and inspection of the filter element without removing the filter from the fuel line.

• -8AN flare male fittings: Larger diameter connections provide superior flow capacity, suitable for advanced performance fuel systems.

• Compatible with gasoline, E85, and methanol: The filter element withstands chemical attack from alcohol-based and aggressive fuels.

Typical Applications

• Race cars and high-demand performance builds

• High-flow fuel systems for turbocharged, supercharged, or alcohol-fueled engines

• Motorsport and tuning projects requiring reliable fuel filtration

Technical Specifications

Kit Includes

• Filter housing with filter element

• Neodymium magnetic ring

• Complete set of sealing O-rings and mounting hardware

Installation Notes

• Install in an accessible location within the fuel system—ideally downstream of the fuel pump and before the fuel rail.

• Regularly clean and inspect the filter element to maintain optimal fuel system performance.

DeatschWerks 8-03-110-040K (-8AN) – delivering clean fuel and protecting your system even in the most extreme performance projects!
