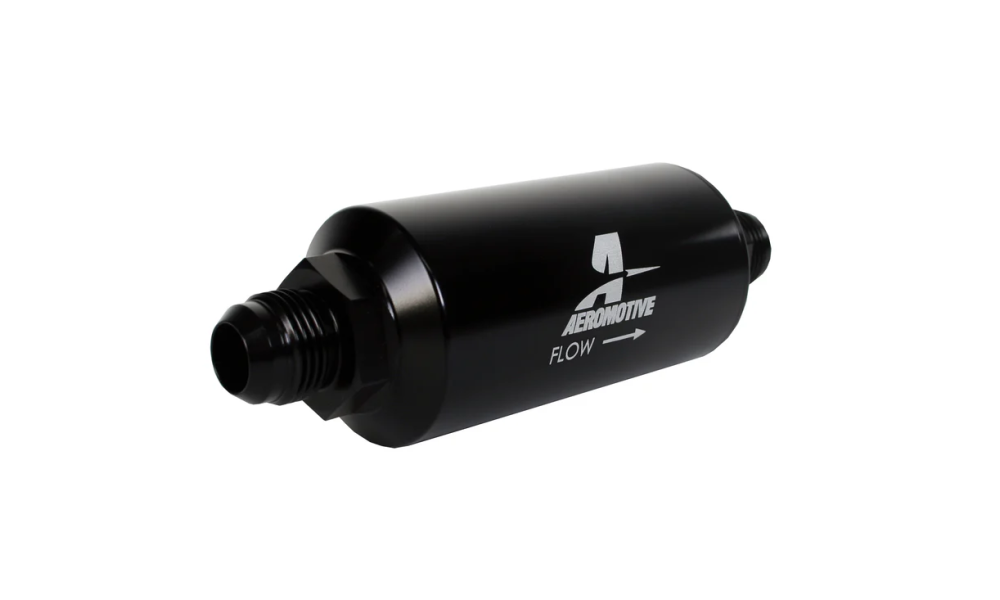

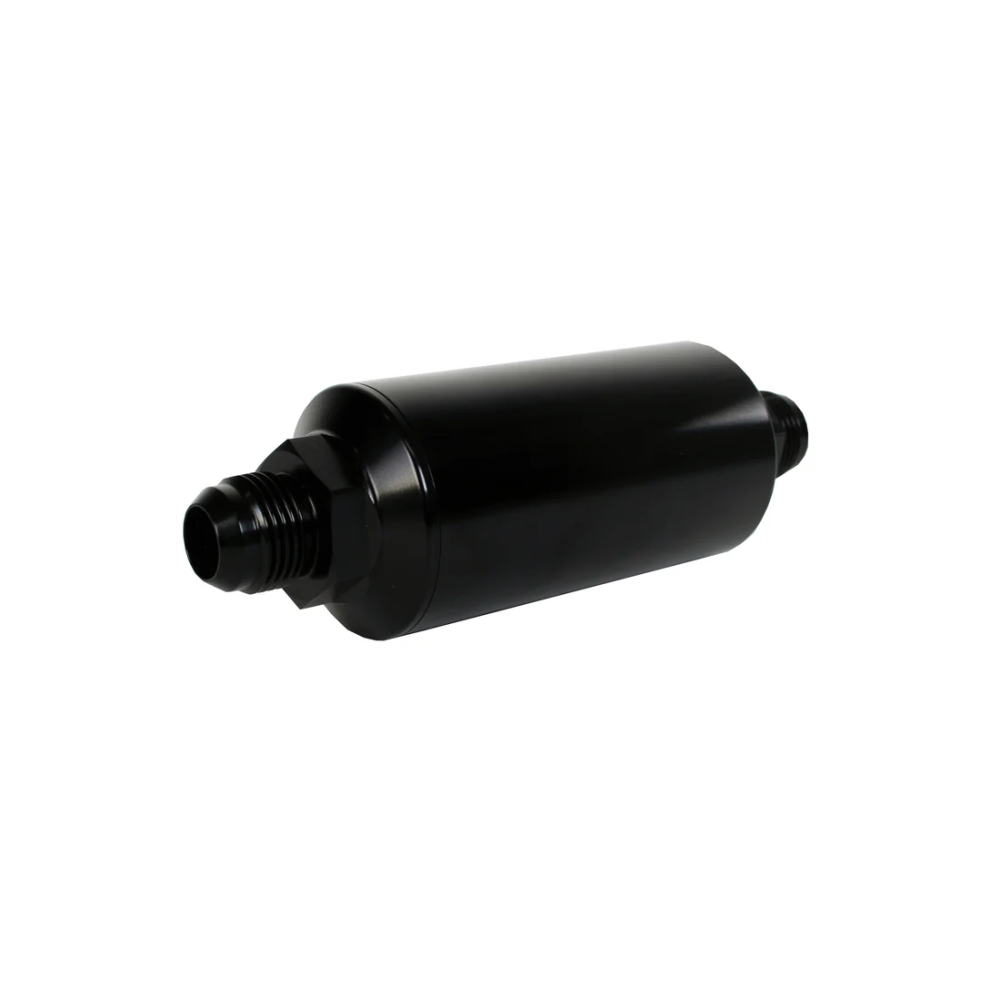

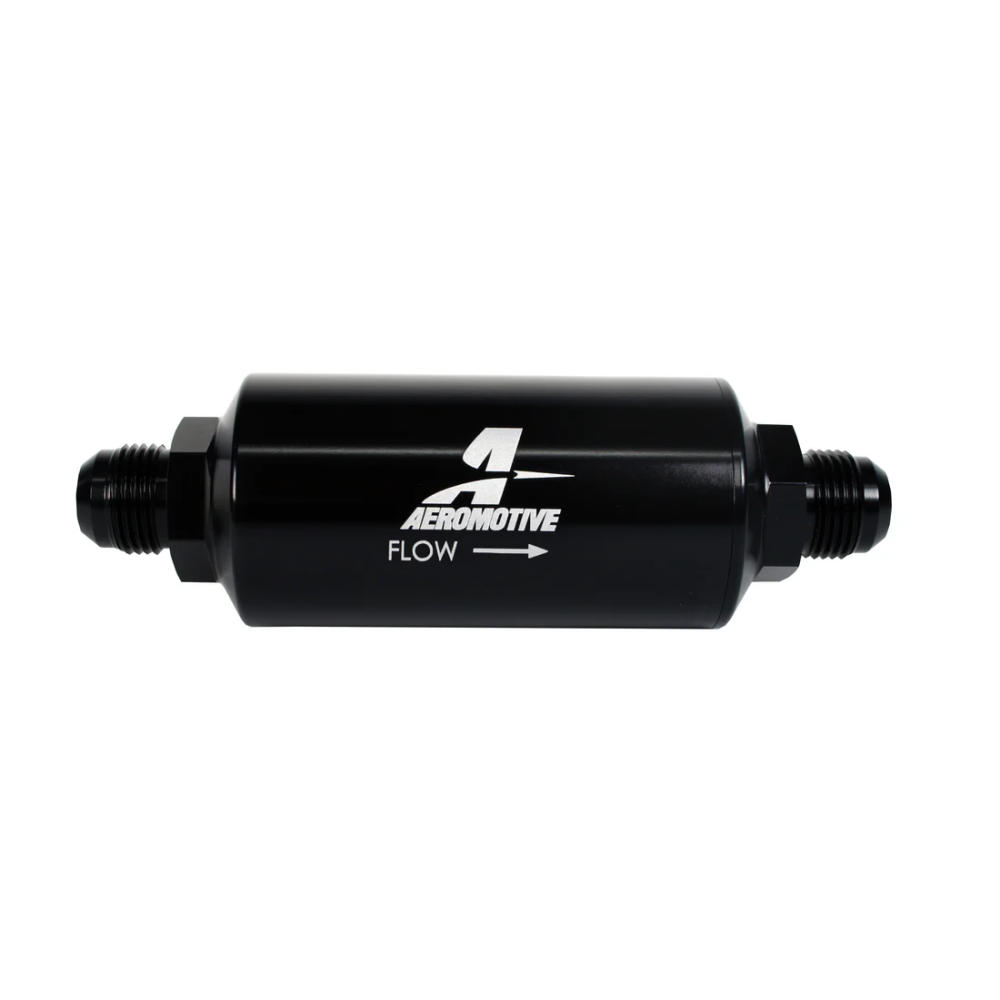

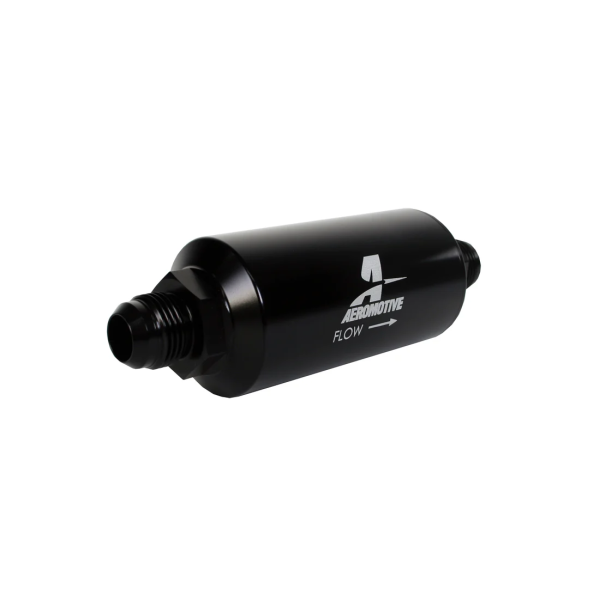

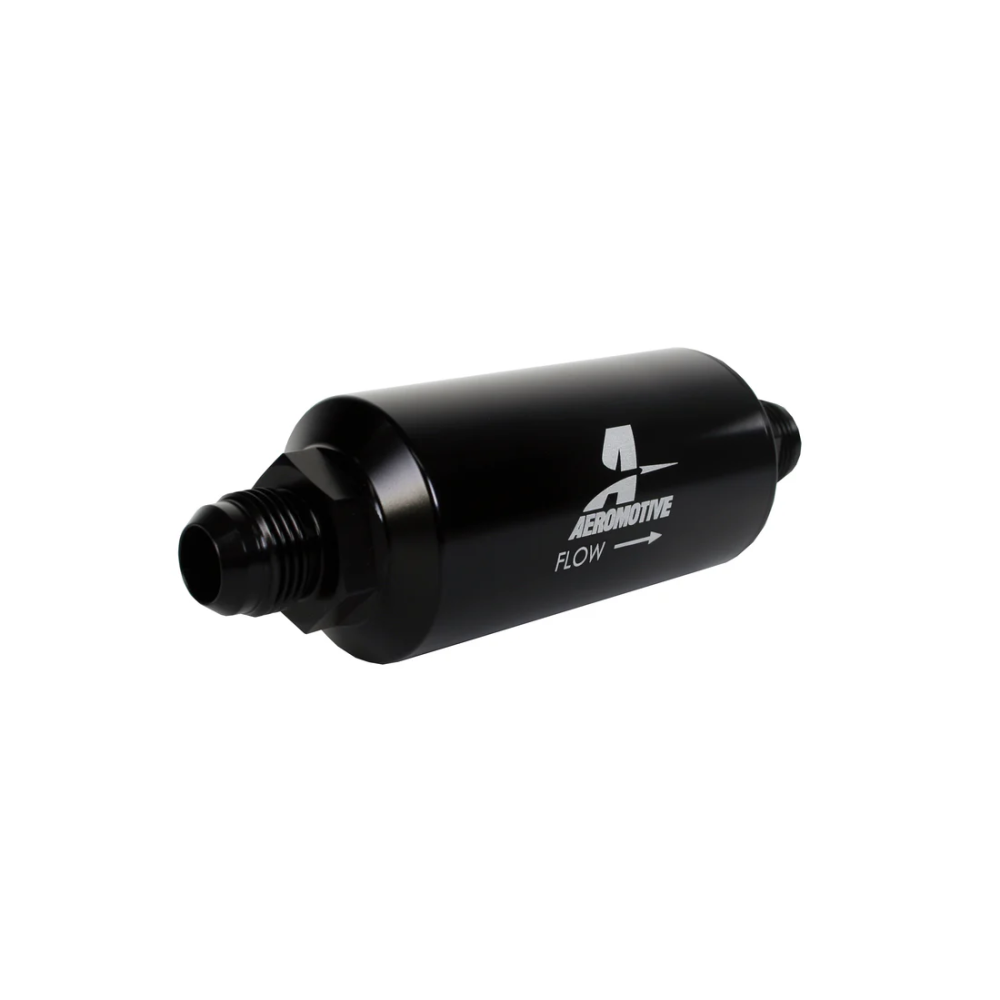

AN-10, 10 micron cellulose element, black anodize finish
Protect your investment with this high-performance fuel filter designed for optimal filtration and minimal restriction. Suitable for applications ranging from 200 to over 3,000 HP, this filter assembly ensures unmatched flow, ease of installation, and maintenance.

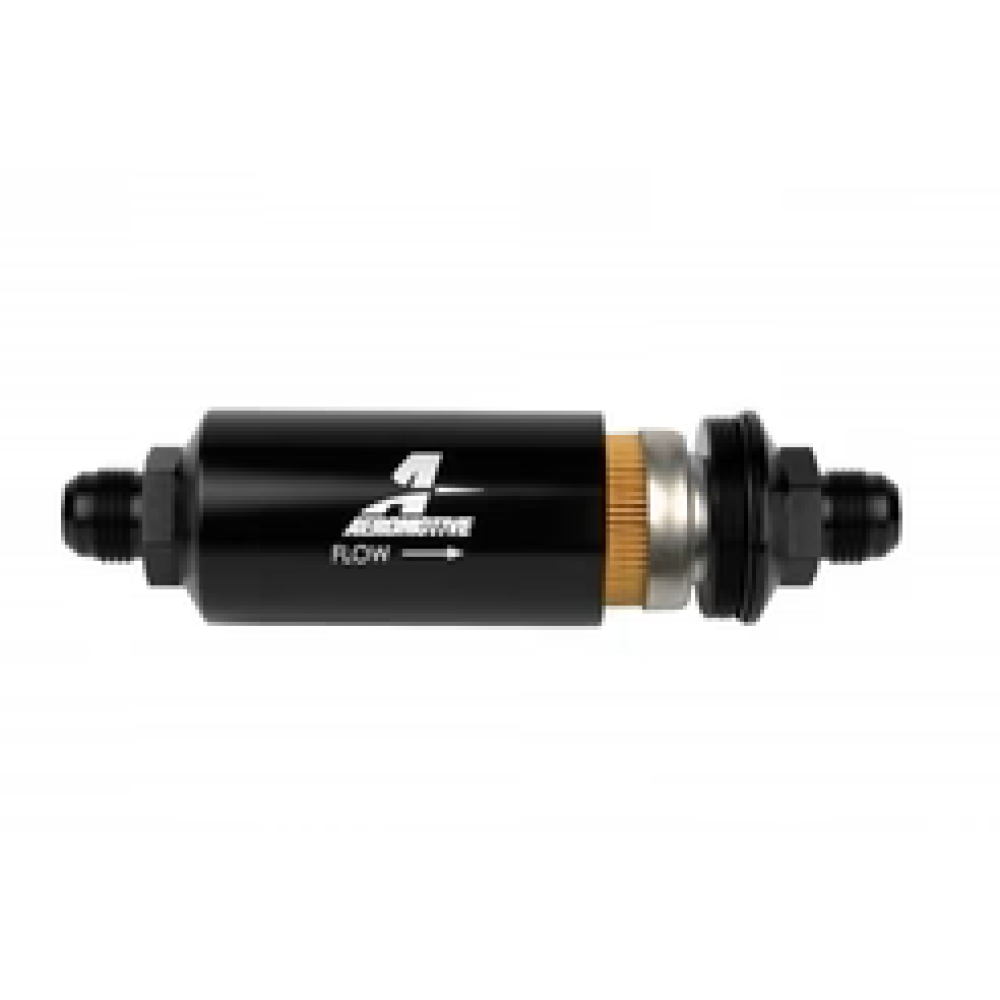

- High-flow, 10-micron cellulose replaceable element.
- Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.
- Male AN-10 inlet and outlet.
- All filter assemblies feature an O-ring for positive sealing in high-pressure applications.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- CNC-machined from 6061-T6 aircraft aluminum.
- Bright dip black anodized finish for corrosion resistance and a show-quality appearance.
| Fuel Filter Style | Inline | ||||||
|---|---|---|---|---|---|---|---|
| Fuel Type | Gas / Diesel | ||||||
| Inlet Quantity | 1 | ||||||
| Inlet Size | AN-10 | ||||||
| Inlet Attachment | Male Thread | ||||||
| Inlet Outside Diameter | AN-10 | ||||||
| Outlet Quantity | 1 | ||||||
| Outlet Size | AN-10 | ||||||
| Outlet Attachment | Male Thread | ||||||
| Outlet Outside Diameter | AN-10 | ||||||
| End 1 Gender | Male | ||||||
| End 2 Gender | Male | ||||||
| Fitting Type | AN-10 | ||||||
| Fittings Included | No | ||||||
| Filter Element Included | Yes | ||||||
| Filter Element Material | Cellulose | ||||||
| Micron Rating | 10 | ||||||
| Smallest Particle Filtered | 10 microns | ||||||
| Flow Rate | 2000 Pounds Per Hour | ||||||
| Filter Housing Color | Black | ||||||
| Filter Housing Finish | Anodized | ||||||
| Filter Housing Diameter | 2.0 Inches | ||||||
| Filter Housing Length | 5.5 Inches | ||||||
| Filter Housing Material | Billet Aluminum | ||||||
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
AEROMOTIVE
Founded in 1994 in Lenexa, Kansas, USA, Aeromotive designs and manufactures high-performance fuel system components including fuel pumps, regulators, filters, and complete fuel system kits.
Trusted by race teams and performance enthusiasts globally for reliable fuel delivery under extreme conditions.
Official page: aeromotiveinc.com
Trusted by race teams and performance enthusiasts globally for reliable fuel delivery under extreme conditions.
Official page: aeromotiveinc.com

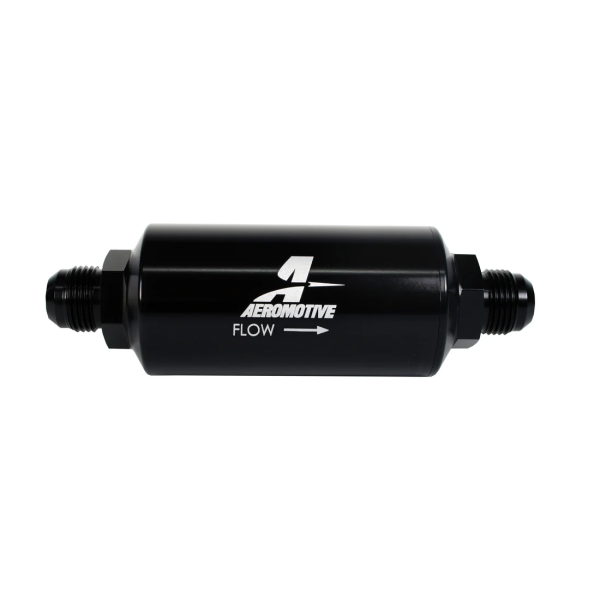

10 Micron Black Fuel Filter with Male AN-10 Ports & Cellulose Element
186.90€
185.03€
Excl. VAT: 152.92€
