The Radium Engineering fuel rail features dual 3/8" (6AN) internal bores that connect to all 6 injectors, providing a total bore size that is 12% larger than a single 1/2" (8AN) bore.

The fuel rail plumbing kit can be customized for any vehicle using the 20-0878 fuel rail, utilizing an assortment of PushLok hose ends with EFI hose. It replaces all OEM components downstream of the OEM SAE quick connect hard lines in the engine bay.

COMPATIBILITY

• 02-05 VW Golf GTI
• 01-04 VW Jetta GLX
• 01-04 VW Jetta GLI

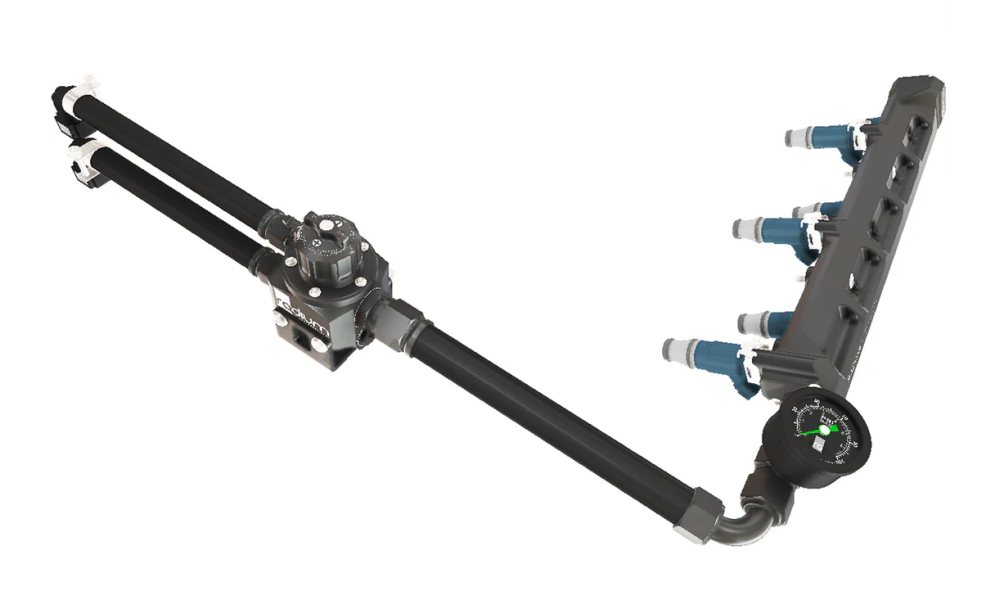

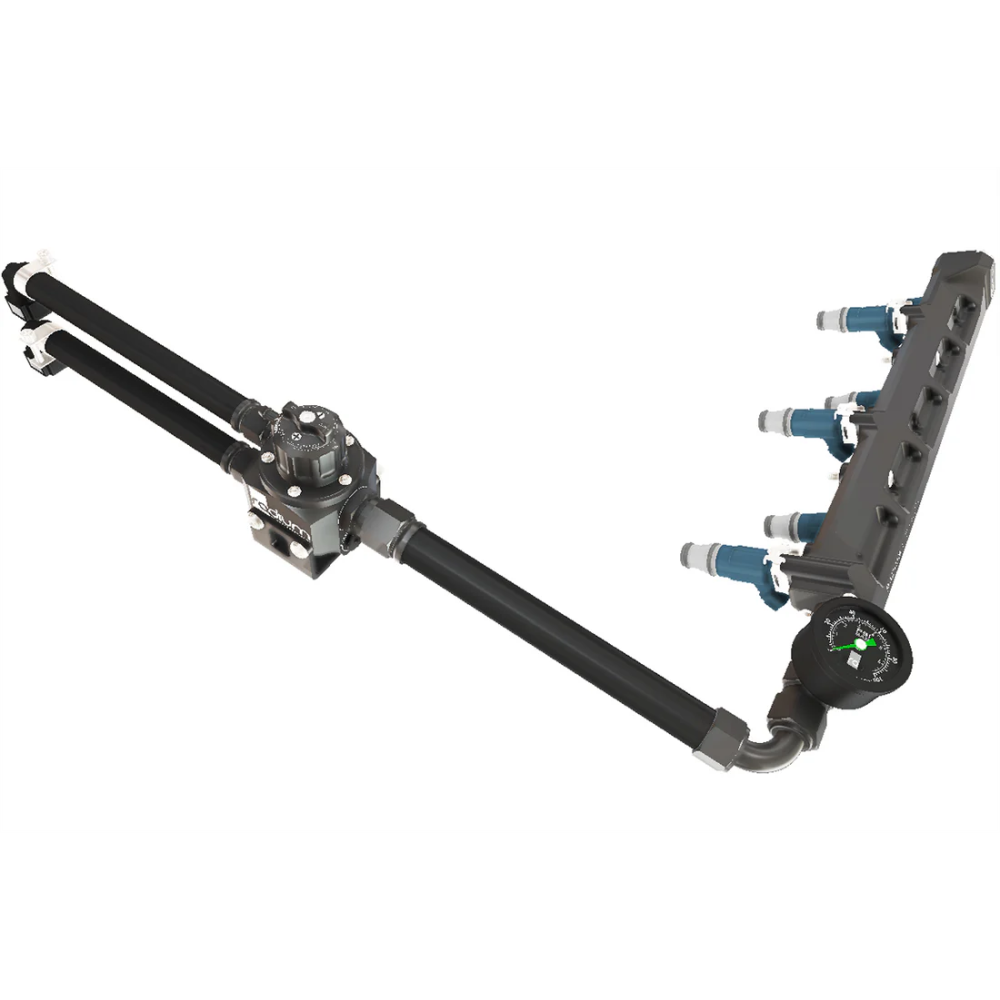

20-0878-PK Fuel Rail Plumbing Kit, VW 2.8L 24V VR6

This kit allows for customization with PushLok hose ends and EFI hose, replacing all OEM components downstream of the OEM SAE quick connect hard lines in the engine bay.

The high-flow Radium Engineering multiport regulator (MPR-RA) ensures fuel pressure is 1:1 vacuum referenced into a dead head fuel rail. The included gauge allows for easy calibration and monitoring of fuel pressure. The EFI hoses are compatible with all fuel types, including E85, and plugs are provided for all unused ports.

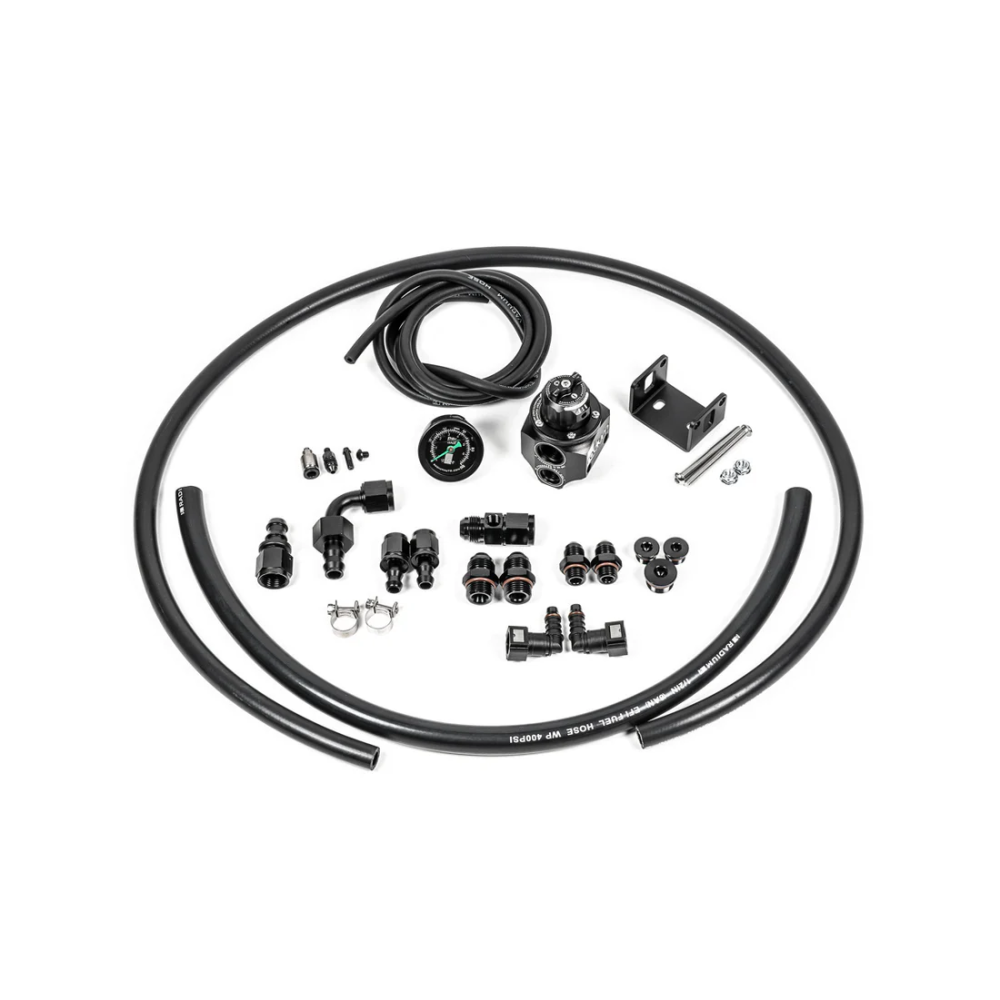

FEATURES

• Multiport Fuel Pressure Regulator
• Fuel Pressure Gauge, 0-100psi
• 1/2" and 3/8" Rubber EFI Hose
• 8AN and 6AN PushLok Hose Ends
• 8AN and 6AN Aluminum Fittings
• SAE Quick Connector Hose Ends
• Stainless Steel EFI Hose Clamps
• Stainless M6x1mm Hardware
• 5/32" Vacuum Hose
