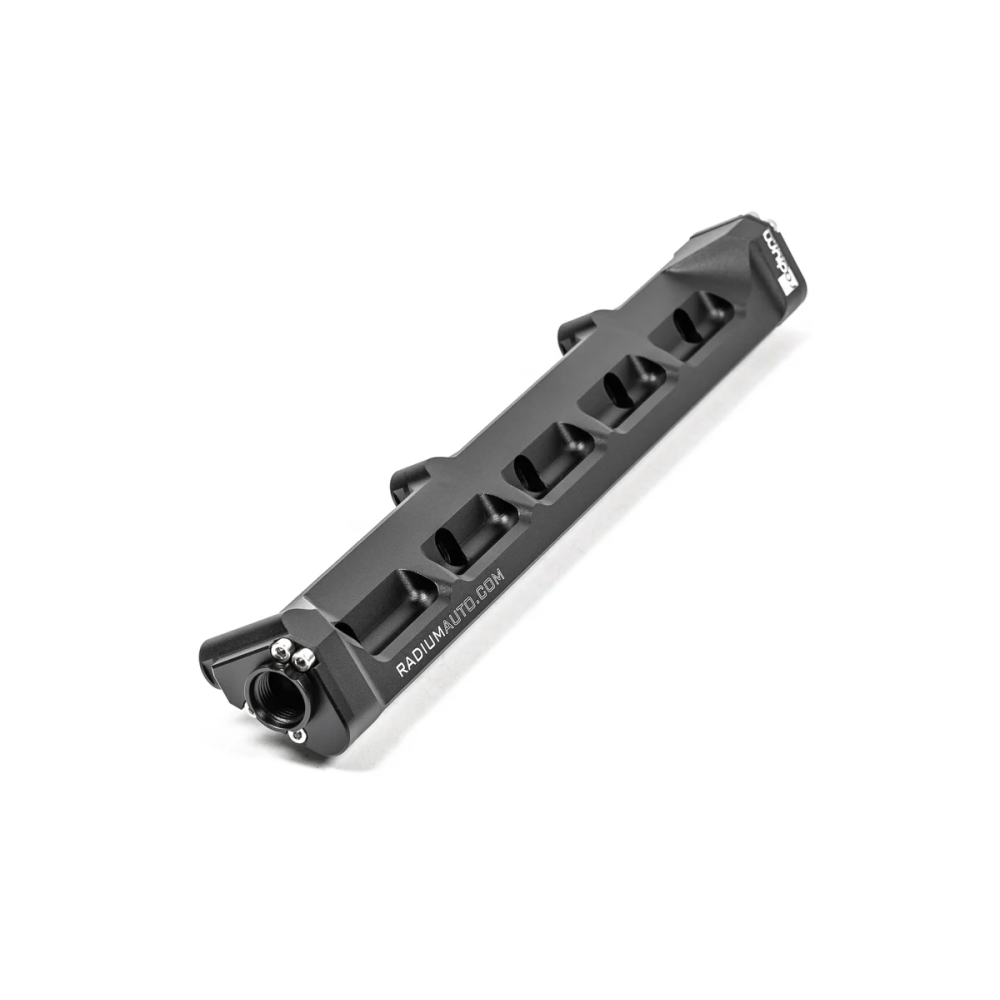

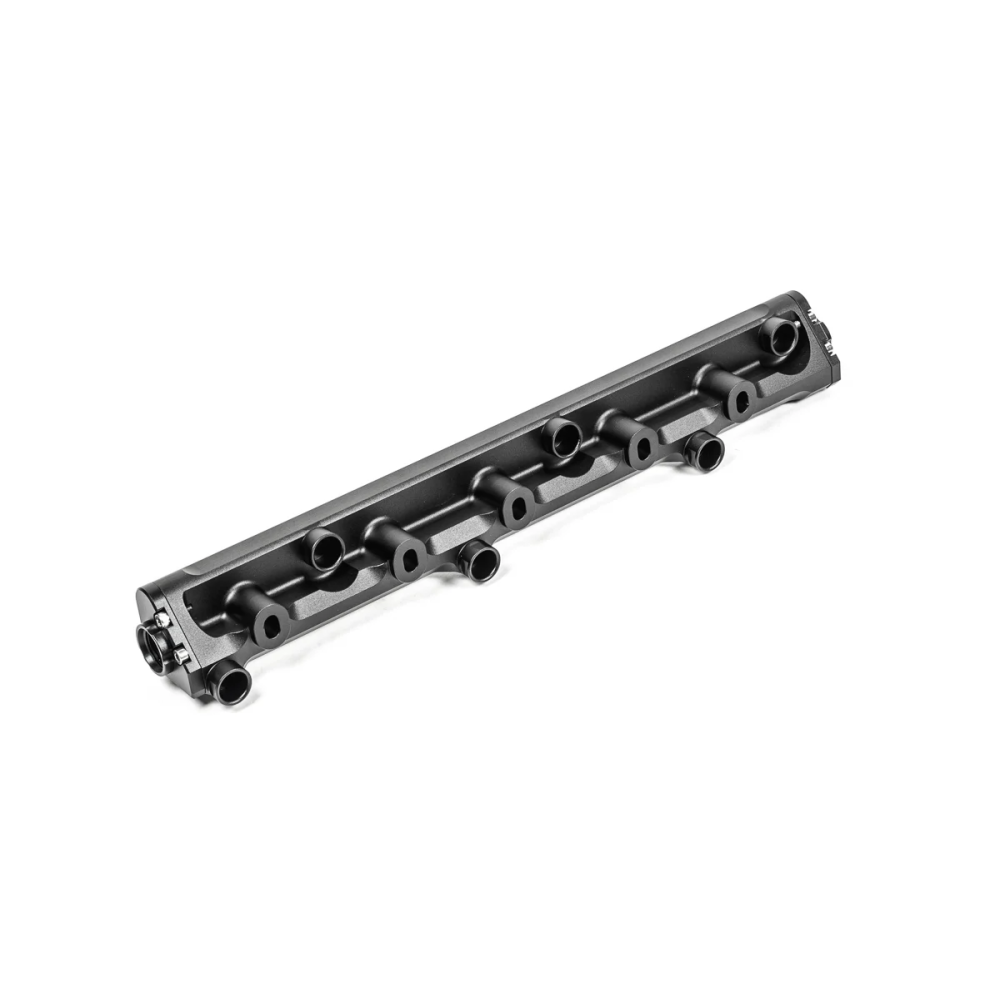

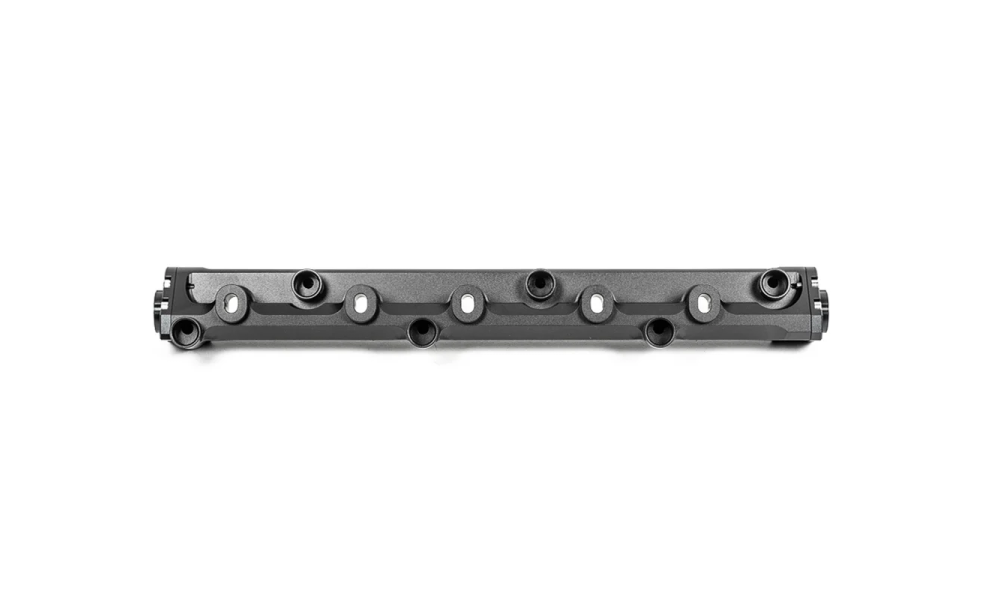

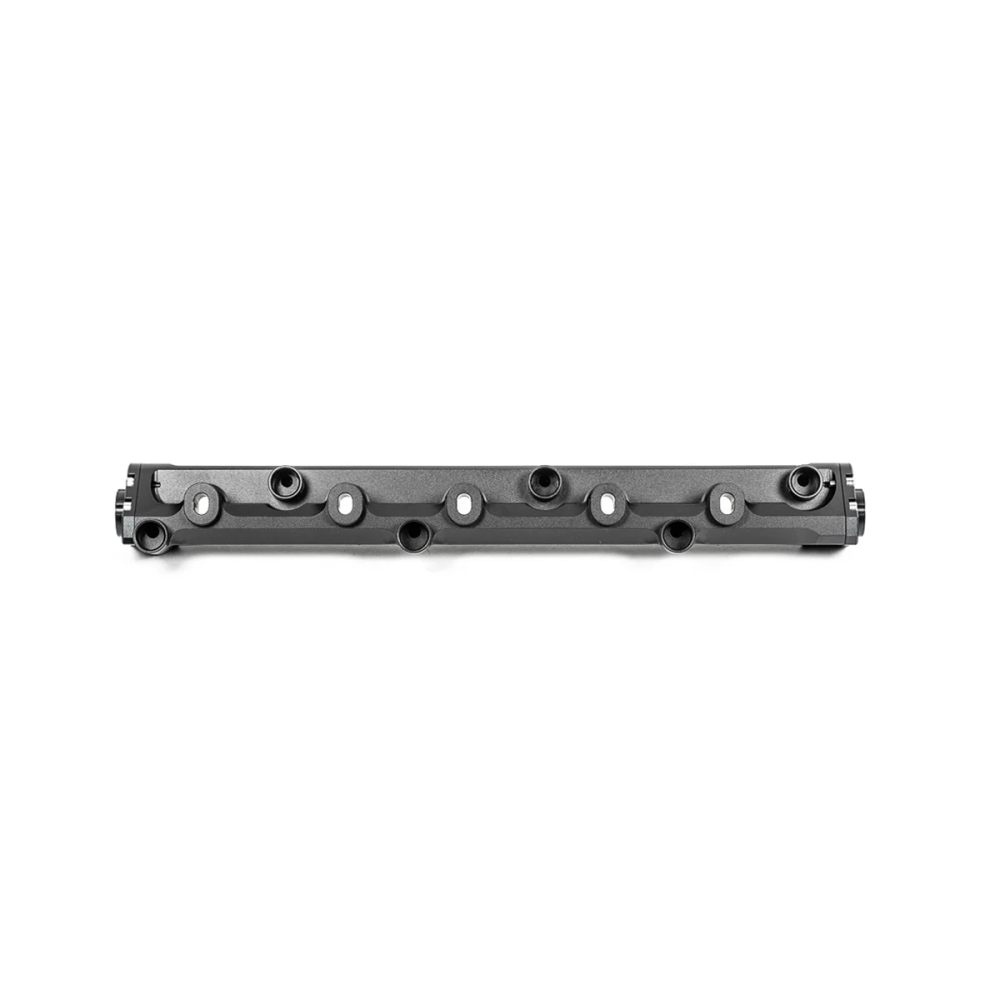

20-0878 VW 2.8L 24V VR6 Fuel Rail

The Radium Engineering fuel rail features dual 3/8" (6AN) internal bores that connect to all 6 injectors, providing a combined flow area that is 12% larger than a single 1/2" (8AN) bore. This design supports all necessary engine power requirements and is compatible with alternative fuels.

Machined to be low profile, this fuel rail is compatible with the OEM intake manifold.

COMPATIBILITY

• 02-05 VW Golf GTI
• 01-04 VW Jetta GLX
• 01-04 VW Jetta GLI

FEATURES

• Lightweight aluminum construction
• Single 8AN ORB ports at both ends
• 12% larger internal flow diameter than 8AN
• Anodized finish for wear and corrosion resistance
• No special tools required for installation

FUEL INJECTOR COMPATIBILITY

The injector bores are 14mm ID, allowing the use of factory injectors or equivalent aftermarket injectors. Aftermarket injectors must match OEM height and O-ring dimensions.

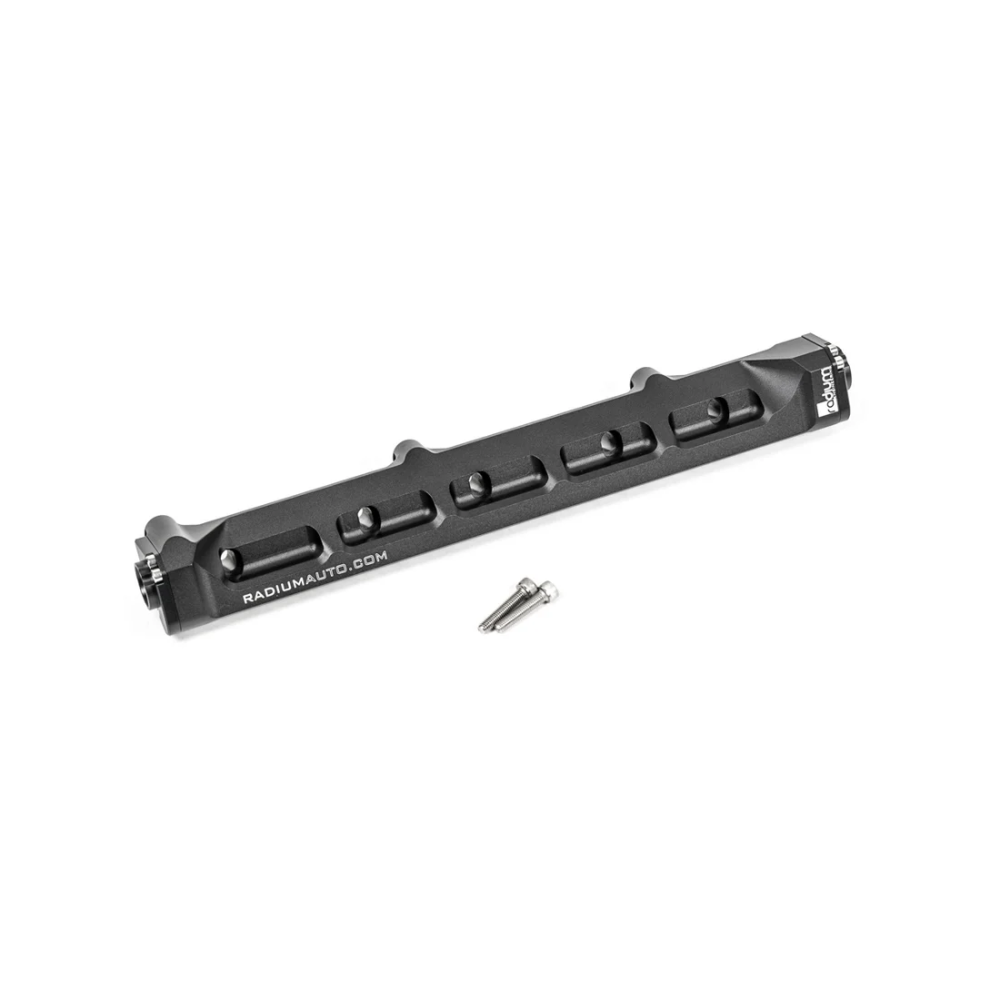

INCLUDES

• Billet 2.8L 24V VR6 Fuel Rail
• Preassembled O-ring Sealed End Caps
• M6x1mm Stainless Steel Hardware

PORTS AND FITTINGS

The O-ring sealed billet end cap ports are tapped for 8AN ORB fittings. Appropriate fittings must be selected based on the specific application. Ensure ample space around the fuel rail ports for larger accessories such as fuel pressure regulators, gauges, and pulse dampers. Dimensional drawings on the product pages can be referenced for clearance verification.
