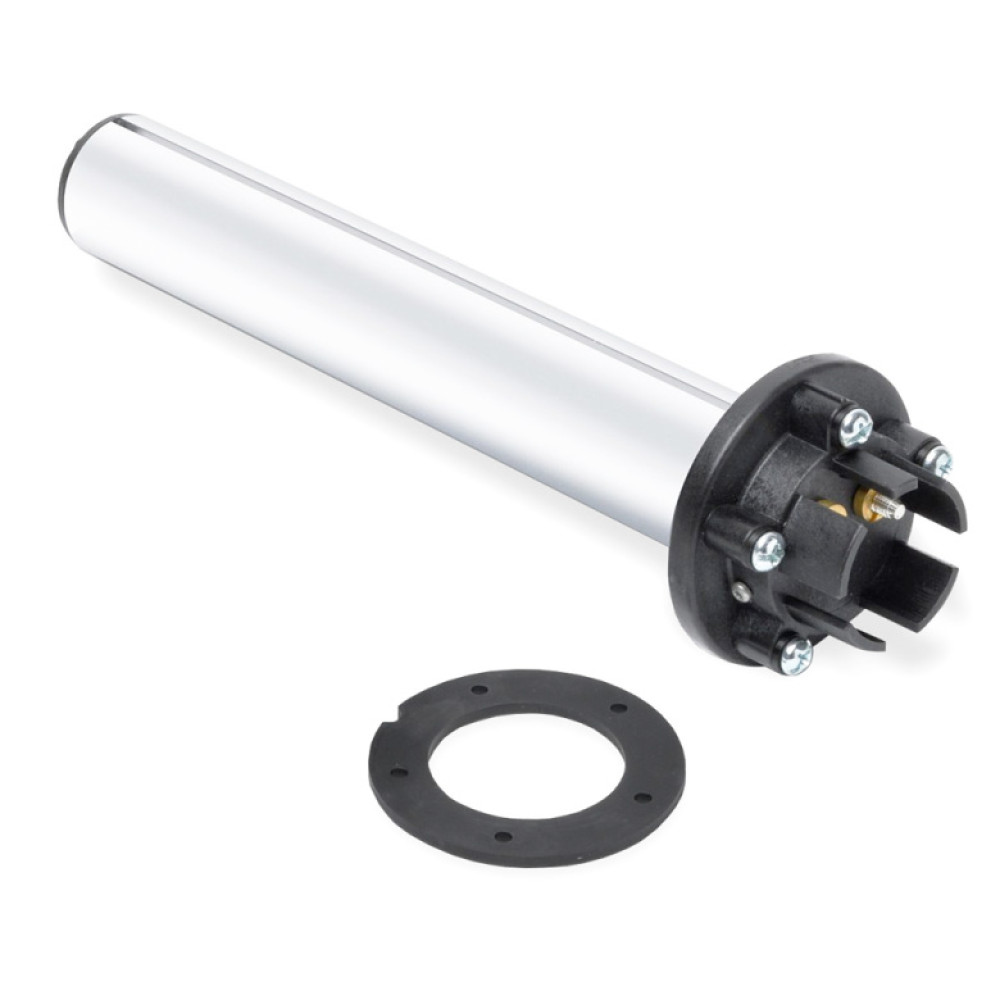

ISSPRO fuel level sending unit fits the Nuke Performance CFC Unit. 240-33 Ohms fuel level sending unit available with or without fuel gauge that fits standard SAE 5-bolt mounting pattern.
Fits fuel cells provided by Nuke Performance:
| 150-FLS-08-240 : 203 mm / 8" | Pyrotect 6.25 gallon fuel cell Pyrotect 8 gallon fuel cell ATL 30 liter saver cell ATL 45 liter saver cell ATL 45 liter Well Cell saver cell ATL 60 liter saver cell ATL 80 liter saver cell |
| 150-FLS-09-240 : 228 mm / 9" | Pyrotect 10 gallon fuel cell Pyrotect 12 gallon fuel cell Pyrotect 15 gallon fuel cell Pyrotect 18 gallon fuel cell Pyrotect 22 gallon fuel cell ATL 40 liter saver cell AluCell 20 liter aluminum fuel cell AluCell 40 liter aluminum fuel cell AluCell 60 liter aluminum fuel cell |
| 150-FLS-10-240 : 254 mm / 10" | N/A |
| 150-FLS-12-240 : 305 mm / 12" | Pyrotect 17 gallon fuel cell AluCell 80 liter aluminum fuel cell |
Ohm resistance:
240 Ohms: empty
33 Ohms: full
Optional specifications:
Also available as 0-90 Ohms.
Fuel level sending units for motorsports, aftermarket fuel cells
Fits the most common fuel cells including Pyrotect, ATL, Fuel Safe, Harmon, Premiere, Jaz, and more.
Adapter plate/spacer for fuel level sender unit:

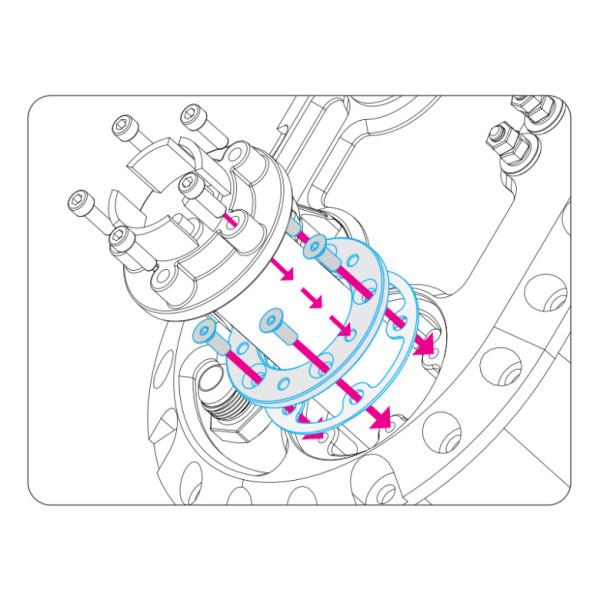

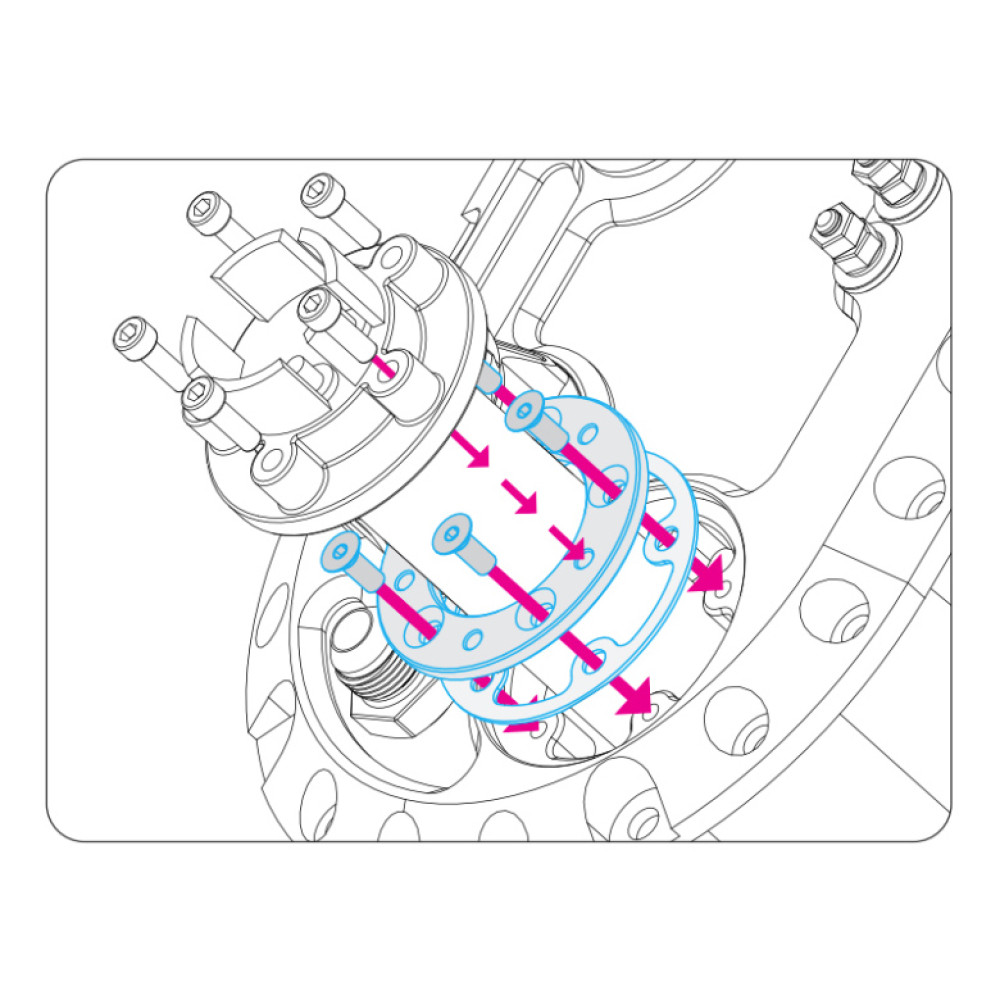

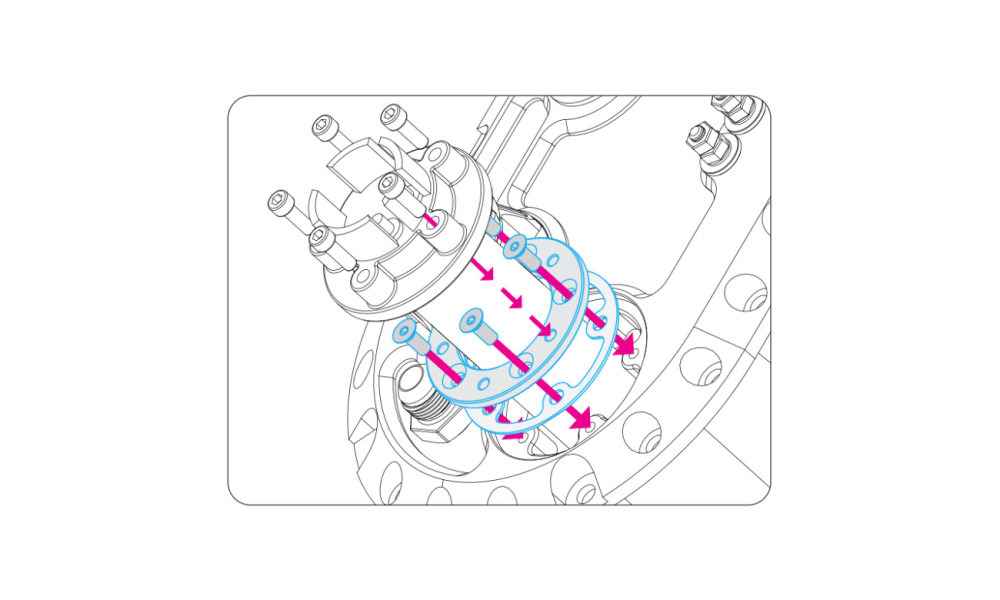

An adapter plate/spacer is needed to mount a fuel level sender that has a wider diameter than the hole in the CFC Unit or uses the common asymmetric 5 bolt pattern often found on aftermarket fuel level senders. The spacer/adapter plate is included with all Nuke Performance CFC Units when purchased. If lost, a replacement plate can be ordered. Detailed mounting description is available in the CFC Unit product manual.
5-bolt asymmetric adapter plate Part #: 150-10-117
Approved for all types of fuels:
Approved for petrol, methanol, and ethanol. Available in several different lengths; choose the size when placing an order. If ordered together with a fuel cell, the correct one will be delivered with your order.
Order the fuel level gauge without a fuel level sending unit:
If you need a fuel level gauge and already purchased your sending unit, the gauge can be bought as an accessory if needed.
Fuel Gauge OHM Rating 240-33 Ohms Part # : 150-FLG-01-240
Nuke Performance
Official page: nukeperformance.com
Fuel Level Sender 240-33 Ohms - 9" / 228mm
