FUEL HANGER PLUMBING KIT, BMW E36 E46

COMPATIBILITY

90-99 BMW E36 316i
90-98 BMW E36 318i
92-98 BMW E36 318is
94-00 BMW E36 318ti
91-98 BMW E36 320i
95-98 BMW E36 323i
91-95 BMW E36 325i
95-98 BMW E36 328i
92-99 BMW E36 M3
99-05 BMW E46 316i
98-06 BMW E46 318i
98-06 BMW E46 320i
98-00 BMW E46 323i
01-06 BMW E46 325i
98-00 BMW E46 328i
00-06 BMW E46 330i
03-06 BMW E46 330i ZHP
00-06 BMW E46 M3
03-04 BMW E46 M3 CSL

OVERVIEW

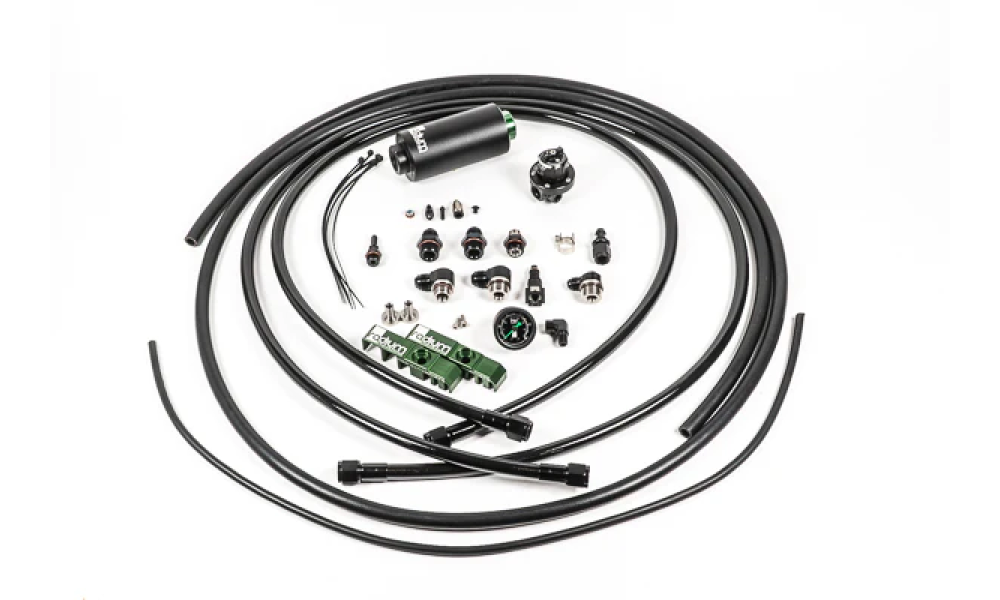

This kit provides all necessary plumbing to and from the engine, including a fuel filter, fuel pressure regulator, fuel lines, adapter fittings, and mounting hardware.

A low profile 8AN male banjo fitting is installed to the fuel hanger pump outlet. An 8AN PTFE fuel hose runs to the left-hand side over the top of the fuel tank, then turns downward and routes along the underside of the chassis through two billet fuel/brake line retainers.

A new billet high flow fuel filter is mounted in the OEM location, with elements available in either 10 micron stainless (-03) or 6 micron microglass (-05).

From the fuel filter outlet, another 8AN PTFE fuel hose runs into the engine bay towards the front of the fuel rail (not included), where a low profile 8AN male banjo fitting is installed.

A direct mount fuel pressure regulator and gauge is mounted at the rear of the fuel rail. A new 6AN return hose with an SAE quick connect adapter routes fuel from the direct mount regulator to the rear, with a low profile 6AN male banjo fitting installed to the fuel hanger return port.

New vacuum tubing is provided to replace the OEM hard lines.

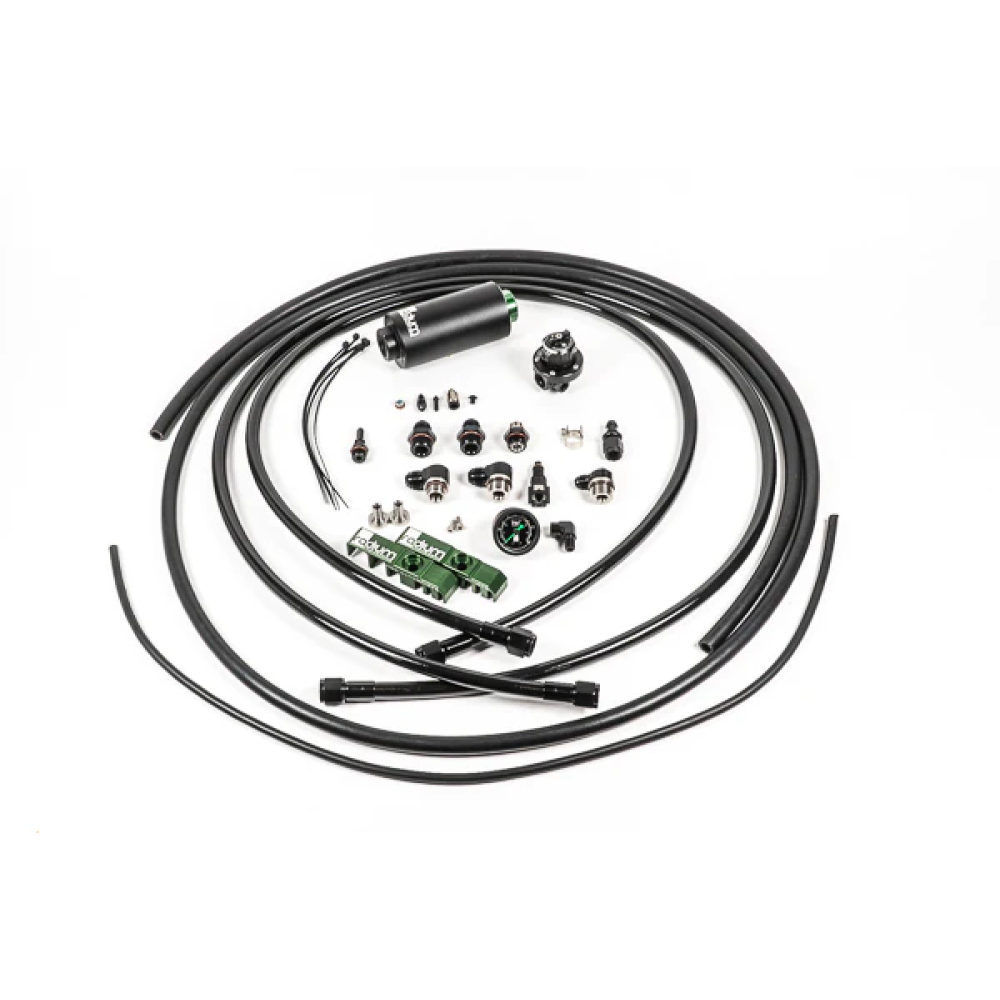

INCLUDES

• DMR-RA Fuel Pressure Regulator
• 0-100psi Fuel Pressure Gauge
• Filter (-03 Stainless or -05 Microglass)
• 8AN Fuel Filter Adapter Fittings
• 8AN and 6AN Fuel Hanger Fittings
• Fuel Brake Line Retainers (x2)
• 8AN Fuel Rail Adapter Fitting
• 8AN PTFE Fuel Feed Hoses
• 6AN Fuel Return Hose
• 6AN SAE Quick Connect
• 6AN PushLok Hose End
• Stainless Steel Hardware
• 5/32" Vacuum Tubing
• Misc Adapter Fittings
