OVERVIEW

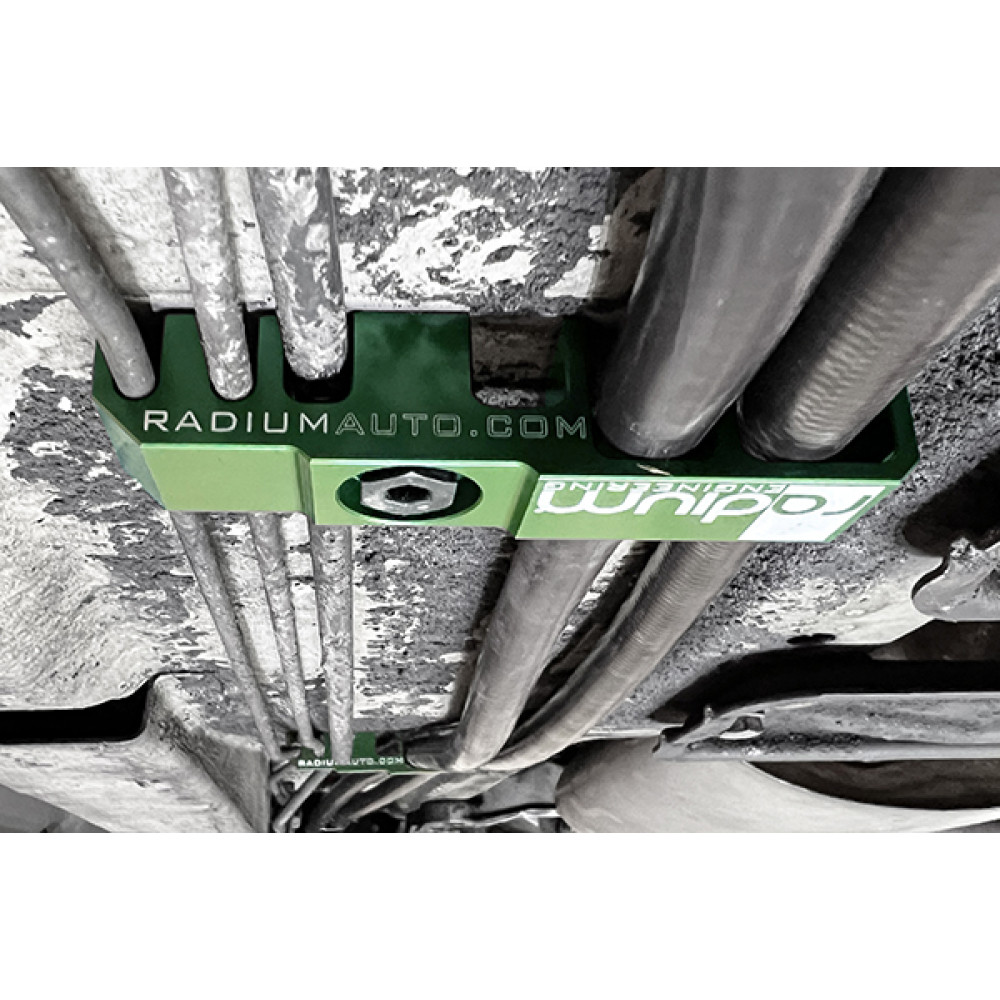

The Radium Engineering fuel/brake line retainers are designed to replace the plastic retainers that secure the OEM hard lines underneath BMW E36 and E46 vehicles. These billet aluminum clamps provide support for larger aftermarket fuel lines.

COMPATIBILITY

• 90-99 BMW E36 316i
• 90-98 BMW E36 318i
• 92-98 BMW E36 318is
• 94-00 BMW E36 318ti
• 91-98 BMW E36 320i
• 95-98 BMW E36 323i
• 91-95 BMW E36 325i
• 95-98 BMW E36 328i
• 92-99 BMW E36 M3
• 99-05 BMW E46 316i
• 98-06 BMW E46 318i
• 98-06 BMW E46 320i
• 98-00 BMW E46 323i
• 01-06 BMW E46 325i
• 98-00 BMW E46 328i
• 00-06 BMW E46 330i
• 03-06 BMW E46 330i ZHP
• 00-06 BMW E46 M3
• 03-04 BMW E46 M3 CSL

NOTES

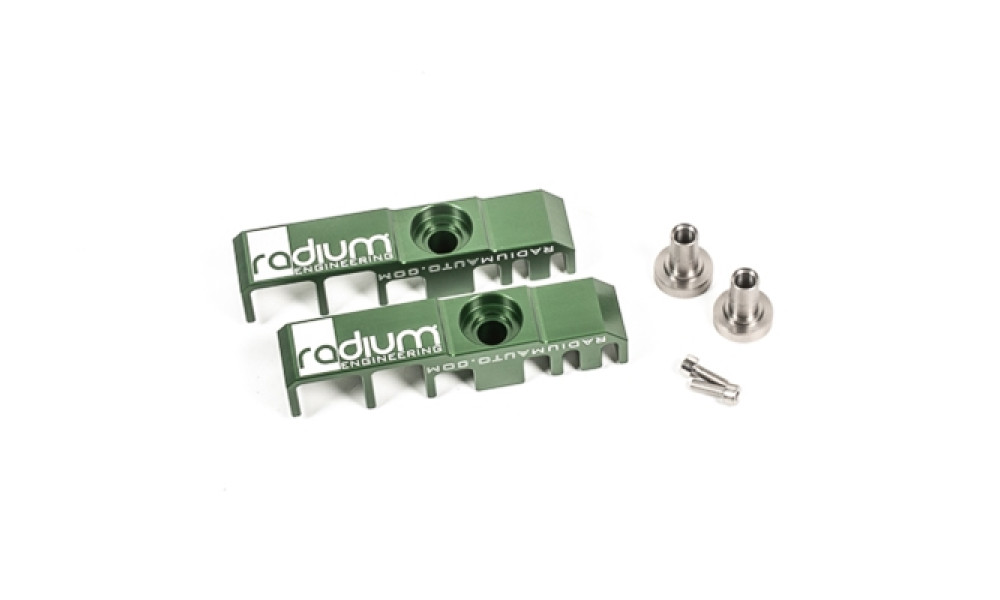

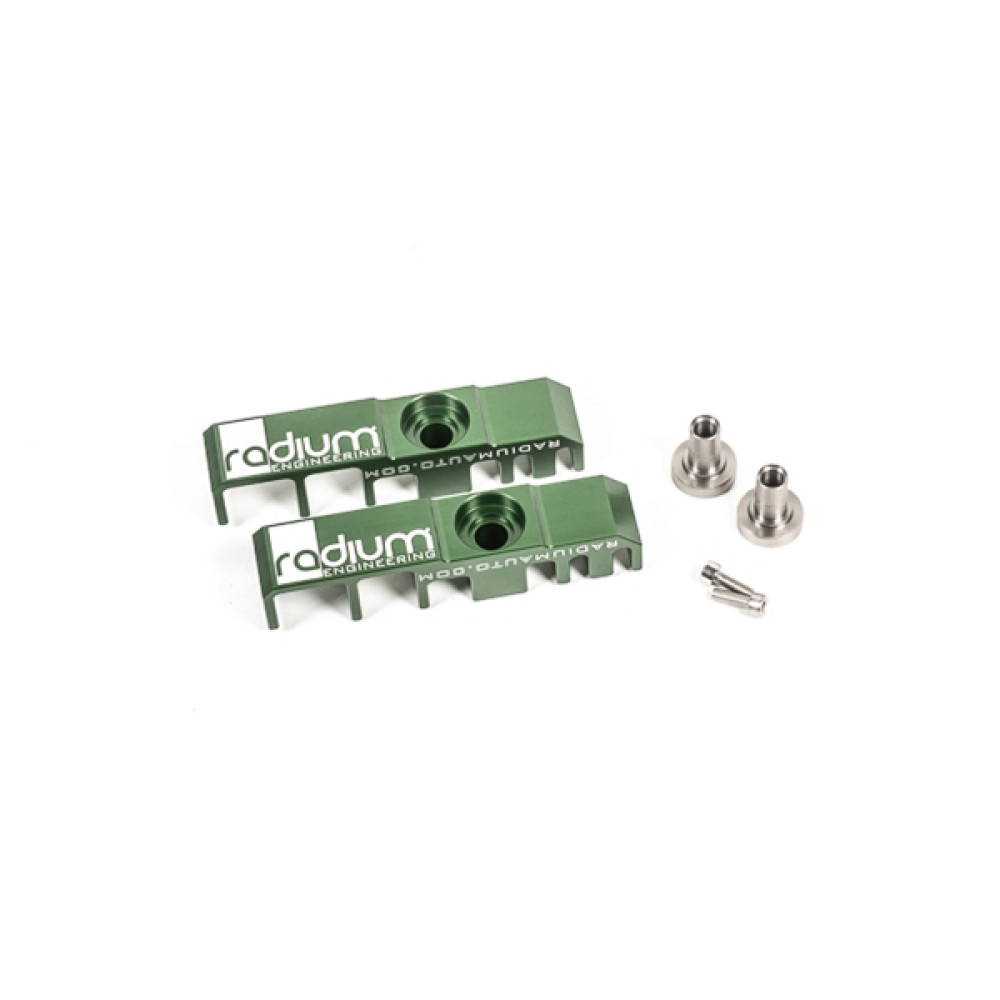

1. Includes 2 sets of retainers.
2. Anodized 6061 aluminum construction with stainless steel hardware to resist oxidation.
3. This fuel brake line retainer kit does not include aftermarket fuel lines.
4. Compatible with 6AN (return) and 8AN (feed) Radium EFI Fuel Hose, and Radium PTFE Hose.

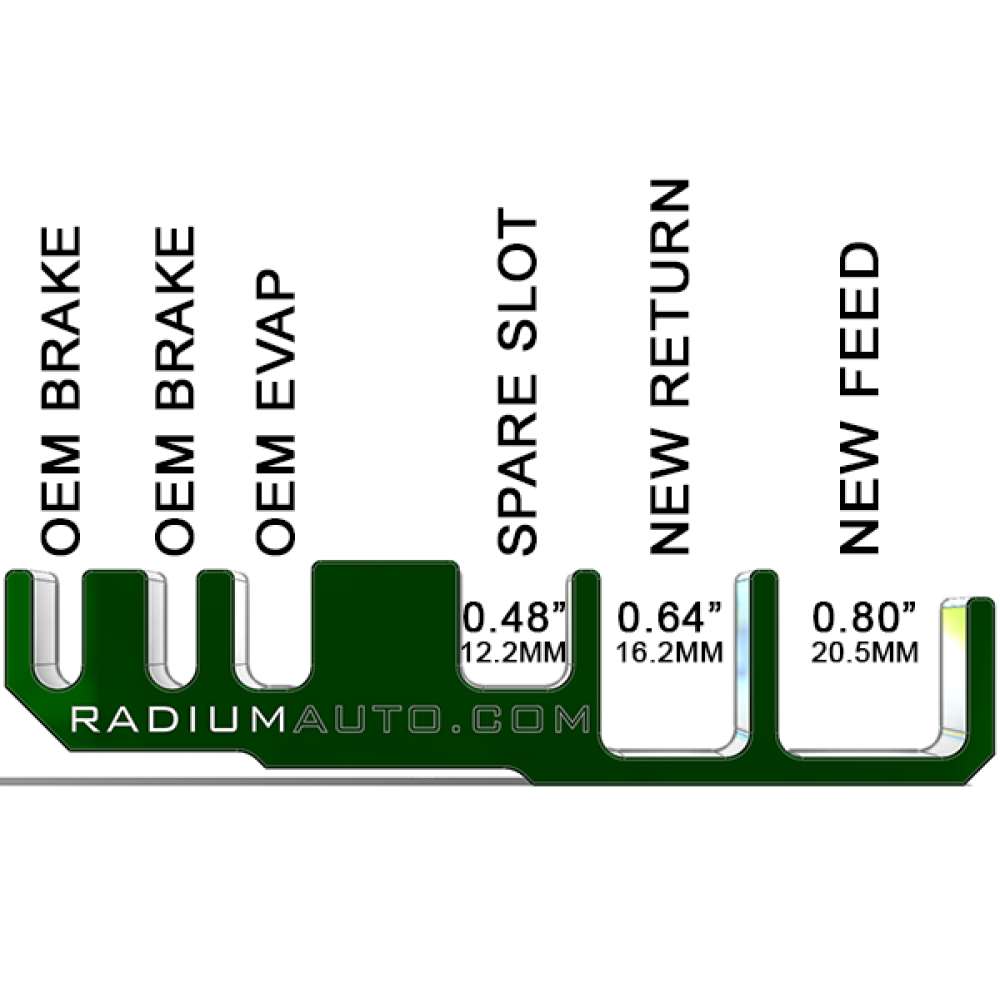

5. Reference the dimensions to determine compatibility with your fuel lines (rubber, braided, PTFE, aluminum, steel, etc).
6. The BMW E36 will use both stainless steel bushings and stainless steel screws. The BMW E46 will reuse the OEM nuts.

Instruction PDF
