Unlock the full drifting capability of your Ford Mustang S550 with the Wisefab Angle Kit. Engineered for competitive drivers and serious enthusiasts, this kit delivers increased steering angle, precise control, and robust performance through high-quality materials and advanced design.

• 65 Degrees of Steering Lock, Parallel Steering: Quickly adjust steering geometry for positive or negative Ackermann, even trackside, without affecting alignment. Ackermann adjustment kit included.

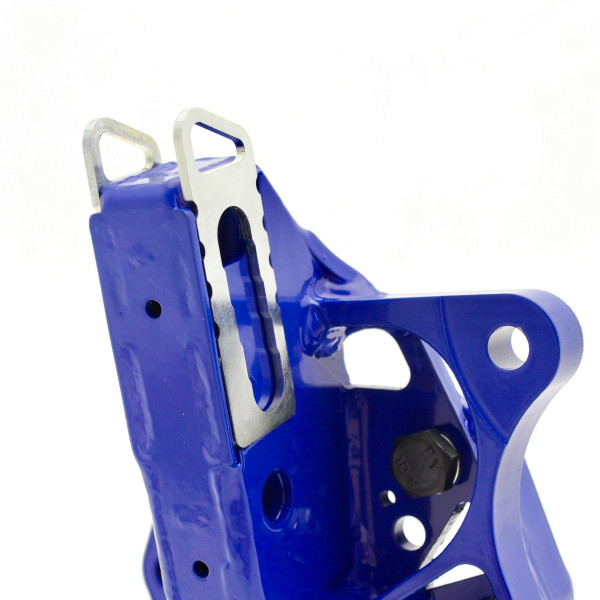

• Adjustable Lock Stops: Fine-tune your steering limit to suit your setup.

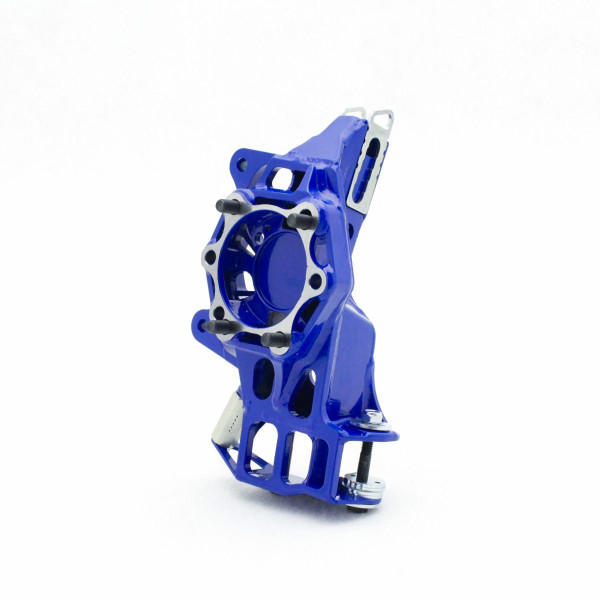

• High-Strength Drift-Specific Drop Knuckles: Upgraded kinematics with built-in camber adjustment for optimal grip and control.

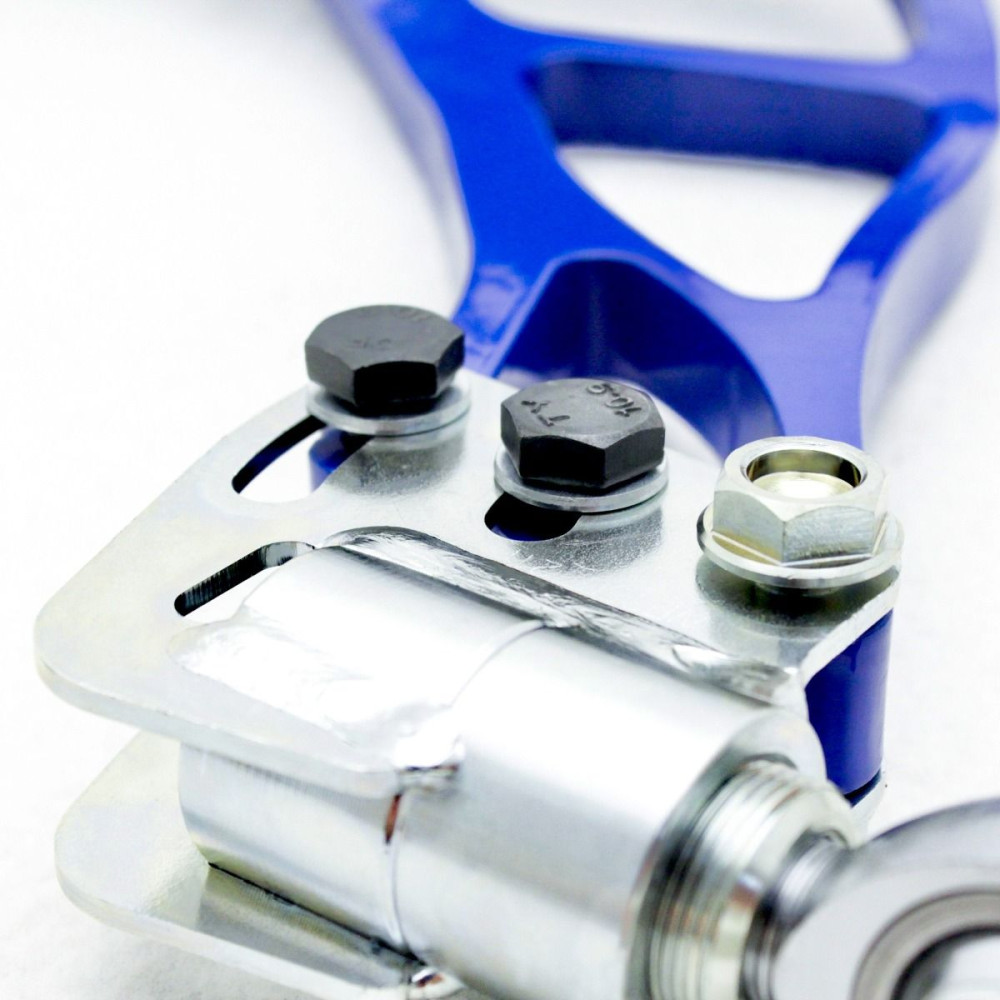

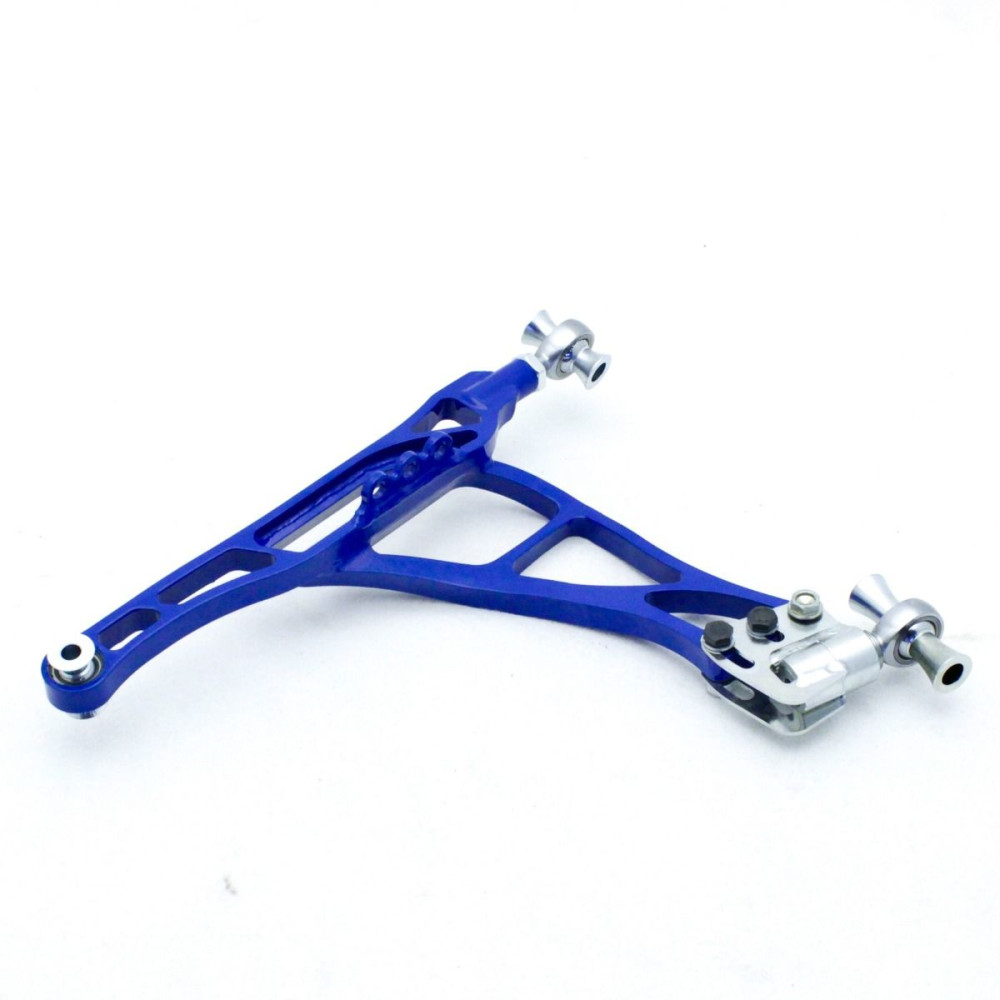

• One-Piece Lower Control Arm with Quick Caster Adjustment: Integrated, easy-to-use quick caster adjuster for fast setup changes.
• Built-In Roll Center Correction: Lowered joints raise the front roll center, increasing roll stiffness and allowing removal of the front anti-roll bar for maximum steering angle clearance.
• Precise Camber Control & Minimal Bump-Steer: Engineered kinematics provide excellent dynamic camber and minimal bump-steer throughout the steering range for superior front-end grip.
• Steering Jacking Control: Revised geometry addresses handling issues at extreme steering angles.
• Consistent, Predictable Self-Alignment Torque: Maintains consistent trail and self-alignment torque, ensuring the steering wheel returns smoothly and does not stick at full lock.

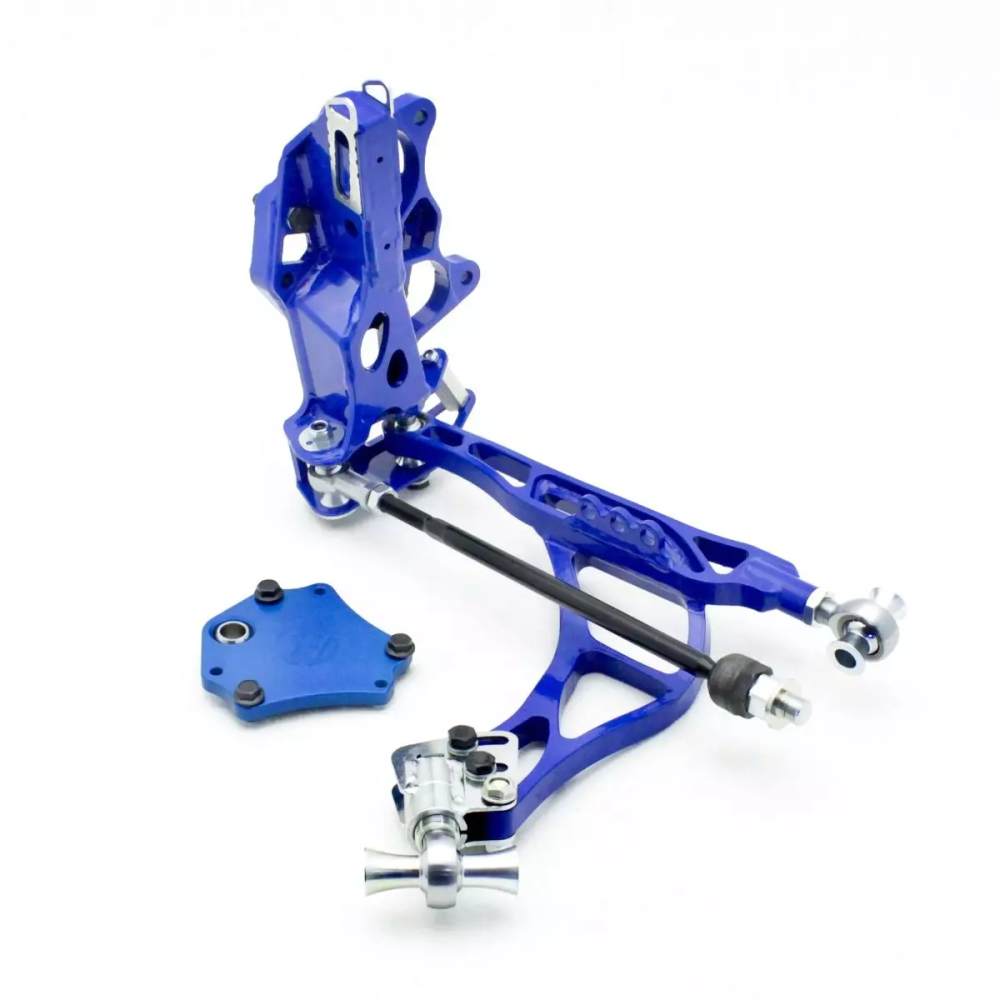

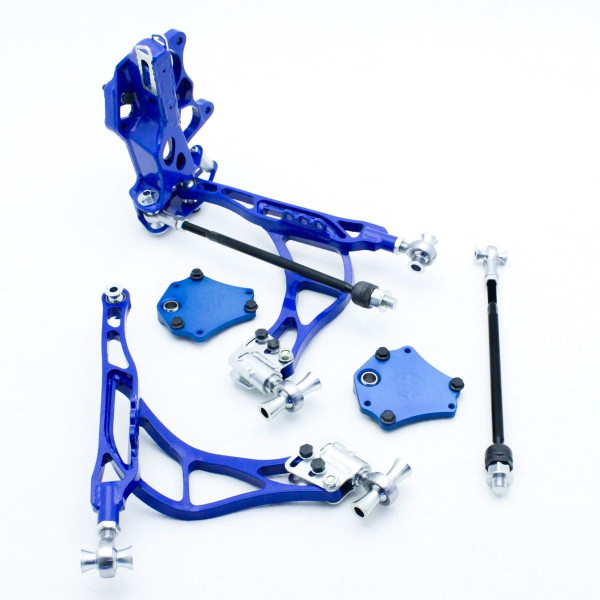

Kit Includes:

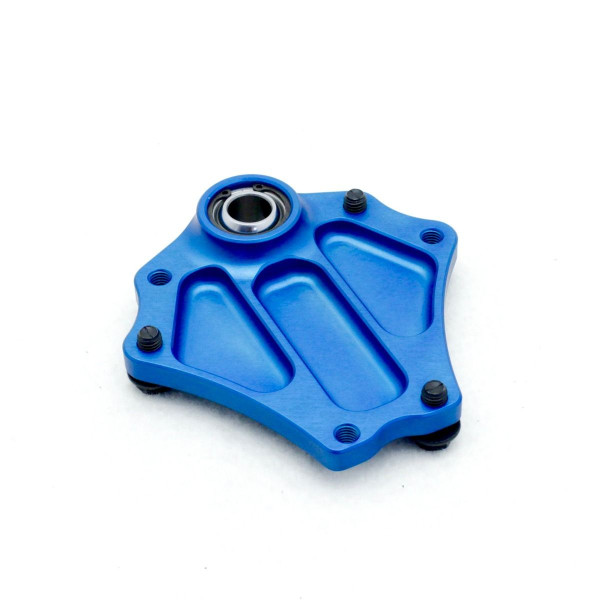

• Coilover upper mounts (FD compatible)
• Knuckles with hardware
• Lower control arms
• Assembled tie rods
• Installation guide

Fitment & Notes:

• Designed for use with the S550 steering rack. For maximum performance and steering precision, an S197 hydraulic steering rack conversion kit is available separately.
• Requires coilovers for proper clearance and height adjustment.
• Depending on wheel width and offset, wider fenders or fender flares may be necessary.
• Minimum wheel diameter: 17" (some 17" wheels may not fit).
• For wheel speed sensor use: Magnaride or Shelby speed sensors (part# JR3Z-2C205-B and JR3Z-2C204-B).
• For wheel bearing use: part# FR3Z-1104-F (Shelby GT350/Magneride chassis) or part# FR3Z-1109-A (Shelby GT500, includes extra long studs). Nissan 370z wheel bearings can also be used with the supplied fitting kit (note: wheel speed sensor will not function with the 370z option).

Recommended Alignment Specs:

• Camber: -4°
• Caster: 6°
• Toe: 2mm toe-out if Ackermann is 0 or negative; 0mm toe if Ackermann is positive
• Front track: 80mm wider per side than OEM
